Máquinas de rectificar por coordenadas (10)

Máquina de moagem de gabarito HAUSER S3-111

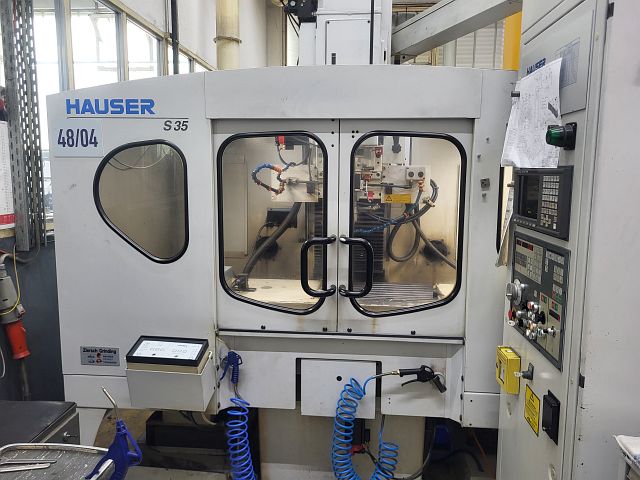

table length: 600 mmtable width: 380 mmcontrol: FANUC 0-M longitudinal travel: 500 mmcross travel: 300 mmlargest grinding diameter: 230 mmJig grinding machine | HAUSER - S35-400The machine is in a well-maintained condition.Please note that the technical details were added from comparable machines.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 600 mmtable width: 380 mmcontrol: FANUC 16-M longitudinal travel: 500 mmcross travel: 300 mmlargest grinding diameter: 230 mmJig grinding machine | HAUSER - S35-400The machine is in a well-maintained condition.Please note that the technical details were added from comparable machines.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 600 mmtable width: 380 mmcontrol: FANUC 16i-M longitudinal travel: 500 mmcross travel: 300 mmlargest grinding diameter: 230 mmJig grinding machine | HAUSER - S35-400The machine is in a well-maintained condition and can be inspected under power at any time in the factory location.Please note that the technical details were added from comparable machines.The machine video from the production plant will be shared on request.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Código 9602 DESCRIÇÃO Vertical JIG Grinder Fazer HAUSER Modelar 3 SMO Série Nº. 257 Máquina Nº. 1519-2564 Superfície da mesa 600 x 320 mm Longitude de movimento de mesa (X) 400 mm Cruz de movimento de mesa (Y) 250 mm Max. Diâmetro de moagem de 190 mm Coluna-Rotação 300 mm Máx. altura sob o fuso de 500 mm Eixo de movimento vertical 90 mm Cabeça de moagem de movimento vertical 500 mm Max. Velocidades de moagem pindle até 80.000 omw./min Peso 2000 kg Potência total de 6,6 kW – 380 Volts Acessórios Moído fusos, etc. Máquina de condição está em boas condições

x-travel: 400 mmy-travel: 250 mmworkpiece height: mmControl: CNC 314 ELESTA total power requirement: 15 kWweight of the machine ca.: 5500 kgdimensions of the machine ca.: mH A U S E R (Switzerland) CNC - Controlled High Precision Jig Grinding MachineModel S 3 – CNC 314 Year approx.. 1990 S/N 32086 ____________________________________________________________Table size, approx. 600 x 380 mmMax. load on table, approx. 300 kgTable travel, longitudinal, max. (X Axis) 400 mmTable travel, cross, max. (Y Axis) 250 mmVertical adjustment of grinding head max. (W Axis) 450 mmStroke of grinding spindle, max. (Z Axis) 120 mmTable Longitudinal and cross feeds  ...

x-travel: 650 mmy-travel: 450 mmworkpiece height: 585 mmControl: ADCOS CNC 400 total power requirement: 15 kWweight of the machine ca.: 5000 kgdimensions of the machine ca.: mH A U S E R (Switzerland)CNC Controlled Hi Precision Double Column Jig GrinderModel S 40 – CNC 311 / ADCOS 400 CNCYear 1981 / CNC modernized in 2008 # 0126__________________________________________________________________ ___Table size approx. 630 x 770 mmTable load capacity approx. 500 kgTable travel longitudinal max. (X) 650 mmGrinding head slide cross max. (Y) 450 mmVertical adjustment of cross rail max. (W) 500 mmGrinding spindle stroke max. (Z) 140 mmStroke number of grinding head (4cycles)  ...

curso x: 400 mmy-curso: 250 mmaltura da peça: 400 mmrequisito de potência total: - kWpeso da máquina ca.: 1,5 tdimensões da máquina ca.: 2 x 3 x 2 mNo. 0444Moedor de jig HAUSER 3 SMÁrea de trabalho: 400 x 250 x 400Visor digital de 2 eixos
