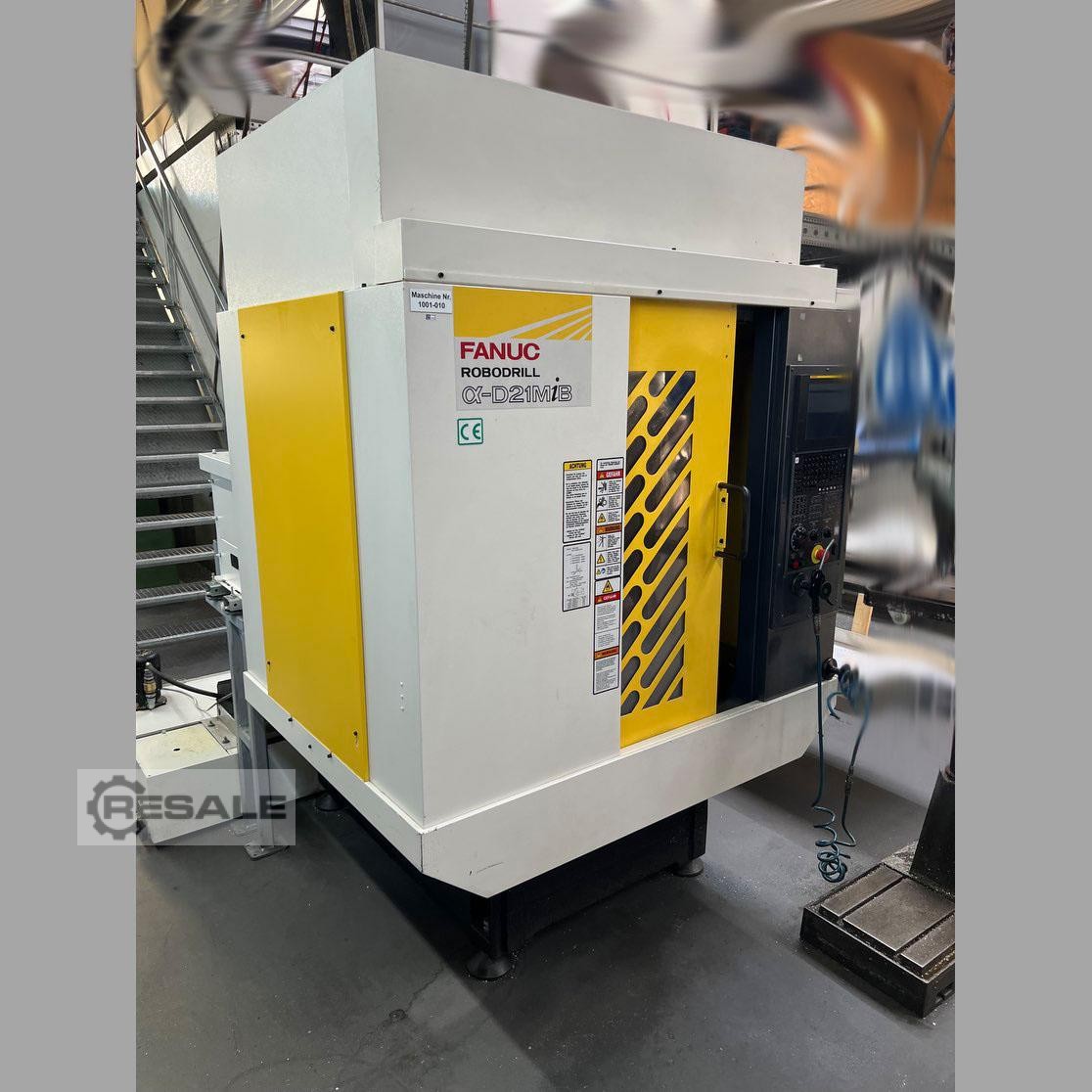

Centros de processamento CNC vertical FANUC Robodrill alpha-D21 MiB

GENERAL

Project No.: 905815
Quantity: 1 pcs.
Manufacturer: FANUC
Type: Robodrill alpha-D21 MiB

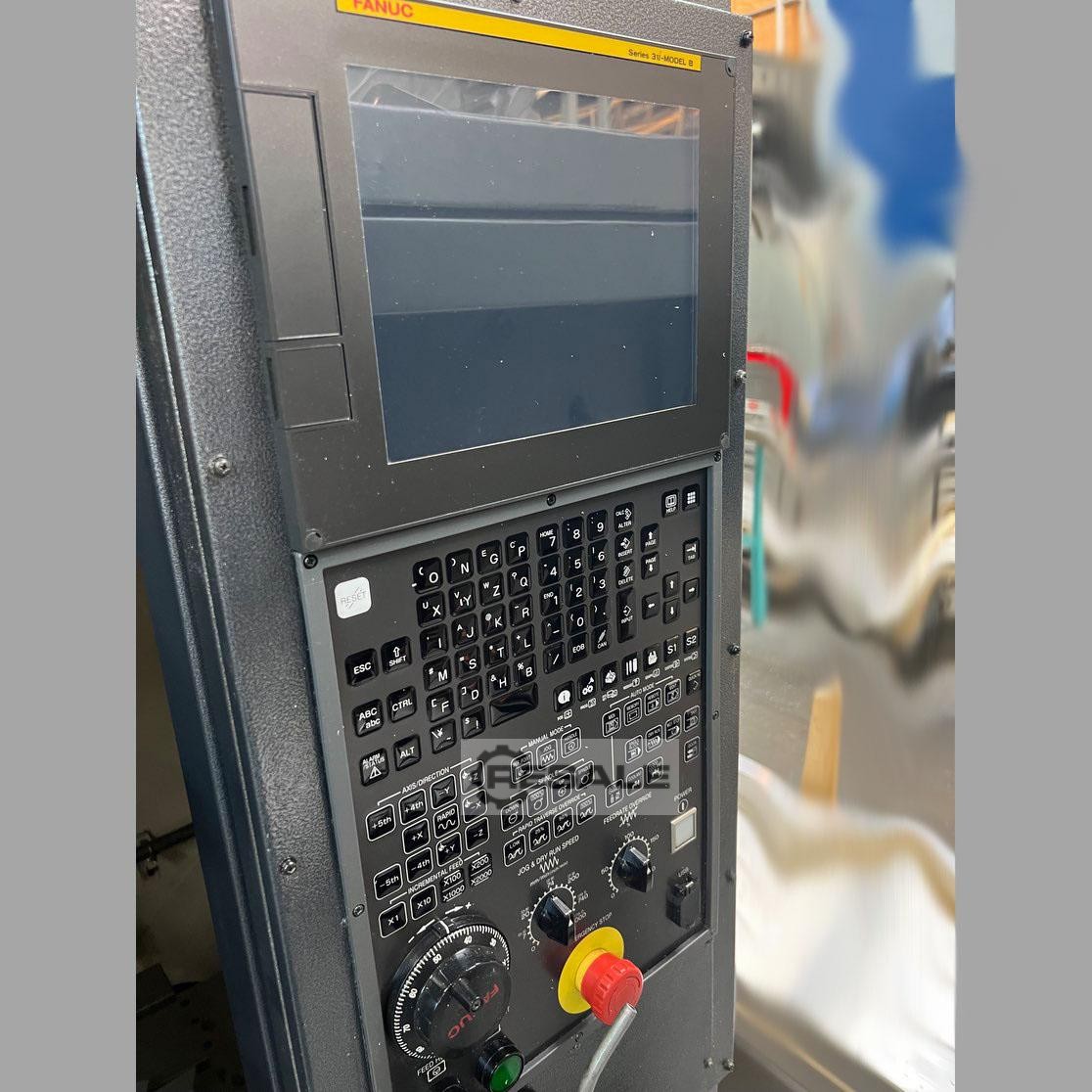

Control: Fanuc 31i B
Year of Make: 2019
Condition: Used machine
Approx. (hrs): 5937
Spindle Approx (Hrs): 836

DESCRIPTION

MILLING

Travel in X 500 mm
Travel in Y 400 mm
Travel in Z 330 mm
Max. rapid traverse speed in X/Y/Z 54/54/54 m/min
Max. feed speed in X/Y/Z 30/30/30 m/min
Max. acceleration in X/Y/Z 1.4/1.0/1.6 m/s2
Tool holder BT 30
Max. speed milling spindle 24000 1/min
Max. power at ED 10-40/100% 26/5.5 kW
Max. torque at ED 10-40/100% 35/7.5 Nm
Disc tool magazine 21 stations
Max. tool diameter 80 mm
Max. tool length 250 mm
Max. tool weight 3 kg
Tool change time 1.6 s
Machine table 850 x 410 mm

OTHER EQUIPMENT

Splash protection cladding with fully encapsulated working area
Lighting in the work area

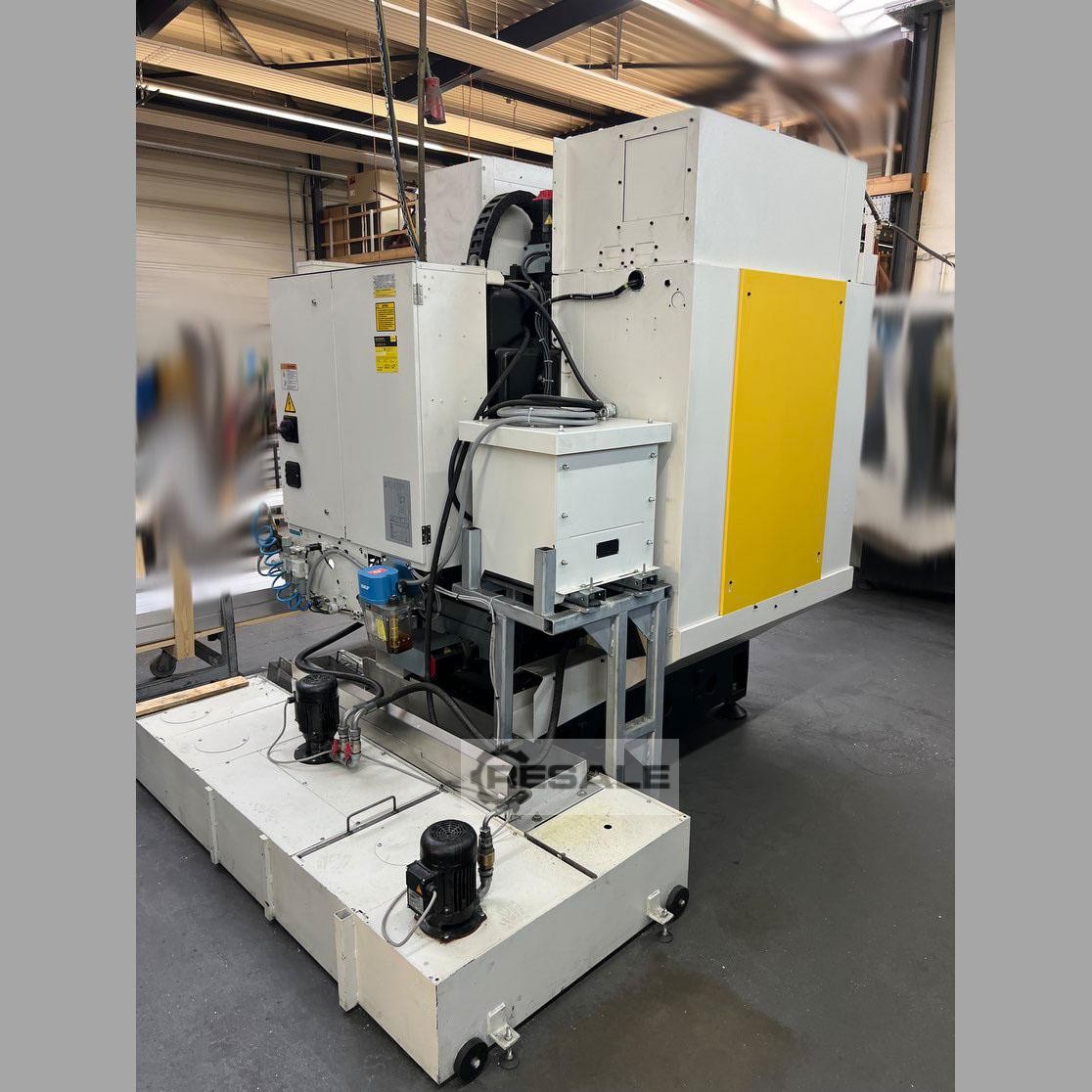

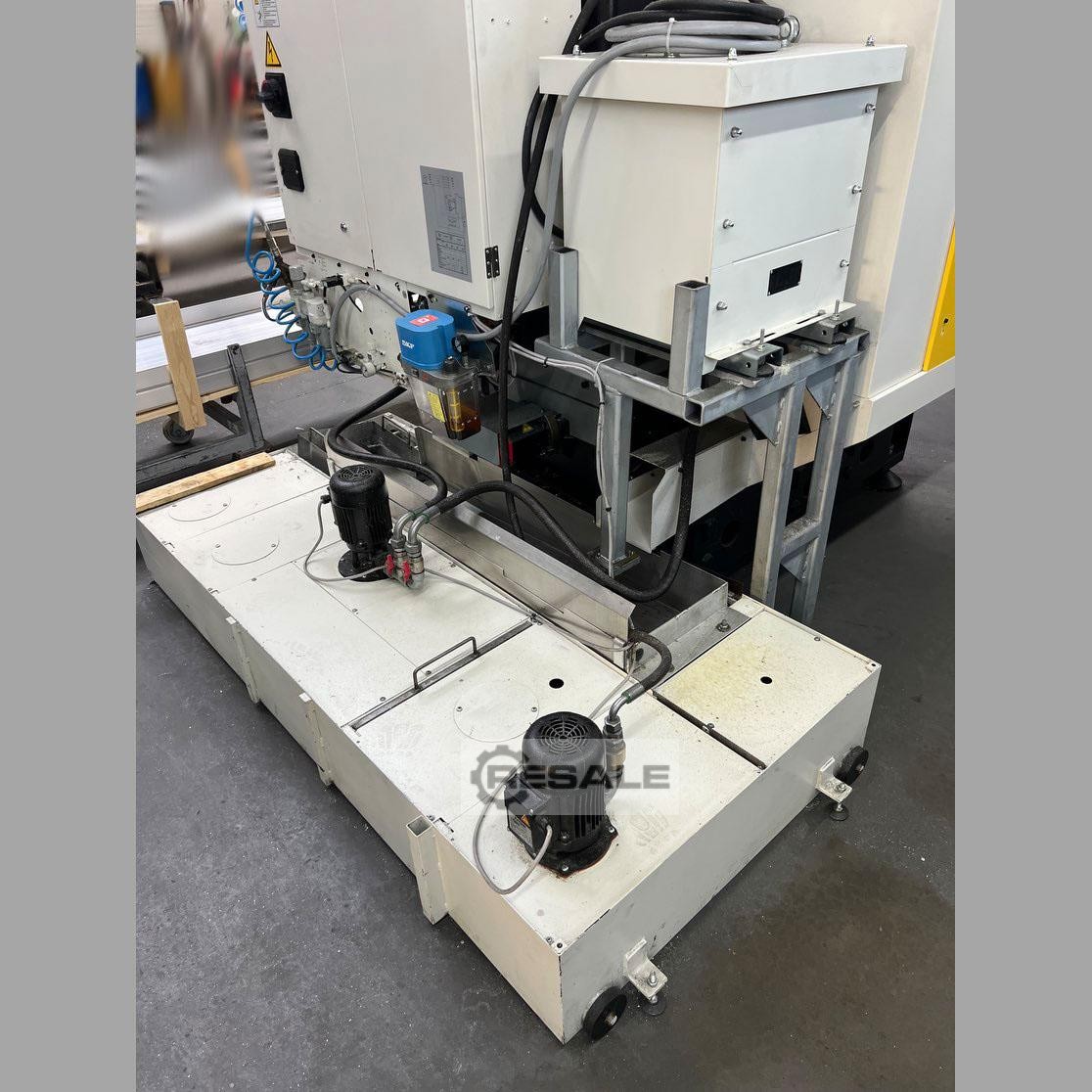

Coolant Setup

GENERAL TECHNICAL DATA

Total power requirement 10 kVA
Area W6124990 requirement of the entire W6124990 system (LxWxH) approx. 2650 x 2850 x 2775 mm
Machine weight approx. 2200 kg

NOTE

We have described the named product with the greatest possible care. However, since this does not come from our production, the data mentioned and the equipment details may differ. We therefore ask you to consider the description as non-binding and to check the data in detail during an inspection.
