Producent:
(Kategoria: 102)
faceplate diameter:2000 mmswing diameter:2130 mmturning height:1400 mmram stroke range:1000 mmworkpiece weight:10 tfaceplate turning speed range:1 -200 U/minmain drive:60 kWtotal power requirement:95 kWweight of the machine ca.:24 tdimensions of the machine ca.:6,0 x 4,0 x 5,6 mwith CNC SIEMENS 840 DC-axis driven tooling 15/22 kWautomatic toolchnager 16-pocketsthrough spindle coolantsplash guarding and chip conveyor
faceplate diameter:1800 mmswing diameter:2000 mmturning height:1170 mmz-axis:1000 mmcross rail adjustment - vertical:800 mmfaceplate speeds::2,5 - 280 workpiece weight:12 tfeeds:1 - 6000 mm/minmax. torque on the faceplate:50000 Nmtotal power requirement:85 kWweight of the machine ca.:41 tdimensions of the machine ca.:5,6 x 4,8 x 4,6 mMachine retrofit and overhould in 2005 with SIEMENS 840 D powerline control- 6 jaw hydraulic power chuck- tool changer for 12 tools- chip conveyor, coolant attachment, splash housing- various tool holders
faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories
turning diameter:300 mmswing diameter:350 mmturning height:275 mmx-axis:925 mmz-axis:250 mmclamping chuck diameter:200 mmFeed speed:30 m/min.total power requirement:45 kWweight of the machine ca.:7 tMachine was used just from time to time in the last years - very good condition!with CNC SIEMENS 840 D12-station turret head with driven toolingsworkpiece in and out conveyor beltcoolantattachment and chip conveyordiverse accessories
turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment

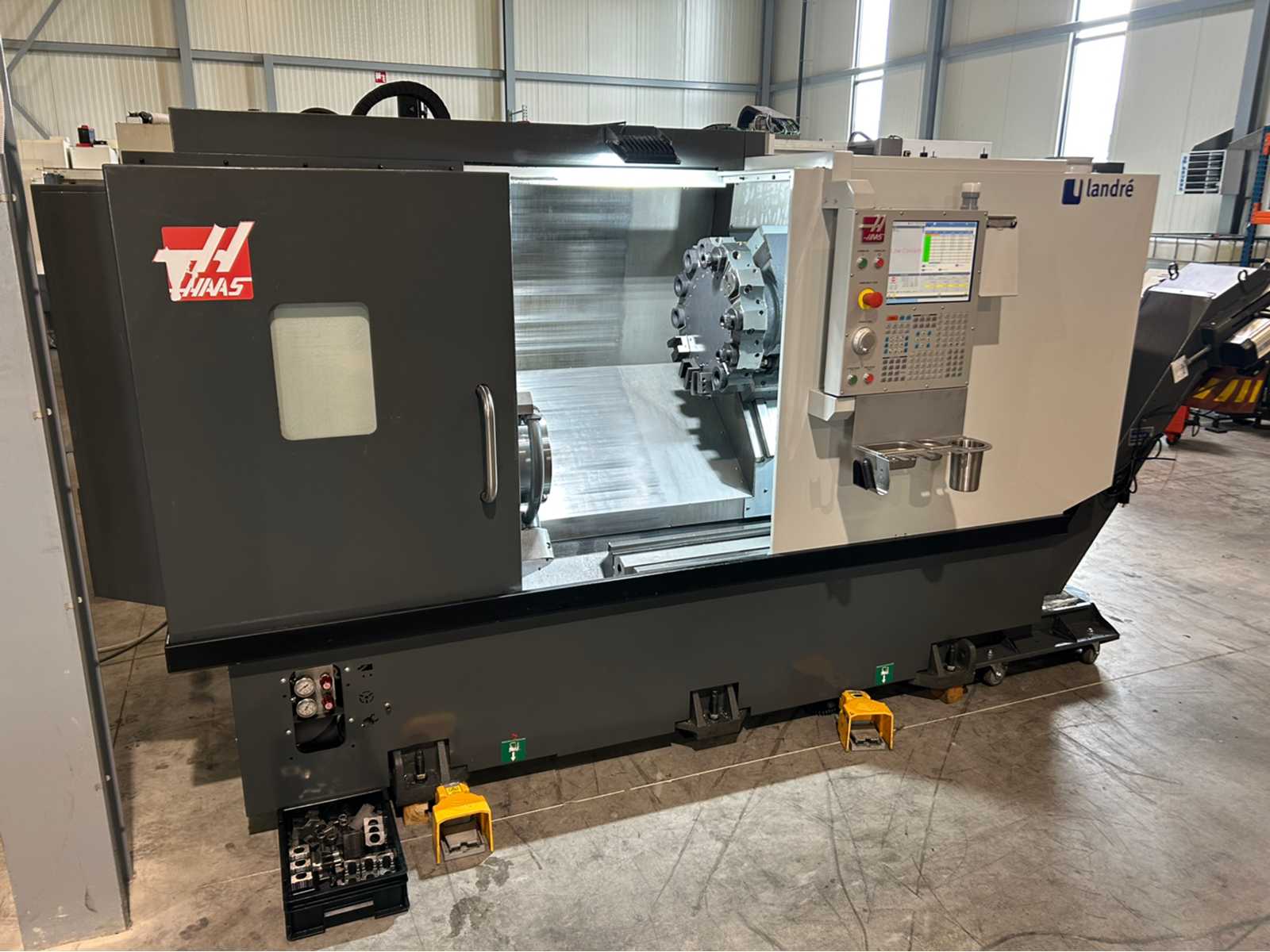

Specyfikacje: Sterowanie: Haan NGC Godziny otwarcia: 12:30 Podróże: Oś X: 239mm Oś Z: 826mm Wskaźniki feedu: Szybkie X/Z: 24m/min Wrzeciono: Prędkość wrzeciona: 3200 obr./min Moc silnika wrzecionowego: 29,8kW Moment obrotowy silnika wrzeciona: 576 Nm Nos wrzecionowy: A2-8 Rozmiar uchwytu: 305 mm Zmieniacz narzędzi: Pozycje na wieżyczce: 12 Stożek: VDI-40 Odległość między środkami: 826 mm Maszyna jest wyposażona w: - Przenośnik chipowy - Tylny kol - Ustawiacz narzędzi - Macro's - Sztywne stuknięcia - Edycja VPS - Wyświetlanie mediów - Maksymalna pamięć 1GB - Sieci bezprzewodowe - Tabele kompensacyjne - narzędzia pokazane na zdjęciach Auction-ID: A1-47218-2
turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1 ...

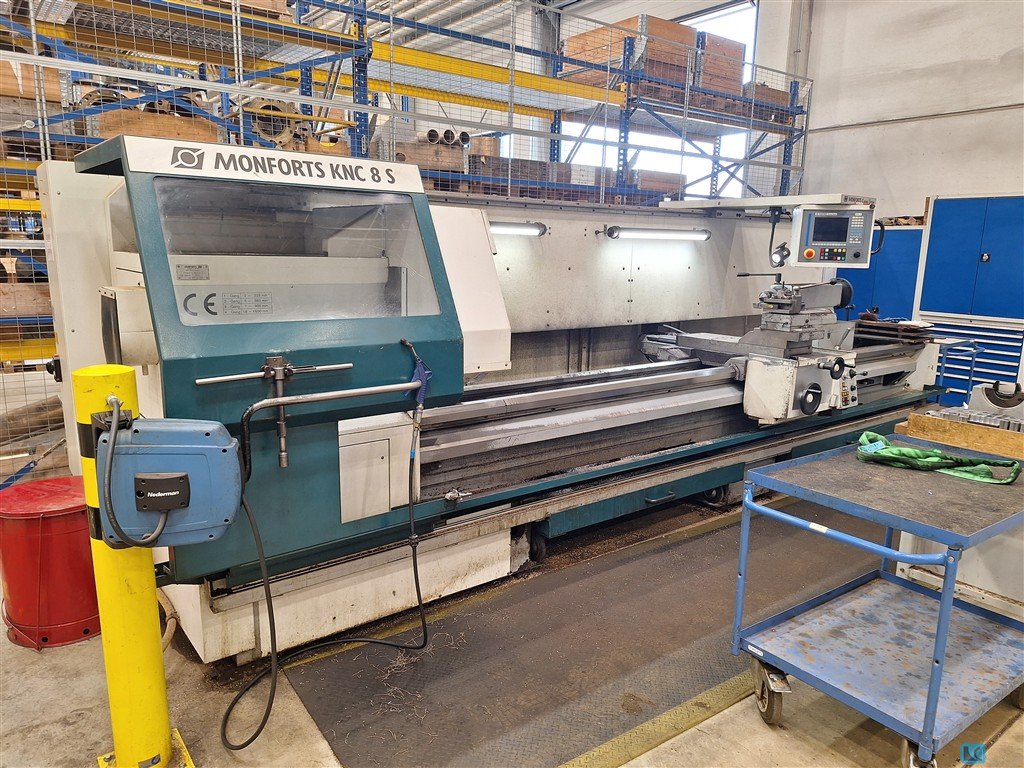

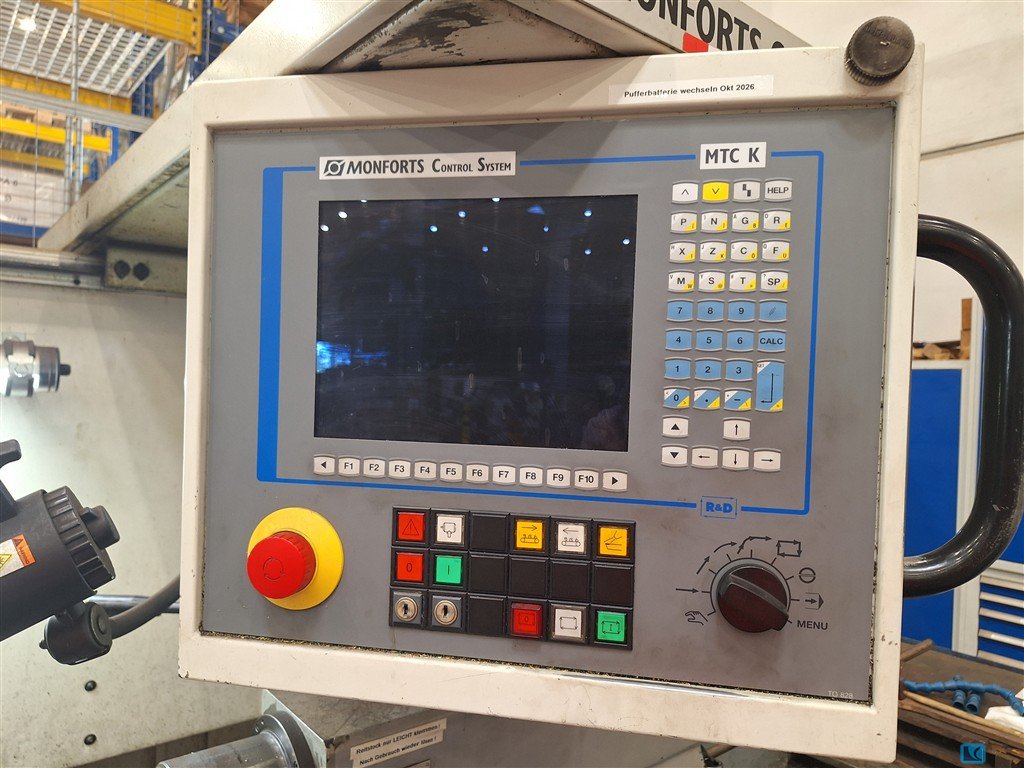

turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment
turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment

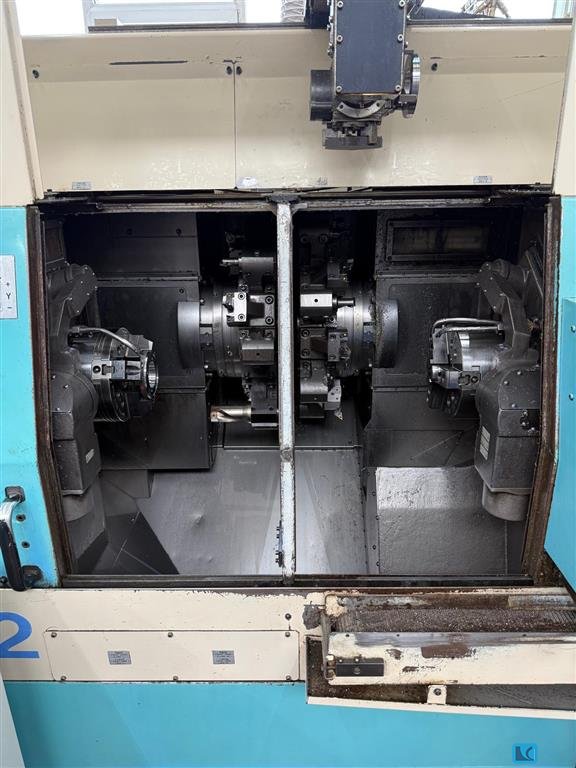

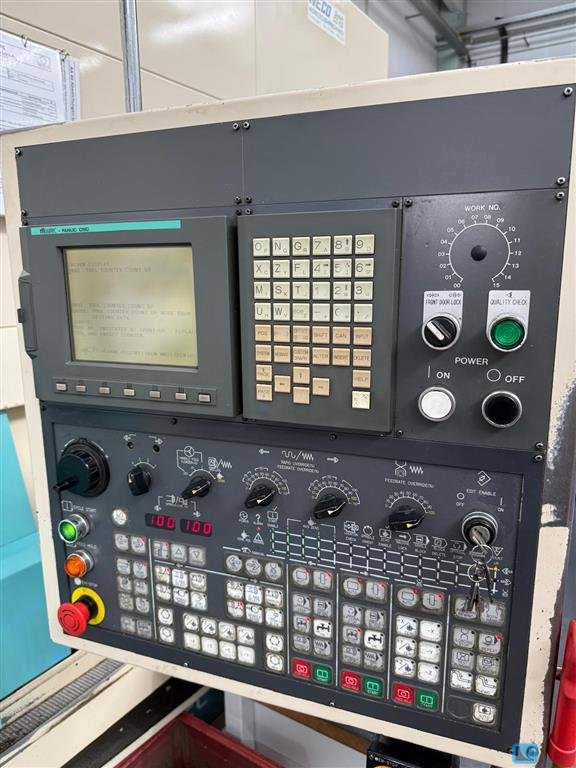

turning diameter:120 mmturning length:100 mmcontrol:Fanuc Spindle 1 power:7,5 kWSpindle 1 RPM:4500 1/minSpindle 2 power:7,5 kWSpindle 2 RPM:4500 1/minDistance between spindle noses:600 mmTurret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kWRPM of rotary tools turret 1:4000 1/minTurret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kWRPM of rotary tools turret 2:4000 1/minTravel x/z turret 1:250 / 300 mmTravel x/z turret 2:250 / 920 mmBar capacity spindle 1:51 mmBar capacity spindle 2:51 mmpower chuck:165 mm Spindle bore sp. 1:62 mmSpindle bore sp. 2:62 mmdimensions of the machine ca.:3700 x 2300 x 3000 mmweight of the machine ca.:5600 kgUsed CNC-2-spindle CNC turning and milling center with gantry loader- 2x 15 station turret-automatic gantry loader with turnaround station.14 station-magazin right sideMax. Parts size Ø 120 x 100 mmDoublegripper ...

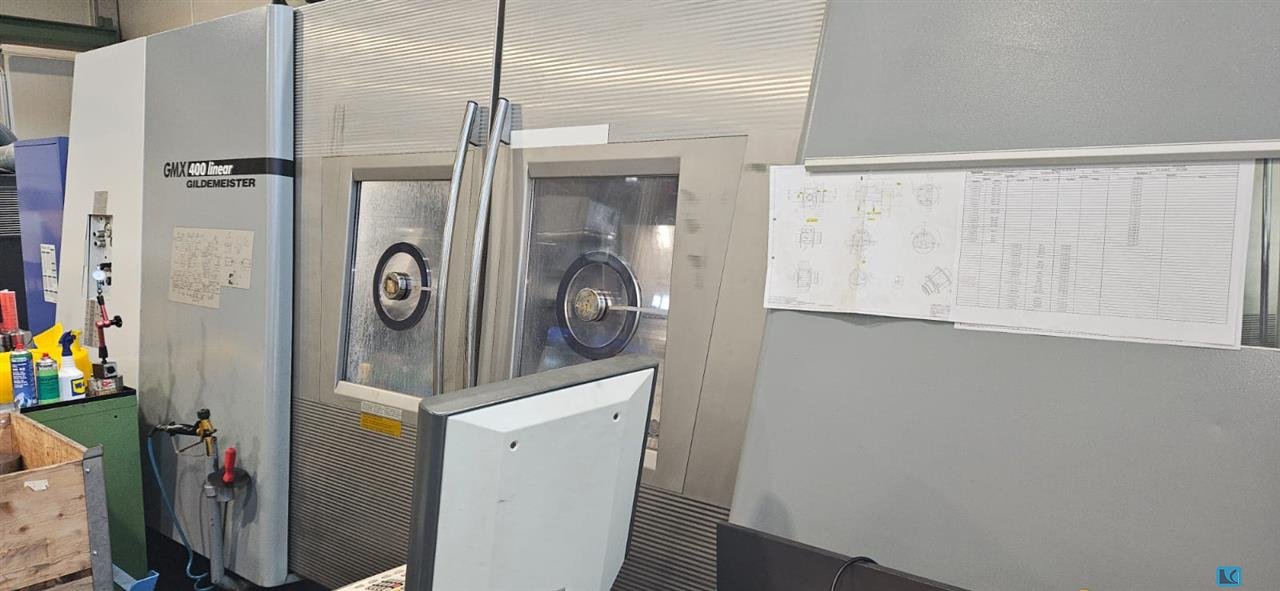

turning diameter:356 mmturning length:705 mmcontrol: CELOS M730 UM MAPPS swing dia.:742 mmstandard turning diameter:275 mmtravel -x axis:260 mmtravel -y axis:100 ( ±50) mmtravel -z axis:795 mmrapid travel - longitudinal/face:30 / 30 m/minRapid travel B-axis (parts transfer subspindle):734 m/minSpindle 1 RPM:4000 1/minSpindle 1 Power:15/18,5/18,5 kWSpindle 1 Torque:409/505 /599 NmSpindle 1 max. bar diameter:80 mmSpindle 2 RPM:4500 1/minSpindle 2 power:7,5/11 kWturret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min:3.7/5,5/5,5 kWtorque rotary tools:14 / 24 Nmtotal power requirement:38 kVAweight of the machine ca.:6,3 tdimensions of the machine ca.:4 (9) x 2,1 x 2,2 mParts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Milling Centre with Y-axi ...
turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmspindle turning speed range:40 - 3000 U/mintotal power requirement:6 kWweight of the machine ca.:1,0 tdimensions of the machine ca.:2 x 1 x 1,6 m
turning diameter:370 mmturning length:200 mmSpindle 1 RPM:4000 1/mincontrol:Siemens 840 D Spindle 2 RPM:4000 1/minpower capacity:L / R 18/24 kWmax. torque on the spindle:630 nMC-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40Turret No.2 stations / rotary tools:12/12 VDI 40turning speed range - milling:3000 1/minpower capacity - milling spindle:8,8 kWtorque rotary tools:28 NmBar capacity spindle 1:85 mmtotal power requirement:65 kVAweight of the machine ca.:13 tdimensions of the machine ca.:5,7x2,4x2,1 mTravel x1:260 mmTravel x2:260 mmTravel Y1:600 mmTravel y2:600 mmPower Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

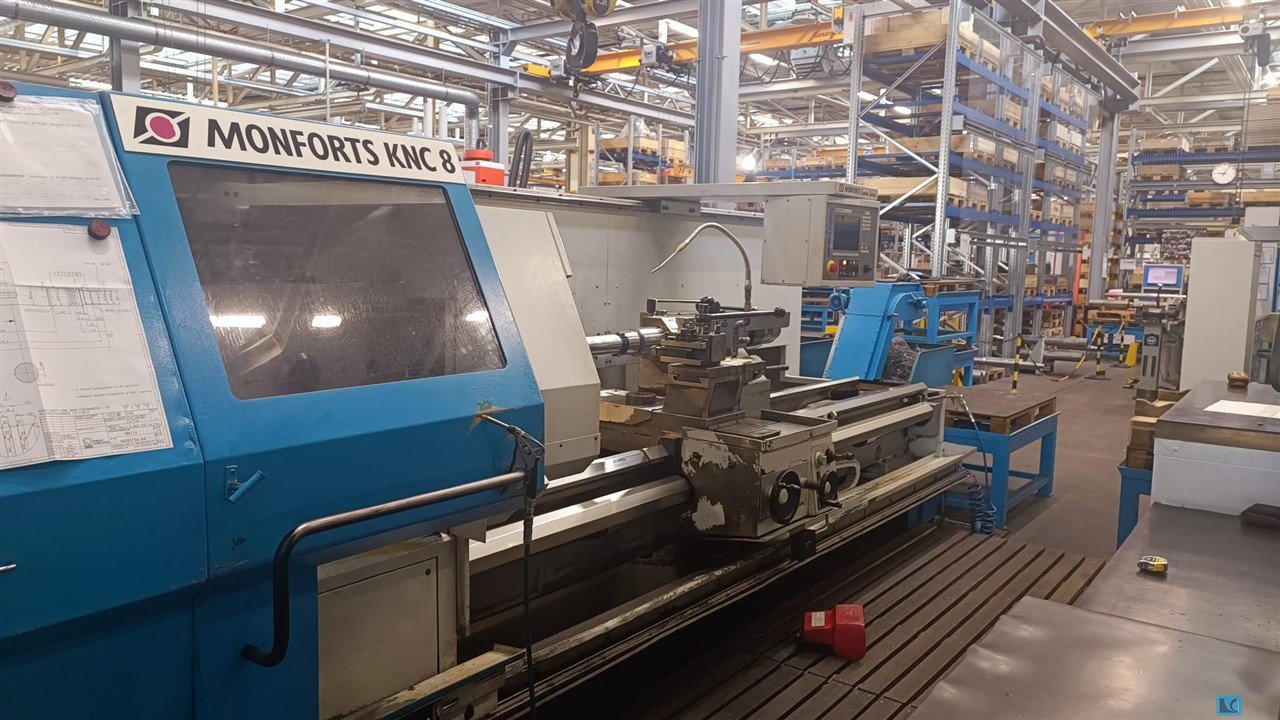

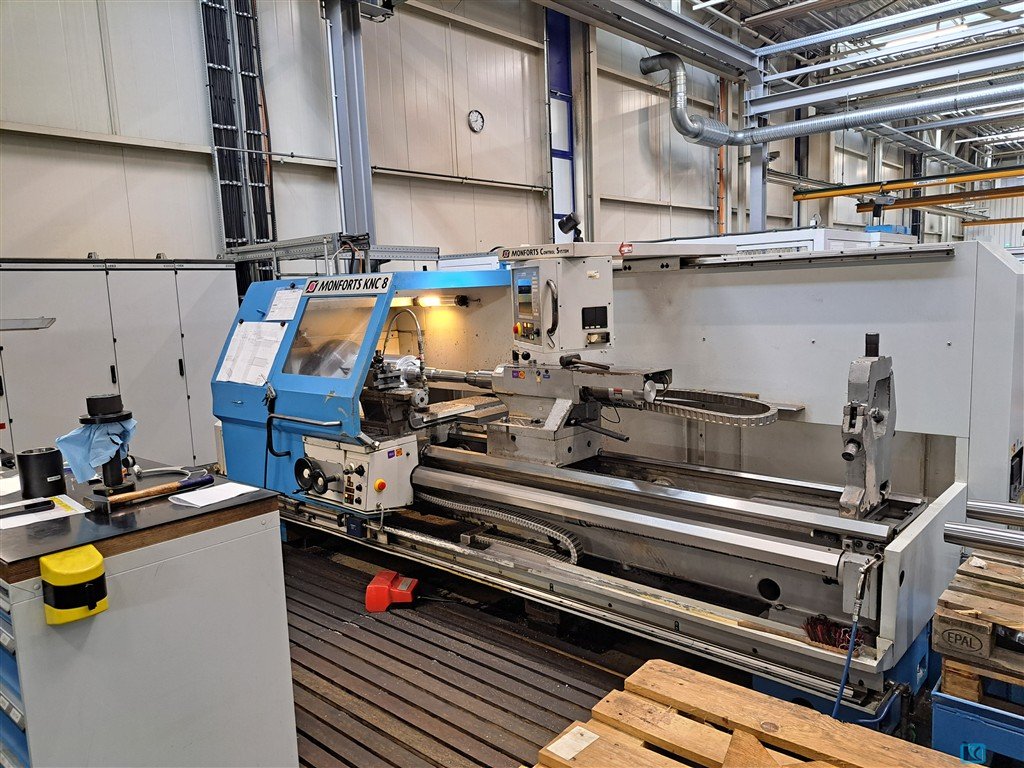

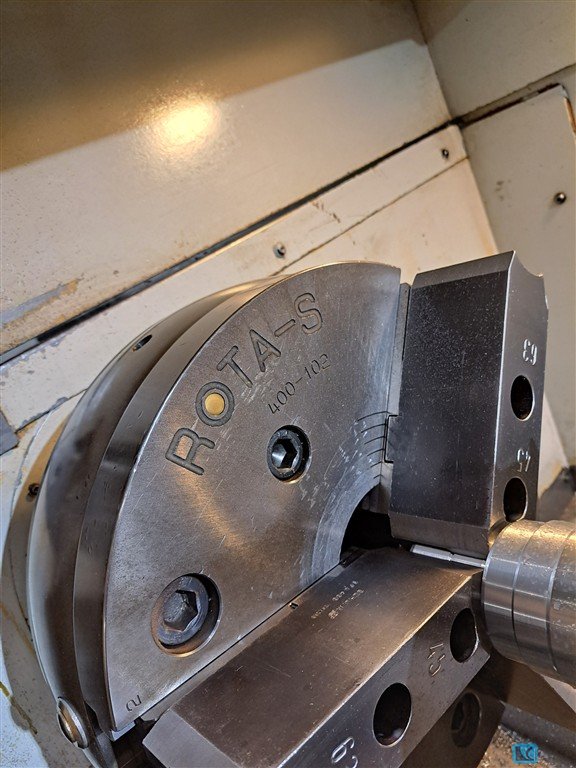

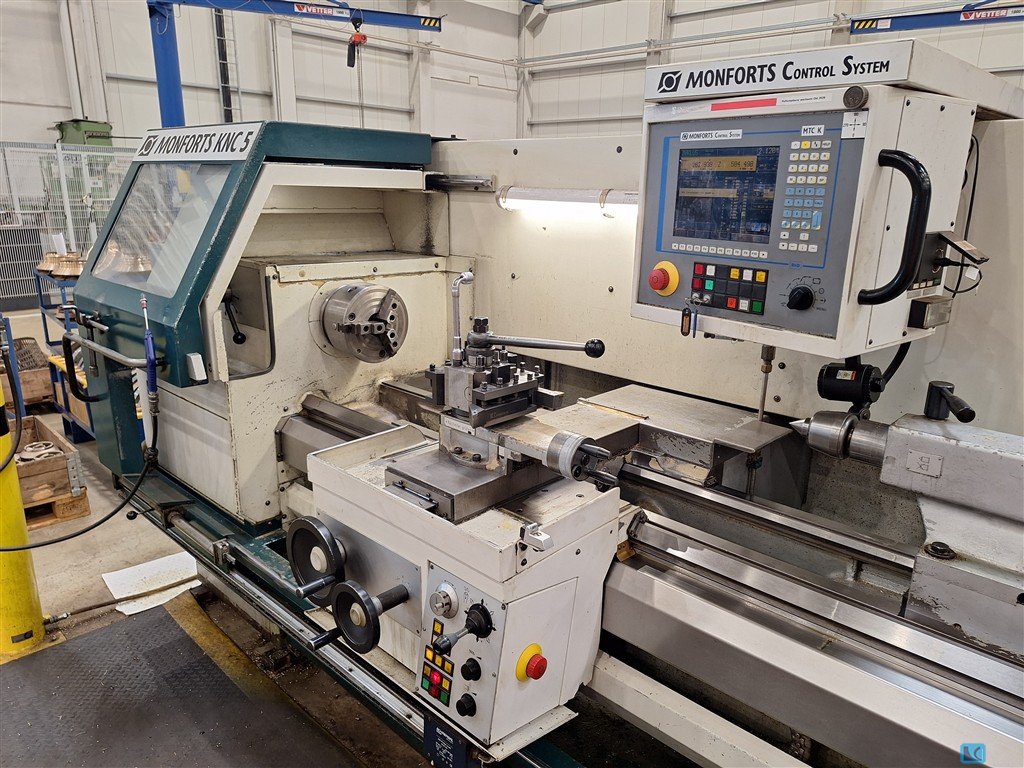

turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS IV greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 mm ...
turning diameter over bed:570 mmturning diameter over slide rest:365 mmturning length:2000 mmfeed per revolution:0,06 - 58 / 0,03 - 28 mmspindle turning speed range:11,2 - 2240 U/minspindle bore:62 mmspindle head:8 nach DIN 55022 total power requirement:15 kWweight of the machine ca.:4,8 tdimensions of the machine ca.:4,5 x 1,5 x 1,4 mwith digital readout HEIDENHAINrapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachmentdiverse toolholders, diverse jaws

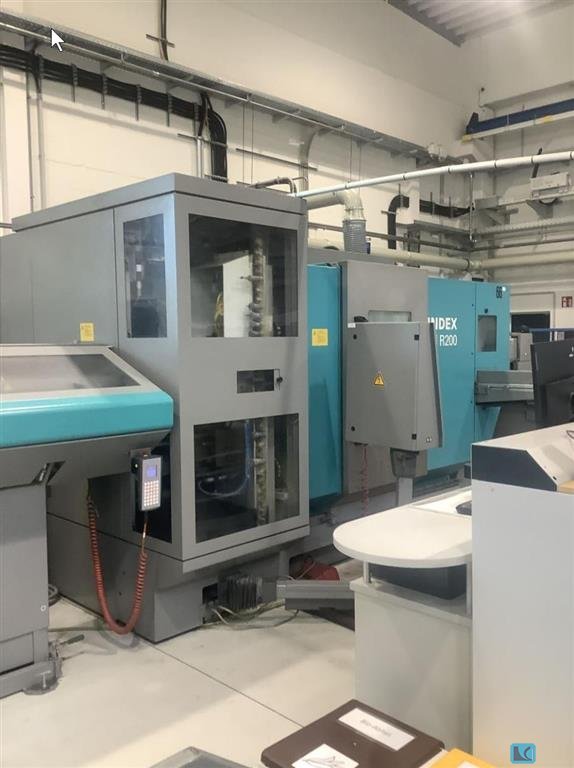

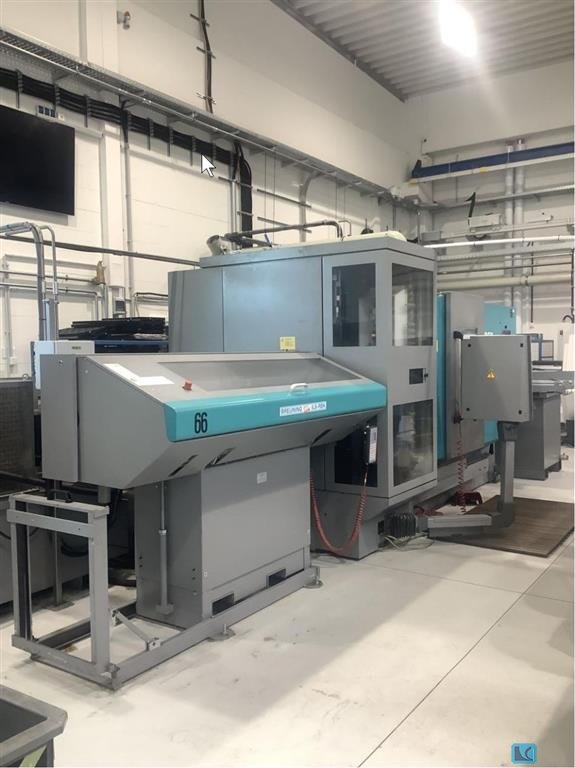

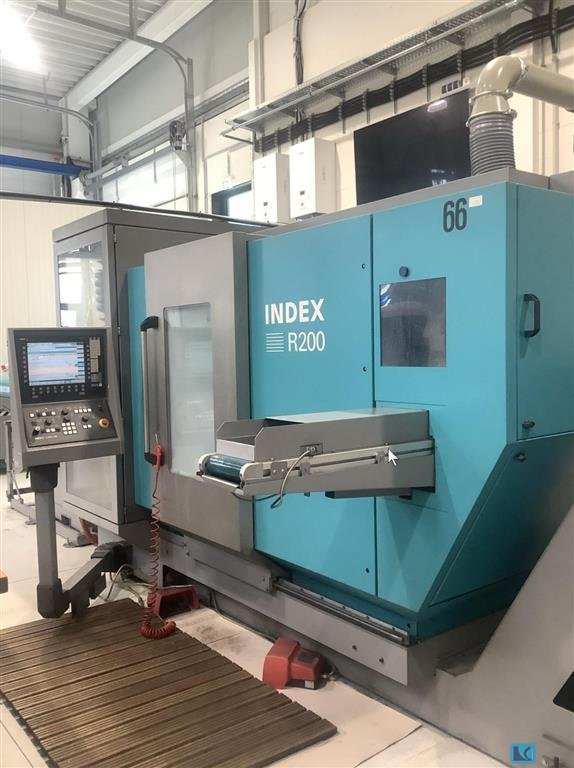

turning diameter:65 mmturning length:120 mmcontrol:Index C200-4D SL z-axis main spindle travel:390 mmz-axis subspindle travel:390 mmx-axis subspindle travel:600 mmTravel Y1:± 80 mmTravel y2:± 80 mmx-axis rapids:45 m/miny-axis rapids:15 m/minz-axis rapid travel:45 m/minSpindle 1 RPM:5000 1/minSpindle 1 Power:35,5/27,5 kWSpindle 1 Torque:170 /125 NmSpindle 2 RPM:5000 1/minSpindle 2 power:35,5/27,5 kWSpindle 2 torque:170/125 Nmc-axis:0,00014 °bar material dia.:65 mmspindle nose:AD 140 spindle bore:85 mmMilling spindle 1 RPM:18000 1/minMilling spindle 1 power:11 kWMilling Spindle1 torque:19 NmMilling spindle 2 RPM:18000 1/minMilling Spindle 2 power:11 kWMilling spindle 2 torque:19 NmB-axes swivel angle:230 °B-axes torque:440 NmB-axes angle resolution:0,001 °Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 internal coolant system fee ...
turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours
turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...

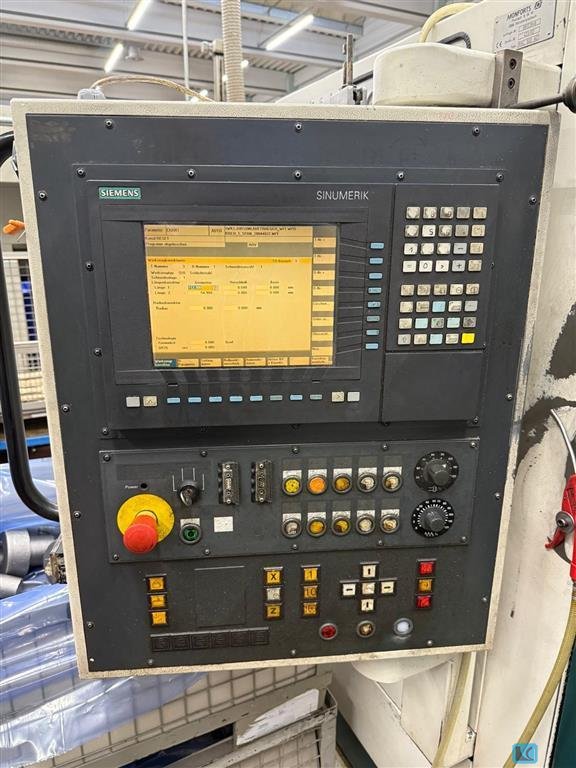

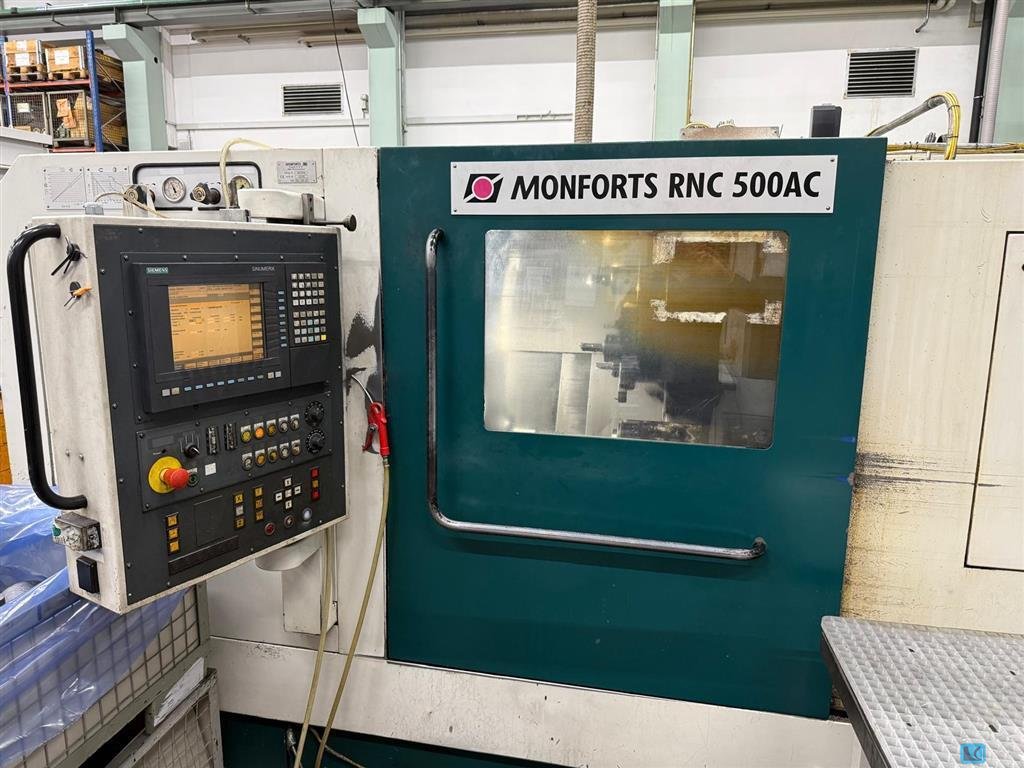

turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m

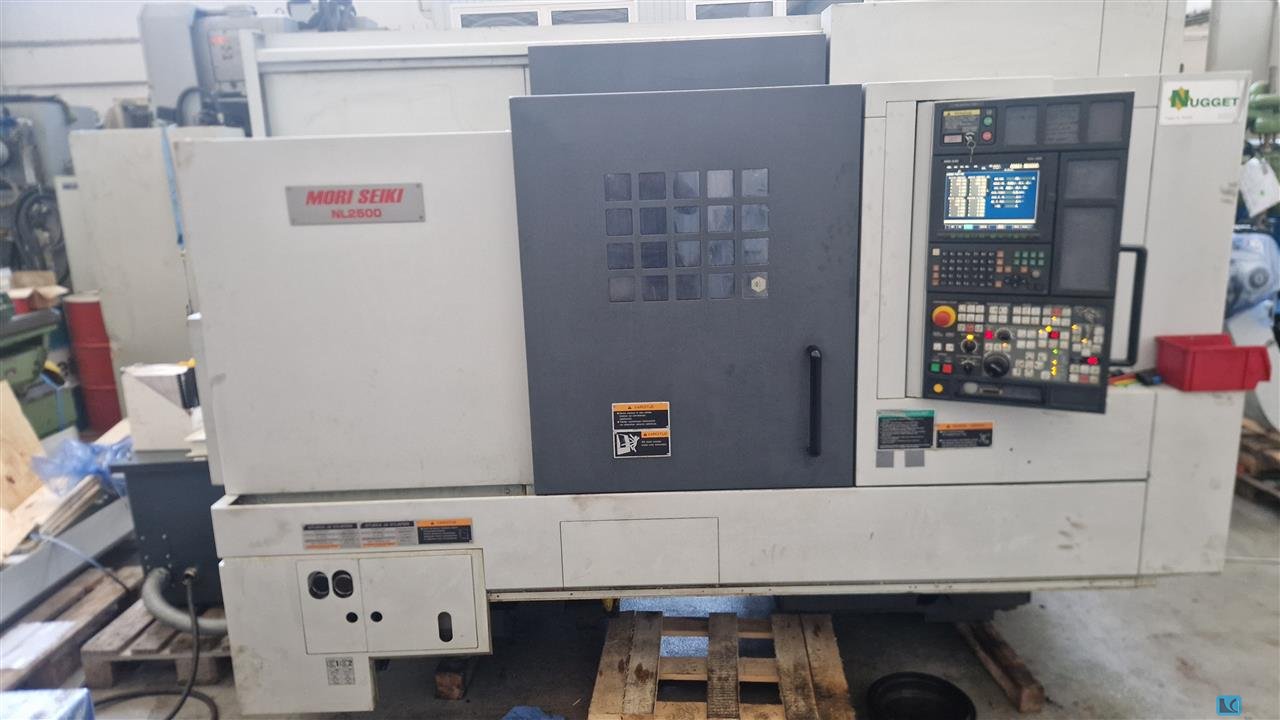

turning diameter:356 mmturning length:705 mmcontrol:MSX 850 MAPPS II swing dia.:755 mmstandard turning diameter:275 mmtravel -x axis:260 mmtravel -y axis:100 (+-50) mmtravel -z axis:795 mmrapid travel - longitudinal/face:30 / 30 m/minrapid traverse Y-axis:10 m/minRapid travel B-axis (parts transfer subspindle):30 m/minSpindle 1 RPM:4000 1/minSpindle 1 Power:18,5/18,5/15 kWSpindle 1 max. bar diameter:80 mmSpindle 2 RPM:6000 1/minSpindle 2 power:11 / 7,5 kWturret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kWspeed of driven tools:6000 1/mintotal power requirement:39,2 kVAweight of the machine ca.:6,2 tdimensions of the machine ca.:3,1 x 2,0 x 2,2 mSpindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle.Easy programming by MAPPS II Control.
turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm
turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m
Robot, narzędzia w wieży i filtr z mgły olejowej nie są uwzględnione Auction-ID: A1-47218-17

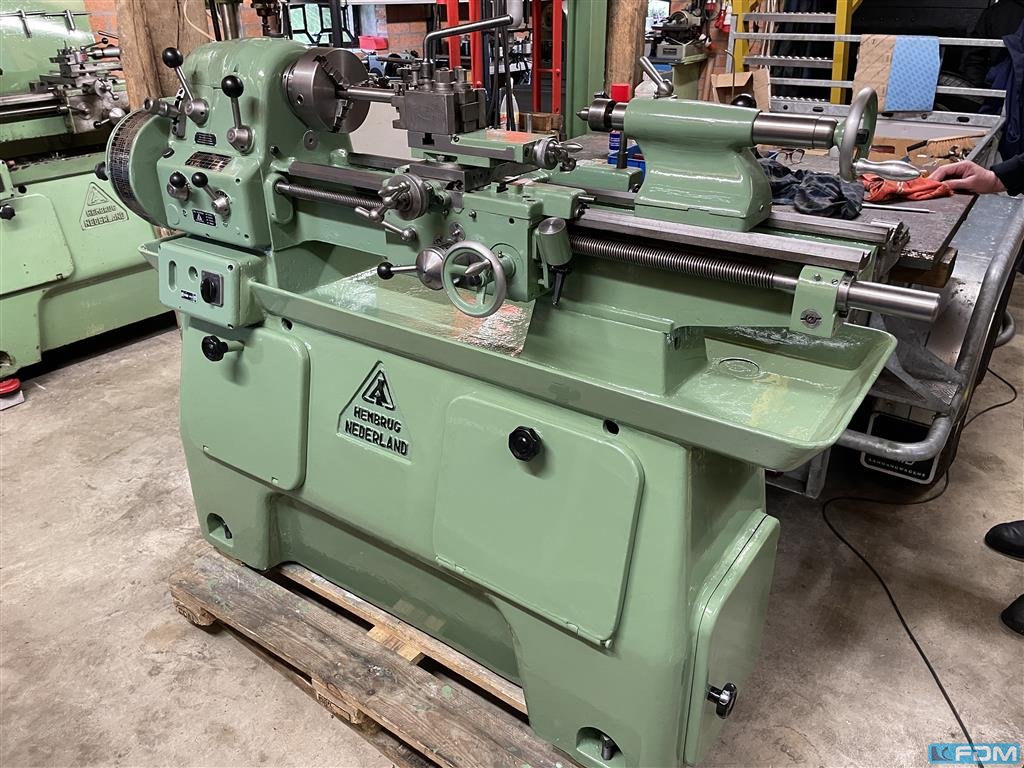

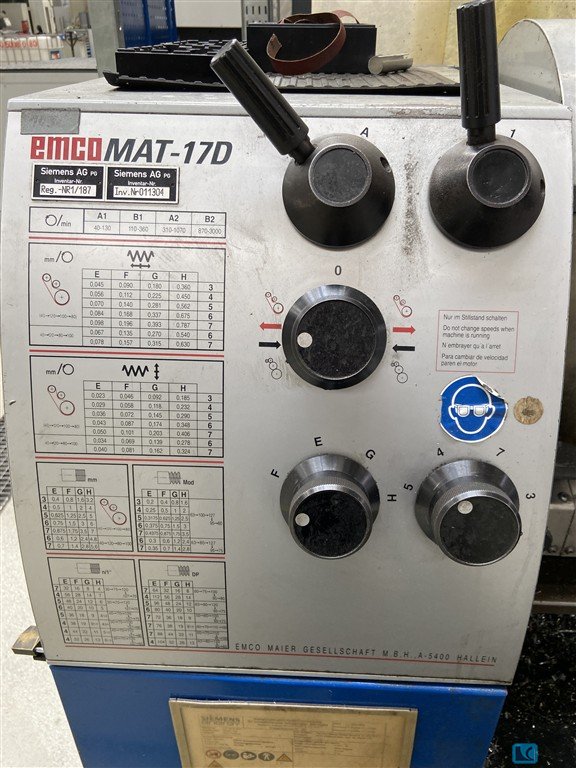

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32

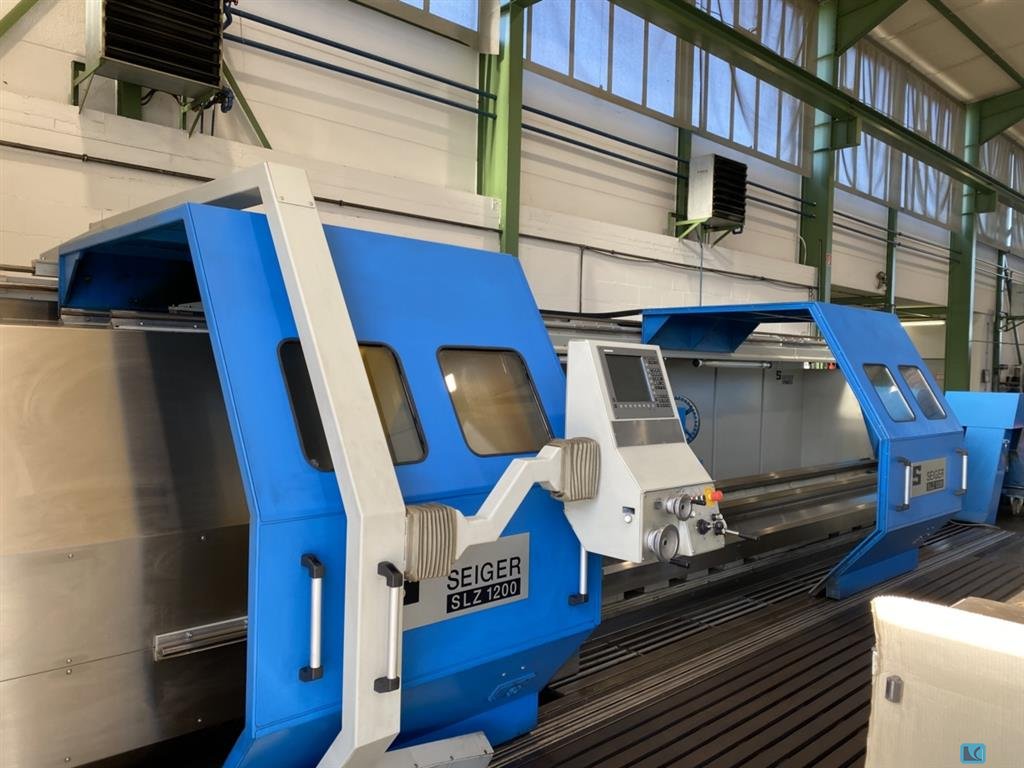

turning diameter:1250 mmturning length:6000 mmspindle bore:130 mmTurning rate:5 - 710 U/min.turning diameter over bed slide:850 total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mTeach In Controll HEIDENHAIN1 fixed steady
faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor
faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment
10.000 €
