Used DECIMO 50-2 handle applicator, PET - Year 2015Technical

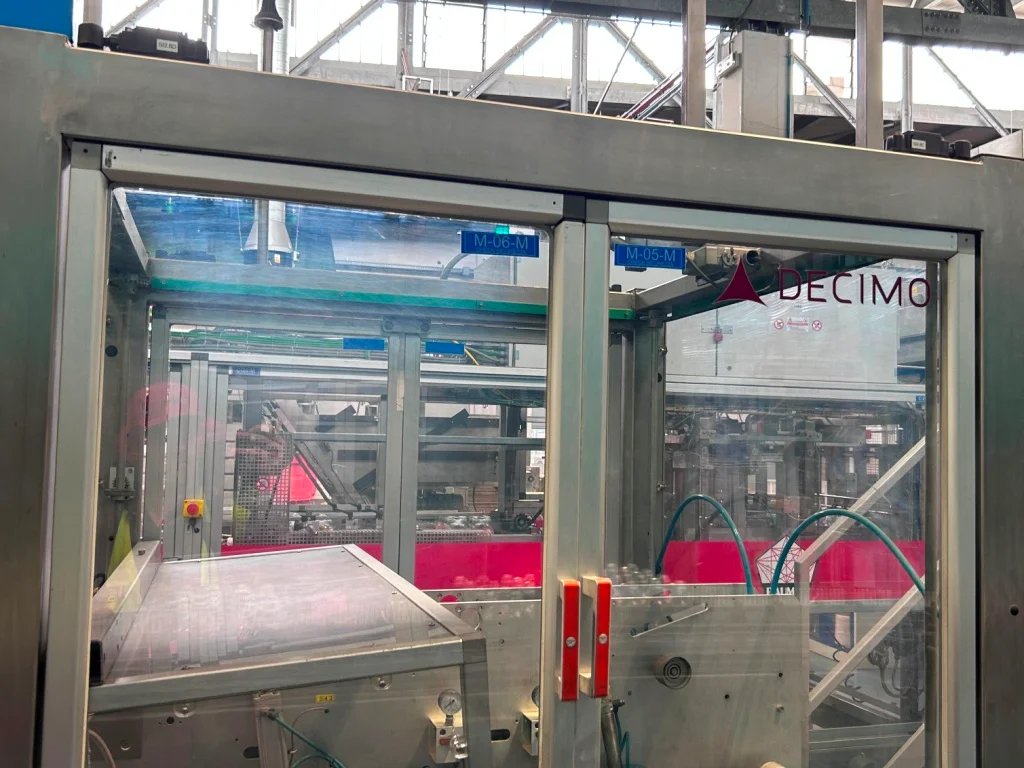

Specifications & Performance DataThe Decimo H 50/2 automatic handle
applicator is designed for applying pre-cut paper handles to PET
bottles in an industrial packaging and beverage production
environment. Built with a two-reel configuration, the machine supports
continuous handle application through automatic reel changeover,
helping reduce interruptions during production runs.Manufacturer:
DecimoModel: H 50/2Year of manufacture: 2014Container material:
PETCurrent bottle format: 1.5LNumber of reels: 2Maximum reel diameter:
Ø 300 mmHandle type: Pre-cut paper handlesWorking table height: 500
mmInstalled power: 4 kWAdvanced Automation & Control SystemsThe

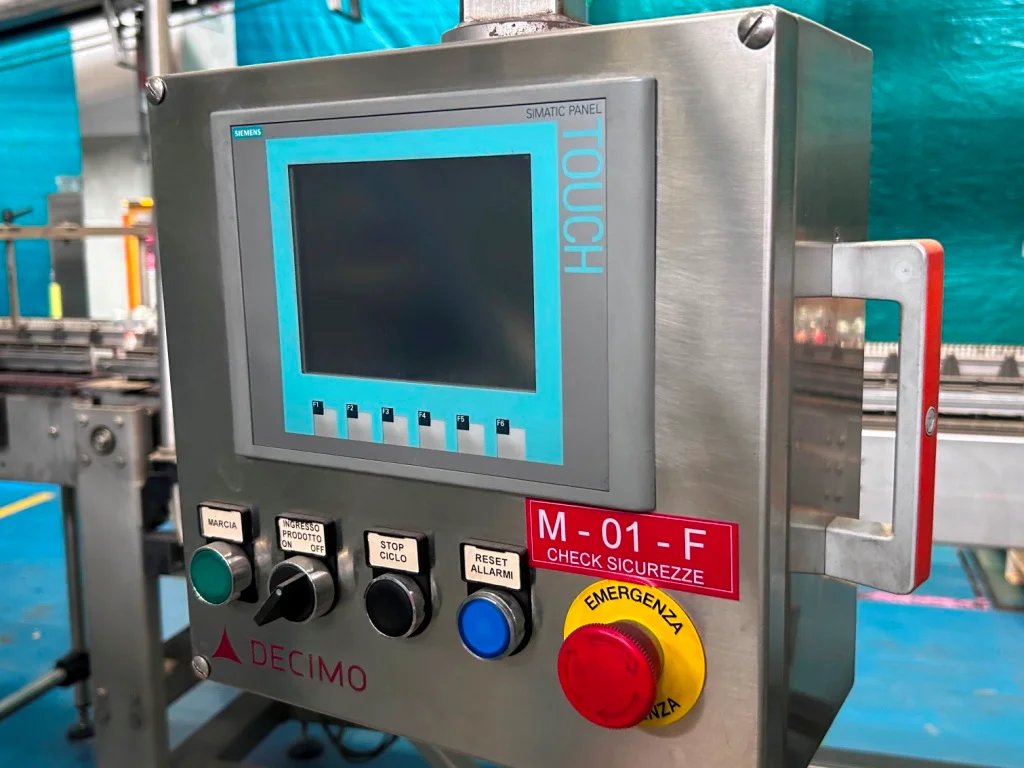

machine is equipped with a Siemens PLC and Siemens Simatic HMI,
providing a reliable operator interface for process management and
machine control. Its automatic reel changeover system is intended to
maintain handle material availability while supporting smoother
operation of the handle application process.Siemens PLC controlSiemens
Simatic HMIAutomatic reel changeoverElectrical supply: 400 V, 3 PH, 50
HzData plate rating: 380 V, 3 phases, 50 HzRated current: 5.5 AMaximum
inrush current: 17.7 AProduction Line Integration CapabilitiesThis
automatic handle applicator is suitable for integration into a used
bottling line after bottle filling, capping, labeling or secondary
packaging stages, depending on the line configuration. It is intended
for PET bottle handling and can support packaging operations for still
water, carbonated water, soft drinks, milk, oil, beer, wine, alcoholic
beverages and preserved products.For beverage production and
industrial packaging applications, handle application improves the
carrying convenience of larger PET bottle formats and multipack

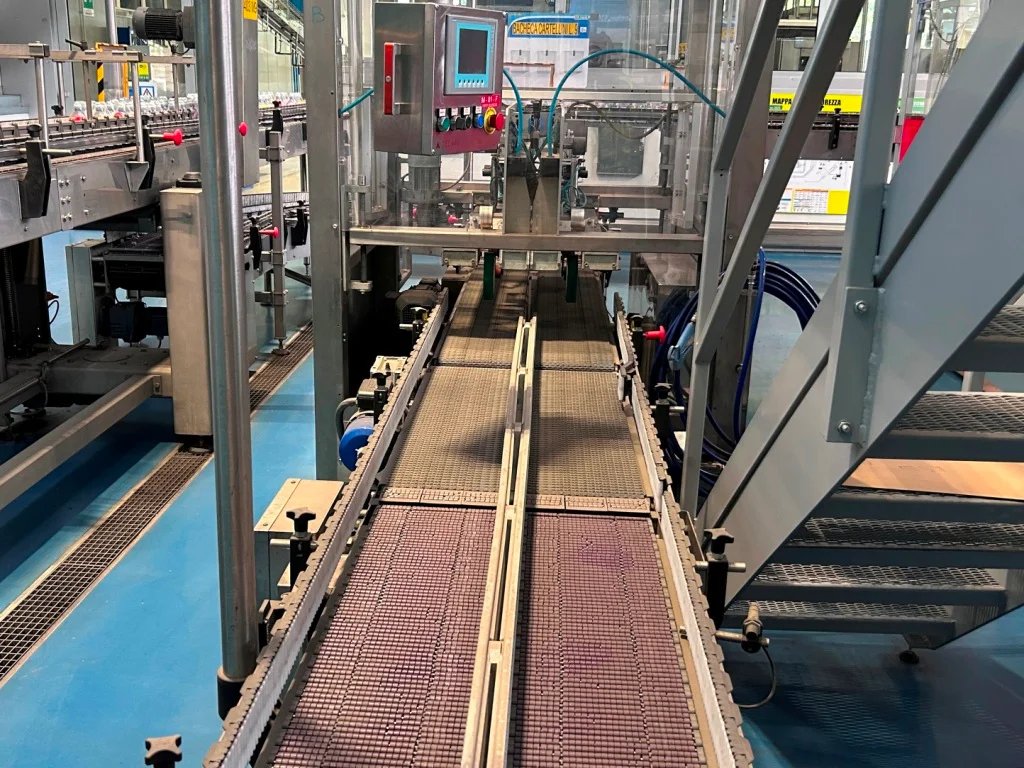

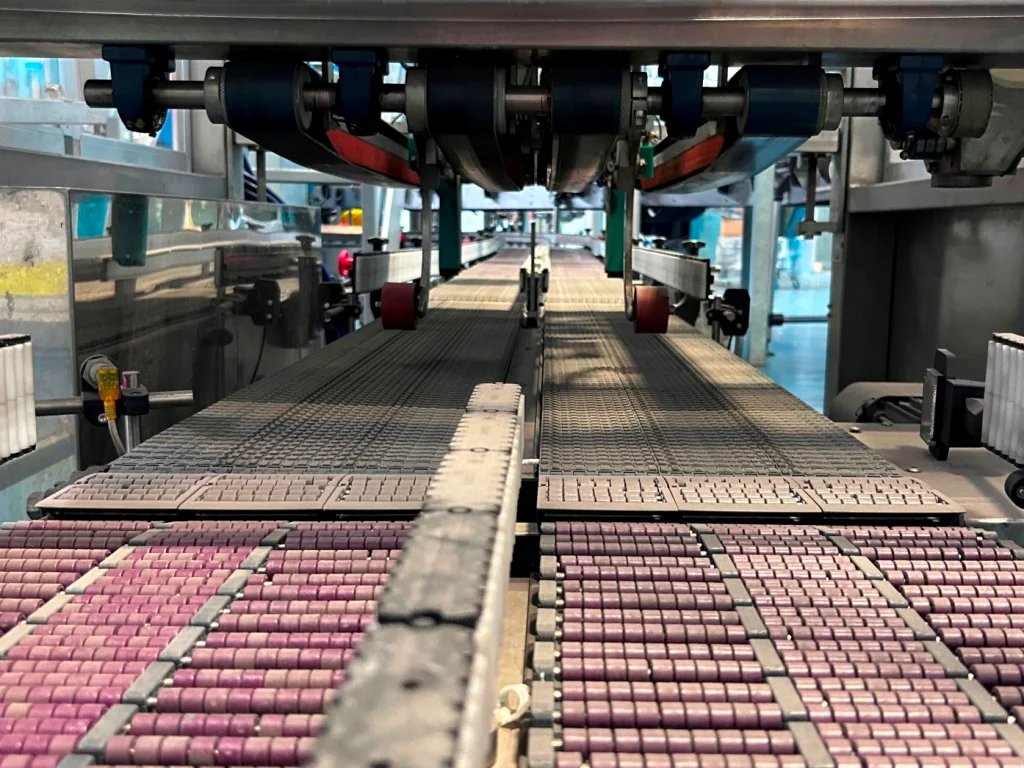

configurations. The machine can be installed inline with conveyors,
with access arranged for operation from both right and left
sides.Machine Condition & Maintenance HistoryThe handle applicator is
supplied with a 6-month warranty. Its automation configuration
includes Siemens control components and a two-reel material feed
arrangement with automatic reel changeover, supporting dependable
operation in second hand bottling equipment applications.Operational

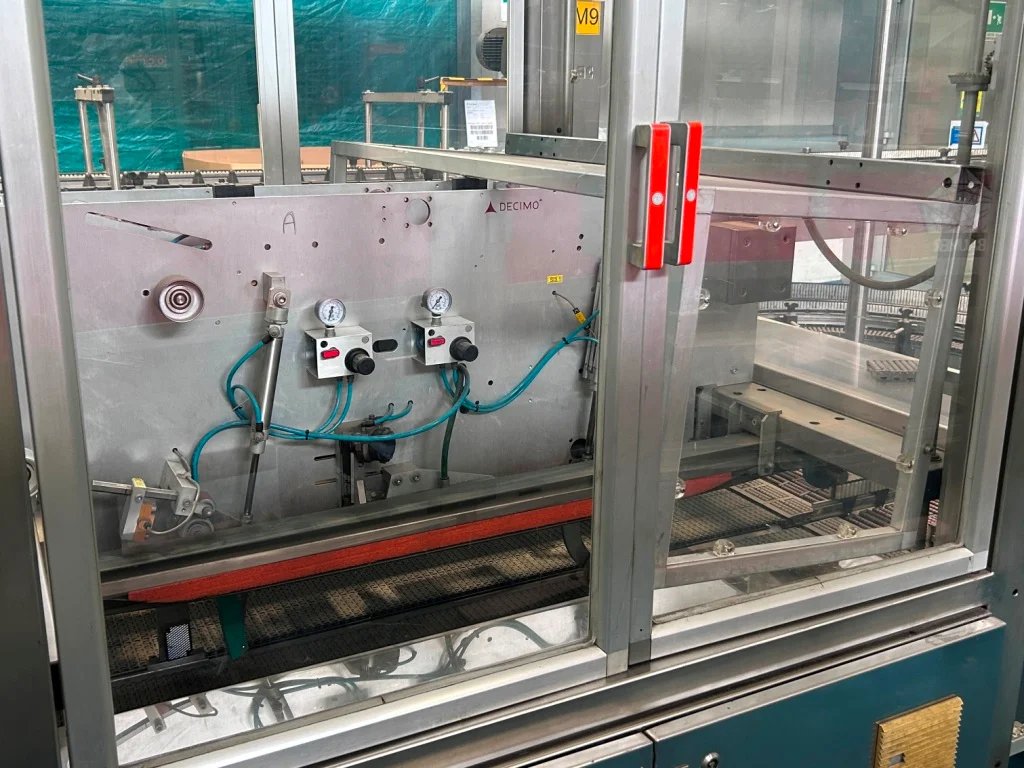

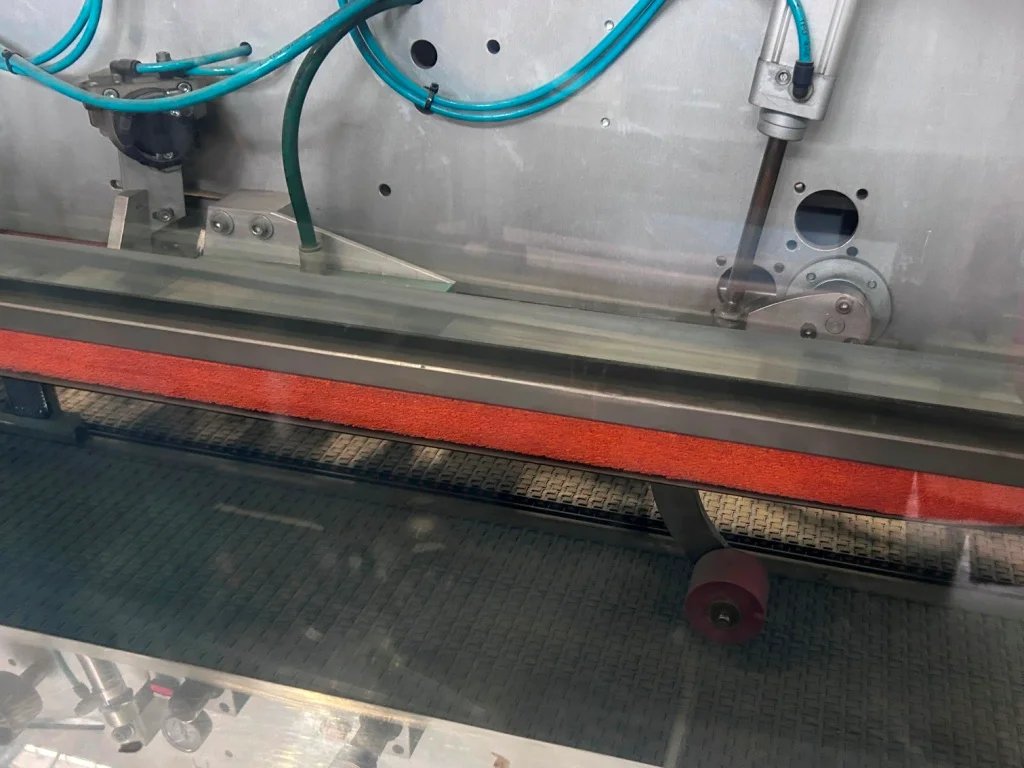

Performance & VersatilityThe Decimo H 50/2 applies pre-cut paper
handles to PET bottles. Its two-reel design enables the machine to
hold two material reels, while the automatic changeover function
supports continuous packaging flow when one reel is depleted. The
current configuration is set for 1.5L bottles.This equipment is suited
to industrial packaging operations where PET bottles require an added
carrying handle for consumer convenience. It can be considered for
water, CSD, milk, oil, beer, wine and other packaged liquid or
preserved-product applications where compatible PET bottle and handle
specifications are used.Installation Requirements & Site
PreparationThe machine requires a three-phase electrical supply at 400
V and 50 Hz, with installed power of 4 kW. Compressed air at 6 bar is
required for operation. The working table height is 500 mm.The
preliminary layout indicates an overall footprint with dimensions of
3229 mm and 1430 mm, plus a 2230 mm layout dimension. Installation
planning should provide suitable floor capacity, operator access,
reel-loading clearance and conveyor alignment for PET bottle
transfer.Safety Standards & Compliance CertificationThe machine layout
includes access-door swing areas that should remain clear during

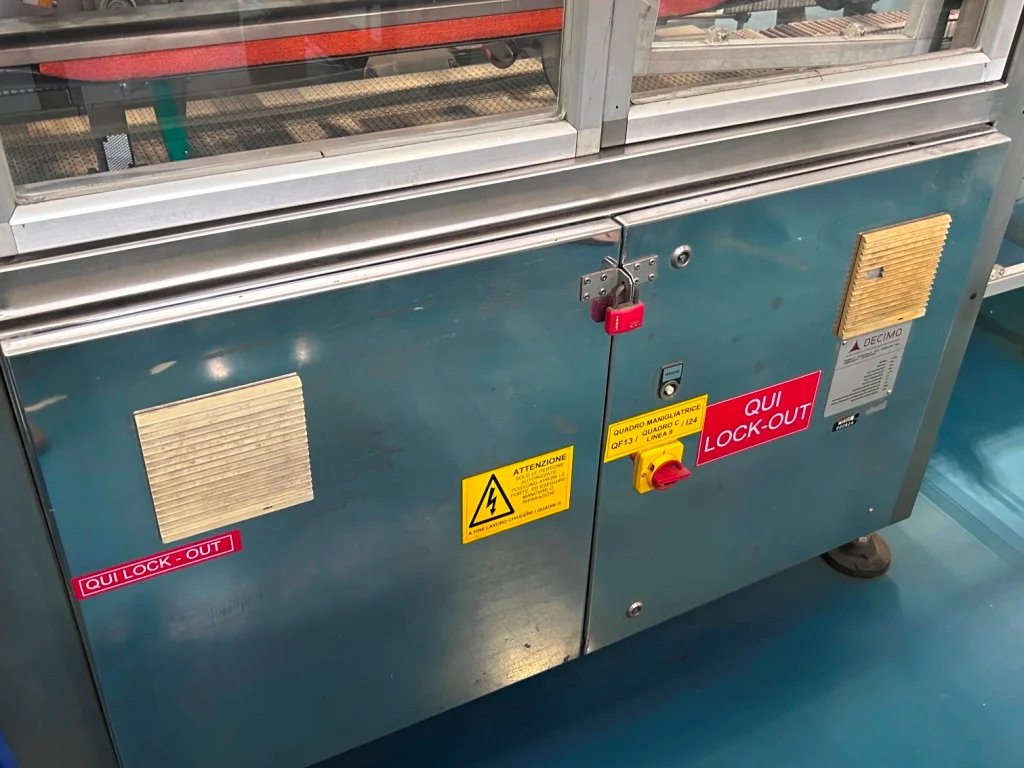

installation and operation. Proper machine guarding, electrical
protection, emergency-stop integration and safe access procedures
should be verified as part of commissioning within the production
line. The documented electrical protection-device breaking capacity is
6000 A.
