Manufacturer: Boschert
Model: Profi Bend 28/100
Year of Manufacture: 2012
Type of Machine : CNC die bending press
Technical Specifications
- Press force: 28 tonnes
- Bending length: 1000 mm
- Maximum sheet thickness: approx. 10 mm
- CNC control: Cybelec ModEva Pac / CybTouch 15

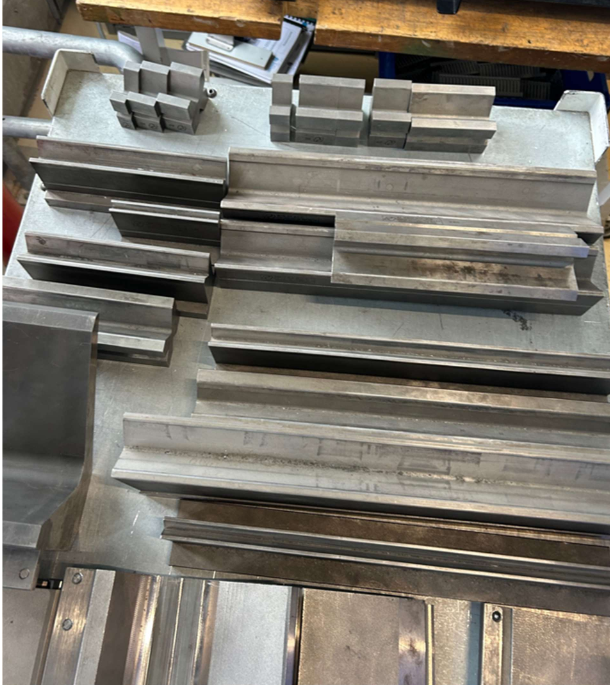

- Tool clamping system: WILA mechanical
- Backgauge: 2 lateral height-adjustable depth stops with 2 stop faces
each
- Backgauge (Y-axis): programmable, 99 programmes up to 30 steps
each
- Bending angle repeatability: 0.02 mm
- Handwheel for bending angle adjustment
Electrical Data
- Power supply: 3 x 400 V / 50 Hz
- Connected load: 5.5 kVA
- Control voltage: 24 V
- Required fuse: 3 x 16 A
Machine Condition
The machine was used exclusively in a research and testing environment
throughout its life, resulting in very few operating hours.
