Overview This rotary PET blow moulding machine was manufactured in 2003 by the German company Krones. The S8 model is designed for the production of high-quality PET bottles and adjusted for 1.5 L bottles and neck PCO1881. The machine remains in good operational condition, is immediately available, and can be integrated into existing production lines for beverages such as water, CSDs, or juices. Air conveying system is available. Technical data Application: PET bottle production Capacity: 14,000 bph year of manufacture: 2003 Bottle Formats: 1.5 L Neck Finish: PCO1881 center-cooling air conveying system available scope of supply: blow moulder Krones Contiform S8 (2003) cooling unit preform feeding preform container preform tilting device air conveying system available
Overview This isobaric PET bottle filling and capping machine was manufactured in 1996 by German company Krones. The block machine includes an ALCOA capping machine for screw caps and a cap feeding system from Gassner. It is suitable for carbonated soft drinks. The machine is out of production but still connected. Technical data filling and capping machine as a block system number of filling stations: 132 number of capping stations: 30 isobaric filling system suitable to carbonated soft drinks capping system: ALCOA Kupi 30/1080 for screw caps cap feeding system: Gassner capacity: 36.000/h at 1,0L including neck handling system bootle lifting cylinders direction: left-right / clockwise
Overview The machine was built in 2018 by the german manufacturer KRONES and is designed for high-speed wrap-around labeling from the reel. This machine is ideal for bottling lines requiring flexibility across various labeling technologies. The machine was taken from a production line and is fully functional. It is available for inspection and can be disassembled, packed and shipped on request. Technical data year of manufacture: 2018 Capacity: approx. 20,000 /h Bottle Formats: 0.5 L, 1.5 L PET Worked Labels: IN REEL Reel Change: Automated Electrical Supply: 400 V ± 5%, 50 Hz ± 1%, 3P + N + PE, auxiliary 24 V DC Protection Class: IP 54 (main panel and motors) Modular Design (Plug & Play): Features automatic docking stations allowing quick and toolless changeovers between different labeling methods (e.g., hot melt, cold glue, self-adhesive, wrap-around) Versatility: Capable of han ...
Overview This cold glue labeling machine was manufactured in 2000 by Krones. The machine is designed for the application of cold glue labels on bottles. The machine is equipped with three labeling aggregates (front, back, and neck/seal label) and operates with a 20-head rotary table, making it suitable for medium-speed beverage production lines. The unit includes an integrated Krones Checkmat inspection system for quality control and comes with 11 bottle formats (0.5 – 1.0 L). Maintenance was performed as required. Technical data Capacity: up to approx. 15,000 bph Formats: 0.5 L – 1.0 L, 11 formats Application: Cold glue labeling of bottles Configuration: 20-head rotary table, 3 labeling aggregates Label positions: Front, back, neck/seal label Utilities: Standard Krones control system Incl. 3 glue pumps for cold glue system, Inspection system (Krones Checkmat), Format parts, D ...
Overview This empty bottle inspector (EBI) was manufactured in 2009 by Germany Krones. The machine is designed for the inspection of empty glass and PET bottles prior to filling in beverage production lines. It was previously used in production and has been professionally dismantled and stored in a warehouse. The machine is available immediately from warehouse. Technical data Capacity: Not provided Formats: 0.75 L Gourmet bottle 0.25 L Gourmet bottle 0.25 L Vichy bottle Application: Inspection of empty bottles prior to filling Configuration: Multiple inspection modules including base inspection, sealing surface inspection, thread inspection, mouth/finish inspection, sidewall inspection, residual liquid detection, foreign container detection, bottle height control (±2.5 mm tolerance) Inspection systems: Base inspection (camera) Sealing surface inspection Thread inspection (conical opti ...
Overview This stretch blow moulding machine was manufactured in 2004 by German company KRONES. The machine is a CONTIFORM S8, designed for PET bottle production and configured for PCO 1881 and Alaska neck finishes. The blow moulder is immediately available. Technical data Capacity: Max. 13,600 bph Formats: 0.50 L 1.00 L 1.50 L Neck finish: PCO 1881 Alaska Number of cavities: 8 moulds Operating hours: Approx. 35,000 h Scope of Delivery KRONES CONTIFORM S8 stretch blow moulding machine Preform hopper and feeder Chiller 6 sets of moulds Spare parts
Krones Contiform S 12,12个空腔 容量：约每小时18,000瓶，2.0升瓶装 制造年份：2006年 营业时间：仅限约时间。38,000小时 包括加德纳丹佛贝利斯和莫尔科姆压缩机WH29H3N，配备 干燥机和空气接收器 瓶颈终点：1881年 该机器目前仍在生产中，预计运行至2026年8月 拆除和移除工作必须在2026年9月初进行 地点：英国
Inspection machine for checking empty glass bottles prior to filling. The base, sides and neck of the bottle are inspected. Bottles containing residual detergent from the cleaning process are also detected. An additional inspection unit is positioned upstream of the main inspector, which screens out foreign and defective bottles in advance. The inspection criteria are recorded using cameras as well as RF and IR technology., Additional title: Empty bottle control, Capacity filline line: 12000 bo/h, Current: 6 A, Voltage: 400 / 230 V, Frequency: 50 Hz, Running direction: left -> right, Operation / Control: Simatic S7, Position: in a footed housing, Base construction: straight-running, Features: Control and display panel, housing with safety doors, bottle discharge
Bottle washing machine (with chemical dosing) Manufacturer: Krones Model: Lavatec Kes Year of manufacture: 2000 Performance: 39,000 bottles/h, Additional title: Bottle washing machine, Capacity: 39000 Bottles/h, Length: 12700 mm, Width: 4700 mm, Height: 3500 mm, Formats: 0,33 l Vichy, 0,33 l Euro, 0,35 l Lemonade, and 0,5 l NRW, Operation / Control: Simatic S7-300, Position: free standing, Base construction: Single-end machine, self-supporting housing on dome feet, Features: H2 extraction, label press, bottle tables, ladders, walk-on platforms, various spare parts, another 400 baskets of 22 bottles each Concentrate dosing station, Layer patterns: 22 bottles per basket row
Carbonation system with integrated buffer tank, for the production of CO2-containing mineral water., Additional title: impregnation plant, Capacity: 20000 l/h, CO2 content: 12 g/l, CO2 carbonisation pressure: 7 bar, Max. tank pressure: 8 bar, Current: 69 A, Voltage: 230/400 V, Frequency: 50 Hz, Heating / Cooling: Connection pressure steam: min. 0.5, max. 1 bar, Water: Connection pressure: min. 4, max. 5 bar, Compressed air: min. 7, max. 10 bar, Length: 2 m, Width: 2,4 m, Height: 2,5 m, Weight: 4000 kg, Operation / Control: Siemens Simatic S5, Features: Saturation Tank (content = 750 l) with fill level detectors as a carbonisation tank, measuring writer (ABB), circulating pump (Hilge), various ventils
Bottling line with a capacity of 30,000 bottles per hour. It uses 0.33 litre Vichy, 0.33 litre Euro, 0.35 litre lemonade and 0.5 litre NRW non-returnable and returnable bottles. It is also possible to pack 6-carton bottle carriers for 0.5 litre bottles in bottle crates. The removal of old cartons and the insertion of new cartons from/into the quill boxes is done by hand. The bottles are inserted by the packer. The system consists of the following machines / components: - Depalletising and palletising system Manufacturer: Radenska & Steinle - Foreign crate detection and sorting system Manufacturer: Syscona - Unpacker Manufacturer: SZA Federspiel - New glass lifter Manufacturer: Steinle Fördertechnik - Uncapper Manufacturer: Rink - Bottle washing machine Manufacturer: Krones - Crate washer - Bottle inspector Manufacturer: Krones - Beer preheater Manufacturer: Fischer - Bottle filler Manuf ...
Inspection machine for detecting damage and contamination in glass bottles, as well as for identifying foreign bottles., Nominal capacity of filler: 60000 b/h, Power: 10,7 kW, Water: max. 4 bar, consumption: 1,3 l/min, Compressed air: 6 bar, consumption: 2,5 bar, 30 N/m³/h, Length: approx. 2.995 mm, Width: approx. 2.370 mm, Height: approx. 2.600 mm, Weight: 5200 kg, Formats: 0,33 l LongNeck-, 0,5 l NRW-bottles, bottle height: min. 150 mm/ max. 350 mm, diameter: 71 mm, Machine partitioning: 94 mm, Operation / Control: Siemens S5, Features: inspections: bottom inspection, mouth inspection, sidewall inspection, caustic detection High frequency, residual fluid detection Infrared, evaluation for detection and separation of bottles with heavy abrasion, height detection
用于冷胶贴纸张颈、胸、腹部和背面标签的标签机， 加标题：冷胶标签，填充容量名义：50000 b/h，格式：颈贴/胸贴/体贴/背标，运行方向：左>右， 操作/控制：西门子S5，功能：2个冷胶
Overview This PET filling line was manufactured in 2002 by Krones (Germany). The line is designed for carbonated beverages such as beer or lemonades, and also suitable for water with or without CO₂. With an output capacity of up to 12,000 bph (0.5 L), it offers a complete solution from bottle blowing to palletizing. The line is being sold due to modernization of the PET division and replacement with a higher-capacity system. Equipment is in good condition and still fully operational. Technical data Line capacity: 12,000 bph at 0.5 L 9,000 bph at 1.0 L 8,000 bph at 1.5 L 6,000 bph at 2.0 L Formats: 0.5 L, 1.0 L, 1.5 L, 2.0 L Neck finish: PCO 1810 Max. bottle diameter: 106 mm Products: Beer (+4 °C), Kvass and lemonades (+10 °C), still and carbonated water Labelling: Wrap-around, pre-cut paper labels, hot-melt Secondary packaging: Film only (4×3 and 3×2) PLC: Siemens S7-300 Power su ...
Overview This self-adhesive labelling machine was manufactured in 2000 by Germany KRONES. The Autocol 1200-20 TA is designed for the application of self-adhesive labels on bottles. The machine is configured with three labelling stations (front, back, and neck/seal label) and includes a Taxomat label feed system. It is suitable for standard beverage packaging applications and is equipped with an integrated Checkmat inspection system for quality control. The machine is currently still installed and will be available from February 2027. The unit is described as used and maintained based on operational requirements. Technical data Capacity: up to approx. 15,000 bph Formats: 0.5 L – 1.0 L (15 formats) Application: Self-adhesive labelling of bottles Configuration: 3 labelling stations (front / back / neck/seal) Label positions: Front, back, neck/seal Incl. Inspection syst ...
Krones AG Smartpac / Smartpak U 1400 T 开箱机 饮料生产线高效拆箱解决方案 一般信息 制造商：Krones AG 型号：Smartpac / Smartpak U 1400 T 机器类型：拆箱机（卸货/箱子拆箱系统） 工厂编号：KR66147 制造年份：2011年 技术规格 额定电压：400 / 230 V 机器尺寸：1400（单列设计） 输出能力：最高可达约520次/小时（视配置而定） 机器概述 Krones Smartpac U 1400 T 是一款单柱拆箱机，旨在高效且温和地从箱子、纸箱 托盘中取出容器。它是经过验证的 Smartpac 系列的一部分，因其灵活性和可靠性被广泛应用于饮 生产
Overview This self-adhesive labelling machine was manufactured in 2011 by the German company KRONES. This machine is ideal for bottling lines requiring flexibility across various labeling technologies. The machine was taken from a production line and is fully functional. We dismantled it properly and store it in our warehouse. Technical data Labelling method: Self-adhesive Capacity: Up to 42,000 bottles/hour Number of Autocol stations: 6 Bottle formats: 0,25 l Heineken 0,33 l Heineken Food 0,65 l Heineken 0,33 l Desperados 0,65 l Desperados
清洁机Fabr。Krones，Lavatec型：KES-2-2-212/22-80,1999年制造 分别为0.33廉价维希、0.35廉价AFN瓶、0.5升北威和欧洲 瓶 与西门子Simatic触控面板合作

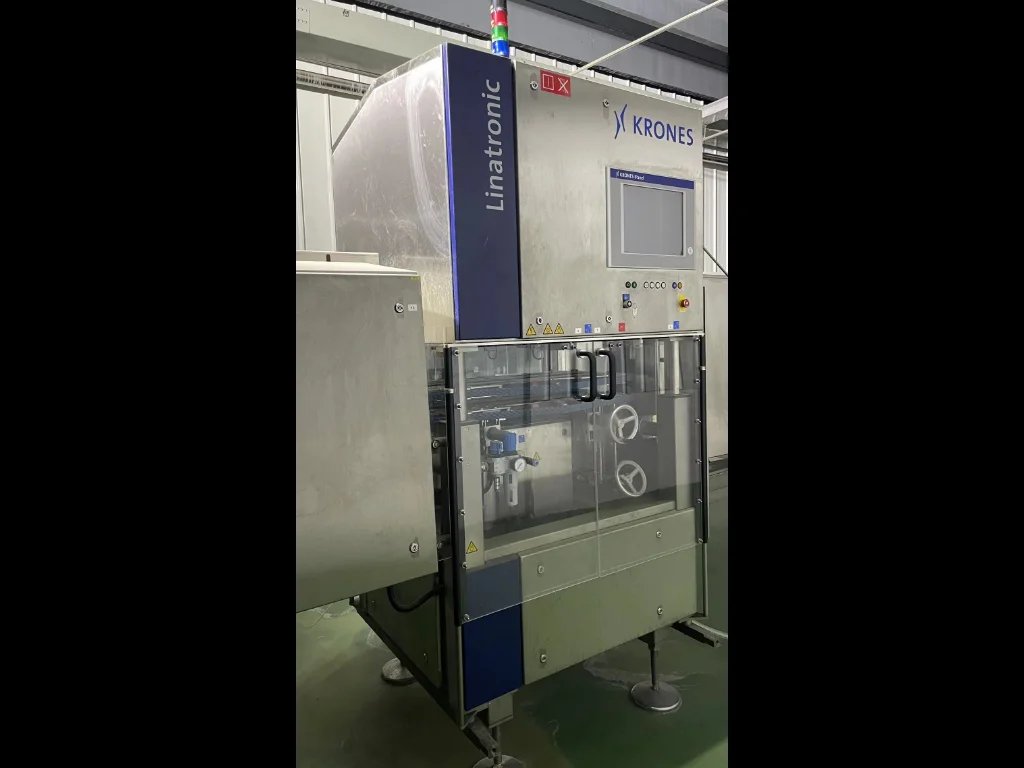

Overview This Krones Linatronic M empty bottle inspector, manufactured in 2015, is designed for the reliable inspection of returnable glass bottles in beverage production lines. The system combines multiple inspection technologies including camera-based vision systems, infrared sensors, and high-frequency detection, ensuring the identification of contamination, residual liquids, closure issues, and bottle defects. With a capacity of up to 15,000 bottles and more per hour, the machine is well suited for medium-capacity bottling lines. The unit is equipped with a 3-fold Ecopush rejection system and supports a wide range of bottle types and glass colors, making it a flexible solution for breweries and beverage producers. Technical data Manufacturer: Krones Model: Linatronic M Machine type: Empty bottle inspector Year of manufacture: 2015 Capacity: up to approx. 15,000 bottles per hour and ...
Overview This complete filling line for non-returnable PET bottles was manufactured 2004 by the german manufacturer KRONES. The line was running as a non returnable bottle filling line. The line is designed for high-capacity beverage production, handling up to 12,000 b/h and is in a good condition. Technical Data Capacity: 12,000 bph (at 1,5L); 14,000 bph (at 0,5L) Filling product: carbonated water and soft drinks with 15°C and 8,0 g/l CO2 Bottle Formats: 0,5L and 1,5L PET CSD Cap Formats: PCO 1810 Contiroll labelling station 2-3-340 for wrap-around label from a reel with hotmelt and 2 x cold glue labelling station 8-8-130 for paper label Packaging formats: shrink wrapping with/without carry handle (3x2) Pallet: 4 x ¼ Plastic pallet (600 x 400 mm); 2 x Half-size pallet (800 x 600 mm) on Euro pallet (1.200 x 800 mm) Application: CSD Hygienic design condition: good technical con ...
Krones Contiform S8 – PET 吹塑成型机（2003年） 高性能旋转PET吹塑机，专为生产高品质PET瓶设计。Kron es Contiform S8 是饮料制造商可靠的解决方案，可以无缝集成到现有 装瓶产品线中。 一般信息 - 制造商：德国Krones公司 - 型号：Contiform S8 - 制造年份：2003年 - 状态：良好运行状态 - 可用性：即时供应 技术规格 - 应用：PET瓶生产 - 产能：每小时14,000瓶 - 瓶子容量：1.5升 - 琴颈处理：PCO1881 机器特征 - 专为高品质PET瓶生产设计 - 适合集成到完整的饮料装瓶线中 - 配备中央冷却系统 - 可配备空气输送系统 随附设备（投送瞄准镜） - Krones Contiform S8吹塑机（2003年） - 冷却装置 - 预成型料 - 预成型料斗 - 预制倾倒装置 - 空气输送系统（可选） 典型应用 - 适用 ...
Overview This Krones Linapac A-T-1600 automatic bottle unpacker was manufactured in 1998 and was previously installed in a returnable glass beer bottling line. The machine is designed to automatically remove empty bottles from beverage crates and transfer them onto the bottle conveyor system for further processing. The unpacker was operated in a production line with a capacity of approximately 33,000 bottles per hour, making it suitable for high-capacity returnable glass operations. Machines of the LINAPAC series are widely used in the beverage industry due to their robust design and reliable crate handling. The machine is currently out of production but complete, electrical disconnected, and available for inspection. Documentation and CE conformity are available. Technical Data Manufacturer: Krones / Linapac Model: A-T-1600 Machine type: Automatic bottle unpacker Year of manufacture: 19 ...
Overview This KRONES Topmatic labelling machine was manufactured in 2011 and was previously operated in a returnable glass production line. The machine is designed as a head machine with parallel bottle infeed and discharge and is suitable for high-speed labelling applications. The system is equipped with two labelling aggregates: one for neck and front labels and one for back labels. The neck label is applied using hot glue for closure sealing, while the remaining labels are applied using cold glue. The machine is fitted with two glue pumps and includes one spare hot glue unit. The back labelling station is disengageable, while the front station is permanently installed. With 36 bottle plates and a production capacity of up to 33,000 bottles per hour, the machine is suitable for demanding returnable glass operations. The machine has accumulated approximately 44,350 operating hours as of ...
KRONES Contiform S 8 吹气机 制造年份：2003年 容量：14,000 每小时 颈部尺寸：PCO 28 - 1881 瓶装容量：1.5升。PET瓶 包括冷却装置 包括预备食品供给系统 包括预备容器 包括预备倾斜装置 空气输送系统可选 德国立即可得 机器状况良好。
Krones PET 填充线 容量：16,000 bph × 1,500 ml 产品：静水和碳酸水 瓶装容量：500毫升 / 1,000毫升 / 1,500毫升 标签：3个标签和环绕标签 OPP 包装：3 x 2 制造年份：2012年 包括： Krones Contiform 8 吹气机 包括预备形态供给 填充与封盖块 Krones 模块化 CIP系统Varioclean AUT-5000L Krones Checkmat 731FM-X 检查机 瓶子干燥机 Linardry S1M Krones Topmatic标签机 标记3个标签并包裹标签OPP Packer Variopac 到 3 x 2 = 6 包装 手柄贴合器 适用于800 x 1200毫米和1000 x 1200毫米托盘的调色器Modulpal 拉伸包装机Robopack 克朗斯套标签机 瓶式输送机、盖式输送机、托盘式输送
