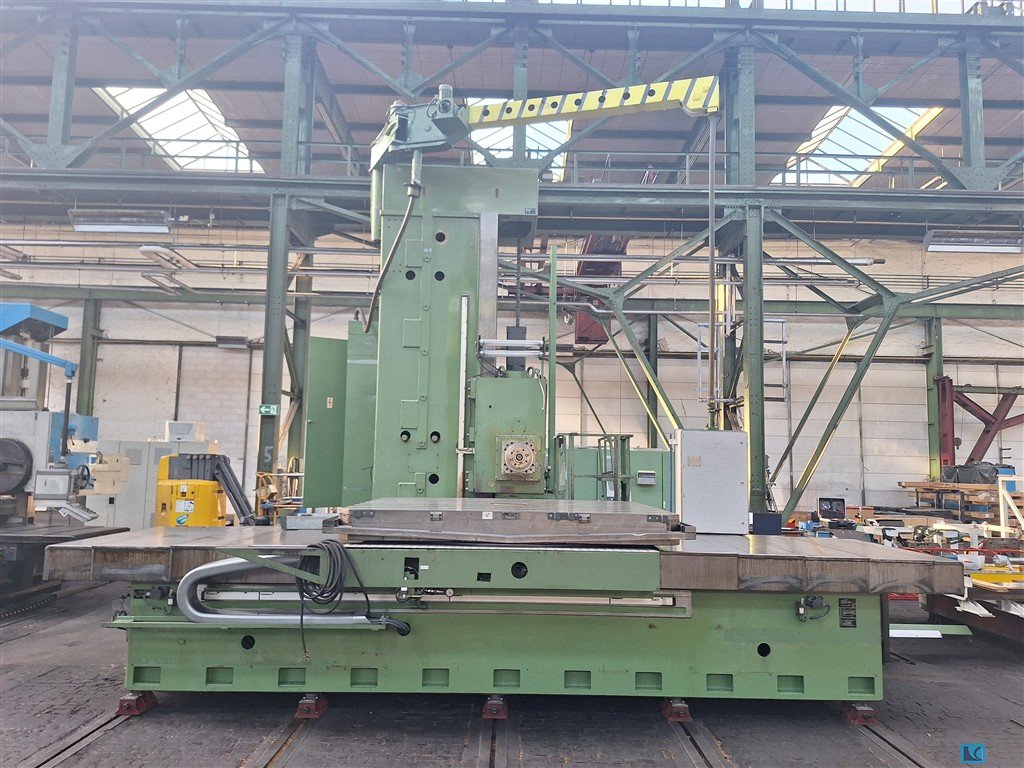

WOTAN Rapid 4A R/20 Table Type Boring and Milling Machine
중고인증된 판매자
가격 요청
판매자에게 직접
1 / 5
기술 데이터
· ID 170386813중고 기계
- 상태
- 중고
- 제조 연도
- 1982
- 위치
- ab Fabrikstandort
Identifikation
제조사WOTAN
모델Rapid 4A R/20
품목 번호1034-04252
Technik
수량1
설명
spindle diameter:150 mm
x-travel:3000 mm
y-travel:2000 mm
spindle stroke:700 mm
dimension of the ram:340 x 340 mm
ram stroke:700
column travel:1500 mm
spindle taper ISO:50
bore spindle turning speed range:3,2 - 1600 U/min
table surface area:2000 x 2500 mm
max. table load:25000 kg
rapid speed:5 / 10 m/min
feed speeds:1 - 5000 mm/min
total power requirement:100 kW
weight of the machine ca.:57 t
dimensions of the machine ca.:8,4 x 6,8 x 5,9 m
with CNC SIEMENS 840 D
full B-axis
aerostatic guideways
facing head ( 3,2 - 140 rpm )
angular milling head 1000 Nm
coolant attahcmnet with internal cooling supply
x-travel:3000 mm
y-travel:2000 mm
spindle stroke:700 mm
dimension of the ram:340 x 340 mm
ram stroke:700
column travel:1500 mm
spindle taper ISO:50
bore spindle turning speed range:3,2 - 1600 U/min
table surface area:2000 x 2500 mm
max. table load:25000 kg
rapid speed:5 / 10 m/min
feed speeds:1 - 5000 mm/min
total power requirement:100 kW
weight of the machine ca.:57 t
dimensions of the machine ca.:8,4 x 6,8 x 5,9 m
with CNC SIEMENS 840 D
full B-axis
aerostatic guideways
facing head ( 3,2 - 140 rpm )
angular milling head 1000 Nm
coolant attahcmnet with internal cooling supply
