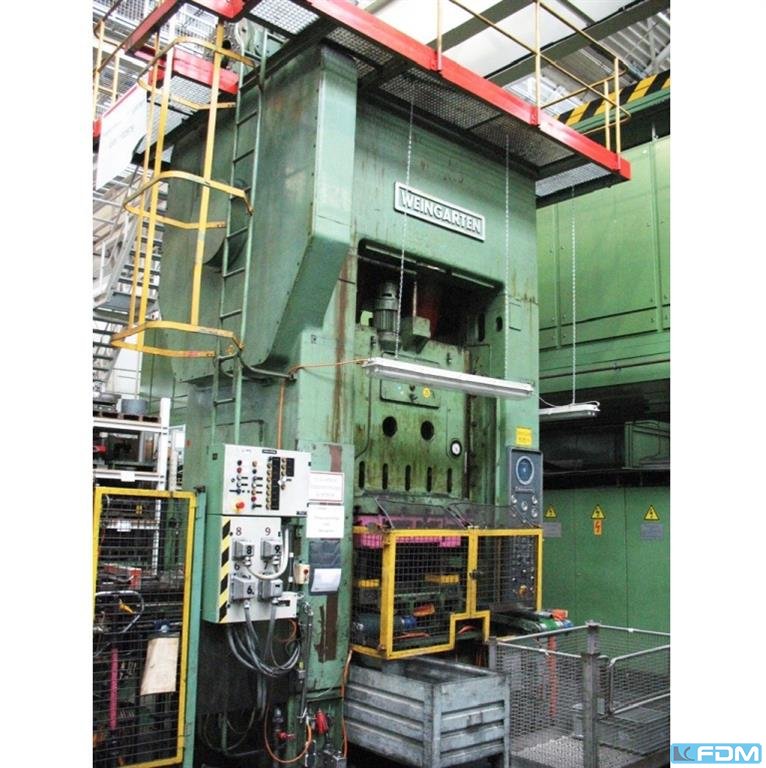

WEINGARTEN DX 630.16.25 Double Column Press - mechanical
중고인증된 판매자
가격 요청
판매자에게 직접
1 / 5
기술 데이터
· ID 170387017중고 기계
- 상태
- 중고
- 제조 연도
- 1963
- 위치
- Lager Salach, Baden-Württemberg
Identifikation
제조사WEINGARTEN
모델DX 630.16.25
품목 번호1050-113096
Technik
수량1
설명
Pressure:630 t
distance between columns:1600 mm
stroke:fix 250 mm
no. of strokes:20 /min
distance table/ram, max. stroke up, adjustment up:900 mm
table surface area:1550 x 1200 mm
table height over floor:800 mm
side window:620 mm
ram surface:1360 x 1200 mm
ram adjustment:160 mm
height over floor:5,9 m
height beneath floor:0,6 m
power requirement:32,0 kW
weight:59,0 t
dimensions (WxDxH):3,0 x 2,2 x 6,5 m
clutch:pneumatisch
overload protection in ram:hydraulisch
ram adjustment:motorisch
ram counterbalance:pneumatisch
distance between columns:1600 mm
stroke:fix 250 mm
no. of strokes:20 /min
distance table/ram, max. stroke up, adjustment up:900 mm
table surface area:1550 x 1200 mm
table height over floor:800 mm
side window:620 mm
ram surface:1360 x 1200 mm
ram adjustment:160 mm
height over floor:5,9 m
height beneath floor:0,6 m
power requirement:32,0 kW
weight:59,0 t
dimensions (WxDxH):3,0 x 2,2 x 6,5 m
clutch:pneumatisch
overload protection in ram:hydraulisch
ram adjustment:motorisch
ram counterbalance:pneumatisch
