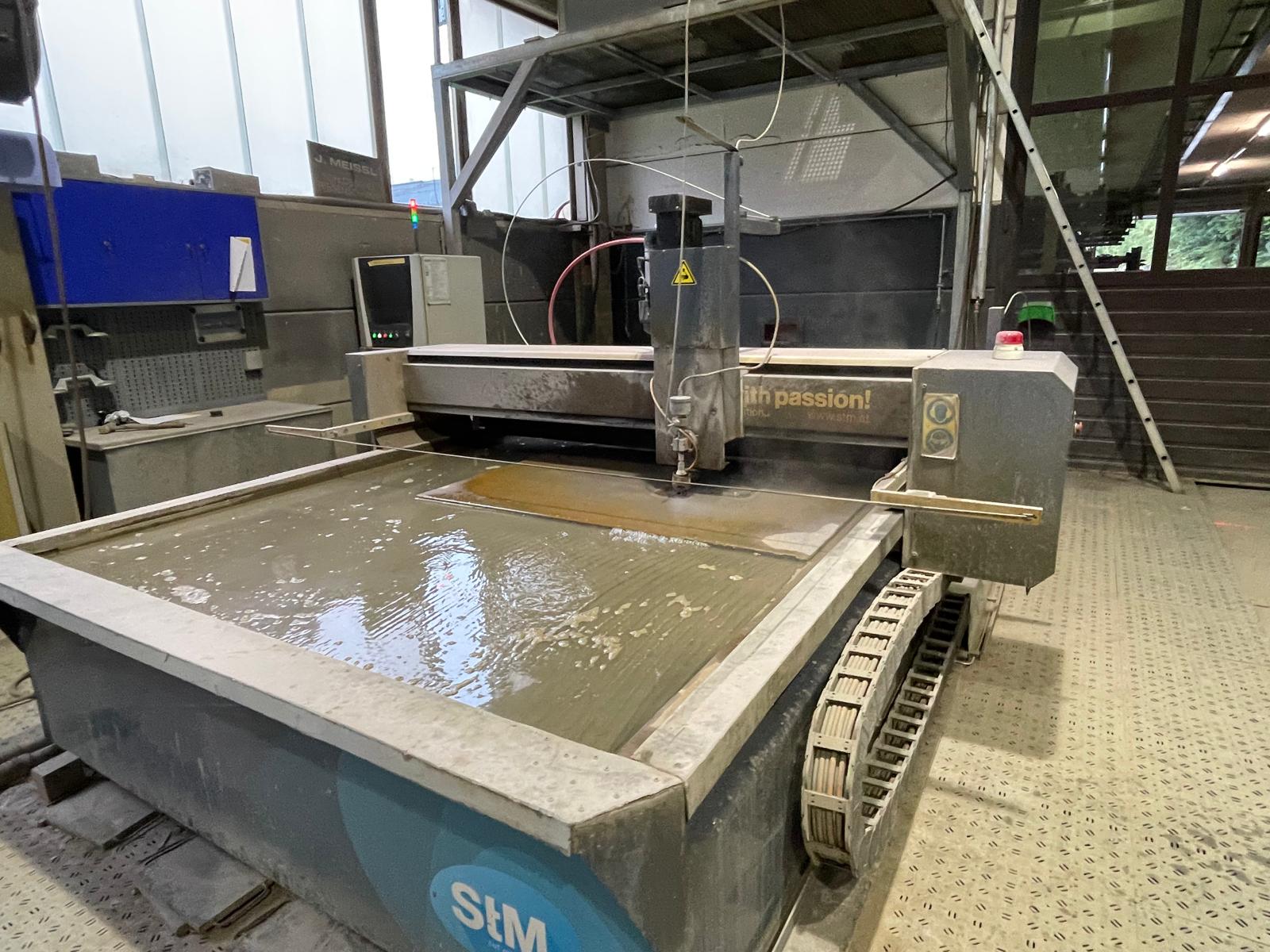

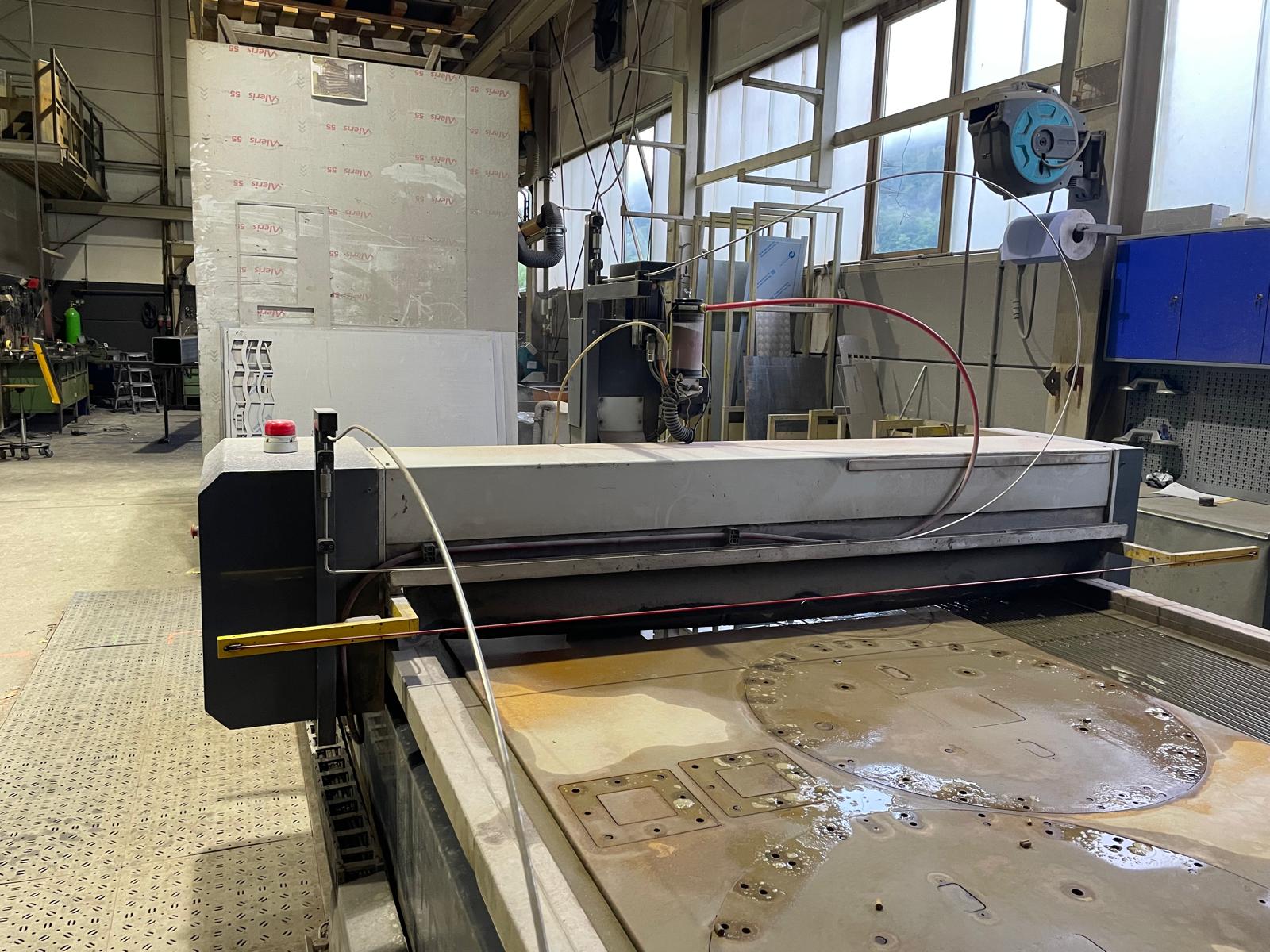

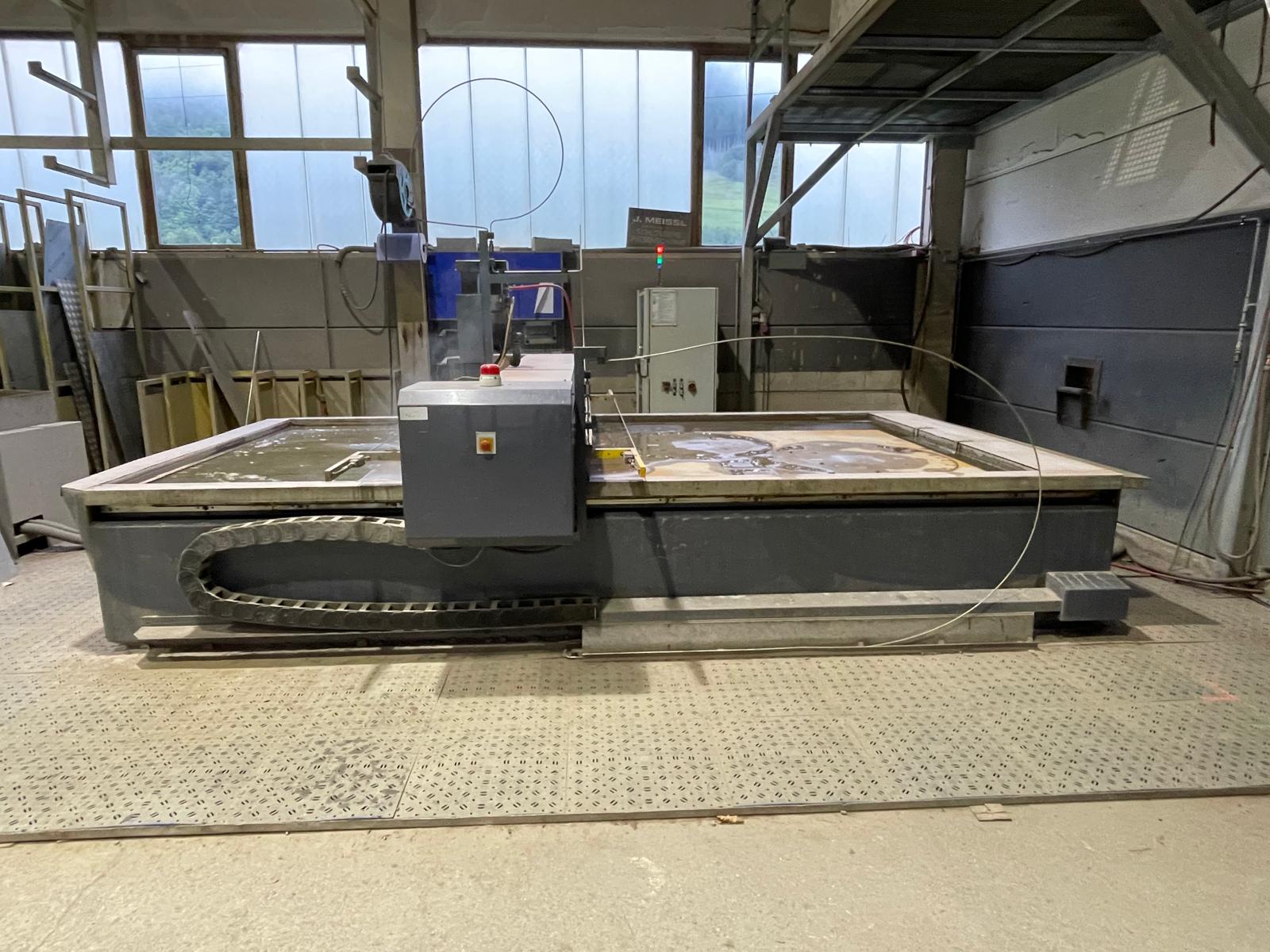

STM Waterjet 4020 PremiumCut 2D Water Jet Cutters

Manufacturer: STM

Model: 4020 PremiumCut

Type of Machine: Waterjet Cutting System

Year of Manufacture: 2013

Condition: Used, Fully Functional

Operating Hours: approx. 10,700 h

Technical Specifications:

- Effective cutting area: 4000 x 2000 mm

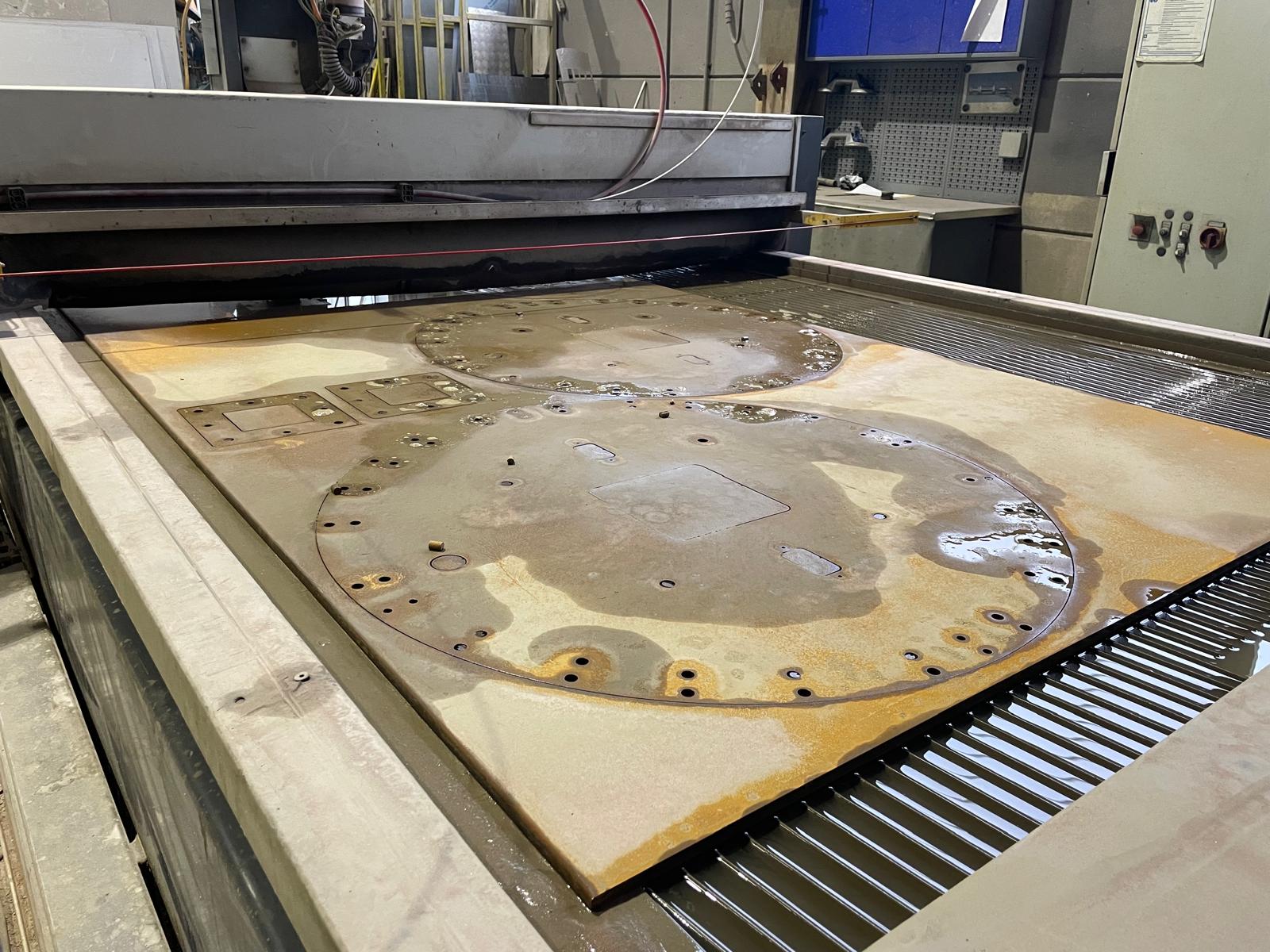

- Heavy duty slats for workpieces up to 1,000 kg per square metre
- CNC control NUM Axium Power, up to 30 m per minute
- Z-axis CNC clearance height: 180 mm

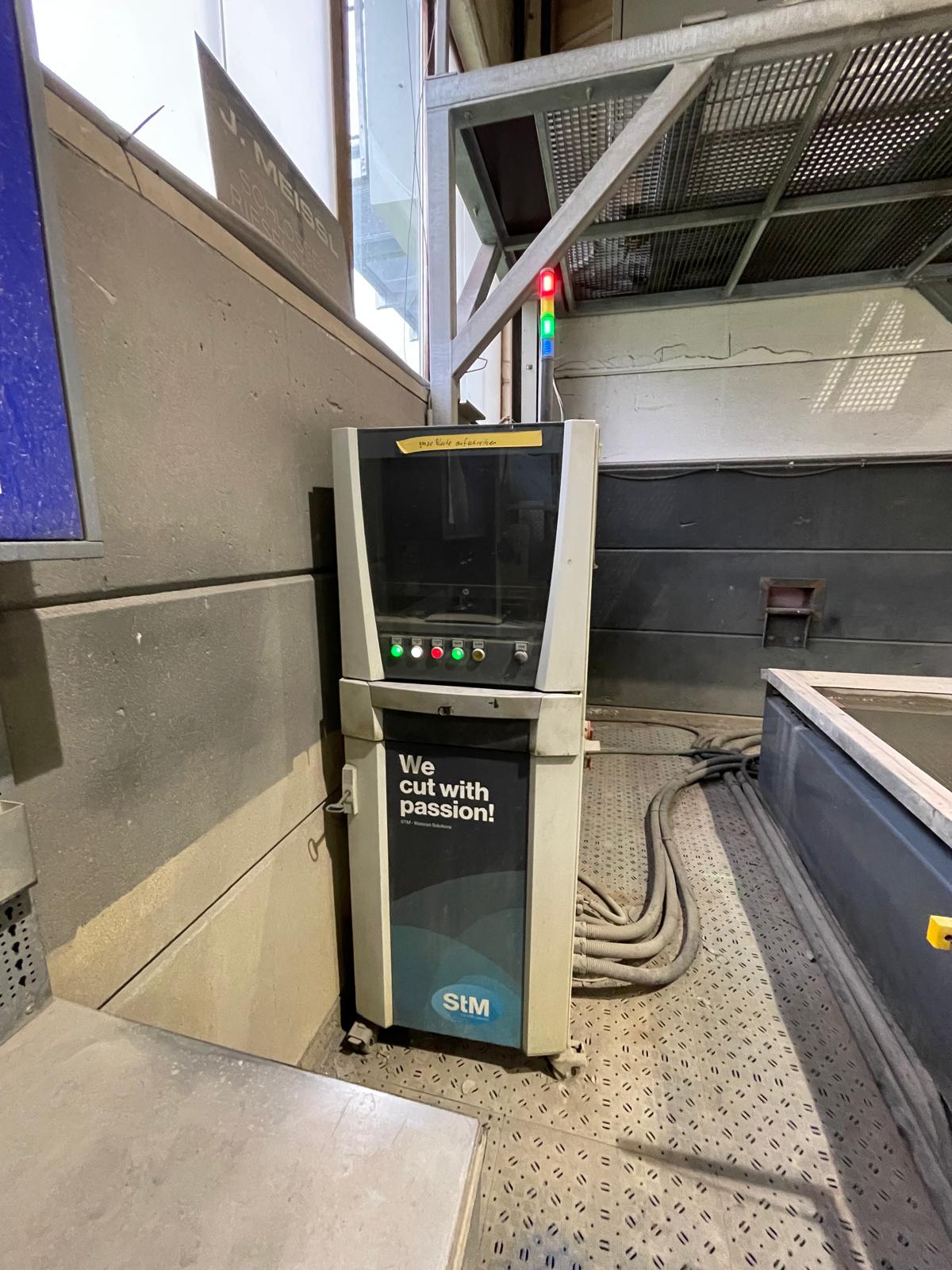

- Control cabinet: Premium console
- Waterjet software: SmartCut
- Computer with 20 inch LED monitor and splash-proof keyboard and mouse

Main Components and Their Function:

- Waterjet cutting valve
- Abrasive cutting head
- Positioning laser
- Abrasive metering unit, CNC controlled, with intermediate container
- Abrasive supply container, 250 kg
- Abrasive minihopper system with pressure container
- Double cable pull system to secure the working area
- Automatic Abrasive Rinsing System:

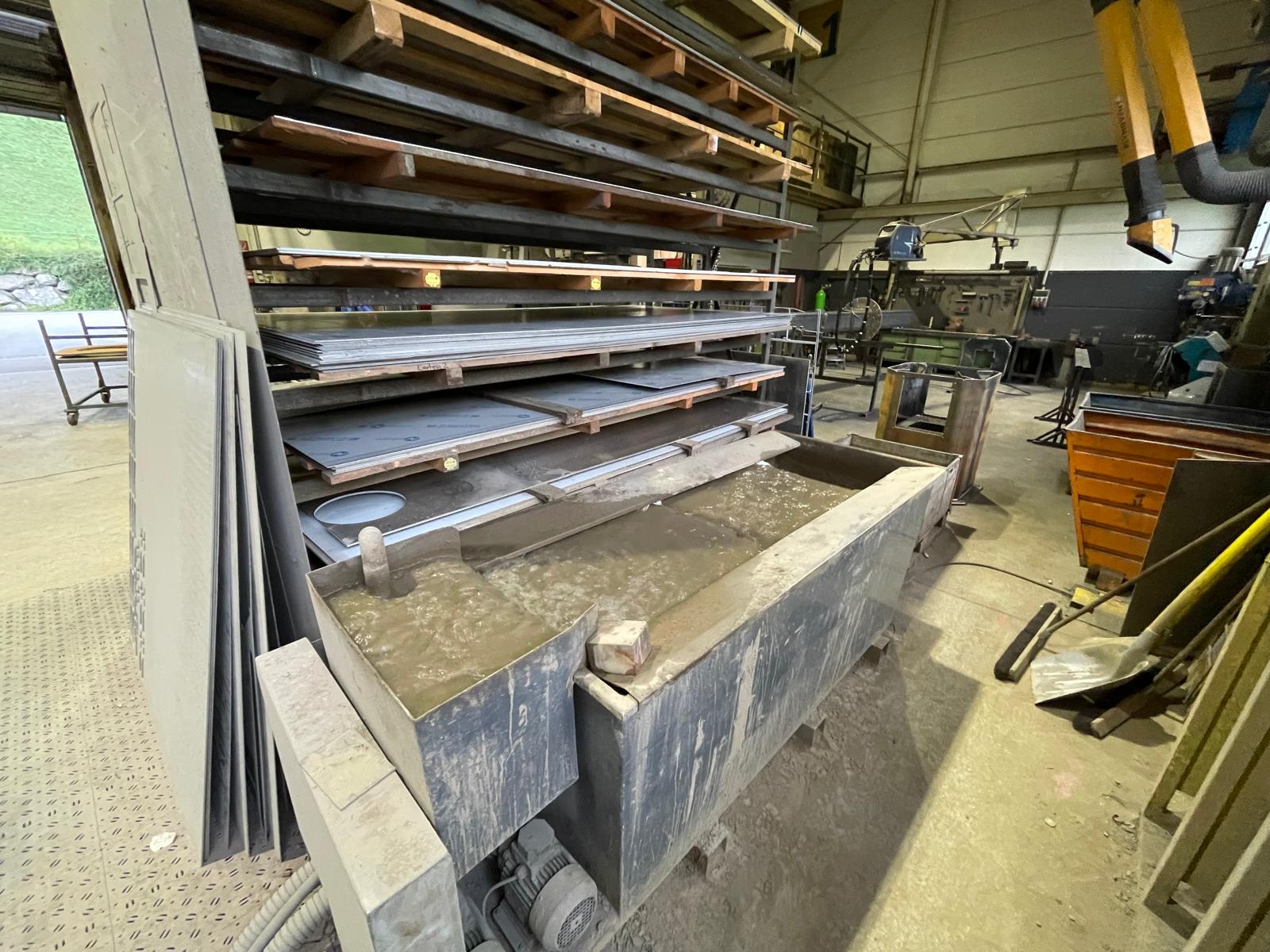

- 1-stage settling tank including BigBag
- Special ceramic-coated, long-life high-performance pumps
- Piping and PLC control

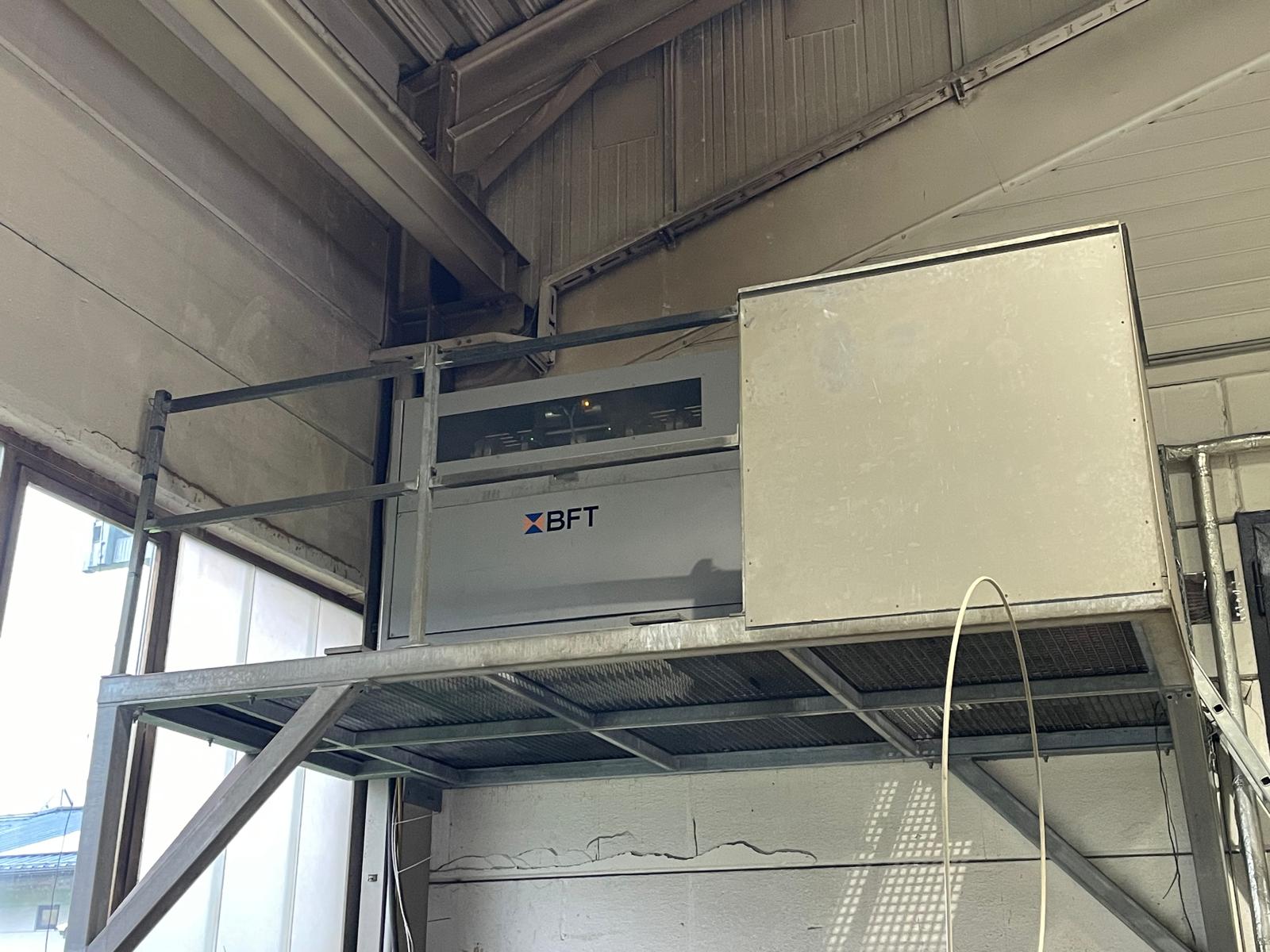

Included High-Pressure Pump:

- Manufacturer: BFT
- Model: Ecotron 38.37
- Year of Manufacture: 2016
- Condition: Used, Fully Functional
- Operating Hours: approx. 13,100 h

Additional Information:

- The entire system, including the rinsing unit and pump, can be inspected fully operational.
