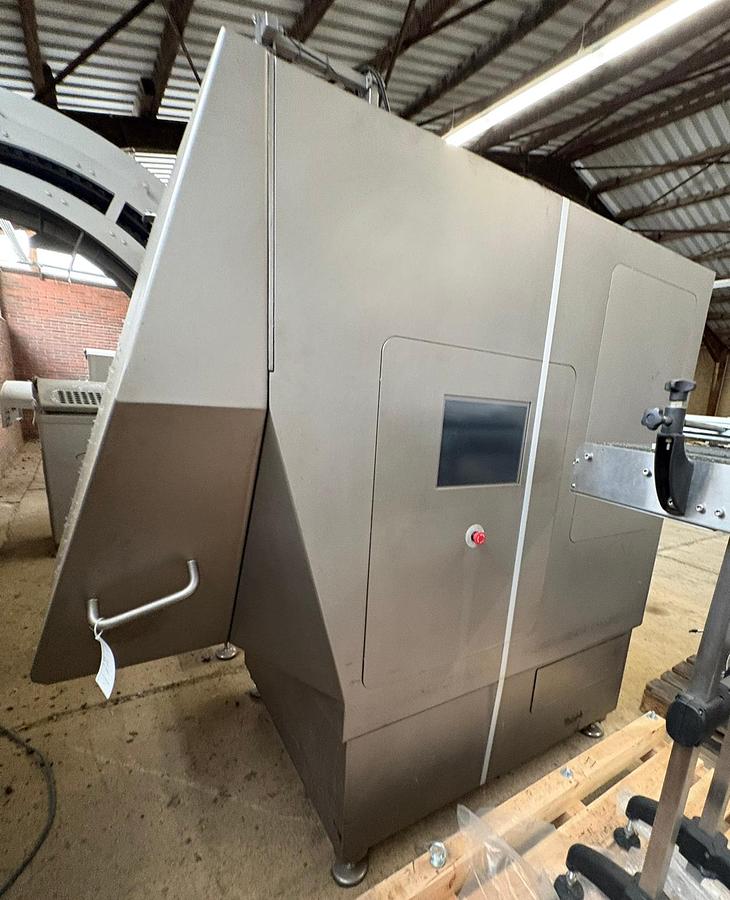

Rühle SR3 큐브 및 스트립 커터

Rühle SR3 cube and strip cutter (built in 2013), The Rühle SR3 is a fully automatic high-performance cube and strip cutter for industrial use in food processing. The machine stands out with precise cut quality, high throughput, and maximum flexibility for a wide range of products., Whether meat, bacon, cheese, fruit or vegetables – the SR3 processes almost all common raw materials reliably and evenly into cubes, strips or slices., Due to automatic loading, modern control technology, and quick-change system for cutting gates, the machine is ideal for use in production lines with high requirements for efficiency and product quality., Highlights, - Fully automatic high-performance machine, - Universally usable (meat, cheese, vegetables, fruit), - Precise cut images with minimal fracture proportion, - Quick-change system for cutting fences, - Touch control for simple operation, - Mobile discharge belt integrated, Technical specifications, - Power: up to about 3.500 kg/h, - Cut lengths: approx. 0.5 – 32 mm, - Cutting performance: up to 320 cuts/min, - Cutting temperature: approx. -5 °C to +80 °C, - Connection: 400 V / 3 Ph / 50 Hz, - Power: approx. 17 kW, - Chamber size: approx. 120 x 120 mm, - with 6 cutting units (6, 8, 10 and 24 mm), Feeding belt with separators, plastic mesh belt, belt width: 500 mm, edge height: 100 mm, distance between edges: 290 mm, conveying height: 2520 mm, overall dimensions (belt): 3300 mm x 1200 mm x 2620 mm., Dimensions / weight: Lx B xH: approx. 1300 x 2200 x 2820 mm
