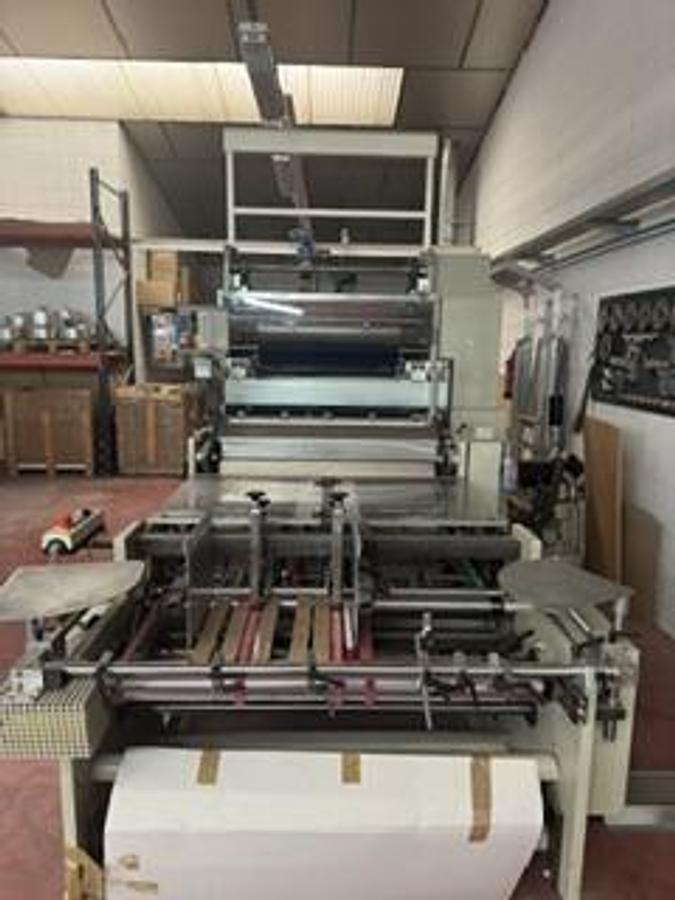

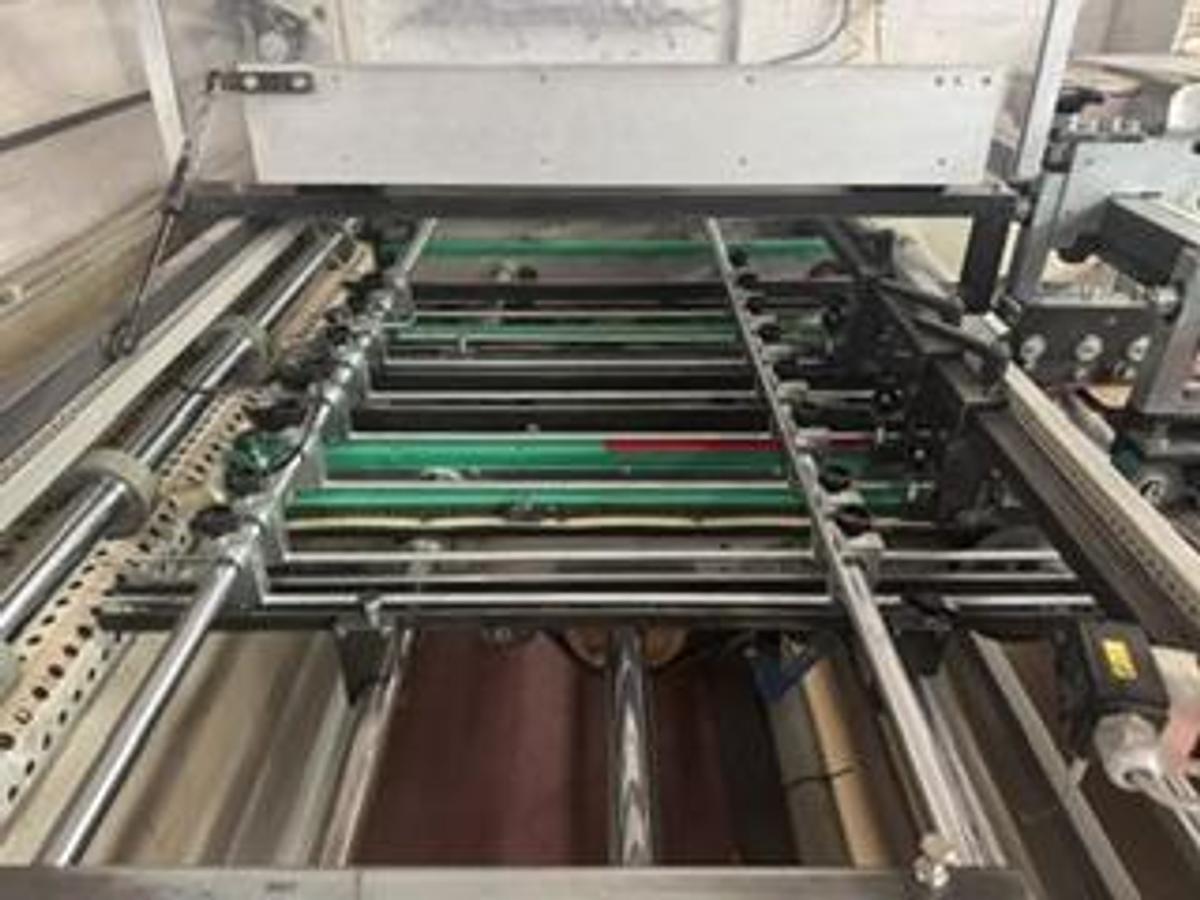

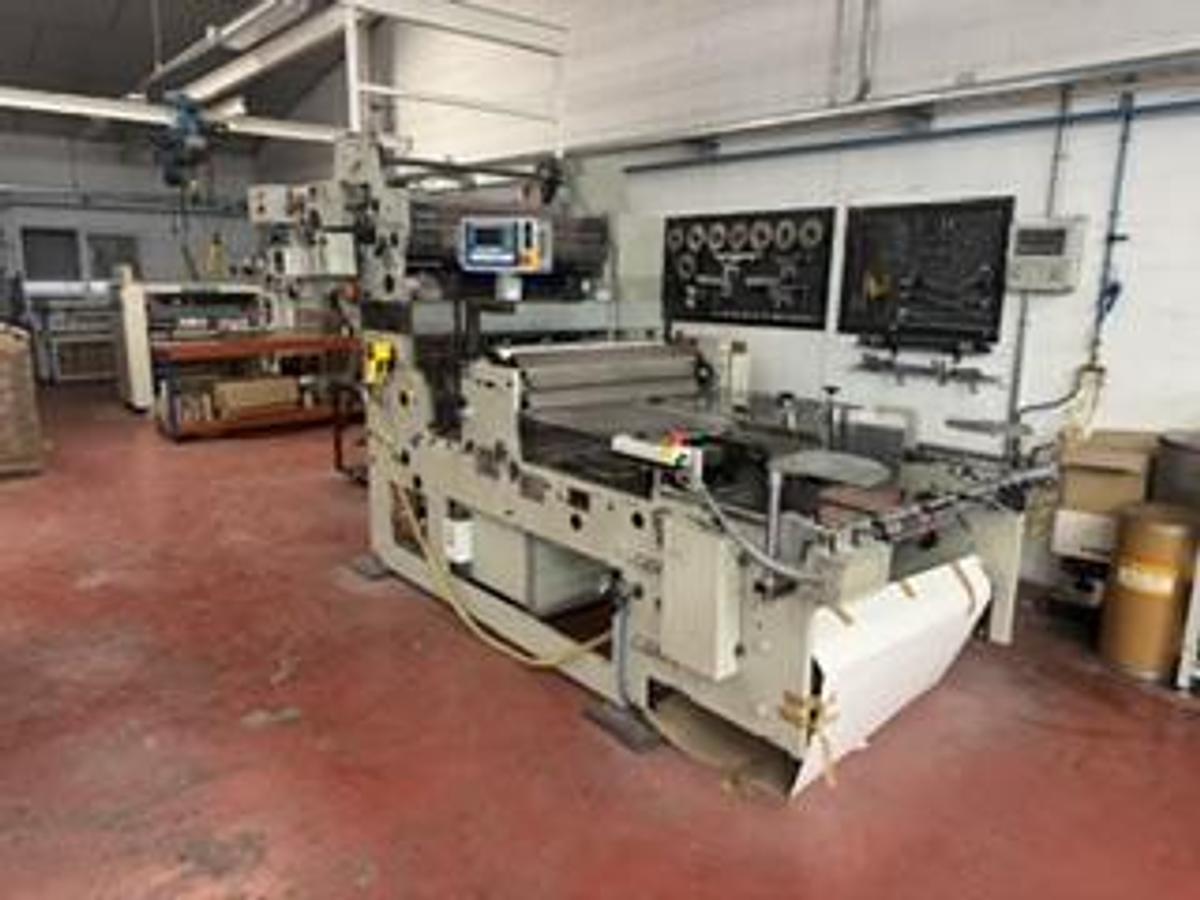

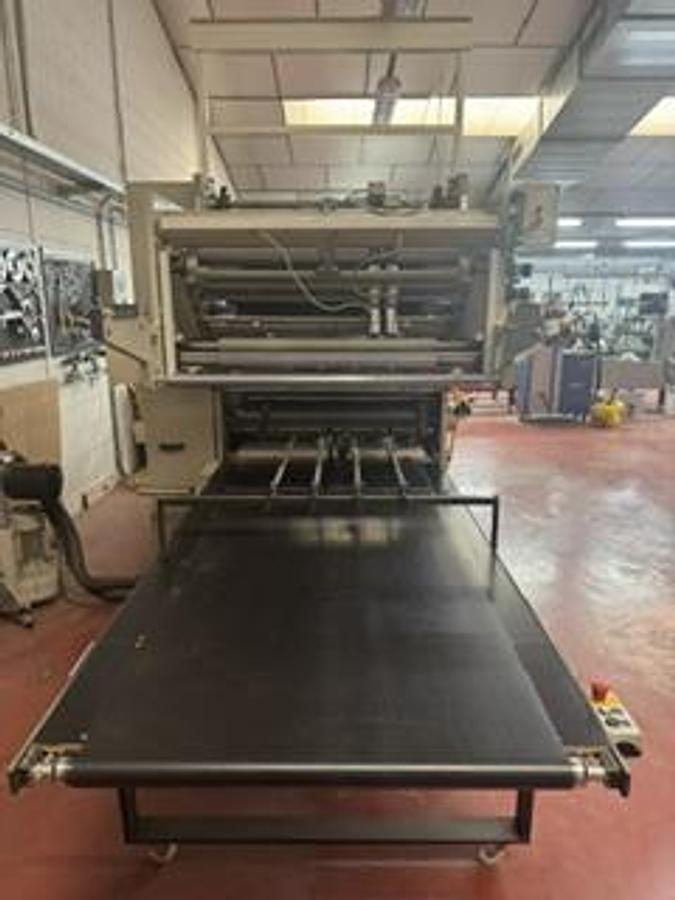

Heiber+Schröder Model WPS 1100 WINDOW GLUEING MACHINE with foil
carrier DR-1100 max. 800mm x 1100mm, year of manufacture 2005, The
machine is in very good condition., Two-knife machine with punching
device for side placement, incl. roll rewinder and mandrel shear,
Technical data Single-track Double-track, Length A 100 - 760 mm 100 -
760 mm, Width B 80 - 1,100 mm 80 - 530 mm, Length of the foil C 50 -
560 mm 50 - 560 mm, Width of the foil D 30 - 940 mm 30 - 380 mm,
Material thicknesses, Cardboard 220 – 600 g/m², corrugated
cardboard up to 5 mm thickness, PET / PE (hard film) 0.03 - 0.3 mm,
PVC, PE, PS etc. 0.03 - 0.2 mm, Film winding diameter: maximum 500 mm,
Core diameter: 70–80 mm, - Max. cutting format: 800mm x 1100mm, -
Min. bend format: 80mm x 80mm, - Max. window format: 560mm x 940mm, -
Min. window size: 30mm x 40mm, Max. sheet size: 800mm x 1100mm, Min.
sheet format: 80mm x 80mm, Max. window format: 560mm x 940mm, Min.
window format: 30mm x 40mm, Construction year: 2005, Manufacturer:
Heiber+Schröder
