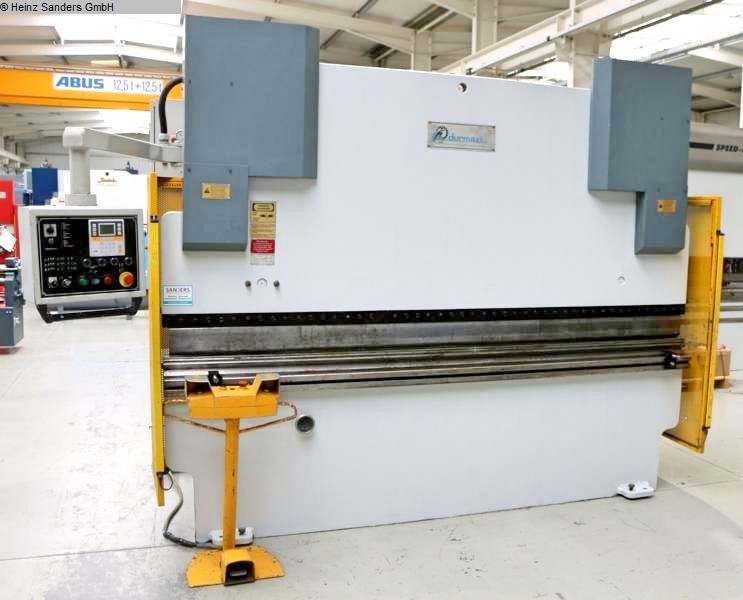

DURMA HAP 30.120 벤딩 프레스

pressure: 120 t
chamfer lenght: 3050 mm
distance between columns: 2550 mm
stroke of upper beam: 155 mm
throat: 350 mm
ajustment speed: 100 mm/sec
working feed: 9.0 mm/sec
return speed: 77.0 mm/sec
Control: P 40
work height max.: 878 mm
table width: 104 mm
oil volume: 150 l
total power requirement: 11.0 kW
weight: 7550 kg
range L-W-H: 3550 x 2150 x 2600 mm
- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=bUaEa_nHZ6E
Equipment:
- NC electro-hydraulic press brakes
- with NEW ELGO NC control unit P40
* New price approx. 4.000 Euro
* Control / movement of the backgauge - X axis (target/actual input)
* Control / movement of the depth setting - Y axes (target/actual input)
* Inching mode for X axis Y axes also possible
- Swivel operation, front left
- NC controlled axes : Y1 Y2 X
- NC electro-motorized backgauge (X axis)
* with 2x manually adjustable stop fingers
* including lateral and height adjustment (Z R axis)
- 1x branded set of upper tools (split)
- 1x branded Multi-V bottom die block
- Lateral safety guard (hinged doors)
- Rear safety guard (hinged door)
- 1x free-moving 2-hand/foot control
- Operating instructions (PDF)
