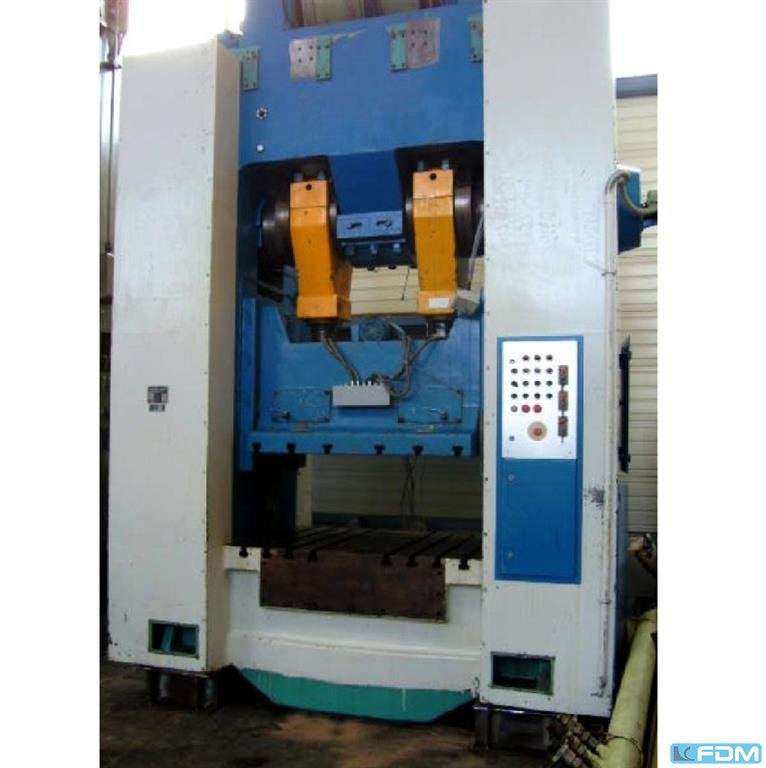

DREES ZE 500/160 Double Column Press - mechanical

pressure:500 t
stroke:40 - 160 mm
no. of strokes:32 / 48 /min
distance between columns:1620 mm
distance table/ram, max. stroke up, adjustment up:660 mm
table surface area:1600 x 1300 mm
table height over floor:750 mm
column travel -side:400 x 430 mm
ram surface:1400 x 1200 mm
ram adjustment:120 mm
pressure of drawing cushion in table:60 t
stroke of drawing cushion in table:100 mm
drawing cushion surface in table:1300 x 810 mm
material width of feeder:1000 mm
material thickness of feeder:- 6,0 mm
feed length:350 mm
power requirement:44,0 / 66,0 kW
weight:56,0 t
Dimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 m
height beneath floor without drawing cushion:0,3 m
height beneath floor with drawing cushion:1,0 m
pneumatic clutch-brake combination:Desch
drawing cushion in table:pneumatic
Mechanical pincers feed:Obru, BVK 3.10.3
