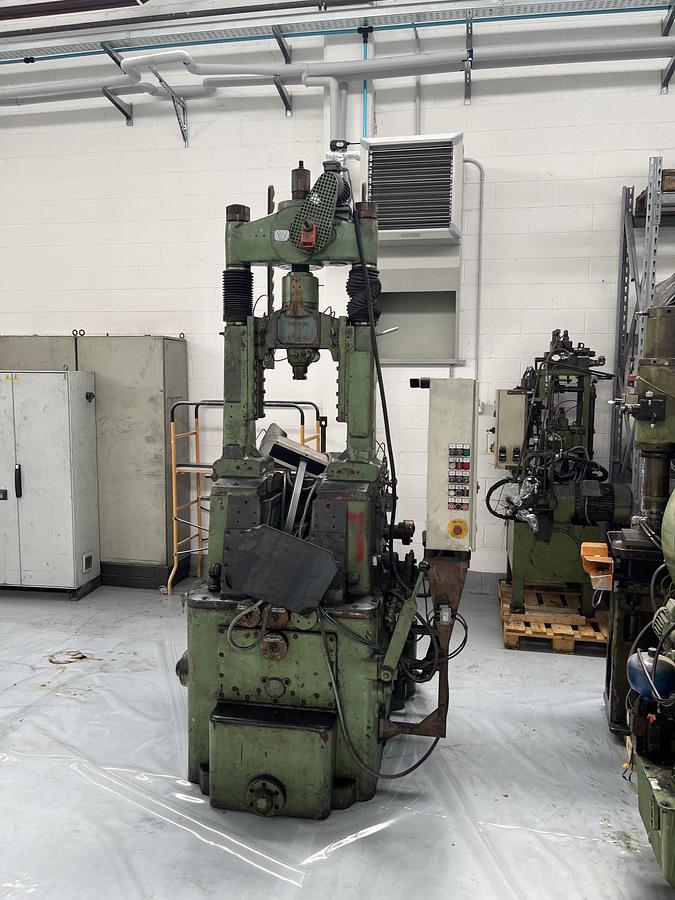

DORST TPA 45 기계식 프레스

Mechanical Dorst TPA 45, Pressing Force max. 450 Kn, Withdrawal force max. 250 Kn, Supporting force in pressing position max. 130 Kn, Die return force max. 60 Kn, Upper punch stroke 120 mm, Upper punch adjusting travel 70 mm, Number of strokes 6-22 1/min, Filling height max. 120 mm, Pressing travel max. 60 mm, Withdrawal travel max. 60 mm, Top pressing travel max 6 mm, Upper punch pneumatic preload max. 30 mm, Compressed air supply , Air consumption , Intake air aprox. 70 l/min, Total connected load aprox. 14,0 Kw, Press dimensions:, Width aprox. 1550 mm, Depth aprox. 1650 mm, Height aprox. 2200 mm, Weight of the press aprox. 3900 Kg, Oil filling quantity :, Press housing 45 l (gear oil), Workplace-related sound 79 dB (A)
