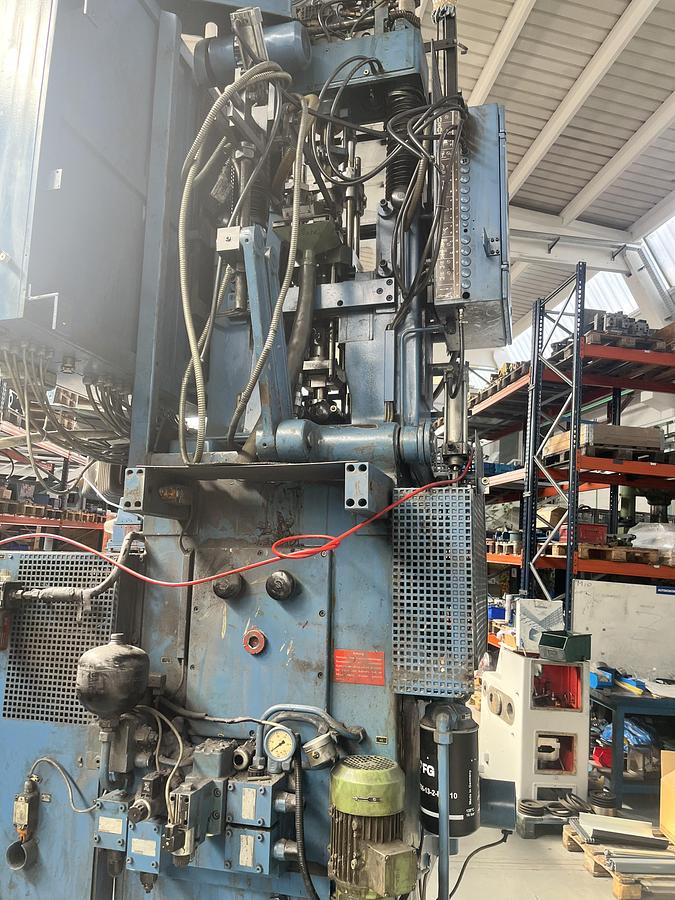

DORST TPA 20 기계식 프레스

The Dorst TPA 20/3 is a reliable used powder compaction press known for its robust construction and precise operations. It offers a maximum pressing force of 200 kN and a withdrawal force of up to 100 kN. With a maximum filling height of 140 mm and pressing travel extending to 70 mm, it accommodates a range of powder compaction tasks efficiently. The press is capable of operating at speeds ranging from 5 to 22 strokes per minute, supporting a variety of production needs. It features an upper punch stroke of 200 mm, with an adjustable travel of 160 mm for flexibility across different applications. The machines air supply intake is approximately 160 liters per minute, and it has a connected load of about 15 kW. Constructed with dimensions of around 2000 mm in width, 1700 mm in depth, and 3250 mm in height, the Dorst TPA 20/3 weighs approximately 4,900 kg. It maintains a workplace sound level of 78 dB(A), making it suitable for environments where noise control is considered. Overall, the Dorst TPA 20/3 is ideal for businesses requiring dependable, high-performance compaction equipment., Pressing Force max.: 200 Kn, Withdrawal force max.: 100 Kn, Supporting force in pressing position max.: 100 Kn, Die return force max.: 10 Kn, Upper punch stroke: 200 mm, Upper punch adjusting travel: 160 mm, Number of strokes: 5-22 1/min, Filling height max.: 140 mm, Pressing travel max.: 70 mm, Withdrawal travel max.: 70 mm, Top pressing travel max: 12 mm, Upper punch pneumatic preload max.: 70 mm, Compressed air supply , Air consumption, Intake air aprox.: 160 1/min, Total connected load aprox.: 15,00 Kw, Width aprox.: 2000 mm, Depth aprox.: 1700 mm, Height aprox.: 3250 mm, Weight of the press aprox.: 4.900 Kg, Press housing: 190 l (gear oil), Workplace-related sound: 78 dB (A)
