Compact VFFS machine that forms, fills and seals bags, This Audion turns a reel of film into pillow bags: the film is formed around the filling tube, sealed along the seam and closed at the bottom, after which the product drops into the bag from above. Suitable for dry, free-flowing products such as pasta, snacks or cut vegetables, fed by a weigher or doser., It is built compactly on a stainless frame with castors and has a touchscreen with adjustable seal temperatures. We did not find a rating plate with the model or year., Located in Emmeloord, the Netherlands. Immediately available, price on request., More photos and full specifications: stcfoodsolutions.nl/en/machine/audion-vertical-form-fill-seal-machine/ , Type: Vertical form fill seal machine (VFFS), Bag style: Pillow bag, Film transport: Two pull belts along the filling tube, Controls: Touchscreen, adjustable seal temperatures, C ...
Vertical packaging machine (VFFS) with servo drives and Videojet printer, This Wolf VPC 250 is a vertical form-fill-seal machine built in 2019 by Wolf Verpackungsmaschinen. It forms bags from reel-fed film, fills and seals them, and can be combined with multihead weighers, linear weighers, auger fillers and other dosing systems. According to the specifications for the VPC 250 series, it makes bags of approx. 50 to 250 mm wide and 80 to 450 mm long, from film up to approx. 600 mm wide, with a fill volume of up to approx. 6 litres. What is achievable depends on the installed forming set, the product and the film., The machine has a Siemens SIMATIC touchscreen with PackML control, SEW drives and servo-controlled functions, dual vacuum-assisted film pull belts, a photocell for printed film and an integrated knife. The front and rear cross seals and the vertical seal each have their own tempe ...
Jasa 350 vertical bagging machine, The Jasa 350FV is a versatile, capable and reliable vertical packaging machine, Robust design, ideal for medium to large production volumes., Specifications, - Maximum Speed: 35 to 40 packages per minute, depending on the product and film settings., - Wrapping Film: Suitable for various types of films, such as PP, with the option for both barrier films and regular films., - Dimensions: The machine has a compact design, but the exact dimensions may vary depending on the specific configuration., - Cutting Mechanism: Automatic cutting mechanisms for precise sealing of the packages., - Settings: Digital settings for speed, temperature, and product configurations., - Temperature Control: To ensure optimal sealing, the temperature of the film machine is automatically regulated, providing reliable packaging., - Packaging Size: Various formats supplied from sto ...
Description Item # 9129 – FLOWPACK WRAPPER Manufactured by FUJI Model Alpha VI FW3400 Year 2008 3 x 200Volts, 50/60Hz, 30A Also with a MARKEM SmartDate 5 Coding Unit (missing cassette reel Holder, not included) 100/230Volts, 50/60Hz, 1-2A Stainless Steel Flowpack Wrapper 4metres Long Infeed, currently set with 150mm lug gaps on Infeed Chain Driven 2-up Knife Head, 200mms across photocell for printed films Splicing PRO-FACE Plc Controls Was running at around 200 packs per minute Can run up to a maximum of about 400 packs per minute, depending on product/size/feeding system
Description Item # 9216 - FLOWPACK WRAPPER Manufactured by REDPACK (UK) model P325 S year 2021 including MARKEM SmartDate X65 Printer speed up to 250 per minute 400volt, 3ph, 50hz, 5kva Sealing jaws width. Is 140mm 2-up knife Coder is 53mm Infeed is 200cm Total lengths is 460cm.
Description Item # 9227 - FLOWPACK WRAPPER Manufactured by TEVOPHARM Model Pack-6 Built by ENTREC (Belgium) in Year 2011 Their Model Number Enpack-6-L 3Phase, 400Volts, 50Hz 1-Up Knife Head, This machine was built for big chocolate tablets. 1 kg 241x112x38mm with capacity of 24ppm 2,5 kg 250x215x45mm with capacity of 16ppmm 5 kg 430x240x45mm with capacity of 8ppm The Enpack-6 flow wrapper is a mechanical driven machine. Servo driven 2-way spotcorrection on sealing table. 2nd set sealing rollers is heated. Static pre-heating block between 1st and 2nd set of sealing rollers. Water cooled top plates on sealing table. Cross seal unit with CTC 159 (space between the two shafts = 110mm) 1 upper- and 1 lower sealing jaw, L=298mm, W=25mm, transvers profile (in running direction of foil). Cut off length: max 499mm, min 100mm. Flight bar transver unit in cross seal unit. Max foil width = 650mm Inc ...
Description Item # 9374 - FLOWPACK WRAPPER Manufactured by ULMA Model FR200 Year 2018 Product flows left to right Infeed Conveyor with pushers, no product/no bag 230Volts, 50Hz, Single phase Electrical Drawings, Operating Manual Machine was previously packing small products with products in trays, with unprinted film This machine does currently have a damaged UPC Screen and is unable to be turned on - sold as is condition or can be run from a laptop
Description Item # 9379 - FLOWPACK WRAPPER Manufactured by DELFIN PACKAGING (Italy) Model Carina 450 Year 2007 400Volts, 50Hz, 3Phase Previously used to pack chocolate bars, can also do waffles, cookies, etc. PEC for printed films Also with Coding Unit up to 60 packs per minute Maximum bag length of 350mms
Description Item # 9375 - FLOWPACK WRAPPER Manufactured by PFM Model Swift Year 2001 380Volts, 50Hz, 2.1kW Can run up to 70 packs per minute Variable speed control Adjustable Forming Box Handwheel adjustment cut off length and crimper dwell Suitable for max sizes 40 to 350mms long x 5 to 220mms wide x 1 to 100mms high
Description Item # 8869 - FLOWPACK WRAPPER Manufactured by FUJI Model FW3710 Stainless steel Vertical cutting knife motion Photo cell Multi-belt drive infeed with sensors Brush action wrapping station Has been used for packing pizzas With ZETATRADE printer
Description Item # 9070 - FLOWPACK WRAPPERManufactured by FUJIModel FW3710/BSWith SplicerMachine in stainless steel1-Up Rotary Cutting Knife MotionInfeed Belt with 3 x SensorsBrush Action Wrapping StationLast being used to pack chocolate trays measuring 206mms long x 61mms wide x 54mms highMaximum pack size is 340 x 200 x 100mms high.FUJI infeed is about 1250mms longNominal maximum capacity 150 packs per minute
VDL UVA 리마 250 고속 VFFS 연속작: 2016542 2016년, 스테인리스, 고속 연속 동작 수직 형태 봉투 기계, 턱 폭 320mm, 분당 최대 200봉투 처리, Allen Bradley HMI 터치 패널, Becker 진공 펌프와 Markem Smartdate X40 포함, 네 가지 다른 성형 숄더 세트, 추가 부품 트롤리, 그리고 3PH 비행식 엘리베이터 아웃피드 컨베이어 포
게인즈버러 GV2K108 VFFS 배거와 오거 필러 일련번호: GV101450 2010년, 수직 폼 필 씰 백 기계, 상단 장착 Augapac 벡토필 S4 오거 필러, 스마트 데이트 X40 코더, HMI 터치스크린 제어, 분당 최대 70봉투, 턱 폭 250mm, 예비 조 박스, 나사, 벨트, 성형 숄더 포함, 이전에 분말을 호퍼에 진공하는 데 사용되던 Volkmann VS2000 진공 컨베이어, 수동 3PH 포
식품 기계 공동 E4230 VFFS 배거 2014, 스테인리스 VFFS, 턱 너비 250mm, 조정 가능한 씰 온도 및 가변 냉각 시간, 현재 Eidos 스윙 열전사 프린터, 1Ph 포함 95mm 직경 성형 세트로 설정
PFM 플로우 래퍼 모델: 토네이도-BBLDSS 직렬: C-6096 2001년, 스테인레스, 토네이도 LD는 열 밀봉 포장 재의 평평한 릴에서 밀폐 씰로 최대 100 팩 / 분을 생산하는 수평 플로핑 기계입니다. 토네이도 LD는 특별히 "M.A.P"를 위해 설계되었습니다. (수정 된 대기 포장). 스마트 데이트 X40 코더, 인피드 길이 2400mm, 유동 래퍼 길이 3200mm, 턱 폭 220mm, 인피드용 다양한 벨트, 3Ph
0: - Beutel/min0: - mm0: - mm 이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 생성되었습니다.
0: - Beutel/min0: - mm0: - mm 이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 생성되었습니다.
Stanzautomat / Calender - Block Punching Machine Plastograph PZ 599Baujahr / Year 1998 Arbeitsbreite / Working width 120 - 600mm Papierlänge / Paper length 100 - 550mm Arbeitsbreite min. 95mm - max. 600mm Hubzahl einstellbar / number of Strokes adjustable 30 - 120/min. Flachstapelanleger / Flat Pile Feeder 5 Stanz-Formen / 5 Punching Tools: Types Wire-O 2:1 / 3:1 - Plastik-Effekt / 3:1 4x4mm / 3:1 4x6mm Werkzeug 4x4mm mit Daumenstanzung / Tool 4x4mm with calender hole punchAuslage Rüttler / Delivery Jogger Panel Operation and Controls Online-Video-Inspection by Skype-VideoWe would be very pleased with your visit - more machines on StockAvailable Immediately - Can be inspectOn Stock Emskirchen / Nürnberg - Can be test
전체 시스템이 팔리고 있어! 이 컬렉션에는 탱고 태핑, 일라팍 카레라 500 PC 플로우 래핑 머신, 메틀러 톨레도 체크웨이트, 에스페라 라벨링이 포함되어 있습니다. 시스템은 완전히 정상 작동 중이며 서비스 완료 중입니다
수평 흐름 포장 기계, 매거진에서 해당 흐름 팩으로 블리스터(플로우팩당 2개의 블리스터)를 공급하고 밀봉하는 데 적합합니다. 코드 리더 LAETUS 6012 시스템, 이미지 처리 시스템 UHLMANN 타입 Visioread Colour, 프린터 MARKEM 타입 SmartDate X40 준비, 제어 SIEMENS Simatic S7-300, 예비 부품 등 용량: 최대 170팩/분

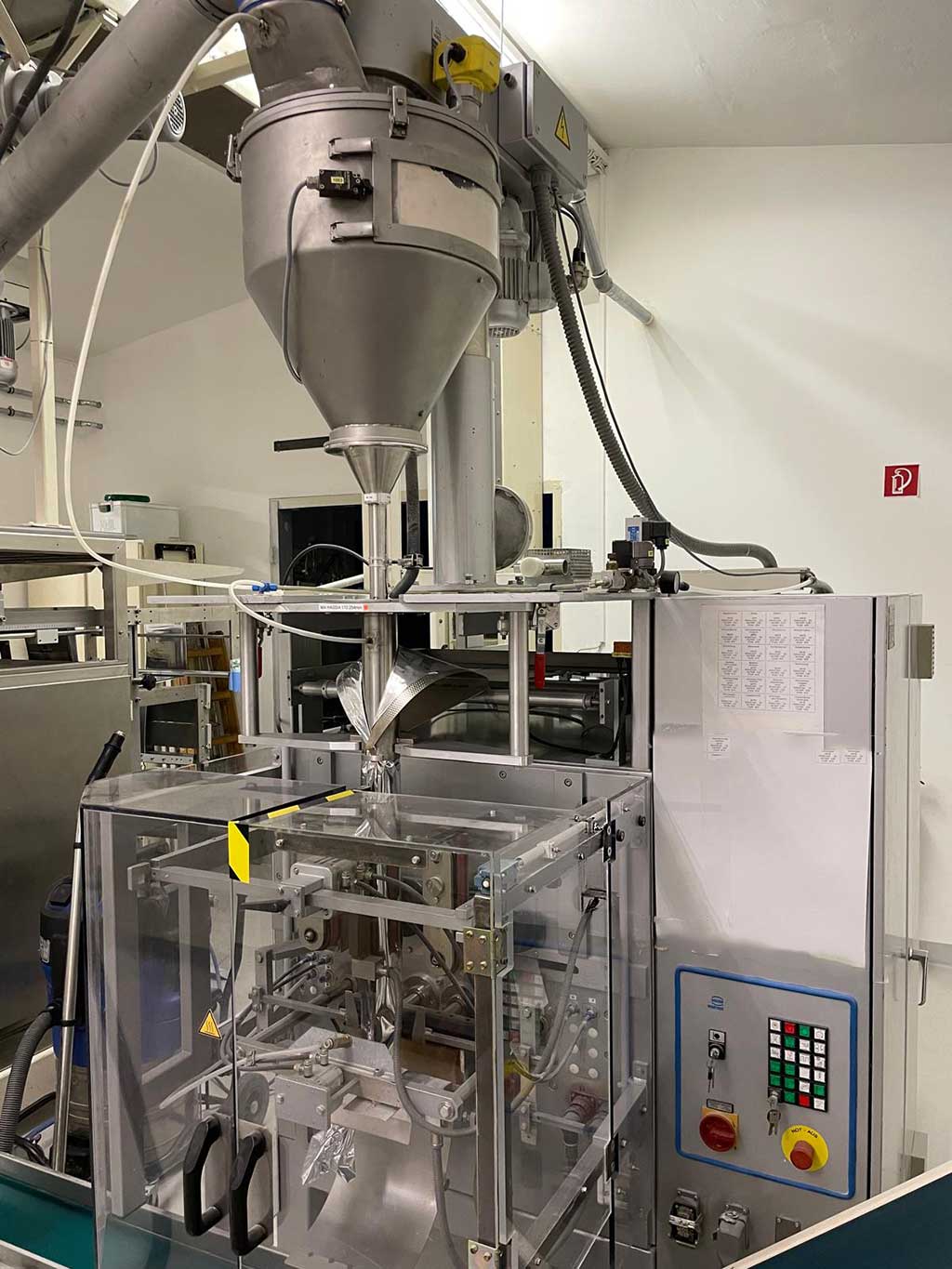

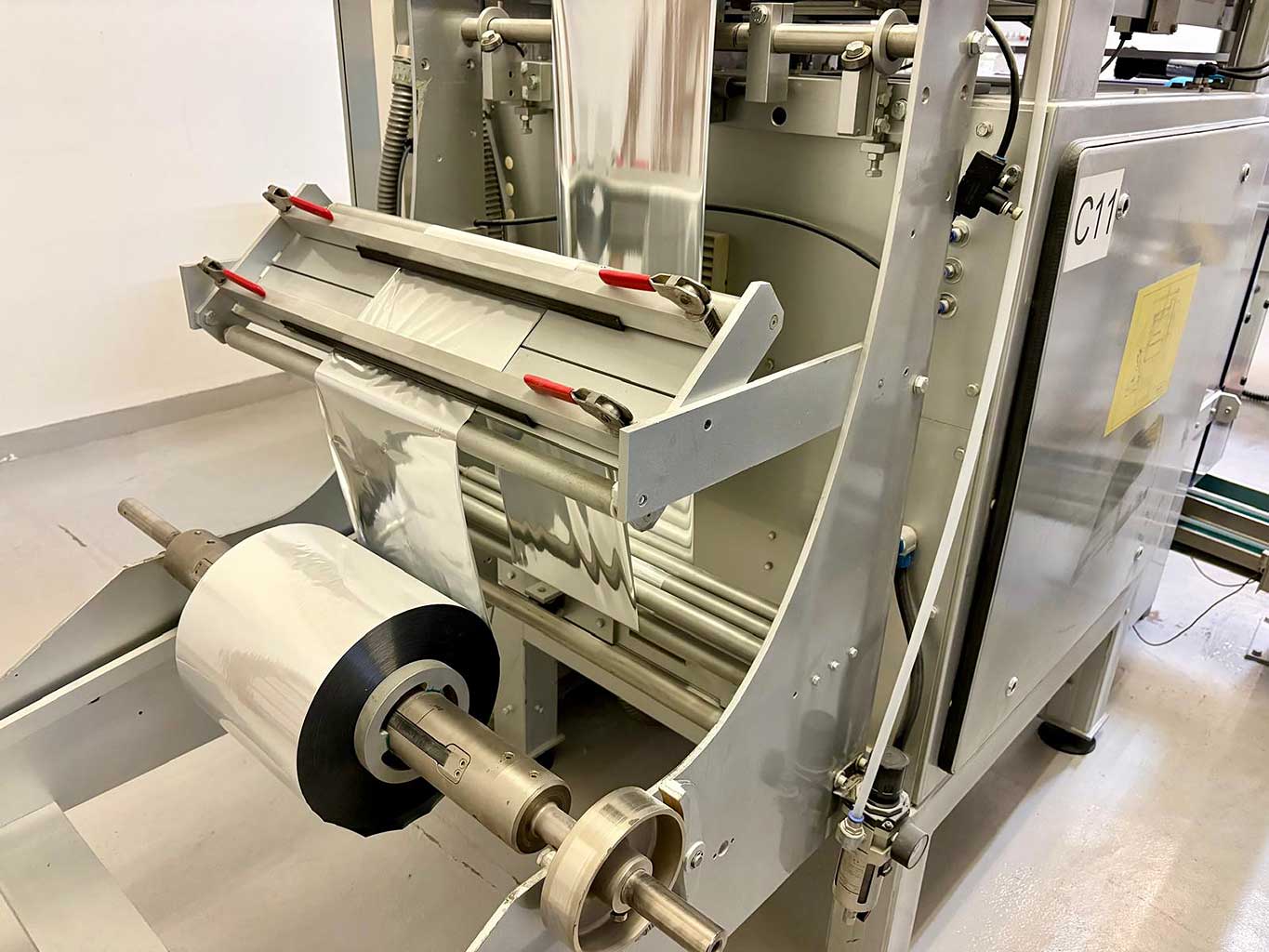

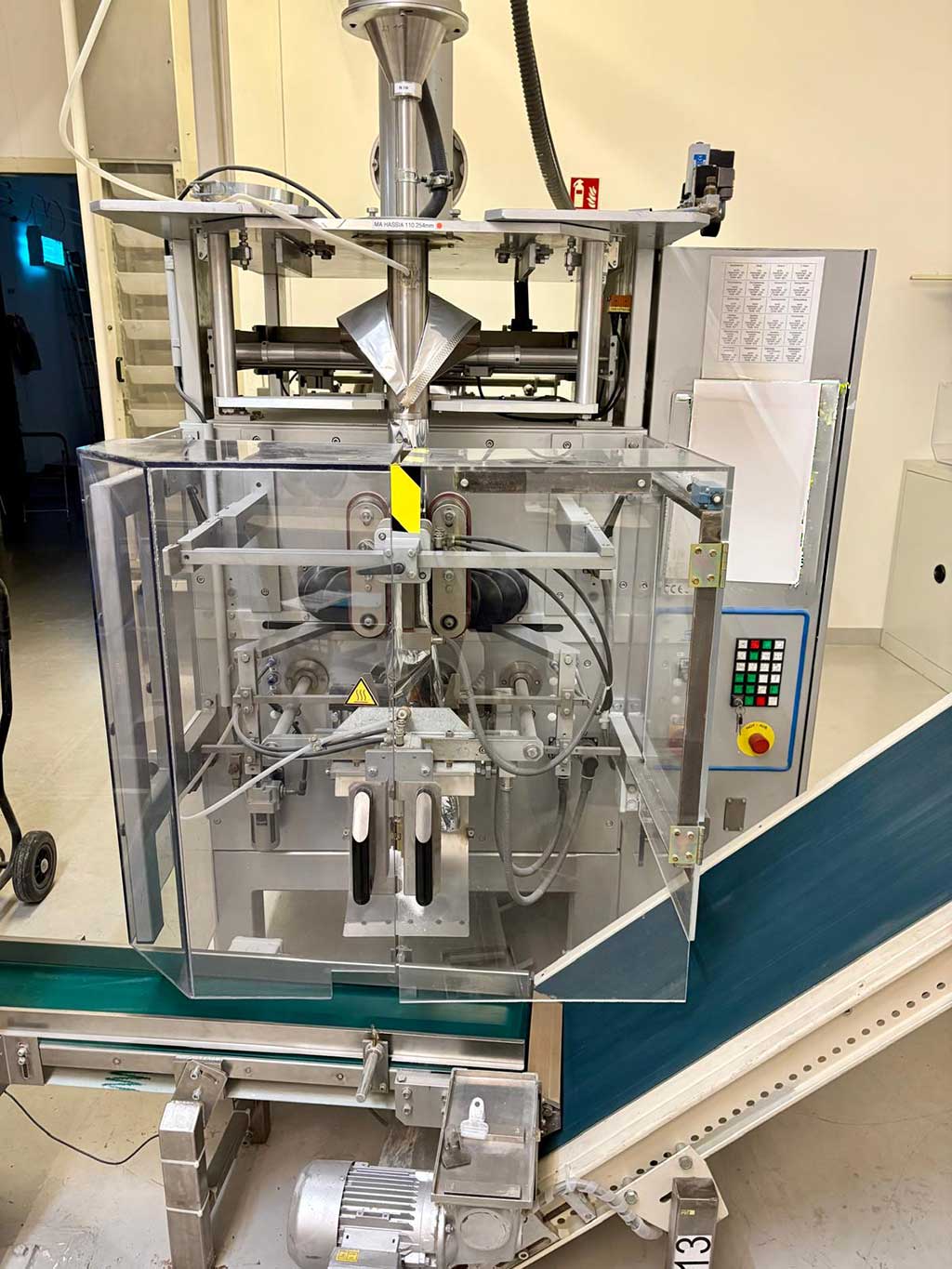

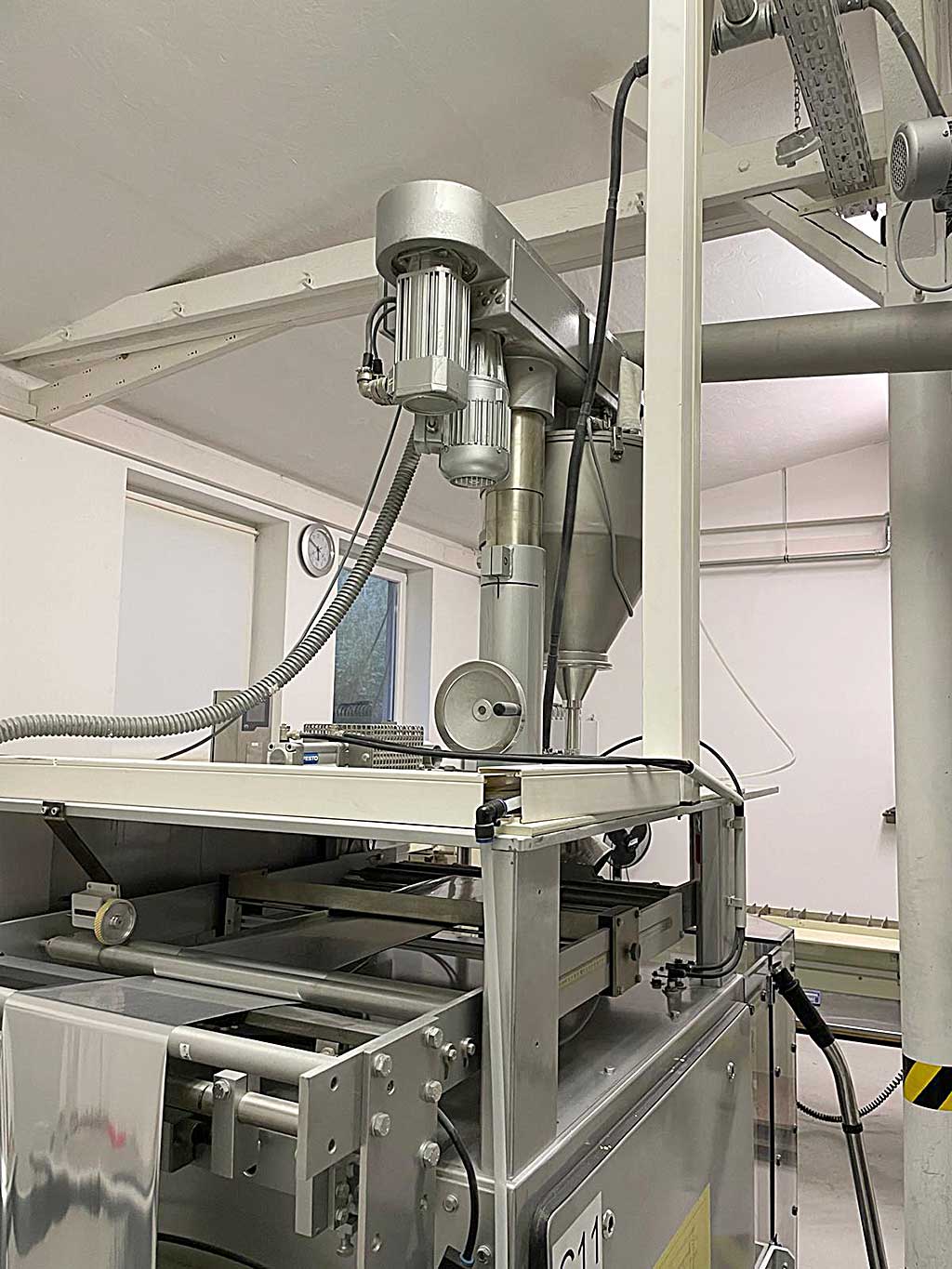

Offered for sale is a vertical form-fill-seal machine with dosing and filling unit. Control system: HASSIA REDATRON machine control system with LCD display, membrane keypad, recipe memory, parameter management and emergency stop switch. Equipped with stainless steel product container, conical dosing hopper, pneumatically operated dosing unit, film roll holder, film guide, forming collar, vertical film forming, sealing unit, transparent protective enclosure and connected conveyor belt. Inspection possible by arrangement.

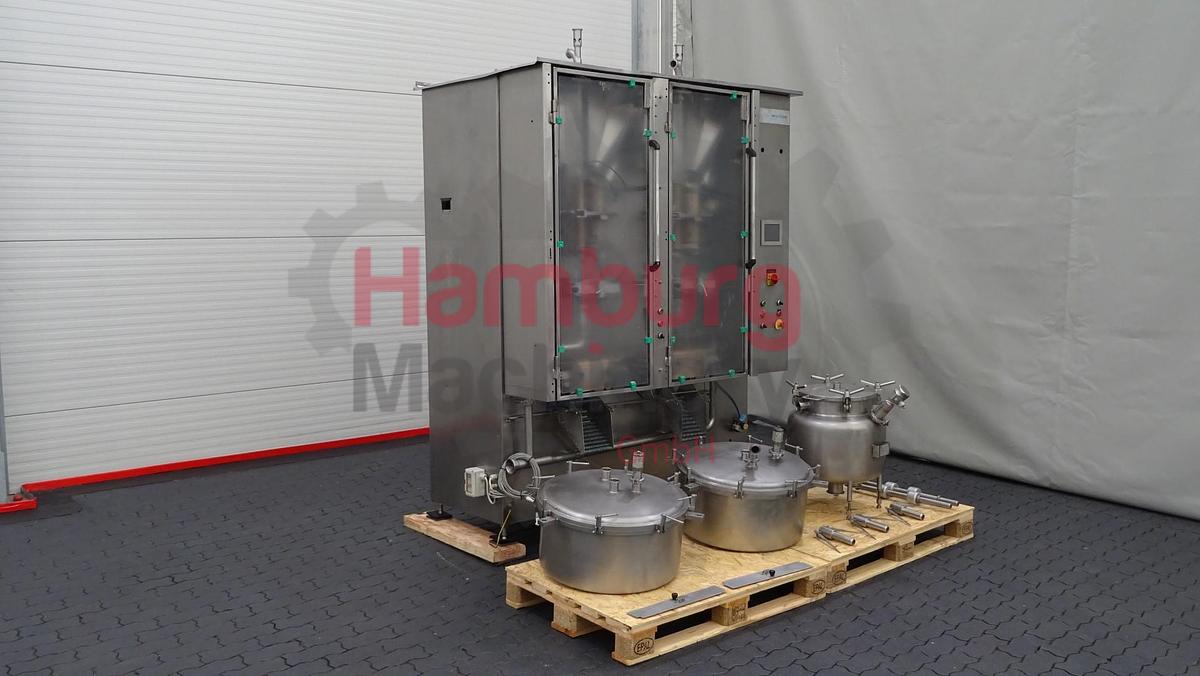

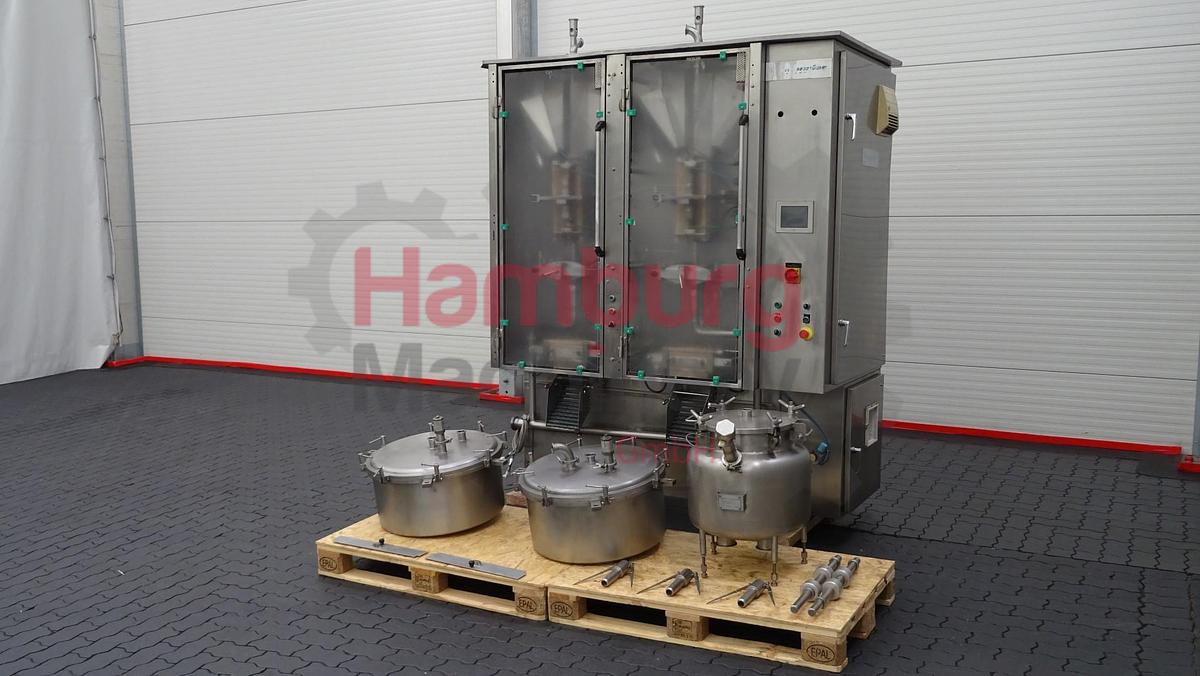

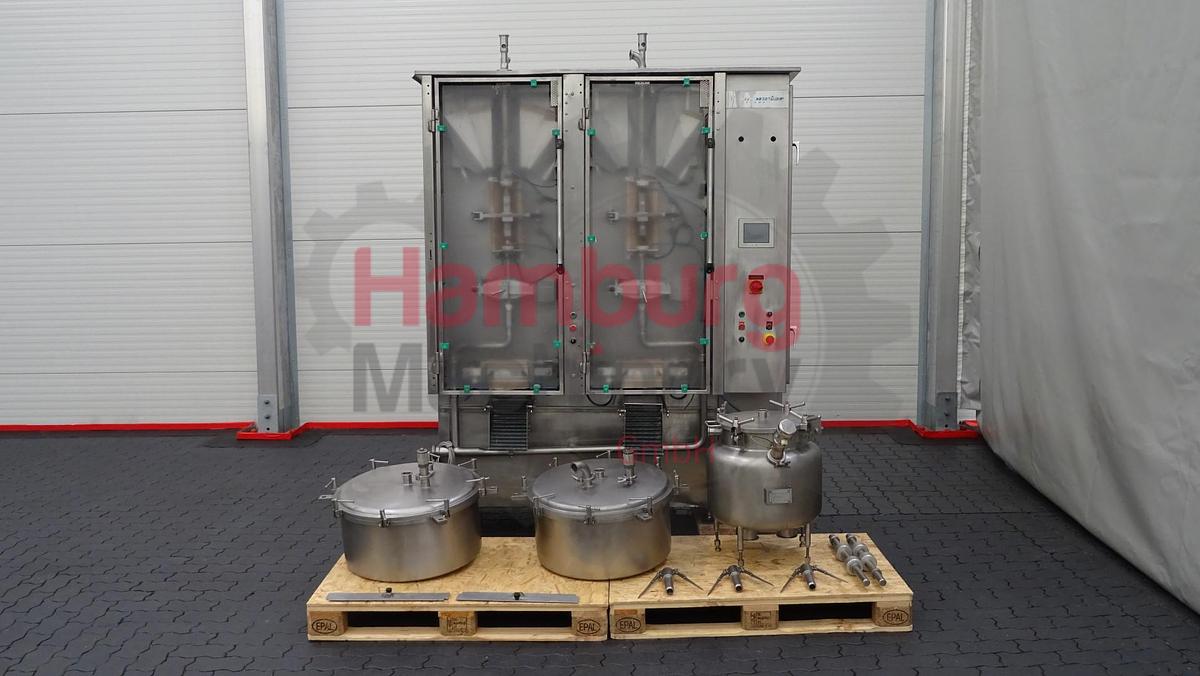

The Thimonnier M3200 is an automatic double head vertical form / fill / seal machine (Vertical FFS) to pack liquid & viscous products in pillow pouches using rolls of polyethylene. Possible products are: pasteurized milk / water / fruit juices / curdled milk / liquid yoghurt / nectars / cream / greek yoghurt / kefir / smetana / rayeb / sauces / soups or syrups. The pouches are continuously filled from an over tank headed with constant level and controlled by a proportional valve and a level sensor.The machine is very flexible and reach high output and high dosing accuracy. Strong frame made from steel profiles covered with stainless plates for maximum rigidity. A Clean-in-Place (CIP) has been integrated into the M3200’s design. All of the parts that come into contact with the product are built from stainless steel. Rate of production: 5.000 - 8.000 pouches per hour. Bag volume: 70 - 1. ...
완전 자동 측면 밀봉 기계 UNIVERSA 400 NT 중고 기계; 제조 연도 2001 어떻게 작동하고 서 있는지도 설명: 제품 포장용 완전 자동 유량 포장기 – 독립 길이 – 완전 감기고 호일 오버랩 없음. 최대 성능 분당 약 40 사이클입니다. 제품은 동시에 컨베이어 벨트를 통해 공급됩니다. 성형 어깨 위에 반관 필름으로 감겨 있습니다. 제품 인덱싱 수평 스캔 광 차단기를 통해 수행됩니다. 피드 벨트는 다양한 제품 폭은 쉽게 조절할 수 있습니다. 제품을 감싼 후 포일은 영구 가열 용접 시스템과 교차용접됩니다. 종방향 용접은 연속 측면 용접 장치에 의해 발생합니다. 고도 성형 숄더 및 용접 장비는 수동으로 조절할 수 있습니다. 남은 포일은 스트립은 호일 와인더로 채웁니 ...
기술 데이터: 용접 펀치: 450mm 영구 가열 펀치 통로 높이: 최대 150mm 펀치 전이: 길이 보상 종방향 용접: 영구 가열 용접 쐐기 호일: 하프 튜브, 약 12-80μm, 최대 직경 400mm 최대 필름 롤 폭: 최대 600mm 컨베이어 벨트: 입구 및 출구 폭 400mm 제품 출력: 최대 85 사이클/분 전송 속도: 분당 10-30m 작업 높이 조절 가능 : 780-930mm 전체 길이: 1950mm 전체 너비: 1650mm 전체 높이: 1850mm 제어판: 시트론 색상: 칼파스 무연탄 정격 전력/정격 전류: 3.5KVA / 5.1A 전원 연결: 400V DS/50Hz, 보호 도체 포
1피스 칼파스 피드 컨베이어(포장 컨베이어) 건설 연도: 2016년, 2017년 납품 1피스 칼파스 우니베르사 500 서보 제조 연도: 2016년, 2017년 납품 2017년에 제작된 1피스 Kallfass Shrink Tunnel Compact 650 DD, (상단에 2개의 가열 볼, 하단에 2개의 가열 볼) 1 조각의 제거 벨
