SCHEER DB 20
穴のためのラインボーリングマシン

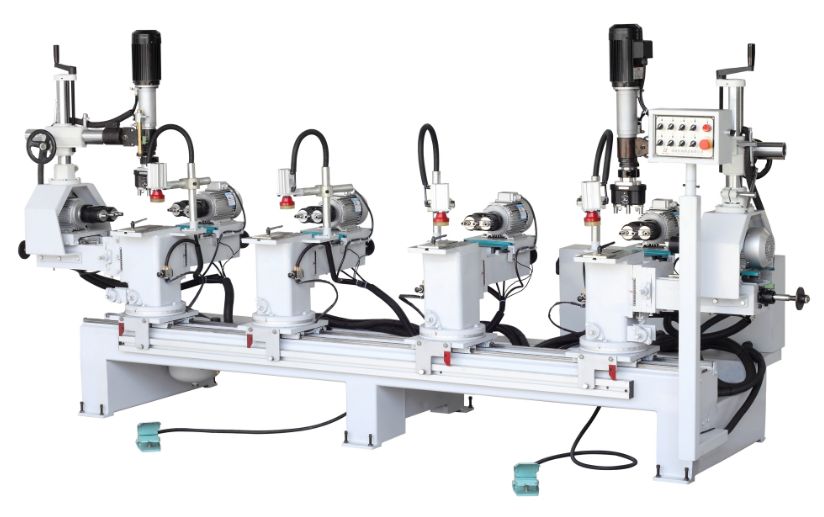

WINTER MULTI MZ3x8 退屈とダボマシン
新品機械認証済み出品者
1 / 1
技術データ
· ID 168393175退屈とダボマシン
- 税抜価格
- 13.900 € netto
- 状態
- 新品機械
- 製造年
- 2025
- 所在地
- Leipzig
Identifikation
メーカーWINTER
型式MULTI MZ3x8
管理番号1327-10367
Technik
数量1
説明
Dimensions (L/W/H): 2800x1100x2200 mm
Weight: 1100 kg
Total power requirement: 8,8 kw
Horizontal and vertical drilling machine MULTI MZ3x8 - Max. Center Distance Between Holes 2440(L)mm x 300(W) mm- Min. Center Distance Between Holes 220(L)mm x 32(W) mm - Max.process length 2440 mm - Min.process length 220 mm - Plate thickness 12~40 mm - Total number of drilling bit 32pcs - Horizontal backside drilling rows 4 rows - Max. drilling dia. 35 mm(Single bit) and 13 mm (Multi)- Max. drilling depth 50 mm - Dia. of drilling bit shaft 10 mm - Length of drilling bit 57 mm/70 mm - Drilling bit speed 2840 rpm - Qty of horizontal L&R drilling rows 2 rows - Qty of vertical up drilling rows 2 rows - Air pressure 0.5~0.6 Mpa - Total power 8.8 kw - Net weight 1100 kg - Overall dimension 2800 x 1100 x 2200 mm
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Weight: 1100 kg
Total power requirement: 8,8 kw
Horizontal and vertical drilling machine MULTI MZ3x8 - Max. Center Distance Between Holes 2440(L)mm x 300(W) mm- Min. Center Distance Between Holes 220(L)mm x 32(W) mm - Max.process length 2440 mm - Min.process length 220 mm - Plate thickness 12~40 mm - Total number of drilling bit 32pcs - Horizontal backside drilling rows 4 rows - Max. drilling dia. 35 mm(Single bit) and 13 mm (Multi)- Max. drilling depth 50 mm - Dia. of drilling bit shaft 10 mm - Length of drilling bit 57 mm/70 mm - Drilling bit speed 2840 rpm - Qty of horizontal L&R drilling rows 2 rows - Qty of vertical up drilling rows 2 rows - Air pressure 0.5~0.6 Mpa - Total power 8.8 kw - Net weight 1100 kg - Overall dimension 2800 x 1100 x 2200 mm
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
