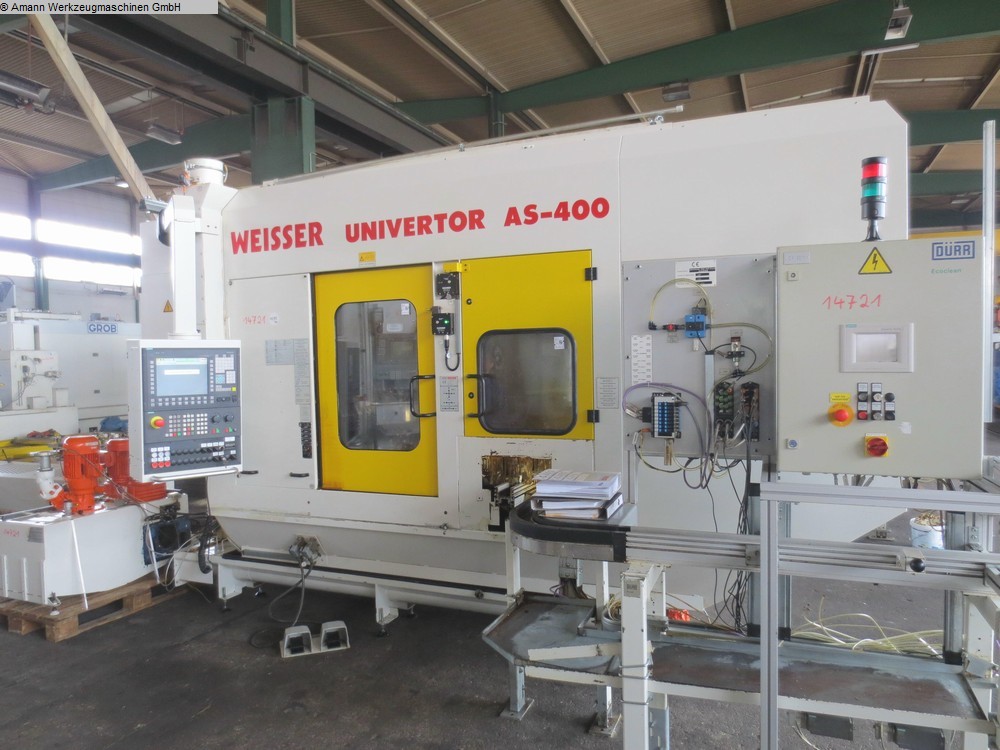

WEISSER Univertor AS 400 Cnc旋回機

turning diameter: 250 mm
turning length: 400 mm
control: Siemens 840 D
swing diameter: max. 300 mm
workpiece length - max.: 400 mm
travel -x axis: 280 mm
feed in x - axis: 0,1 - 30 m/min
rapid traverse X-axis: 30 m/min
travel -z axis: 1150 mm
feed range Z-direction: 0,1 - 60000 mm/min
rapid traverse Z-axis: 60 m/min
spindle bearing diameter: 90 mm
spindle head DIN 55026 - Size: A6
turning speeds: 1 - 5000 U/min
tool taper: Capto C4
total power requirement: 45 kW
weight of the machine ca.: 11 t
dimensions of the machine ca.: 7,0 x 5,0 x 3,2 m
CNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyor
with chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm,
12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring,
Pickup-loading incl. conveyor.
Without coolant system, was connected to central supply.
Machine can be inspected under power.
