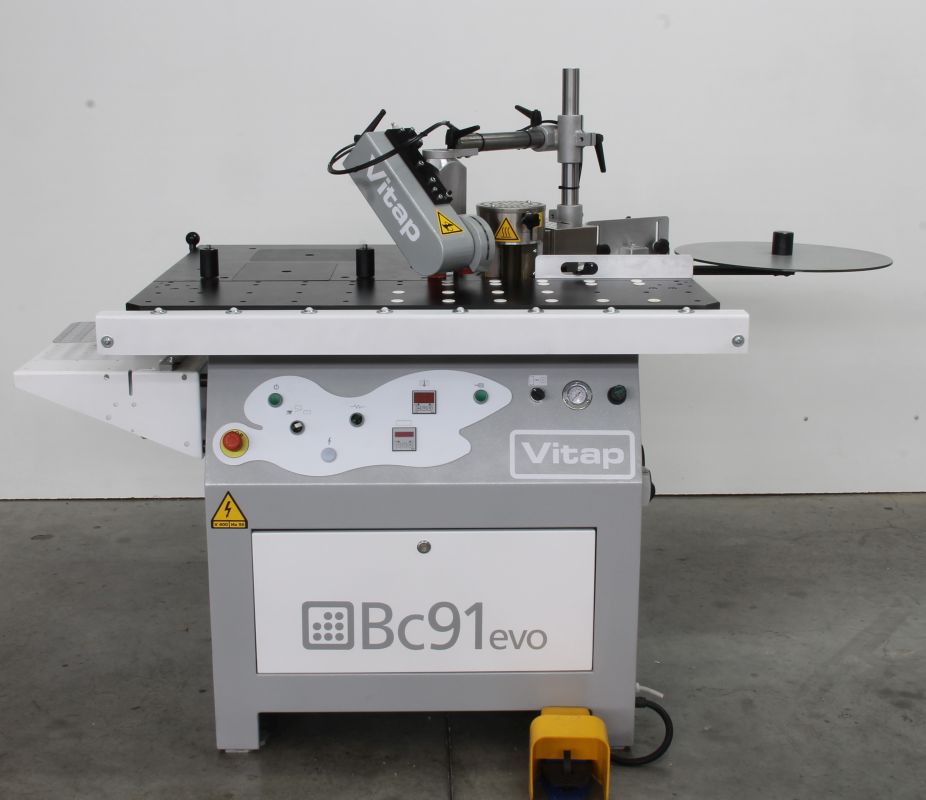

VITAP BC91 EVO 形状部品用エッジ接着機

Contour edge bander
Fabrikat: VITAP
Type: BC91 EVO
New machine

Max. flexibility by means of a smart construction
- For gluing chamfers on rectangular or formed workpieces

- Tilting table 0°-45°
- To glue pieces 10-60 mm thickness
- Edge material: PVC, melamine, veneer, plastic, laminate, solid wood

- Nr. 2 glue spreading rollers
- Cutting guillotine up to 3 mm thickness
- Glue pot (kg 3), with electronic adjustable heating system

- Band length measuring by means of a digital electronic counter
- Tape cut by foot pedal to edge just one piece and measuring edge length

- Feeding speed adjustable from 7m to 20m per min.

Solid Phenolic table
- Easy to clean
- With no transmission of heat
- Plastic cups to raise the piece above the table

- 2 kg vitap glue 280.00 for test

- CE standards

Optional:
- Enlarged tape plate 800 mm
- Semi-automatic end-cutter with motor 0,6HP (kw 0,5) and blade diam. 125 mm and working table bar 400x300 mm
- Support bar with rollers
- One wheel-motorised feeder for shaped Pieces with same speed of the edge-banding roller.
- Hot air blower
- Glueing system for tape 120 mm high
- Vitap glue 2kg
- Vitap glue 10kg
