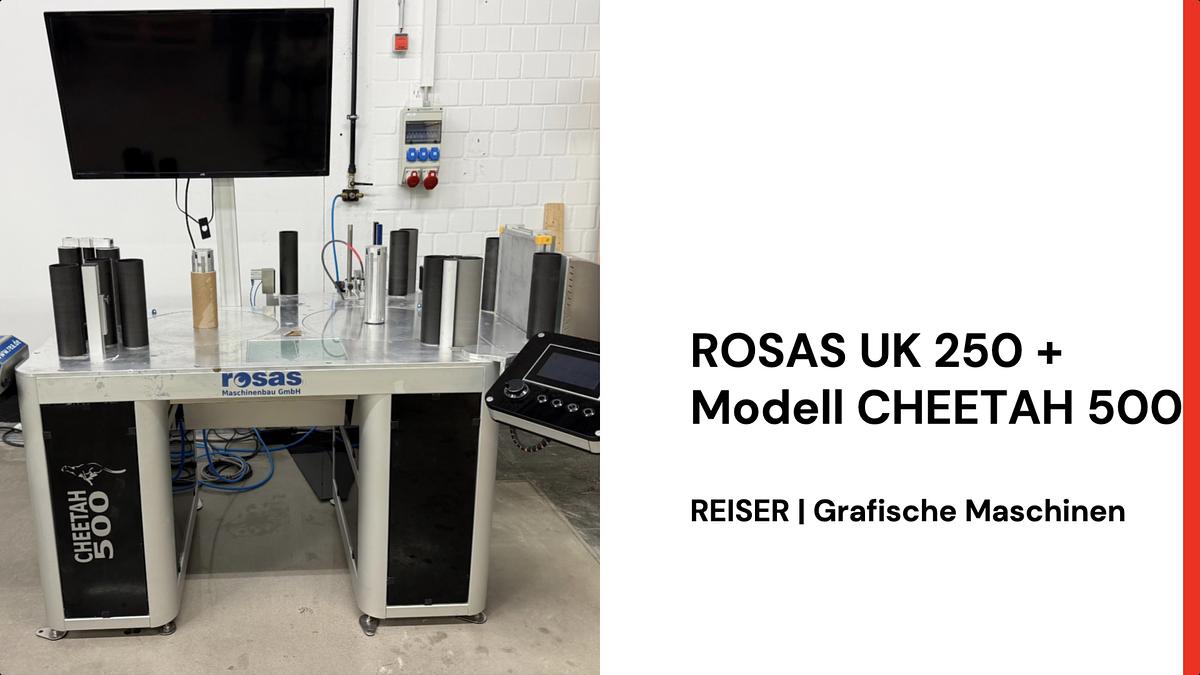

ROSAS UK 250 + Modell Gepard 500 UK 250 + Model Gepard 500 inspection table-top rewinder

Technical Data:, • Working width: min. 20 mmmax. 250 mm, • Winding diameter: max. 510 mm, • Core sizes: min. 1”max. 3” (up to 6” with adapter), • Air supply: 6 bar, • Web tension: 1–21 N, Equipment:, • Base frame with two servo motors, • 2 pneumatic winding shafts, • Web tension system via dancer roller, • Splice and defective label detection, • Splicing table, • Measuring roller, • Counter, • Operation via HMI touch screen with digital handwheel, Features:, • Bi-directional winding, • Inside & outside winding, • Winding tension control: diameter-dependent or independent, • Fully reproducible winding results, • Integrated job memory (recipe management), • Counters for labels, linear meters, and diameter, Performance Model Gepard 500, Speed: 500 m/min (depending on material and winding diameter), Web width: 250 mm, Idler rollers: approx. 80 mm CFRP, Counters: Diameter, linear meters, label counter with ultrasonic sensors for clear-on-clear labels, Splice detection: Yes, Missing label inspection: Yes, Camera upgrade: Possible, Printmodul HR-Serie, Print module: Rea-Jet HR series, up to 2 heads, 25.4 mm print width supplied with one print head (12.7 mm print width), Winding shafts: CFRP encoder roller (especially suitable for thin films) with integrated encoder, Speed: 60 dpi / 300 m/min. ; 600 dpi / 30 m/min, Front/back printing: Yes, Registration accuracy: +/-0.3 mm, Ink: DCV2, Splicing stations: Fully automatic splicing stations for uninterrupted printing, Software: Error-free start and stop of printing during bidirectional operation., Anti-static bars: 2 DC anti-static bars (one each for front and back), Inspection-System HQ 5050, General: Base plate, control unit, 40” HD LCD monitor, lighting system, high-quality image processing computer, Available algorithms:, • Print image inspection, • 2D code reading (only with > 4 MP camera), min. size 10 mm / single element 0.6 mm / QR Code / Micro QR / Micro PDF, • Barcode reading (only with 4 MP camera), min. size 0.6 mm / JAN/EAN/UPC / Code39 / Codabar / ITF / Code93 / Code128/GS1-128 / GS1 DataBar / Pharmacode/ OCR reading (only with > 4 MP camera resolution), • General distance measurement, • Data logging to CSV file, Lighting:, • Incident-light dome with glare-free illumination and high-performance LED (32,000 lux), • LED flat dome backlight (30,000 lux) for transmitted-light inspection, Camera:, • 5 MP QSXGA color camera, • 2448 x 2048 @ 200 x 167 mm > 310 dpi, • Min. defect size 0.3 mm, • Approx. 160 m/min (100 x 100 mm label), Technical specifications according to the user (not guaranteed)
