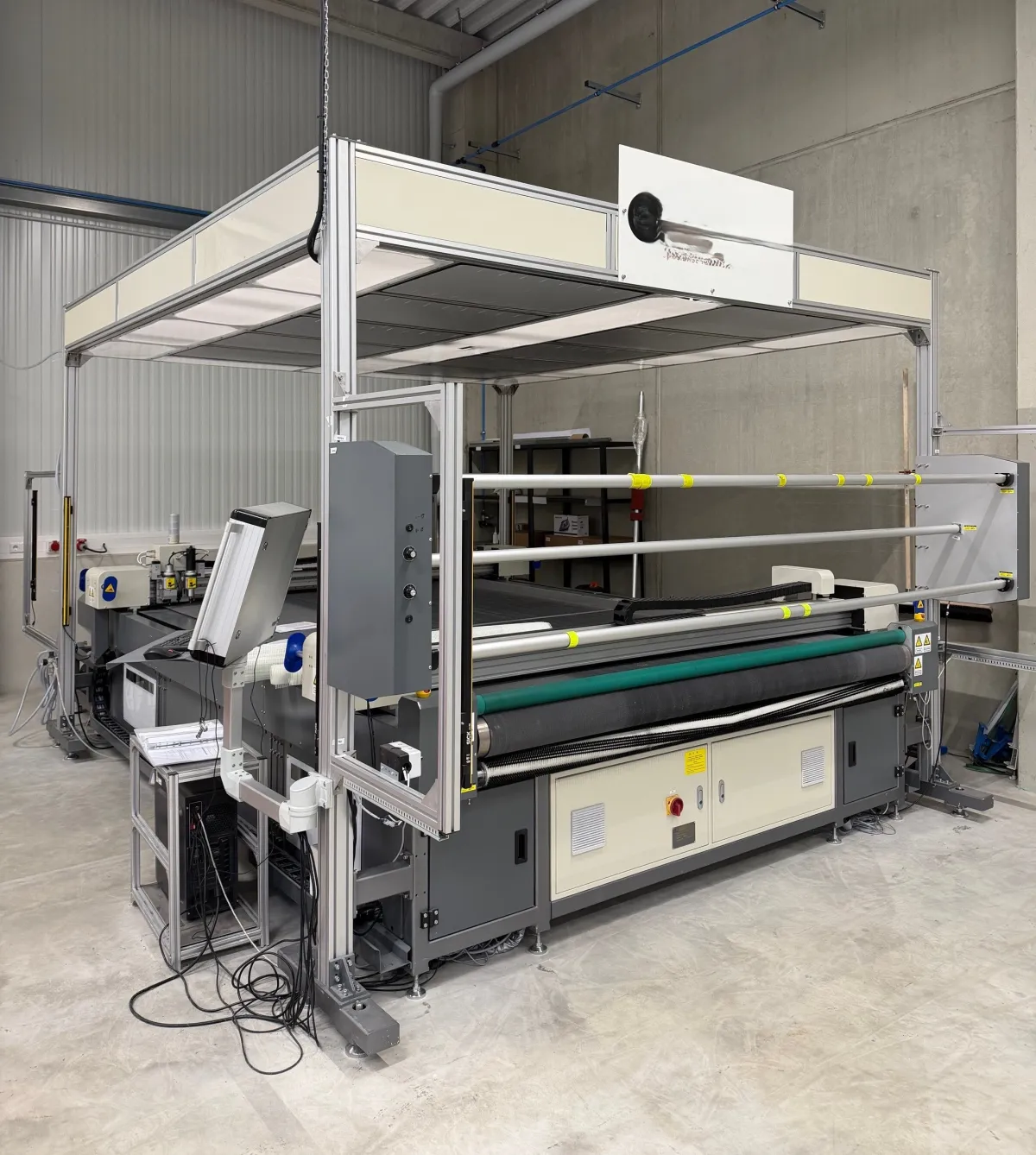

Richpeace Flat Plate CNC Cutting Machine カッティングマシン
中古認証済み出品者
価格を問い合わせる
出品者に直接
1 / 4
技術データ
· ID 169741994中古機械
- 状態
- 中古
- 製造年
- 2020
- 所在地
- Dresden, Germany
Identifikation
メーカーRichpeace
型式Flat Plate CNC Cutting Machine
管理番号9120180
Technik
数量1
説明
Manufacturer: Richpeace
Machine Type: Flat Plate CNC Cutting Machine (3-in-1)
Model: RPFP-NM-1D-FD-CKC-1-2000X2000-DGSF-QC-P-CK-EVK-PG-AF+AR-SP380
Year of Manufacture: 2020 (July 27, 2020)
Technical Specifications
- Working Mode: Camera + double bridge cutting
- Cutting Area: 2000 mm (X) x 2000 mm (Y)
- Camera Recognition Area: 1500 mm (X) x 2000 mm (Y)
- Maximum Cutting Speed: 60 m/min
- Maximum Cutting Thickness: 5 mm
- Locating System: Vision localization
- Loading, Orientation and Recognition Time: 10 seconds
- Cutting Tools: Ink jet (optional) + round knife + vibrating knife (optional) + mark pen
- Knife Replacement Cycle: Every 5 days x 8 hours of operation
- Control System: Full servo system
- Feeding System: Automatic transfer feed
Transmission and Drive
- X-axis: High-precision timing belt + linear guide
- Y-axis: High-precision timing belt + linear guide
Physical and Electrical Details
- Machine Dimensions: 5000 x 3300 x 2650 mm (L x W x H)
- Net Weight: 2500 kg (nameplate: 3500 kg)
- Power Supply: 3-phase AC 380V +/- 10%, 50/60 Hz, 5.0 kW
- Compressed Air: 0.6 - 0.8 MPa
- Operating Temperature: 15 - 45 degrees C
- Relative Humidity: 85% maximum, no condensation
- Noise Level: 75 dB maximum
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Machine Type: Flat Plate CNC Cutting Machine (3-in-1)
Model: RPFP-NM-1D-FD-CKC-1-2000X2000-DGSF-QC-P-CK-EVK-PG-AF+AR-SP380
Year of Manufacture: 2020 (July 27, 2020)
Technical Specifications
- Working Mode: Camera + double bridge cutting
- Cutting Area: 2000 mm (X) x 2000 mm (Y)
- Camera Recognition Area: 1500 mm (X) x 2000 mm (Y)
- Maximum Cutting Speed: 60 m/min
- Maximum Cutting Thickness: 5 mm
- Locating System: Vision localization
- Loading, Orientation and Recognition Time: 10 seconds
- Cutting Tools: Ink jet (optional) + round knife + vibrating knife (optional) + mark pen
- Knife Replacement Cycle: Every 5 days x 8 hours of operation
- Control System: Full servo system
- Feeding System: Automatic transfer feed
Transmission and Drive
- X-axis: High-precision timing belt + linear guide
- Y-axis: High-precision timing belt + linear guide
Physical and Electrical Details
- Machine Dimensions: 5000 x 3300 x 2650 mm (L x W x H)
- Net Weight: 2500 kg (nameplate: 3500 kg)
- Power Supply: 3-phase AC 380V +/- 10%, 50/60 Hz, 5.0 kW
- Compressed Air: 0.6 - 0.8 MPa
- Operating Temperature: 15 - 45 degrees C
- Relative Humidity: 85% maximum, no condensation
- Noise Level: 75 dB maximum
Find more here - .ucymachines/
Contact us at - sales@ucymachines
