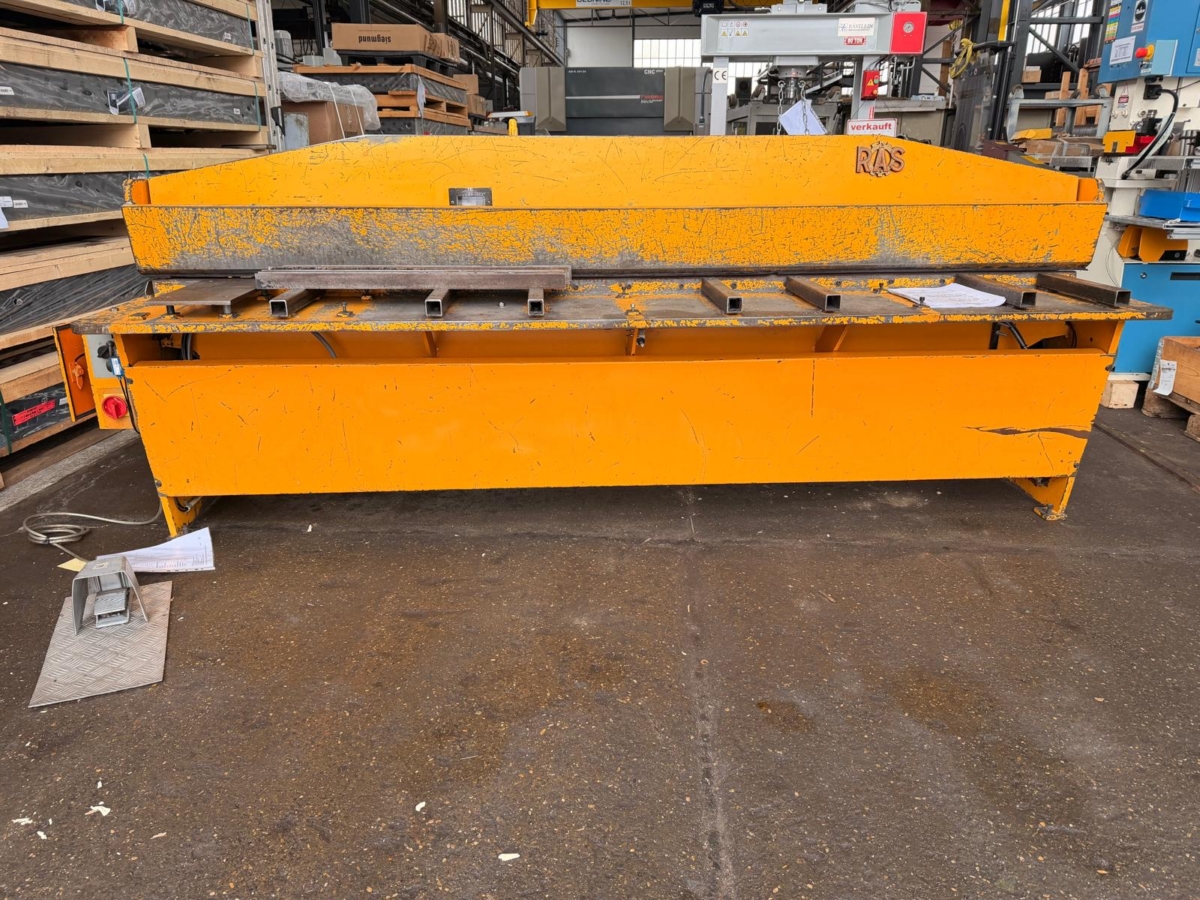

RAS 82.25 ギロチンせん断
中古認証済み出品者
価格を問い合わせる
出品者に直接
1 / 7
技術データ
· ID 170032796ギロチンせん断
- 状態
- 中古
- 製造年
- 1980
- 所在地
- Günzburg
Identifikation
メーカーRAS
型式82.25
管理番号1123-4011126
Technik
数量1
説明
sheet width: 2540 mm
plate thickness: 2 mm
thickness at Niro-steel: 1,25 mm
no. of strokes: 63 Hub/min
cutting angle: 1,13 °
table height: 750 mm
table width: 320 mm
back stop - adjustable: 5,0-550 mm
total power requirement: 3 kW
weight of the machine ca.: 1600 kg
Equipment:
- manual backgauge, with analog display
* Adjustable from the front
* stepless adjustment over the entire travel range
- 1x long side stop
- 3x support arms
- Free-moving foot switch
- Sheet holding device for thin sheet blanks
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
plate thickness: 2 mm
thickness at Niro-steel: 1,25 mm
no. of strokes: 63 Hub/min
cutting angle: 1,13 °
table height: 750 mm
table width: 320 mm
back stop - adjustable: 5,0-550 mm
total power requirement: 3 kW
weight of the machine ca.: 1600 kg
Equipment:
- manual backgauge, with analog display
* Adjustable from the front
* stepless adjustment over the entire travel range
- 1x long side stop
- 3x support arms
- Free-moving foot switch
- Sheet holding device for thin sheet blanks
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
