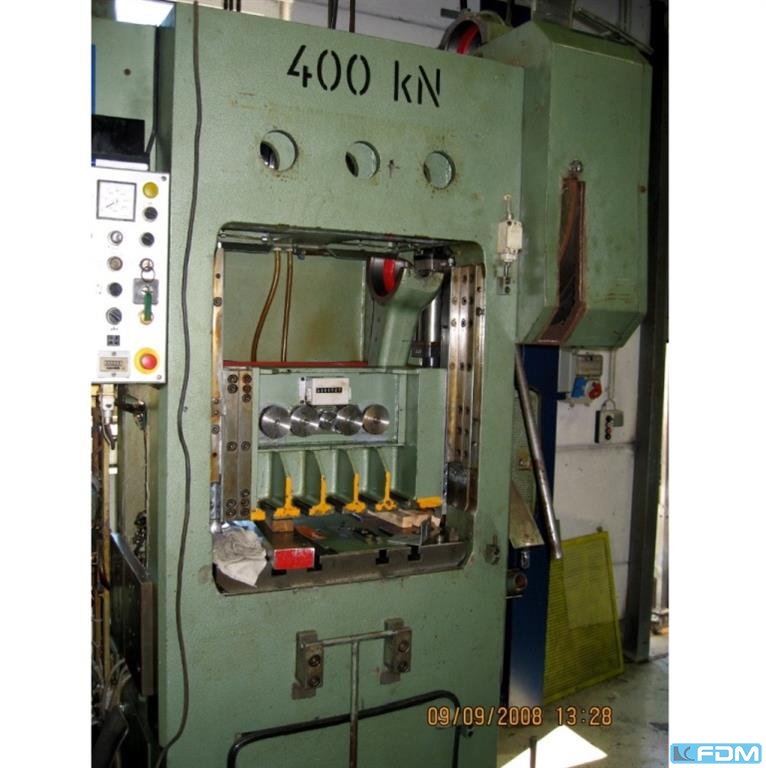

HAULICK & ROOS RVD 40 Double Column Press - mechanical
中古認証済み出品者
価格を問い合わせる
出品者に直接
1 / 3
技術データ
· ID 170386982中古機械
- 状態
- 中古
- 製造年
- 1978
- 所在地
- Lager Eislingen, Baden-Württemberg
Identifikation
メーカーHAULICK & ROOS
型式RVD 40
管理番号1050-083160
Technik
数量1
説明
pressure:040 t
stroke:8 - 50 mm
no. of strokes:50 - 300 /min
distance between columns:600 mm
distance table/ram, max. stroke up, adjustment up:285 mm
table surface area:590 x 500 mm
hole in the table:590 x 40 - 100 mm
table height over floor:860 mm
column travel -side:280 mm
ram surface:590 x 380 mm
ram adjustment:80 mm
material width of feeder:150 mm
power requirement:7,5 kW
clutch:pneumatic
ram adjustment:motoric
pincer feed:mechanical
stroke:8 - 50 mm
no. of strokes:50 - 300 /min
distance between columns:600 mm
distance table/ram, max. stroke up, adjustment up:285 mm
table surface area:590 x 500 mm
hole in the table:590 x 40 - 100 mm
table height over floor:860 mm
column travel -side:280 mm
ram surface:590 x 380 mm
ram adjustment:80 mm
material width of feeder:150 mm
power requirement:7,5 kW
clutch:pneumatic
ram adjustment:motoric
pincer feed:mechanical
