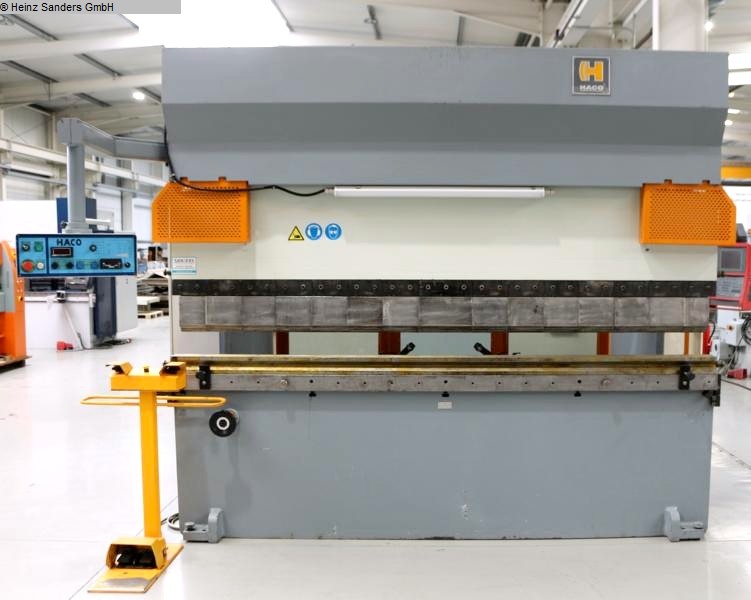

HACO PPM 30.200 曲げプレス

pressure: 200 t
chamfer lenght: 3100 mm
distance between columns: 2550 mm
stroke of upper beam: 200 mm
throat: 300 mm
dayligth: 440 mm
working feed: 9.0 mm/sec
return speed: 80.0 mm/sec
: 265 bar
Control: konv.
work height max.: 965 mm
total power requirement: 15.0 kW
weight: 10500 kg
range L-W-H: 3360 x 1750 x 2800 mm
- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=EcmvsA4AGfo
Equipment:
- simple / conventional electro-hydraulic press brake
- pivoting operation, front left
- electric, infinitely variable depth adjustment (Y1 Y2 axis)
* Torsion shaft for parallelism
- Electro-motorized backgauge (X axis)
* with handwheel for fine adjustment
* on recirculating ball screws
* 2x manually adjustable stop fingers
- manual (jog mode) and automatic cycle selector switch
- manual table crowning
- split set of roe foot upper tools ... H = 210 mm
- 1x as good as new universal V-die block, reversible
* with anti-corrosion grease
* V openings in mm : 12/35/25 50 10/20/16/16 75
* Dimensions of the block in mm : 100 x 100
- 1x 1V die (continuous) - V opening in mm : 100
- various / further bending tools
- 1x free-moving 2-hand/foot control
- Operating instructions (PDF)
