フライス盤 中古 販売のため

GeneralUniversal Milling Machine; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperHSK-A 63 Clamping SystemHSK-A 63 Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring systemSpindle speed 15,000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 21 kW / 16 kW (28 hp / 21.5 hp) Torque 111 Nm / 85 Nm (82 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel range -35 to +110°, rot ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal735 mmCross650 mmVertical560 mmTechnical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length370 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Table plate C-axis d 680 mm / 26.8 in Speed C-axis 1.000 min-1 Integrated balancing sensor Motor spindle speedMASTER® HSK-A63 Spindle speed ...

GeneralUniversal Milling Centre - Direct Measuring System X, Y, Z inclusive air purge for measuring system - Coolant Air-Blast Changeover external switchable via M-Function - DMG MORI NETservice - RMS device (Relocation Machine Security); Control: DMG MORI ERGOline IV Multi-Touch CharacteristicsMovement X / Y / Z800/600/510 mmType of magazineChain Tool Magazine with60 PositionsClamping SystemDIN 69872 Spindle taperSK 40 DIN 69871 Drive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.12000 rpmRapid feed X / Y / Z42/42/42 m/minTable surfaceØ 800 x 620 mmMovement C-Axis360 degreeMovement B-Axis(-15/+110) degreeType of gripperDouble gripper Production Package 80 bar with chip conveyorProduction Package 80 bar Option includes: - Internal coolant supply 80 bar - Tank capacity: 600l with papertype filter - Chip conveyor (scraper type) with tank capacity: 205 l (left) - Bed and ATC a ...

GeneralVertical Machining Centre - Direct Measuring System X, Y, Z - Coolant air-blast changeover external switchable via M-Function; - Thermal compensation - DMG MORI NETservice; Control: DMG MORI ERGOline X Multi-Touch control Siemens CharacteristicsMovement X / Y / Z800/600/510 mmType of magazineChain Tool Magazine with30 PositionsClamping SystemDIN 69872 Spindle taperSK 40 DIN 69871 Drive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.15000 rpmRapid feed X / Y / Z42/42/42 m/minTable surfaceØ 800 x 620 mmMovement C-Axis360 degreeMovement B-Axis(-15/+110) degreeType of gripperDouble gripper Production Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar; - Chip conveyor (scraper type) with tank capacity: 205 l (left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External electr ...

GeneralVertical Machining Center; Control: Control SIEMENS SINUMERIK ONE CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D200 mm)Electronic HandwheelExternal electronic Handwheel

Working area 1Longitudinal500 mmCross450 mmVertical400 mmGeneralUniversal Milling Machines; Control: DMG MORI SLIMline® Multi-Touch control Floor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 2,91 x 2,71) mWeight approx.4700 KgTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemTable surface Ø 630 x 500 mmMaximum load (table centre) 200 KgSlot width 14 mmMain driveType of main drive ACMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber o ...

GeneralUniversal Milling Machines; Control: DMG MORI SLIMline® Multi-Touch control Technical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minWorking area 1Longitudinal500 mmCross450 mmVertical400 mmFloor space/WeightDimensions (L x W x H)3,15 x 2,86 x 2,71 (4,14 x 2,91 x 2,71) mWeight approx.4700 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only!Type of Measuring system Direct measuring systemTable surface Ø 630 x 500 mmMaximum load (table centre) 200 KgSlot width 14 mmMain driveType of main drive ACMode for positioning only5. Axes (swivelling range) -5/+110 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeDistance between T-Slots 63 mmNumber o ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross700 mmVertical950 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 150 mm - B-axis ±120° - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 6 bar; 20l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor - Connection, electr./mechanic, for oil mist extractor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways630 mmTurning diameter550 mmMax. Turning Length2000 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmC-Axis Speed-5000 rpmTorque of C-Axis (holding torque)28 ...

GeneralVertical Machining Centres; Control: DMG MORI SLIMline® Multi-Touch control CharacteristicsMaximum load (table centre)600 KgDimensions (L x W x H)3,03 x 3,49 x 2,94 (5,8 x 5,5 x2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z600/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with30 PositionsMax. torque82 NmDrive power (40% DC)13 kWTorque (100% DC)54 NmDrive power (100% DC)9 kWSpeed max.12000 rpmTable surface900 x 560 mmWeight approx.5200 KgSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872NC-Divider EA 510.L indirect (Siemens)NC rotary table (4th axis) Lehmann with indirect measuring system Option includes: - Rotary table type EA-510.L - Electrical and pneumatic preparation - Software preparation to work with rotary table - Cycle TRACYL which allows to define contour on theMachine without: Direct measuring system X,Y,ZMachine without option: Direct Mea ...

テーブル寸法 ...900×500ミリメートル 軸X ...700ミリメートル 軸Y...500ミリメートル 軸Z ...500ミリメートル ISO感度40 スピンドル速度 ...0-3150 rpm L×W×H...2220×2115×2120ミリメートル 機械重量...2550キロ 機械は良好な状態にあり、電源下でテストすること� ��可能です�

X-トラベル:1190 mm-トラベル:530 mmZ-トラベル:540 mmテーブルサイズ:1600 x 400 mmスピンドルドライブ:11 kWツールテーパー:ISO 50 回転速度:28-1400 U/minfeeds:16-800 mm/U合計電力要件:21 kW機械の重量:4,8 機械の寸法:mこの広告のデータは、LogoTech oHGのソフトウェアソリューションであるModulMWSを使� �して作成されました�

Key data: 600 mm, 700 mm, 600 mm

CNCユニバーサル – フライス盤 & ボール盤 DECKEL MAHO DMU 60 P duoBlock NEW DMG Design トラックコントロール付き ハイデンハイン iTNC 530 製作年:2010年 移動範囲: X 600 Y 700 Z 600 速度範囲:0 – 12,000 rpm無段階可変(SK 40) 次のアクセサリ付き: NCロータリーテーブル クランプ面 630mm(テーブル荷重最大700kg) 制御されたB軸を備えたユニバーサルミーリングヘッ ド ダブルグリッパーとして40のマガジンポジションを� �えたユニバーサルツールチェンジャー(SK 40) 引き戸と室内照明を備えたフルプロテクションキャ� ��ン IKZ – ペーパーベルトフィルター付き40バール コンベヤー ロトクリア 3Dプローブ ハイデンハイン TS 649 電子ハンドホイール 動作モード3 + 4 オイルミスト� ...

CNCユニバーサル – フライス盤 & ボール盤 DECKEL MAHO DMU 85 monoBlock NEW DMG 設計 トラックコントロール付き ハイデンハイン TNC 640 製造年:2018 トラベル:X 935 Y 850 Z 650 速度範囲:0 – 20,000 rpm連続可変(HSK 63) 次のアクセサリ付き: NCスイベルロータリーテーブル1000 mm x 750 mmクランプ面 3Dプローブ赤外線ハイデンハイン 90マガジンポジションの垂直ツールチェンジャー(HSK 63) 作業室のドアでのチップフラッシング ポンプ付きチップリンスガン 1 bar/40 l min 引き戸と室内照明を備えたフルプロテクションキャ� ��ン 動作モード3 + 4 ペーパーベルトフィルター付きIKZ 40バー コンベヤー ロトクリア クーラントのセットアップ スピンドルオイルクーラー オイルミスト ...

工具フライス盤 デッケル FP 3 ※一部オーバーホール済み 商品番号: 07-07-091 メーカー:蓋 非常に良好な全身状態 機械の一部オーバーホール 納期:リクエストに応じて - 事前販売の対象となります 築年:1980年頃 長さ×幅×高さ:約2000×1600×1900mm 重さ:約1500kg デジタルディスプレイ:3軸デジタルディスプレイSino New 旅行： X軸:約500mm Y軸:約300mm Z軸:約380mm テーブルクランプ面:約800x420mm 紡錘： 速度範囲:約40-2000 rpm ツールホルダー:ISO 40 駆動電力:約3.8kW ツールクランプ:手動 送りと早送り:3軸すべてで 送り範囲:約10-500mm / min 早送り:約1.5m/min 小物： 縦型および横型フライス盤 クーラント設備 New 完全なドキュメント 各種テンションレンチ 水平� ...

シャフト研削、研磨、フライス盤 仕様： - 速度850〜12000 rpm - フレキシブルシャフト 2メートル - モバイル足回り - 研削工具や研磨工具に適しています - 駆動 380 V / 1.0 hp - 必要なスペース 幅500×高さ1000×奥行500mm ●重量約 45キロ - モバイル足回り

Key data: 500 mm, 500 mm, 380 mm

3軸アクティブデジタルディスプレイ ハイデンハイン 作業移動距離 x/y/z 500 mm / 500 mm / 380 mm テーブルクランプエリア500 mm x 700 mm スピンドル速度範囲 50 – 2,240 rpm ツールホルダー ISO 40 駆動力 3.5kW

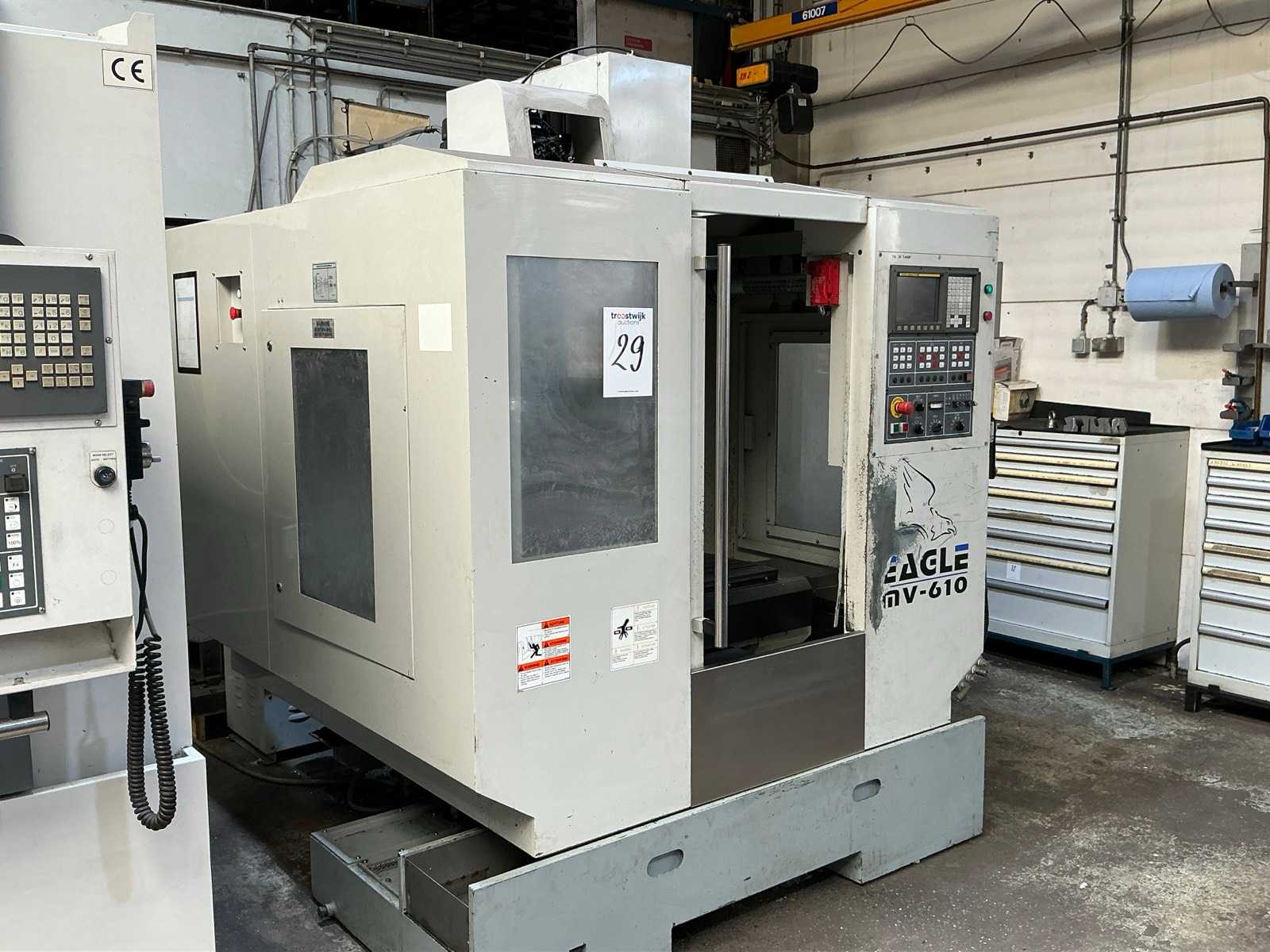

Control: Ultimax 4 Axis X: 610.0 mm Axis Y: 510.0 mm Axis Z: 610.0 mm Table length: 760.0 mm Table width: 510.0 mm Max. part weight: 1000.0 kg Tool changer: 24-fold

x-travel:1000 mmy-travel:400 mmz-travel:450 mmspindle turning speed range:11 - 1700 U/mintable-size:1000 x 400 mmtotal power requirement:13 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:2,5 x 2,4 x 2,3 m

1x milling machine Hermle FW 800

CNC - Turning and Milling Center OKUMA - MacTurn 50 Technical details max. turning diameter 580 mm Turning length 1500 mm Control OSP 7000 L Circumferential diameter over bed 610 mm Circumferential diameter over carriage 580 mm Main spindle: Speed range - main spindle 12 - 2,800 rpm/-1 Spindle bearing diameter 150 mm Spindle bore 110 mm Spindle nose JIS A2-11 Drive power - main spindle 37 (30) kW C-axis 0.001 ° Travel: x-axis 598 mm y-axis 230 (+110 / -120) mm z-axis 1,660 mm Feeds: Rapid traverse X / Y: 12,000 mm/min Rapid traverse Z: 20,000 mm/min Rapid traverse C: 100 min/-1 Cutting feed speed X / Z / Y: 0.001 - 1,000 mm/rev Tool turret: Type H2 ATC Number of tool positions 2 (1x L-Tool / 1x M-Tool) pos. Driven stations infinitely variable / stepless Speed range - applied Tool stations 40 - 3,000 min -1 Tool shank height 25 mm Diameter of boring rod shank 50 mm Tailstock: ...

with manual; needs to be checked

Table size: 1300 x 330 mm Double-spindle milling machine with extra head. Travel 1000 x 300 x 400 mm Ram Adjustment 500 mm Complete with horizontal bracket and vertical parking head mount. including cart with cutters This lot is at a different location and the buyer will receive the pick-up address after payment

x-travel:800 mmy-travel:630 mmz-travel:500 mmfeed stepless:1-7500 mm/minrapid traverse feeds:7500 mm/mintool cone:40 ISOspindle drive motor:10 kWturning speed range - spindle:20-4000 U/minTorque of spindles:630 Nmtotal connected load:25 kWweight of the machine ca.:5 tdimensions of the machine ca.:15 qm100 % before loadingwarranty:noneThe machine is in very good condition (only one prior owner), only few operating hours. Machine was installed first time and equipped with CNC Heidenhain TNC 355 in 1996. Other optional accessories can be delivered. Price basis: ex stock, free on trucktime of delivery: immediatly, prior sales reservedpayment:100% before loadingwarranty: nonetechn. documentation: as available.

table diameter:1400 mmx-travel:2200 mmy-travel:1200 mmz-travel:1100 mmc-axis:360.000 x 0,001 b-axis:+/- 60 °w-axis:350 mmdistance spindle center to column::1100 mmtable load:6 tspindle drive:15 kWTorque:4600 nMspindle turning speed range:10 - 1600 U/minspindle taper ISO:50 no. of tools in the magazine:20 Stücktotal power requirement:45 kWweight of the machine ca.:30 tdimensions of the machine ca.:5,8 x 5,8 x 4,9 mMachine complete overhould and retrofit in 2001 with SIEMENS 840 D control for 6 axis- tool changer for 20 tools- spindle quill 350 mm as W-axis- rotary table as C-axis- angualar milling head indexable- oil cooler, chip conveyor, hand operating panel.

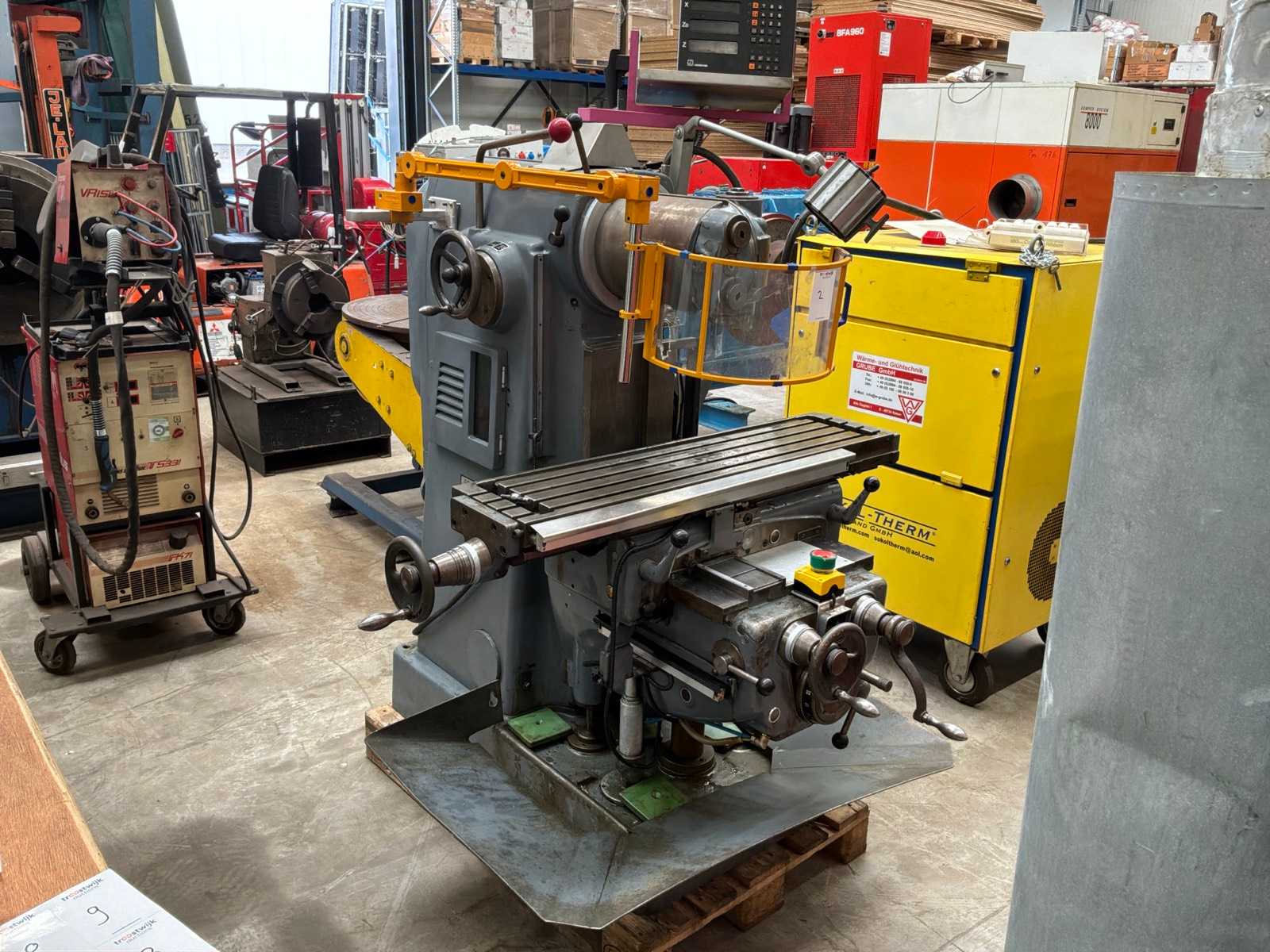

x-travel:1000 mmy-travel:480 mmz-travel:480 mmtable width:315 mmtable length:1250 mmtable - longitudinal motion:1000 mm:1250 x 315 mmturning speed range:28 - 1400 U/minpower capacity:3,7/4,4 kWtotal power requirement:6 kWweight of the machine ca.:2800 kg100 % before loadingwarranty:noneone used knee and column milling machine-universal, make UNION Bielefeld, type USF 4, Baujahr 1970, Maschinen-Nr. 55/214

Works. The support table can be rotated between 0° and 180°, allowing 3-sided machining in a single clamping operation. 12,000 revolutions per minute. 4 pneumatically steerable copy pens. Pneumatic clamping of material. Profile width: 30-120 mm. Profile height: 50-100 mm. Bar length: 490 - 3,000 mm. Weight: approx. 350 kg

automatic:Werkzeugspannung Spannk.15000 Ntotal power requirement:63 KVAweight of the machine ca.:56000 kgtable-size:22000 x 800 mmTool bore:ISO 50, DIN 69871 AD x-travel:20500 mmy-travel:1600 mmz-travel:1000 mmdimensions of the machine ca.:24 x 6 x 4 mtool piece magazine with:30 Plätze

Control: Ultimax 4 Axis X: 610.0 mm Axis Y: 510.0 mm Axis Z: 610.0 mm Table length: 760.0 mm Table width: 510.0 mm Max. part weight: 1000.0 kg Tool changer: 24-fold

x-travel:600 mmy-travel:450 mmz-travel:450 mmspindle speeds:40-2000 1/min (vertikale Spindel) / variabel spindle taper:40 ISOspindle stroke:60 mmtable surface area:850 x 450 mm (horiz.) table surface area:1190 x 250 mm (verti.) table load capacity:300 kgT-slot (width-distance-quantity):14 x 63 x 7 (für horiz. Tisch) mmT-slot (width-distance-quantity):14 x 63 x 3 (für vert.Tisch) mmfeed:10-1000 mm/minfeed stepless:in allen Achsen rapid traverse x + z axis:1200 mm/min:1200 mm/min.main drive:5,5 kWweight of the machine ca.:ca. 1750 kgdimensions of the machine ca.:ca. 1600 x 1800 x 2000 mmEuropean electric:im Wesentlichen von Schneider spindle protection:von Techno PIU (Italien)
