갠트리 유형 연삭기 제작: 히아타치 세이키 모델 : 9GA-NRAA 표: 2500 x 1200 mm 최대. 테이블 이동: 2000 mm 용량: 1500 x 900 x 500 mm 제어 : 파누크 15 MA 년도 : 1995

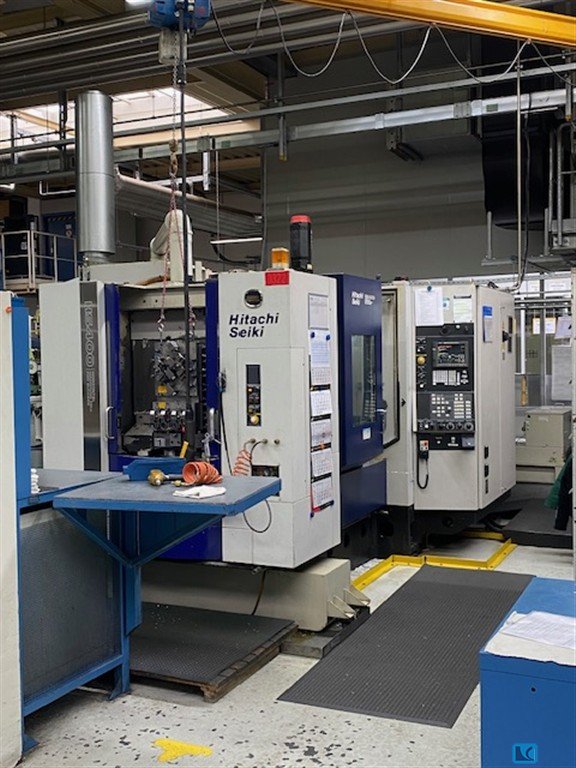

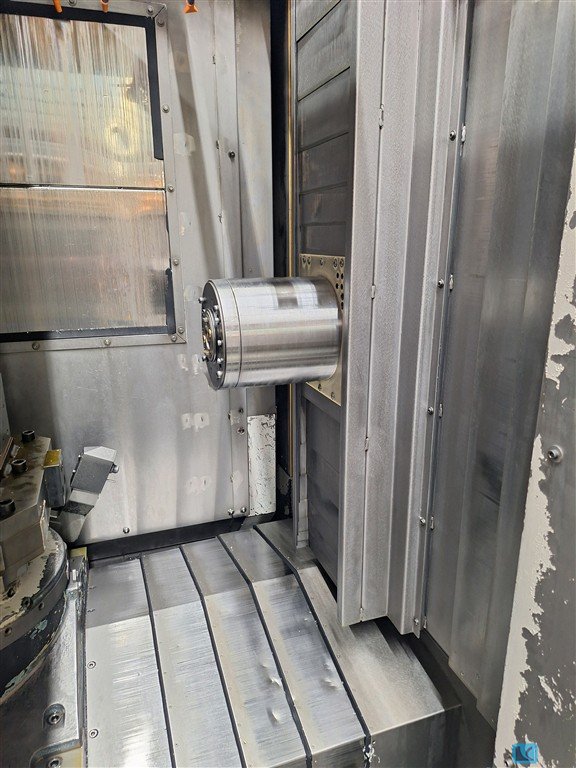

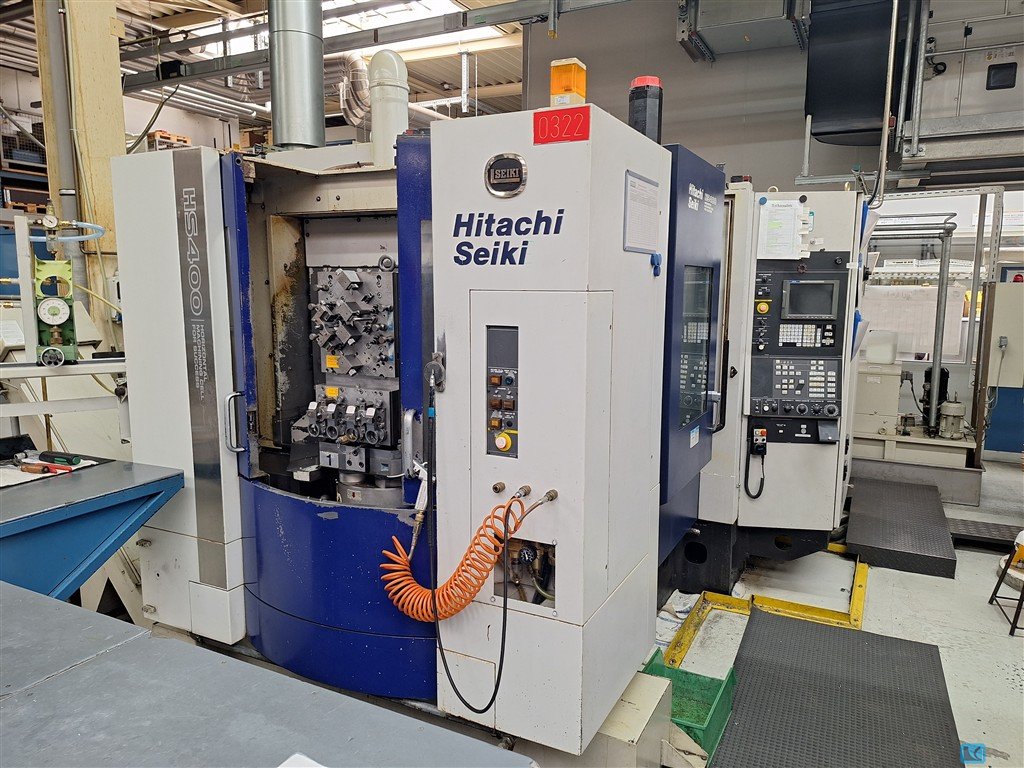

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

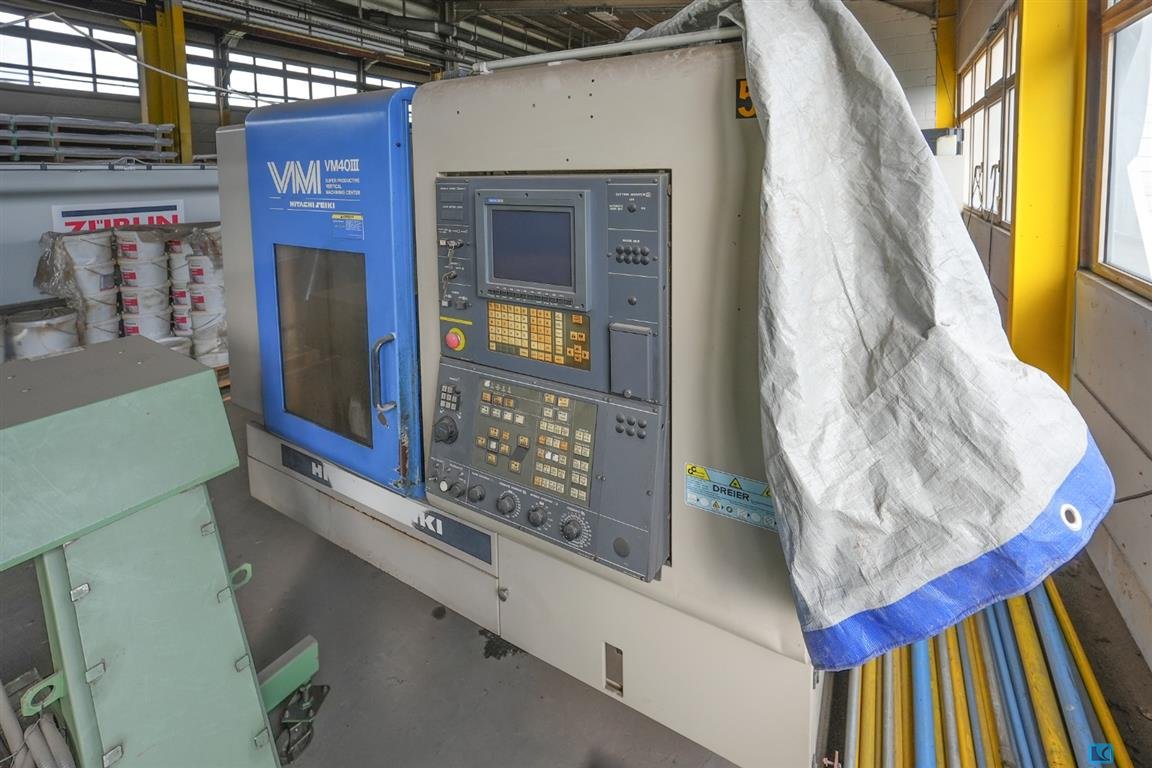

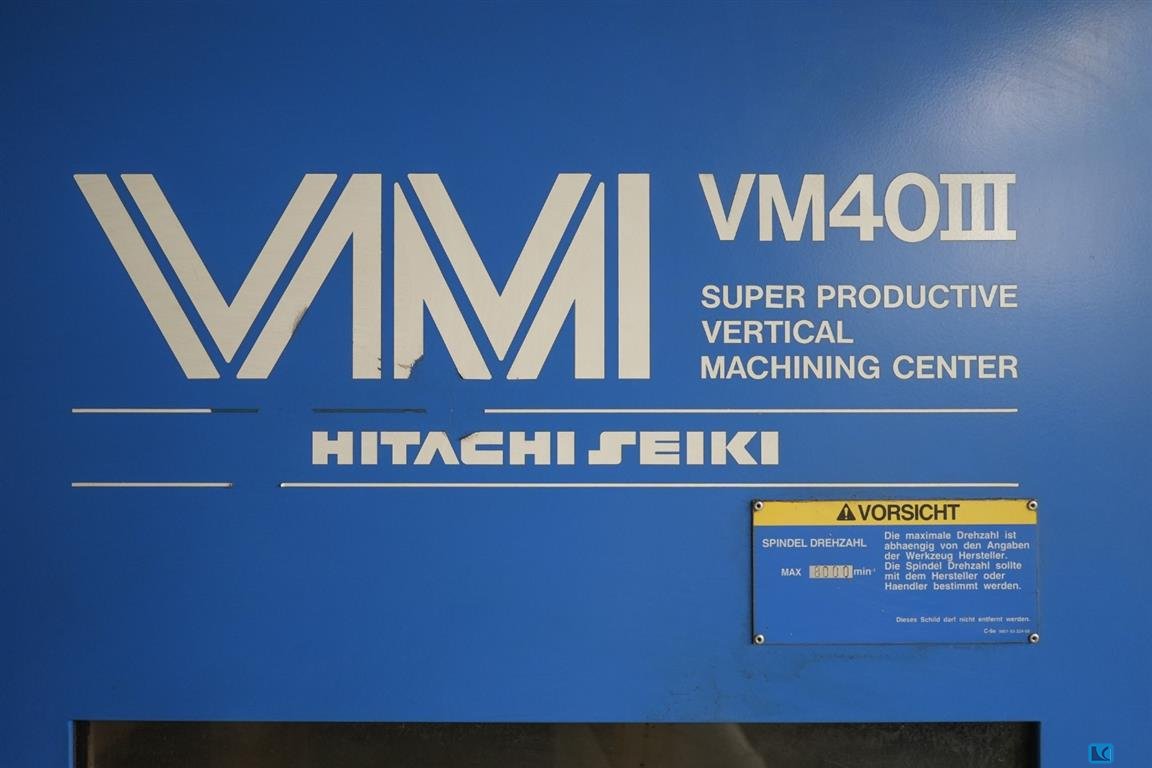

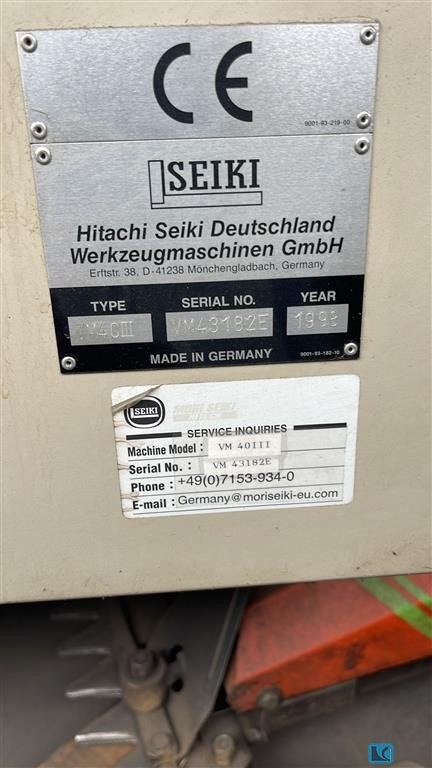

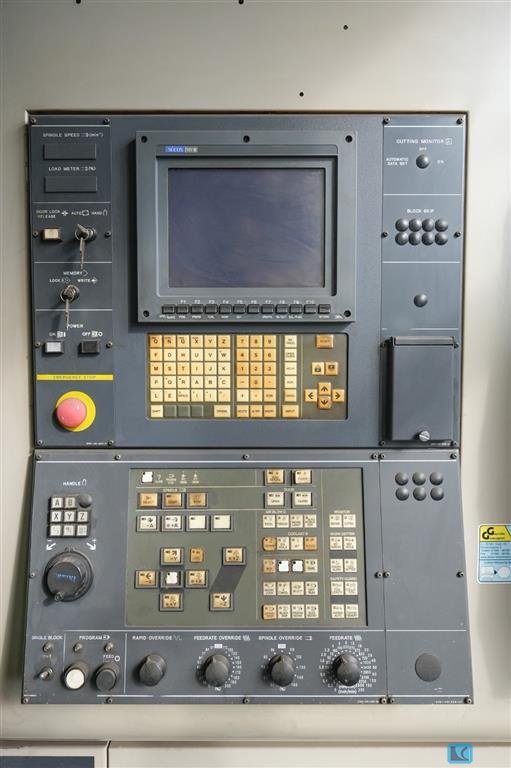

x-travel:560 mm y-travel:450 mm z-travel:450 mm table surface area:760 x 410 mm turning speed range:8.000 U/min total power requirement:20 kW Vertical Processing Centre
turning diameter: 450 mm turning length: 380 mm control: Seicos 40L Multi max. machining diameter: 340 mm Bar feed: 51 mm turning speed range - spindle: 30 ~ 5.000 U/min drive capacity - spindle motor: 11 / 7,5 kW spindle nose: A2-6 spindle bore: 59 mm bearing diameter: 100 mm travel -x axis: 215 mm travel -z axis: 400 mm turret (x-stations): 16 feed: 0,001 ~ 500 mm/min rapid traverse: X/Z: 30 m/min Shank diameter: 25 x 25 mm Drill shank diameter: 40 mm tail stock: taper of center: MK 5 tailstock adjustment: 300 mm total power requirement: 23 kVA weight of the machine ca.: 4,6 t dimensions of the machine ca.: 5,5 x 2,8 x 2,2 m Documents: Chip conveyor: Tailstock: Signal-Light: Parts removal: tool setter: work light: tool holders: (Revolver / Turret) CNC Lathe HITACHI SEIKI - HiTec-Turn HT 20 RIII The data for this ad was created with ModulMWS - the software solution of LogoTech ...
입문 번호: 8891 유형: HT 20 RIII 프로듀서: 히타치 세이키 생성: 2000 조건: 최대 회전 거리: 304.8 mm 최대 회전 직경: 203.2 mm 베드 위 최대 회전 직경: 450 mm 최대 스핀들 속도: 5000 1/분 트래블 X: 400mm 이동 거리 Z: 600 mm 공구 위치: 12개 길이: 2730 mm 폭: 1930 mm 높이: 1400 mm 무게: 4600 kg 장비: 메뚜기 기술 문서 툴 홀더 메이프란 칩 컨베이어 하인부흐 클램핑
A defective spare parts donor of a Hitachi Seiki lathe including an IEMCA bar feeder is available. 1) CNC lathe Hitachi Seiki GT 20 S II, travel X/Z: 200mm/400mm, max. turning diameter: 210mm, max. swing diameter over bed: 380mm, max. bar diameter: 51mm, spindle bore: 59mm, speed: 5000rpm, tool stations: 10, rapid traverse: 20m/min. Machine dimensions X/Y/Z: approx. 2350mm/1950mm/1850mm, weight: approx. 4100kg. The capacitors for the power connection are defective. 2) Hydraulic bar feeder IEMCA TAL/AUTO 65/32, max. bar diameter: 65mm, max. bar length: 3200mm, machine dimensions X/Y/Z: approx. 4200mm/800mm/1200mm, weight: approx. 800kg. The lathe is sold exclusively as a defective spare parts donor. An on-site inspection is possible.
회전 직경: 320 mm 회전 길이: 1100 mm 제어: Fanuc 총 전력 요구량: kW 기계 무게 ca.: 기계 tdimensions ca.: m이 광고의 데이터는 LogoTech oHG의 소프트웨어 솔루션인 ModulMWS로 작성되었습니다.
Tool changer chain, chain magazine, tool changing system, tool magazine -The tool changer comes from CNC machining center make: Hitachi Seiki type: HC400 -Tool changer for: Hitachi Seiki type HC400, other spare parts available. -complete with: gripper arm and drive -Tool changing positions: 80 -Intake: SK40 -Dimensions: 2270/630/H1725 mm -Weight: 860 kg

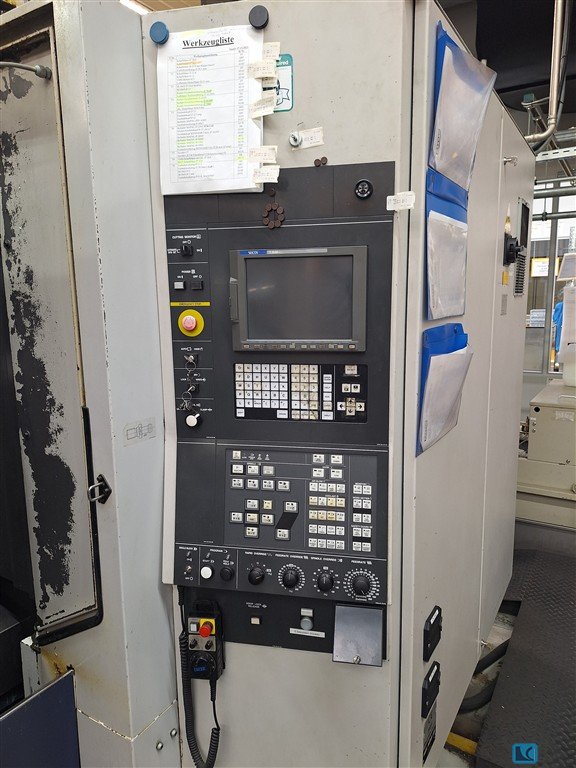

PLC, control panel, operator panel, control machine -The front of the control panel comes from: a Hitachi Seiki type HC400 machining center -Manufacturer: Hitachi Seiki -Control: FANUC -Dimensions: 400/310/H100 mm -Weight: 3.8 kg
Axis control, electronic handwheel, control unit -The electronic handwheel was removed from a CNC machining center make: Hitachi Seiki type: HC400. Other spare parts available. -electronic handwheel for Hitachi Seiki type: HC400 -Dimensions: 170/120/H80 mm -Weight: 0.6 kg
Key data: 1000 mm, 510 mm, 450 mm
CNC 제어 SEICOS(시그마) 18M, 속도 범위 120-12000rpm, 22/18.5KW 공구 홀더 SK 40, 30개 장소의 공구 매거진, IKZ mt 15 bar, 높은 이송 속도에서 정밀한 밀링을 위한 HSC 기계 패키지 차원: 폭 × 깊이 × 높이 2900 × 높이 2400 × 높이 2786mm, 무게 약 8200kg 참고: 기계를 사용할 수 없으며 SK 40 마운트의 공구 클램핑에 결함이 있습니다. 따라서 공구 교환기는 변경할 수 없습니다.
x-travel: 600 mm y-travel: 580 mm z-travel: 580 mm control: SEICOS 16M B-axis (table): 360 x 1° mm feed X/Y/Z/-axis: 1 - 50.000 mm/min rapid traverse X/Y/Z: 50,00 m/min turning speed range - stepless: 35 - 12.000 Nm spindle drive: 22,00 kW max. torque on the spindle: 236 tool taper: BT40 toolpiece magazine: chain magazine: 61 Stück size of pallet: 2x 400x400 mm max. workpiece diameter: 630 mm workpiece height max.: 680 mm workpiece weight max.: 400 kg total power requirement: 30,00 kW weight of the machine ca.: 12,00 t dimensions of the machine ca.: 4,00 x 3,50 x H3,00 m With SEICOS S16M control unit, coolant system, chip conveyor, electron. handwheel, dust exhauster. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
회전 직경: 254 mm 터닝 길이: 600 mm 제어: Seicos 총 전력 요구 사항: 15 kW 기계 무게 ca.: 5,6 t 기계 치수: 2,5 x 1,3 x 1,87 m
