Tables de soudage

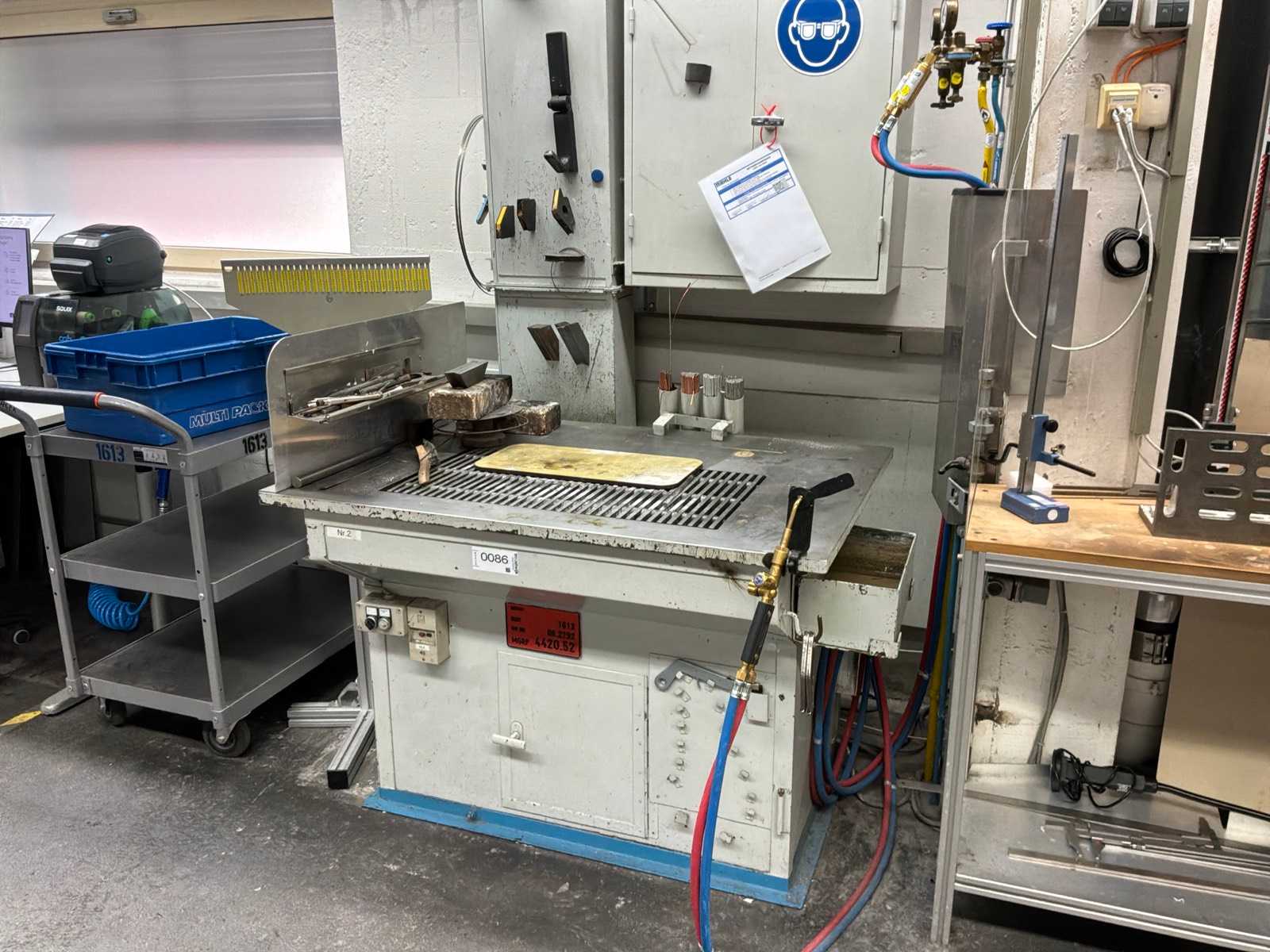

Capacité d’aspiration: 1500m3/h Pression Pa: 1200 Puissance du moteur: 1.1 kW Tension: 400 V Poids: 150 kg Construction: 2002 Évalué actuel A 2.5 Fréquence: 50 Hz Superficie de rouille: 750x500 mm Largeur: 760 mm Profondeur: 1050 mm Hauteur: 890

table diameter: 690 mmtable load: 0,5 tswivelling range: 0 - 90 Gradtable load: horizontal 500 Kgtable load: vertikal 250 Kgboring diameter: 100 mmtable turning speeds: 0,25 - 2,5 U/mintotal power requirement: 0,37 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 1000 mmtable width: 2000 mmtable height: 200 mmweight: 650 kgOur welding tables are manufactured with casting quality HT 300 and are nitrated in one piece after mechanical processing.Furthermore, they undergo a 3-day gas nitriding process which increases the corrosion resistance as well as the permanent fracture and vibration resistance of the tables.All our tables are equipped with adjustable legs.The minimum adjustment range is 620 mm, the maximum 665 mm.Thus, a working height of 820 - 865 mm is possible.Further details on the production and characteristics of our tables can be found in our catalogue.The illustrations do not correspond to the original size and are for llustration purposes only.The accessories shown are not included in the product.3D welding table - 3D clamping devices - 3D precision welding tableThe data for this ad was created with ModulMWS - the softwar ...

table length: 2400 mmtable width: 1200 mmtable height: 200 mmweight: 920 kgManufacturer: GERD WOLFFWebsite: www.gerdwolff.comTechnical Details:• Length 2400 mm• Width 1200 mm• Height 200 mm• Weight 920 kg• Hole diameter 28 mm• Hole spacing 100 mmAdvantages and Features:• 3-day gas nitriding process• Increased corrosion resistance• Weld spatter adhesion protection• Maximum load capacity• Enhanced fatigue strength• Improved vibration resistance• Fine scale engraving• Reinforcement with welded seams and ribs on the underside• Optimal working height of 820-865 mm• 6 height-adjustable support legs• Available with a matching accessory set (optional)Our welding tables are manufactured using HT 300 cast iron and are nitrided as a whole after mechanical processing. Furthermore, they feature precise fine scale engraving using laser technology.To ensure adequate st ...

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight: 1500 kgOur welding tables are manufactured with casting quality HT 300 andare nitrated in one piece after mechanical processing.Furthermore, they undergo a 3-day gas nitriding process which increases thecorrosion resistance as well as the permanent fracture and vibration resistanceof the tables.All our tables are equipped with adjustable legs.The minimum adjustment range is 620 mm, the maximum 665 mm.Thus, a working height of 820 - 865 mm is possible.Further details on the production and characteristics of our tables can befound in our catalogue.The illustrations do not correspond to the original size and are for illustration purposes only.The accessories shown are not included in the product.3D welding table - 3D clamping devices - 3D precision welding tableThe data for this ad was created with ModulMWS - the software ...

table length: 3000 mmtable width: 2000 mmtable height: 200 mmweight: ca. 1600 kgOur welding tables are manufactured with casting quality HT 300 and are nitrated in one piece after mechanical processing.Furthermore, they undergo a 3-day gas nitriding process which increases the corrosion resistance as well as the permanent fracture and vibration resistance of the tables.All our tables are equipped with adjustable legs.The minimum adjustment range is 620 mm, the maximum 665 mm.Thus, a working height of 820 - 865 mm is possible.Further details on the production and characteristics of our tables can be found in our catalogue.The illustrations do not correspond to the original size and are for llustration purposes only.The accessories shown are not included in the product.3D welding table - 3D clamping devices - 3D precision welding tableThe data for this ad was created with ModulMWS - the so ...

table length: 4000 mmtable width: 2000 mmtable height: 200 mmweight: 2400 kgOur welding tables are manufactured with casting quality HT 300 and are nitrated in one piece after mechanical processing.For proper stability, our welding tables are reinforced underneath with welded ribs, as shown in the images.Furthermore, they undergo a 3-day gas nitriding process which increases the corrosion resistance as well as the permanent fracture and vibration resistance of the tables.All our tables are equipped with adjustable legs.The minimum adjustment range is 620 mm, the maximum 665 mm.Thus, a working height of 820 - 865 mm is possible.Further details on the production and characteristics of our tables can be found in our catalogue.The illustrations do not correspond to the original size and are for llustration purposes only.The accessories shown are not included in the product.3D welding table - ...

diameter: 28 mmlength: 50 mmclamping range: 45-50 mmThe price is exclusive of the statutory value-added tax.Also available as D28 x 50 mm.Type: Ball Locking Pin 75 mmDiameter: 28 +- 0.02 mmMaterial: 45 # SteelHardness: HRC28-32Surface Roughness: Ra 0.8 µmThe ball locking pins from GERD WOLFF represent specialized connecting elements designed for integration into various welding table systems and fixtures.Their primary function is the efficient and precise positioning and fastening of workpieces. These pins are compatible with welding tables of all brands that have a borehole diameter of 28 mm.The unique ball design allows for flexible positioning of the workpieces at different angles and positions.Due to their high-quality construction and robust design, the ball locking pins from GERD WOLFF offer reliable holding force throughout the entire welding process.These pins ensure easy handli ...

diameter: 28 mmlength: 75 mmwidth: mmThe price is exclusive of the statutory value-added tax.Also available as D28 x 50 mm.Type: Ball Locking Pin 75 mmDiameter: 28 +- 0.02 mmMaterial: 45 # SteelHardness: HRC28-32Surface Roughness: Ra 0.8 µmThe ball locking pins from GERD WOLFF represent specialized connecting elements designed for integration into various welding table systems and fixtures.Their primary function is the efficient and precise positioning and fastening of workpieces. These pins are compatible with welding tables of all brands that have a borehole diameter of 28 mm.The unique ball design allows for flexible positioning of the workpieces at different angles and positions.Due to their high-quality construction and robust design, the ball locking pins from GERD WOLFF offer reliable holding force throughout the entire welding process.These pins ensure easy handling, quick fixa ...

Longueur de la table : 1050 mm Largeur de la table : 1050 mmCharge de la table : 3,6 t Table inclinable : 0 - 135 Rotation de la table : 360 Vitesse de rotation de la table : variabel Einstellbar U/minPuissance totale requise : kWPoids de la machine ca. : tDimensions de la machine env. : 2,35 x 1,70 x 2,00 m

: neu : ca. 2 Wochen ab Auftragse : 5442 €: 4897.8 €Accessory set consisting of:14 pcs. screw clamp180° HIS28Z30008 pcs. screw clamp45° HIS28Z30456 pcs. V-support HIS28VP10030 pcs. quick clamping bolt shortHIS28SB1006 pcs. connection bolt HIS28BS1004 pcs. mangnetic bolt HIS28MB1008 pcs. stop rail 150mm HIS28FA1508 pcs. stop rail 225mm HIS28FA2252 pcs. stop rail 500mm HIS28FA5006 pcs. stop angle 175mm HIS28WA1751 pc. stop angle 325mm HIS28WA325L1 pc. stop angle 325mm HIS28WA325R1 pc. support angle 600mm HIS28W600L1 pc. support angle 600mm HIS28W600R1 pc. support angle 800mm HIS28W800L1 pc. support angle 800mm HIS28W800R1 pc. cleaning brush Nylon HIS28RB1 pc. torch holder HIS28BH1 pc. tool cart HIS28WW1000and 1 care set (consisting of 1 pc. HIS-Cleaner-1L and HIS-Premium-1L)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 Wochen ab Auftragse : 3165 €: 2848 €Accessory set consisting of:8 pcs. screw clamp 180° HIS28Z30004 pcs. screw clamp 45° HIS28Z30454 pcs. V-support HIS28VP10020 pcs. quick clamping bolt short HIS28SB1004 pcs. connnection bolt HIS28BS1002 pcs. manetic bolt HIS28MB1004 pcs. stop rail 150mm HIS28FA1506 pcs. stop rail 225mm HIS28FA2254 pcs. stop angle 175mm HIS28WA1752 pcs. stop angle 275mm HIS28WA1752751 pc. stop angle HIS28WA325L1 pc. stop angle HIS28WA325R1 pc. support angle 800 HIS28W800L1 pc. support angle 800 HIS28W800R1 pc. cleaning brush Nylon HIS28RB1 pc. torch holder HIS28BHand 1 care set (consisting of 1 pc. HIS-Cleaner-1L and HIS-Premium-1L)OPTION:Tool cart HIS28WW1000 € 545,--The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2023 : 2506 : prompt, Zwischenverkauf v : 1318 €: 1186.2 €: 1 Accessory set consisting of:4 pcs. screw clamp 180° HIS28Z30002 pcs. screw clamp 45° HIS28Z30452 pcs. V-support HIS28VP10012 pcs. quick clamping bolt short HIS28SB1004 pcs. stop rail 150mm HIS28FA1504 pcs. stop rail 225mm HIS28FA2252 pcs. stop rail 175mm HIS28WA1752 pcs. stop angle 275mm HIS28WA124275and 1 care set (consisting of 1 pc. HIS-Cleaner-1L and HIS-Premium-1L)OPTION:Tool cart HIS28WW1000 € 545,--The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6-8 Wochen ab Auftrag : 1367 €: 1230.3 €: 1000 x 1000 mm: 850 mm: 450 kg: 25 mm: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet with levelling option- Different foot variants available (standard, height-adjustable and with castors ...

: neu : ca. 6-8 Wochen ab Auftrag : 1634 €: 1470.6 €: 1500 x 1000 mm: 850 mm: 344 kg: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet with levelling option- Different foot variants available (standard, height-adjustable and with castors)- Load ...

: neu : 2022 : 2481 : prompt, Zwischenverkauf v : 2130 €: 1917 €: 1 : 2000 x 1000 mm: 850 mm: 450 kg: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet with levelling option- Different foot variants available (standard, height-adjustable and wit ...

: neu : 2023 : 2499 : prompt, Zwischenverkauf v : 3091 €: 2781.9 €: 1 : 1500 x 1000 mm: 850 mm: 8000 kg: 541 kg: 28 mm - Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet withload capacity 2 ton/feet and levelling option- Different foot variants availa ...

: neu : 2023 : 2492 : prompt, Zwischenverkauf v : 3652 €: 3286.8 €: 1 : 2000 x 1000 mm: 850 mm: 8000 kg: 712 kg: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet withload capacity 2 ton/feet and levelling option- Different foot variants availab ...

: neu : 2515 : Februar 2024, Zwischenver : 4699 €: 4229.1 €: 2400 x 1200 mm: 850 mm: 8000 kg: 945 kg: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet withload capacity 2 ton/feet and levelling option- Different foot variants available (standar ...

: neu : 2513 : Februar 2024, Zwischenver : 6998 €: 6298.2 €: 130.37 €: 3000 x 1500 mm: 850 mm: 8000 kg: 1544 kg: 200 mm: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet withload capacity 2 ton/feet and levelling option- Different foot varian ...

: neu : ca. 6-8 Wochen ab Auftrag : 10805 €: 9724.5 €: 201.3 €: 4000 x 2000 mm: 850 mm: 8000 kg: 712 kg: 200 mm: 28 mm- Fully milled table top 25 mm in S355J2+N with high degree of accuracy (+/- 0.05 mm) and rounded edges and holes- Hard chrome-plated table surface Cr75The main advantage of our tables compared to conventional systems is with the hard chrome plating Cr75, that this process achieves a much deeper penetration into the base material of up to 0.07 mm and the hardness of the surface reaches up to HV750. This also ensures optimum and lasting anti-spatter adhesion on the surface, which is one of the most efficient on the market.- Exact dimensional and fitting accuracy of the tools with 28 mm perforation (compatible with comparable premium suppliers)- Grid lines 100 x 100 mm- 4 solid table feet withload capacity 2 ton/feet and levelling option- Different foot variants avail ...

Données techniques: - Support de la position env. 750 kg - Diamètre du disque planifié 500 mm - diamètre max. pièce 1600 mm - Hauteur de la plaque tournante en position horizontale environ 750 mm - Assiette tournante avec droite, + gauche - Axe rotatif sans fin 360 - Temps de rotation par tour 12,5 sec. - Basculement gauche + droite - Axe pivotant Angle de rotation 180 - Temps de rotation pour 180 angle de pivotement 10 sec. - 2 touches doubles pour plateaux rotants + bras pivotant - Hydr. Boulons de serrage pour la pince de la pièce en pivot - Serrage / serrage du boulon 32 mm - Déprimant / déprimant 80 / 48,9 kN - Cylindre de serrage filetage M 27 x 40 - Commande de positionnement SIEMENS - Utilisation manuelle ou par commande - Encombrement B 1500 x T 2800 x H 1100 mm - Poids env. 2500 kg - armoire électrique s ...

longueur de la table: 1150 mmlargeur de la table: 1150 mmcharge de la table: 2 tpuissance totale requise: kWpoids de la machine ca.: tdimensions de la machine ca.: mMarque: JWeldingType: HB-20Capacité: 2.000 kgDimensions du plateau: 1.150 mm øHauteur de travail plate-forme, horizontale: 1.180 mmHauteur de travail plate-forme, verticale: 1.000 mmDiamètre de rotation vertical: 1.550 mm øFentes en T: 8Inclinable électriquement

Type de machine: table rotative de soudage Marque: Merkle / Conzelmann Type CD 50/25 - 320 Tension de raccordement 1 x 230 V Plage de vitesse 0,25 – 2,5 tr/min, variable à l’infini Contrôle de vitesse 1 : 10 Couple 2,5 – 10 Nm Diamètre de la plaque frontale 250 mm Plaques frontales - passage interne 10 mm Angle d’inclinaison de la plaque frontale 135 Capacité de charge verticale 0,5 kN = 50 kg Hauteur de la table 320 mm Manuel de mouvement d’inclinaison, clampable Couple de basculement 90 Nm Pantographe 400 A 80 % c.c. Connexion pour - pédale de commande simple - Double pédale de commande - Télécommande au pied Âge 3 ans Condition: comme neuf Poids 44 kg Garantie 24 mois à compter de la date de livraison Prix d’origine 2 198,00 € + TVA Prix de l’offre 1 690,00 € + TVA Pédale de commande simp ...

longueur de la plaque de plancher: 2500 mm largeur de la plaque de plancher: 1300 mmpoéité de la plaque de plancher: 300 mmpoids de la machine ca.: 2800 kgDétails:Décrée de table 2500 mmFonde de table 1300 mmPoids de table 300 mmPoids de la machine env. 2800 kgAéros requise env. 3 X 2 avec sous-châssis env. 800 mm

table length: 2400 mmtable width: 1200 mmtable height: 200 mmweight of the machine ca.: 1,0 tThe table Professional Extreme Article no. 4-280030.X7 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.The low-loaded sidewalls are still made of steel S355J2 + N for cost reasons. Grid lines at a distance of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.Including 4x feet Basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2400 mmtable width: 1200 mmtable height: 200 mmweight of the machine ca.: 1,0 tThe Professional Extreme table Article no. 4-280030.XD7 has 2400x1200x200 mma diagonal arrangement of holes on the table top and a parallel oneHole arrangement in 50 mm grid on the sides.The holes have a diameter of 28 mm and the table oneMaterial thickness of approx. 24.5-27 mm. The table top is made of hardenedTool steel manufactured.The little stressed side walls are still off for reasons of costSteel S355J2 + N made. Grid lines at a distance of 100 mm make it easier for youthe structure of your device.The welding tables are provided with a scale as standard.Including 4x feet, basic equipment 650 Article no. 280858.X The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight of the machine ca.: 1,6 tThe table Professional Extreme Article no. 4-280040.X7 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.The low-loaded sidewalls are still made of steel S355J2 + N for cost reasons. Grid lines at intervals of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.Including 6x feet basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight of the machine ca.: 1,6 tThe table Professional Extreme Article no. 4-280040.XD7 3000x1500x200 mm has a diagonal hole arrangement on the table top and a parallel hole arrangement in 50 mm grid on the sides.The holes have a diameter of 28 mm and the table has a material thickness of about 24.5-27 mm. The table top is made of hardened tool steel.The low-loaded sidewalls are still made of steel S355J2 + N for cost reasons. Grid lines at intervals of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.Including 6x feet basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 1000 mmtable width: 1000 mmtable height: 200 mmbore: 28 mmweight of the machine ca.: 416 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mmtable width: 1000 mmtable height: 200 mmweight of the machine ca.: 730 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 1500 mmtable width: 1500 mmtable height: 200 mmbore: 28 mmweight of the machine ca.: 801 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2400 mmtable width: 1200 mmtable height: 200 mmweight of the machine ca.: 1,0 tThe table Professional 750 Article no. 4-280030.P 2400x1200x200 mm has a hole arrangement in the 100 mm grid on the table top and a parallel hole arrangement in the 50 mm grid on the sides.The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.Grid lines at a distance of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.including 4x feet Basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight of the machine ca.: 1,55 tThe Professional 750 table article no. 4-280040.P 3000x1500x200 mm has aHole arrangement in a 100 mm grid on the table top and a parallel oneHole arrangement in 50 mm grid on the sides.The holes have a diameter of 28 mm. The table has one Material thickness of approx. 24.5-27 mm and is made from high quality steelS355J2 + N manufactured.Grid lines at a distance of 100 mm make it easier for you to set up yourContraption. The welding tables are provided with a scale as standard.Including 6x feet basic equipment 650 Article no. 280858.X The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2400 mmtable width: 1200 mmtable height: 200 mmweight of the machine ca.: 1,0 tThe table Professional 750 Article no. 4-280030.PD 2400x1200x200 mm has a diagonal hole arrangement on the table top and a parallel hole arrangement in 50 mm grid on the sides.The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.Grid lines at a distance of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.Including 4x feet Basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight of the machine ca.: 1,6 tThe Professional 750 4-280040.PD 3000x1500x200 mm table has a diagonal hole arrangement on the table top and a parallel hole arrangement in the 50 mm grid on the sides.The holes have a diameter of 28 mm. The table has a material thickness of about 24.5-27 mm and is made of high quality steel S355J2 + N.Grid lines at intervals of 100 mm make it easier for you to set up your device.The welding tables are provided with scale as standard.Including 6x feet basic equipment 650 Article no. 280858.XThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mmtable width: 1000 mmtable height: 200 mmbore: 28 mmweight of the machine ca.: 696 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmbore: 28 mmweight of the machine ca.: 1517 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 3000 mmtable width: 1500 mmtable height: 200 mmweight of the machine ca.: 1374 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2400 mmtable width: 1200 mmtable height: 200 mmbore: 28 mmweight of the machine ca.: 1072 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0,6 t: -- mm: -- mmconsisting of:30x article no. 2-280510Quick release pin short- Clamping of 2 components- burnished- with twist lock8x article no. 2-280410.NUniversal stop 150 L - nitrided- nitrided- as standard with fine scaling on both sides4x article no. 2-280420.NUniversal stop 225 L - nitrided- nitrided- as standard with fine scaling on both sides8x article no. 2-280110.GStop and clamping angle 175 L - cast / black oxide finish- Hole / elongated hole- Cast / burnished2x article no. 2-280162.NStop and clamping angle 500 G - nitrided- Left stop- nitrided1x article no. 2-280166.NStop and clamping angle 750 G left - nitrided- Left stop- nitrided 1x article no. 2-280167.NStop and clamping angle 750 G right - nitrided- stop on the right- nitrided1x article no. 2-280910Tool trolley- painted- Permissible total weight 240 kg1x article no. 2-280164.NStop and clamping angle 500 G with turn ...

longueur de la table: . mmpoueurtable: . mmpoérable: . mmdépose totale requise: kWpoids de la machine ca.: tdimensions de la machine ca.: mtable de soudage électrique, inclinable

: neu : 2468C : prompt, Zwischenverkauf v : Deutschland : 2970 €: 2380 €: 1 : 195 kg(more tools, without exact illustration)CONSISTING OF: 1x accessories car (Delivery is galvanised) 4x angle stop 350 x 20 mm 4x adjustable angle stop 250 x 20 mm 15x Adjustment clamp 4x Multi-clamp 6x Stand angle, adjustable 175 x 20 mm 2x Stand angle, adjustable 225 x 21 mm 8x Stop rail 225 x 20 mm 10x Socket bolt 15x Plug holder 4x Ball Tension Bolt 4x Claw clamping bolt 28 x 100 mm 15x Spacer ringThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Taille de la table: 1500x1500mm Capacité de charge : 6t Dimensions hors tout: 1600x2500x2000mm Commande hydraulique

De l’insolvabilité : Fabricant de plateau tournant de soudage inconnu 3 mandrins à mâchoires 200mm max 65mm clamp Rotation dans le sens des aiguilles d’une montre et dans le sens inverse des aiguilles d’une montre Pédale de commande Pivotement de 90 à 45° Vitesse réglable par potentiomètre Hauteur réglable d’environ 800 à 1000 mm

Table d’extraction des fumées de soudage Table de soudage DCE UMA150HG5 dépoussiérage Table de soudage avec aspiration intégrée avec filtre Dépoussiéreurs d’équipement de dépoussiérage du fabricant Type UMA 150H G5 Repos selon les photos

nombre: 21 Positionenpoids: 22 kgcondition: neu 04 pcs. Hauteur de serrage 300mm, projection variable6 pcs. Boulons de serrage4 pcs. Arrêtez 150mm2 pcs. Angle d’arrêt et de serrage 175mm1 pc. Support de brûleur1 pc. Spray anti-collant 500ml1 pc. Nettoyant pour table de soudage sur une base naturelle et biologique

number: 43 Positionenweight: 40 kgcondition: neu 0Basic set 3 / 43 piecesfor table top thickness 15mm and 25mm6 pcs screw clamps12 pcs. quick clamping bolts6 pcs. universal stop 150mm6 pcs. universal stop 225mm2 stop and clamping angles 175mm2 stop and clamping angles 275mm2 pcs. prisms 60mm1 piece torch holder1 pc. Eccentric stop 100mm diameter1 piece perforated brush 30mm2 pieces separating lotion 500ml, on a natural, biological basis2 pcs. Welding table cleaner 500ml, on a natural, biological basisThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number: 53 Positionenweight: 45 kgcondition: neu 0Basic set 4 / 53 piecesfor table top thickness 15mm and 25mm6 pcs screw clamps14 pcs. quick clamping bolts2 pcs. universal stop 100mm6 pcs. universal stop 150mm6 pcs. universal stop 225mm2 pcs. universal stop 300mm6 stop and clamping angles 175mm4 stop and clamping angles 275mm2 pcs. prisms 60mm1 piece torch holder1 pc. Eccentric stop 100mm diameter1 piece perforated brush 30mm2 pieces separating lotion 500ml, on a natural, biological basis2 pcs. Welding table cleaner 500ml, on a natural, biological basisThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mmtable width: 1000 mmtable height: 920 - 1000 mmweight of the machine ca.: 0,45 tWelding table / hole table:Hole diameter: 28mmThe table is made of 15mm thick S355 steelThe surface is stained and oiled.Tolerance: +/- 1 mm at the top and +/- 1 degree at the sides.Side panels 150 x 10mmHeight adjustable from approx. 920 - 1000mmRibbed bottom for reinforcement.including floor storageAccessories optionalAccessories shown are optionalThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
