GUALDONI G/61-Z

machines de travail des métaux / fraiseuses / Fraiseuses universelles

Fabricant: GUALDONI

Modèle:G/61-Z

Numéro de l'article: 169912365

Quantité: 1

Date: 25.07.2026

Année de fabrication: 1973

Emplacement: Ahaus

Prix:


Machine en stock:Oui

Seller-item-No.:1125-9131193

x-travel: 550 mm
y-travel: 155 mm
z-travel: 350 mm
taper in main spindle: SK 30 / DIN 2080
table surface area: 640 x 200 mm
turning speeds: 50 - 1500 U/min
feeds: 30 - 340 mm/min
distance spindle - column: 165 mm
distance spindle nose and table: 245 mm
voltage: 380 V
total power requirement: 1.3 kW
weight: ca. 1250 kg
range L-W-H: 950 x 1000 x 1600 mm
from a vocational school (!)

Furnishing :
- robust / conventional universal milling machine

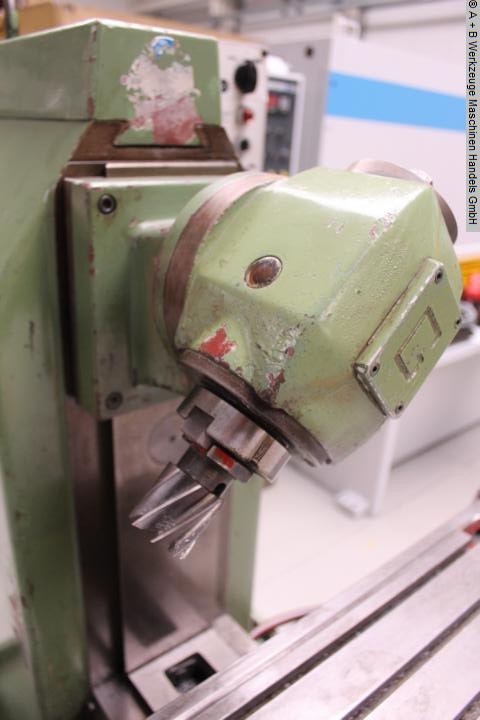

- rotatable / swiveling vertical milling head
- Stable T-slot clamping/angle table

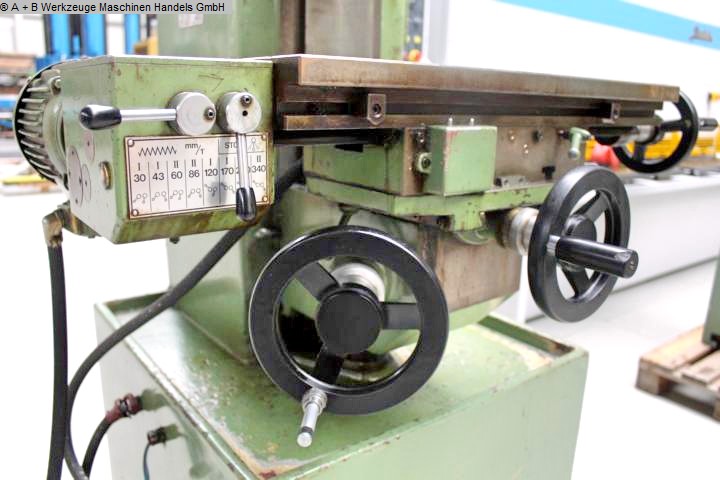

- automatic table longitudinal movement
- Feed range adjustable - 8x steps
- Pole-changing drive motor



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
