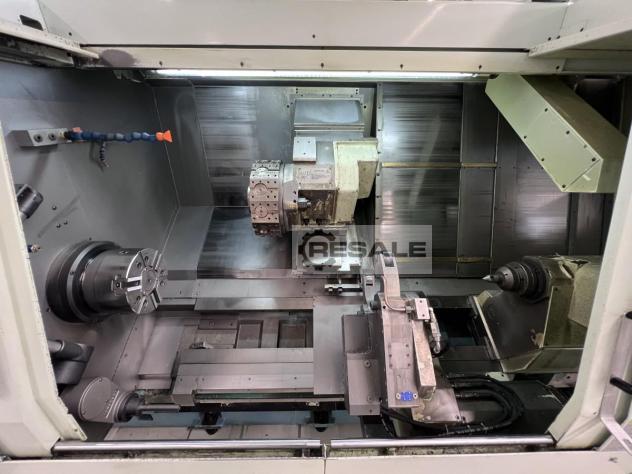

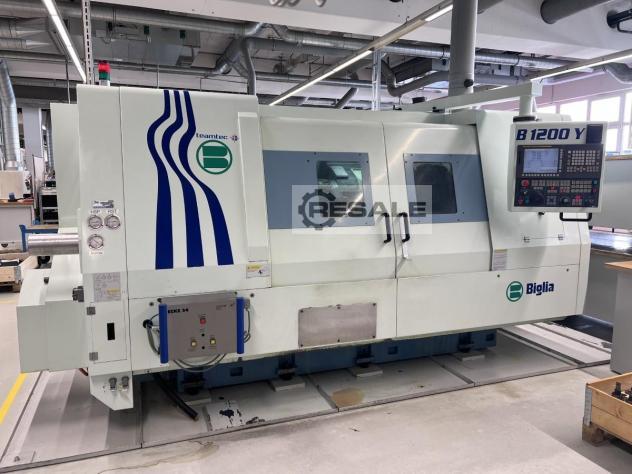

Tours CNC BIGLIA B1200 YL

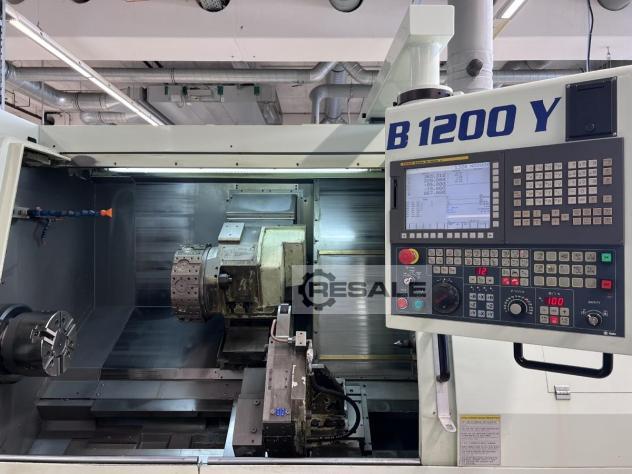

Control Fanuc 31i
Rotary diameter. [mm] 500
Turning length [mm] 1200

Main spindle:
Belt spindle technology
Speed 2,800 rpm
Power (max.) 26 kW
Torque (max.) 1,030 Nm
Bar passage (max.) 94 mm
Workpiece clamping
3-jaw chuck, SMW Aut blok 250BB
Tool carrier (X/Y/Z): Technology

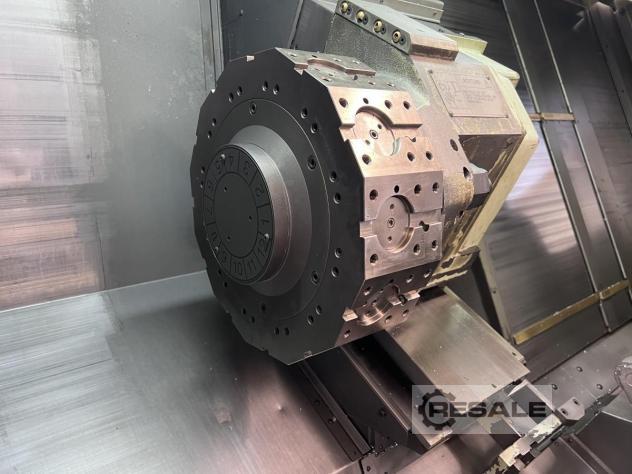

12-station turret
Tool holder BMT65
Tool drive 4,000 rpm, 3.7 kW, 47 Nm
Travel in X/Y/Z 220/110/1,330 mm
Rapid traverse in X/Y/Z 20/6/24 m/min

Tailstock:
Technology Trailed tailstock with hydraulic quill
Stroke 150 mm
Quill ø 115 mm
Cone MK5

Equipment/accessories:
Chip Management Chip Conveyor
Coolant management IKZ pump with filter and high pressure, 20 bar

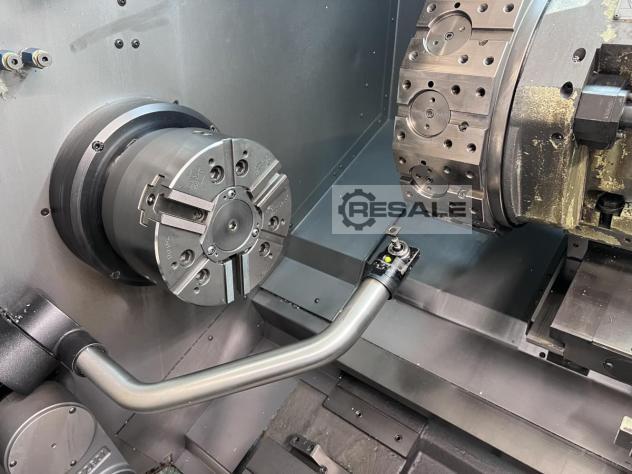

Tool Measurement Arm, Renishaw RP3

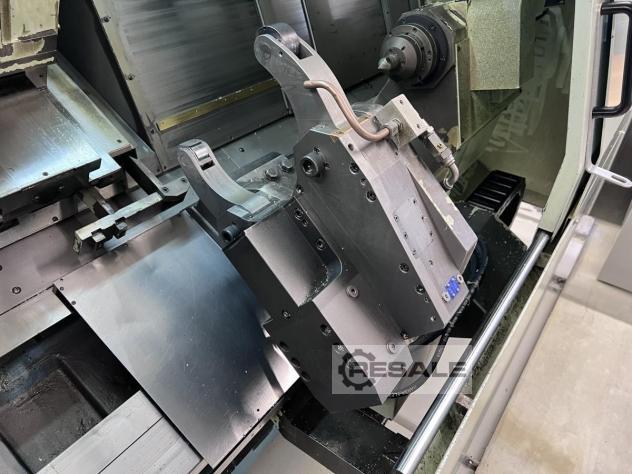

Shaft machining steady rest, Fabr. Morari clamping-ø0-250 mm
Finished part removal interface part collection tray prepared
Other accessories Div. gebr. Jaws and Tool Holders


seller offer No. resale 89-001732
