Overview This blowmoulder, filler and capper combiblock was
manufactured by ACMI (Italy). The machine can be operated fully floor
level and is a very good solution offering the advantage of a
dual-cavity design (one mold = two bottles up to 70mm diameter)
achieving an up to 17% reduced footprint vs equivalent output from
traditional single-cavity equipment, improving production line
accessibility. The increased output on smaller formats allows better
utilisation of downstream equipment in the production line, resulting
in improved ROI of total investment (100% additional output on smaller
formats with less than 36% additional CAPEX). The BLO2FILL ESF
12/120/20 is designed for the production of PET bottles and
subsequent filling and capping in a single integrated system. The
machine is suitable for carbonated water, still water and carbonated
soft drinks. Technical data Capacity: up to 48,000 bph (500 ml PET)
Formats: 500 ml PET bottles Application: Blowing, filling and capping

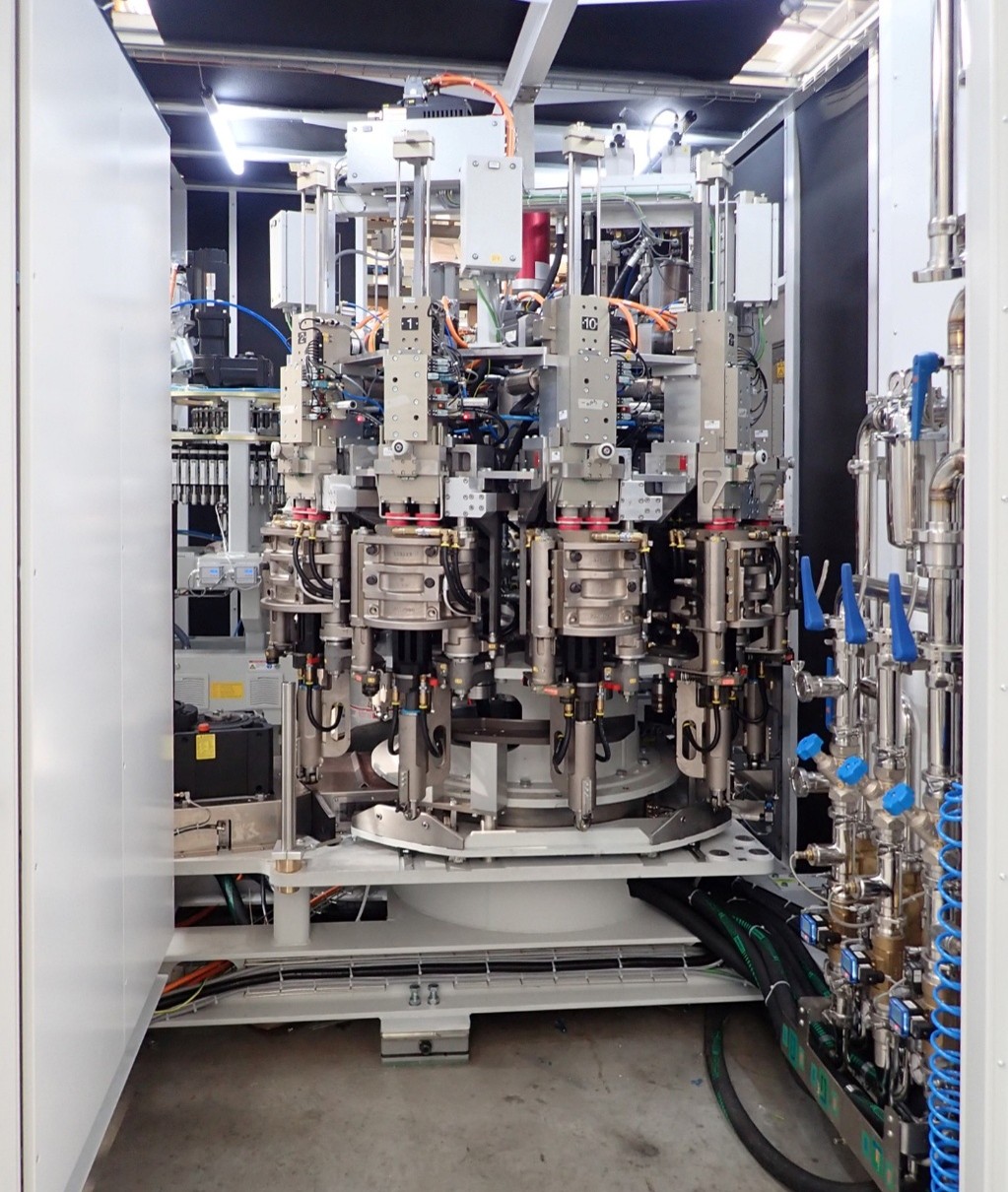

of PET bottles Configuration: Rotary stretch blow moulding machine
SBF412 (2-cavity configuration) Electronic-volumetric filler with 120
valves Fully electronic capper (FEC) with 20 heads Neck finish: 26/22
GME 30.40 Cap type: Plastic screw flat / press-on caps Filling
technology: Electronic-volumetric Products: Carbonated water, still
water, carbonated soft drinks CO₂ content: up to 8.5 g/l Max.
filling temperature: up to 18°C (carbonated water), 25°C ambient,
12°C (soft drinks) Scope of Delivery Blowmoulder | Acmi | SBF412 |
Rotary stretch blow moulding machine (2-cavity) - 100% r-PET and
lightweight preform compatible Filler | Acmi | ESF |
Electronic-volumetric filler with 120 valves Capper | Acmi | FEC |
20-head capper for screw and press-on caps Cap Feeder | Operator level

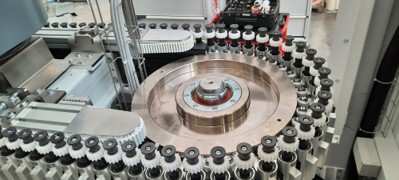

waterfall orientation and feeding Preform orienter |Operator level
preform feeding Preform insertion control | Control system Blowing air
recovery system | For pre-blow and line Cooling system | Water
recirculation on combo interface Automation package | PLC teleservice,
Ethernet, UPS, remote access Lubrication system | Automatic
centralized lubrication Foaming unit | Automatic system
