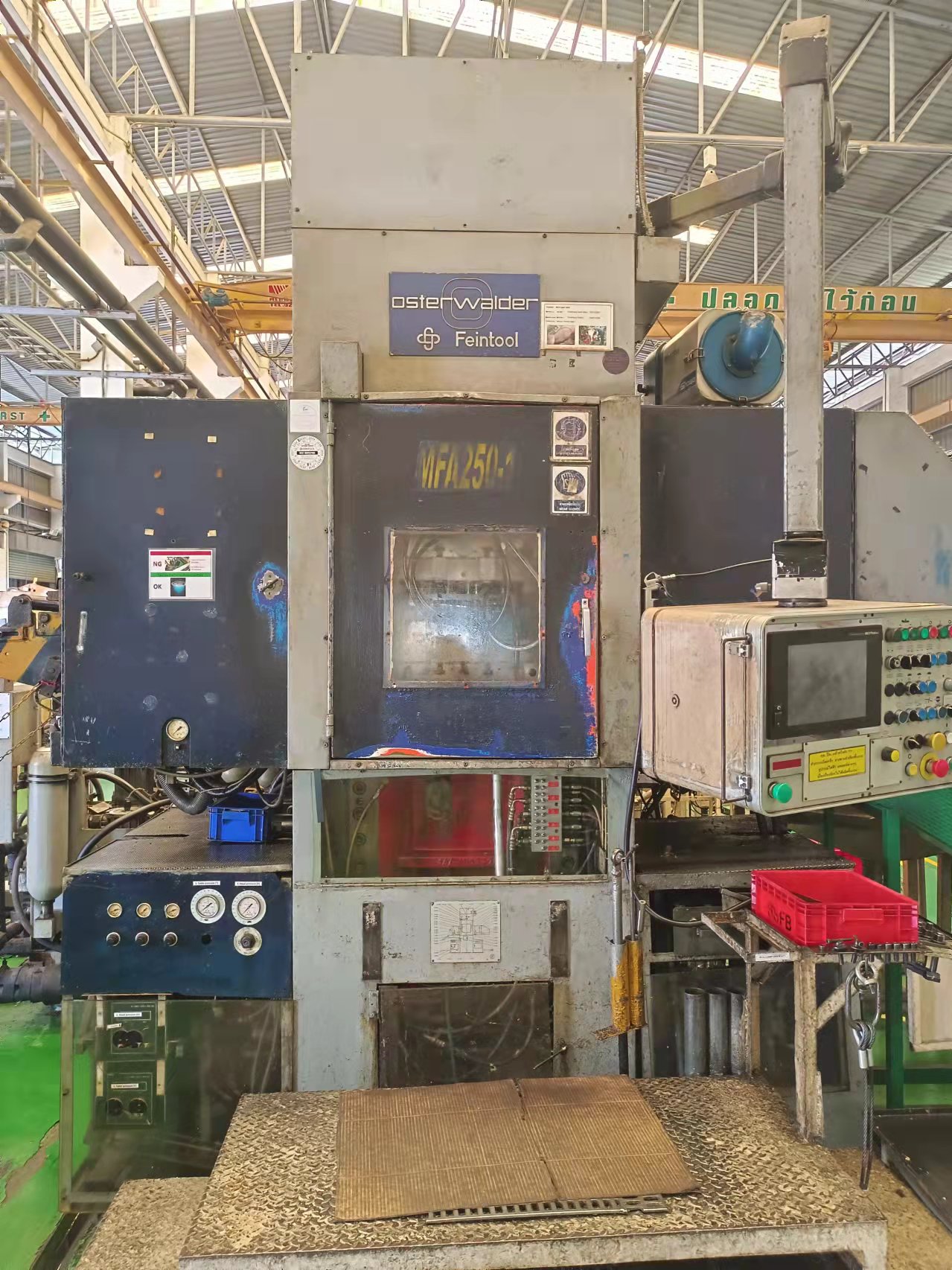

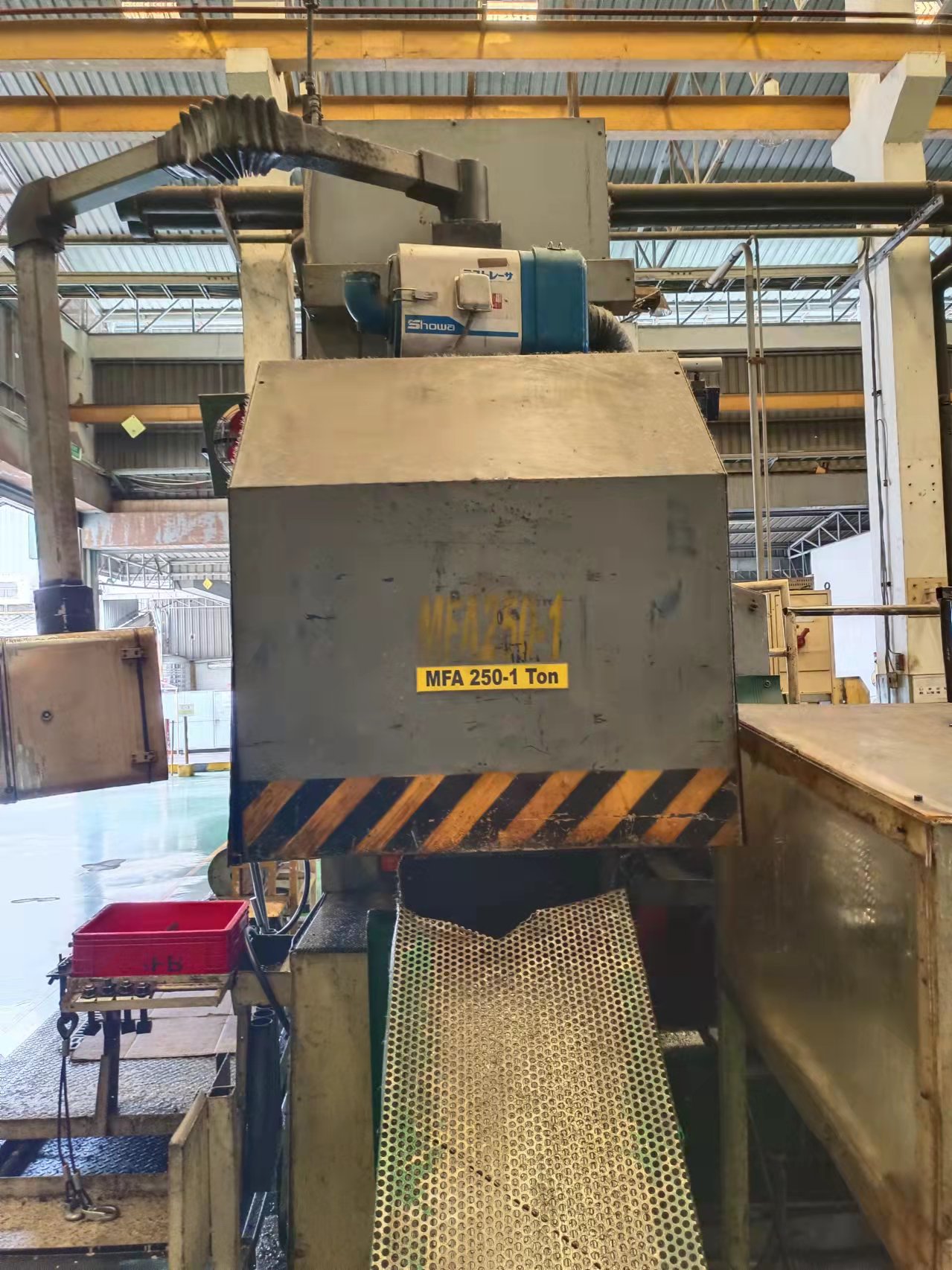

Capacity: 250 ton V ? Ring nominal force: 30 - 125 ton Counter ram nominal force: 30 - 125 ton Ram stroke: 67 mm Table surface area : 560 x 600 mm Slide area: 560 x 560 Number of strokes: 80 s.p.m. Weight of machine approx.: 14.000 kg
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: servomechanic quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 250 to stroke: 70 mm stroke rate (max.): 140 /min COUNTER RAM nominal force: 80 to stroke: 25 mm V-RING nominal force: 125 to stroke: 25 mm TOOL DIMENSIONS lower table (left-right): 600 mm lower table (front-back): 600 mm upper table (left-right): 600 mm upper table (front-back): 600 mm shut height max.: 386 mm ram adjustment: 125 mm COIL CHAIR coil weight max.: 5 to DECOILER design: single reel sheet width max.: 500 mm coil weight max.: 5 to LEVELLER UNIT &nb ...
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: servohydraulic frame design: H-frame, tie rod quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 1100 to stroke: 130 mm stroke rate (max.): 60 /min COUNTER RAM nominal force: 330 to stroke: 40 mm V-RING nominal force: 500 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 960 mm lower table (front-back): 960 mm upper table (left-right): 960 mm upper table (front-back): 960 mm shut height max.: 470 mm OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 16 mm coil weight max.: 8 to feedstock t ...
容量： 250 - 400 ton V ？环标称力： 20 - 200 吨 反向滑枕标称力： 10 - 100 吨 滑枕行程： 30 - 200 毫米 V型圈行程： 40 毫米 反向滑枕行程： 40 毫米 最大模具尺寸： 765 x 760 x 610 毫米 行程数： 40 s.p.m.接近速度：120 毫米/秒 返回速度：135 毫米/秒 工作速度：5 - 50 毫米/秒 模具总重量：2400 公
SLIDE total force (nominal): 250 to stroke: 61 mm stroke rate (max.): 60 /min stroke rate (min.): 15 /min COUNTER RAM nominal force: 75 to V-RING nominal force: 75 to TOOL DIMENSIONS lower table (left-right): 540 mm lower table (front-back): 540 mm upper table (left-right): 540 mm upper table (front-back): 540 mm STRIP-FEEDER sheet width max.: 250 mm sheet thickness max.: 10 mm sheet length min: 1500 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 3150 mm space requirements -front/back-: 2120 mm total height: 3000 mm total weight approx.: 14000 kg Located in Barcelona - Spain Installation space of the tools Front passage between the columns: Movable: 560 mm Fixed: 560 mm Side p ...

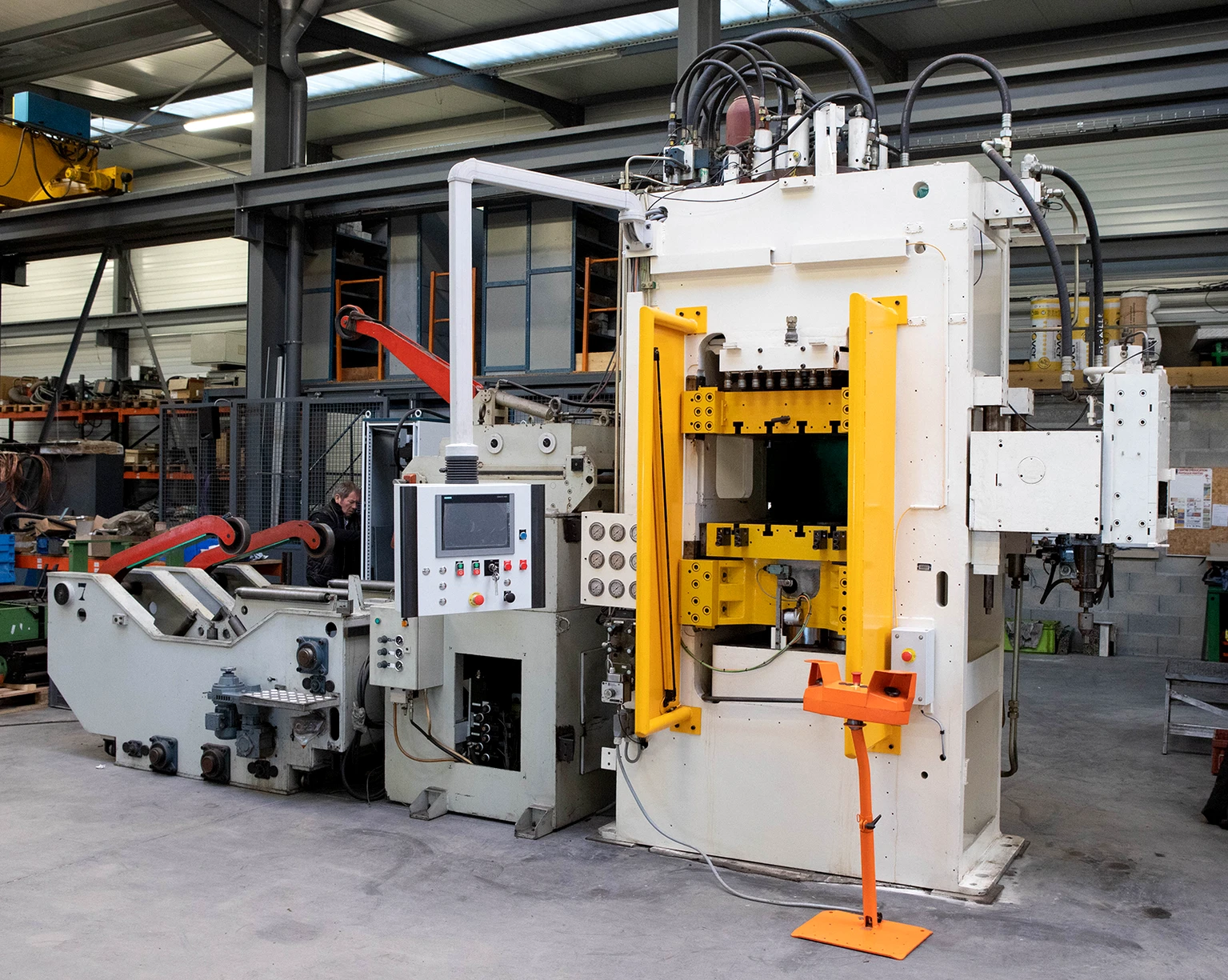

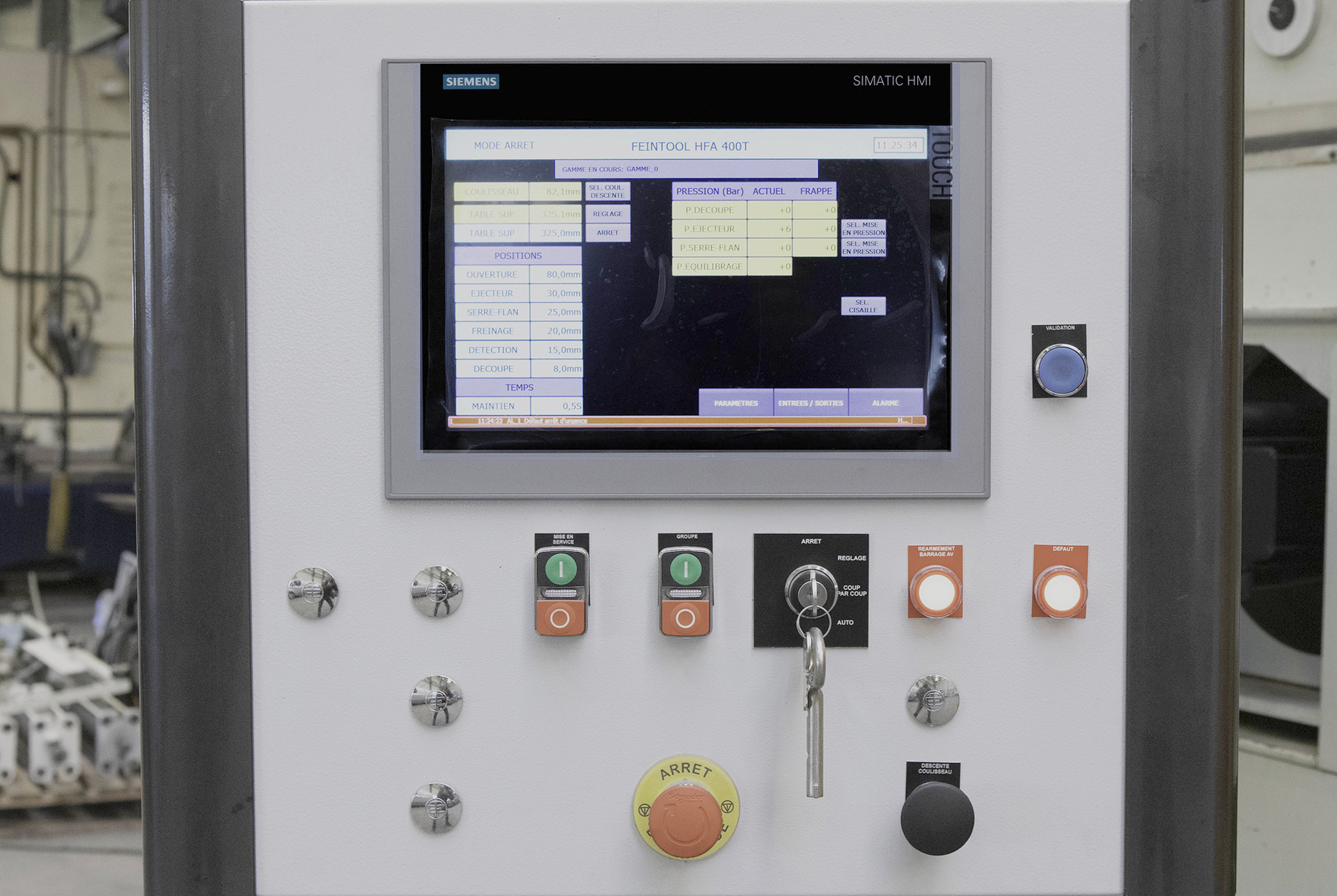

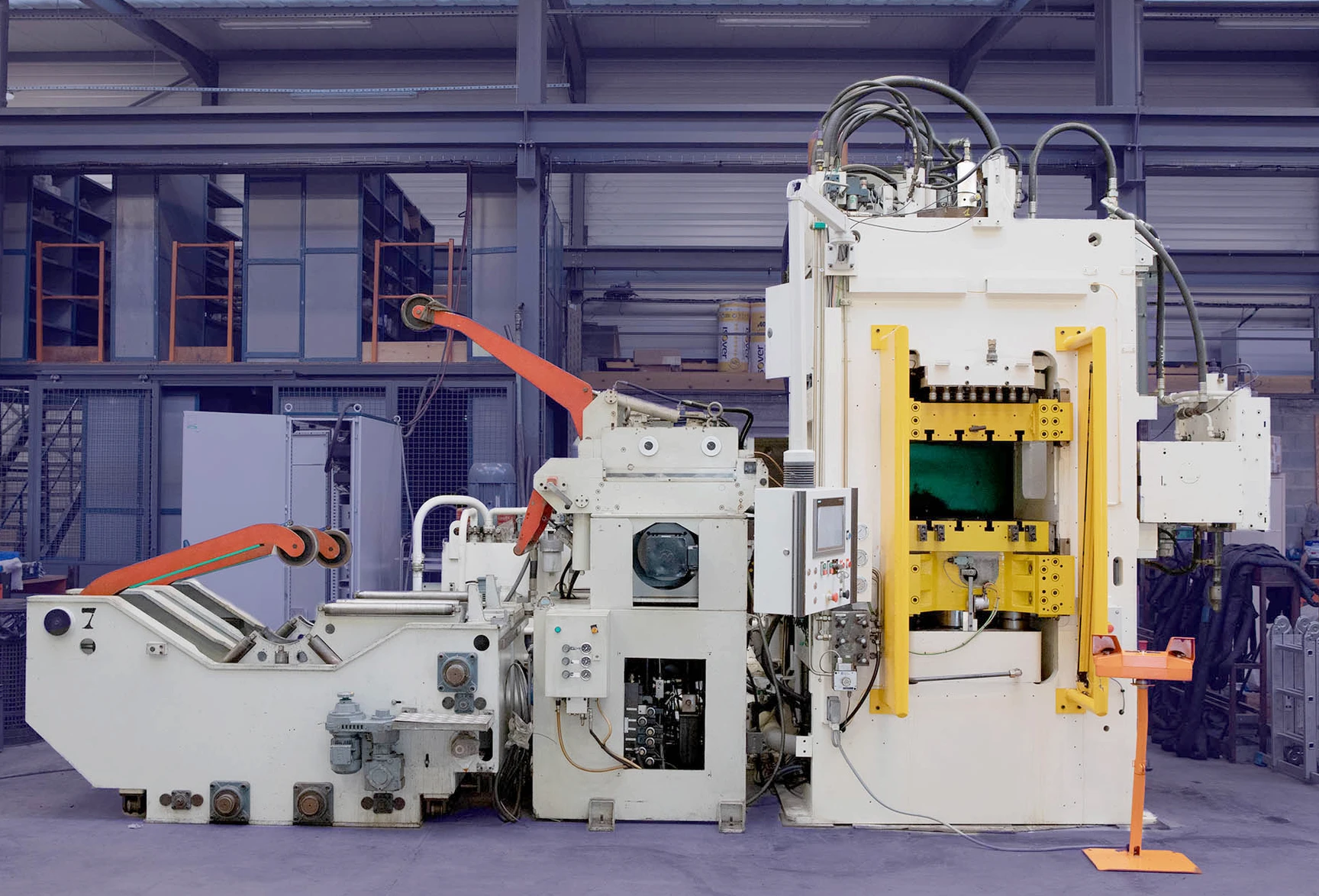

二手 Feintool HFA 4000 配备 Saronni 馈线 总力 2500-4000 kN 坯料夹持力 200-2000 kN 背压力 100-1000 kN 剪切力 1000-3700 kN 安全距离 14 mm FEEDER LINE品牌SARONNI2006年 - 2012年全面检
FEINTOOL GKP F 100T精冲压力机于1974年在瑞士制造。该机床以其坚固 稳定的设计而著称，可以在一个精确的工艺中执行多 个苛刻的加工步骤，从而节省时间和劳动力。因此， 大厚度为 6 mm 的工件可实现极其均匀的表面和精确定义的边缘，这 其他机床无法实现的。当FEINTOOL GKP F 100/160液压落料机加装钣金送料器时，加工过程可以完 全自动化。机器的总重量约为 9 吨。 FEINTOOL GKP F 100T液压机的技术参数 - 最大工件厚度：6 mm - 最大钣金宽度：210 mm - 包括辅助功能在内的总推力：160 t - 剪切力： 100 t - 液压配重力（上工作台）：1-40吨 - 环钳口（下台）液压力：12-50 t - 顶出力（泵压力）：4-8 t - 最大滑块行程数：72/min - 最小滑块行程数：18/min - 行程速率无级调节 - 收集 ...
FEINTOOL GKP F 160液压机在瑞士制造。自动精冲压力机将多个工件加 阶段组合成一个精密工艺，大大节省了时间和精力 通过精冲，最大厚度为 6 mm 的零件可以获得其他机器无法实现的均匀表面和精确 义的边缘。 FEINTOOL GKP-F液压冲床具有坚固，稳定的结构，总推力为160吨 机床随附最大厚度为 6 mm、宽度为 210 mm 的钣金送料机，可实现全自动加工。自动冲孔机于1999 年进行了广泛的现代化改造。GKP-F 160 压力机的总重量为 9000 公斤。 FEINTOOL GKP F 160精冲压力机技术参数 - 最大钣金厚度：6毫米 - 最大钣金宽度：210 mm - 包括辅助功能在内的总推力：160 t - 剪切力： 100 t - 液压配重力（上工作台）：1-40 t - 环钳口的液压力（下表）：12-50 t - 喷射器力（泵压力）：4-8 t - 液 ...
SLIDE total force (nominal): 880 to stroke: 305 mm cutting velocity min.: 5 mm/s cutting velocity max.: 70 mm/s closing velocity: 200 mm/s returning velocity: 200 mm/s V-RING nominal force: 400 to stroke: 40 mm COUNTER RAM nominal force: 200 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 1010 mm lower table (front-back): 1600 mm upper table (left-right): 1000 mm upper table (front-back): 1000 mm shut height max.: 460 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 450 mm sheet thickness max.: 16 mm feeding step min.: 1 mm feeding step max.: 999.9 mm sheet length min: 3950 mm speed max.: 48 m/min &nbs ...
pressure:630 t plate thickness:16 mm Total force (nominal):630 to stroke:30 - 150 mm knife-edged ring capacity:320 t Nominal force:160 t :910 x 1050 mm :900 x 900 mm dayligth:410 mm ram adjustment:120 mm plate width:40 - 450 mm plate thickness:0,5 - 16 mm :1 - 1000 mm total power requirement:100 kW weight of the machine ca.:28 t dimensions of the machine ca.:4.50x2.20x2.80 m Press Feintool + feeding unit
制造商： Feintool 型号： GKP-F 160 机器类型 ： 精冲机 修订年份：2003 总推力： 1600 kN 扬程压力： 10 - 400 kN 工作台压力： 10 - 500 kN 冲程速率： 每分钟 20 - 70 次冲程 工作电压：3x400V，50Hz，N + PE 控制电压：24V 功率： 22 kW 年份 1975 年，但在 2000 年进行了全面翻新 在此处查找更多 - / 联系我们 -
制造商： Feintool 型号： GKP-F 160 机器类型 ： 精冲机 修订年份：2003 总推力： 1600 kN 扬程压力： 10 - 400 kN 工作台压力： 10 - 500 kN 冲程速率： 每分钟 20 - 70 次冲程 工作电压：3x400V，50Hz，N + PE 控制电压：24V 功率： 22 kW 2003 年全面翻新 在此处查找更多 - / 联系我们 -
滑套 总力（名义）：80至 行程率（ 大）：72/分钟 工具尺寸 下桌面（左右）：470毫米 桌子（前后）：420毫米 上桌子（左右）：40 0毫米 上桌子（前后）：400毫米 尺寸 / 重量 空间需求 -左右-：1600毫米 空间需求 -前后-： 1400毫米 总高度：2500毫米 ，总重量 6000公
SLIDE total force (nominal): 80 to stroke rate (max.): 120 /min V-RING stroke: 90 mm TOOL DIMENSIONS lower table (left-right): 420 mm lower table (front-back): 420 mm upper table (left-right): 420 mm upper table (front-back): 420 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 2970 mm space requirements -front/back-: 1665 mm total height: 242 mm total weight approx.: 6000 kg

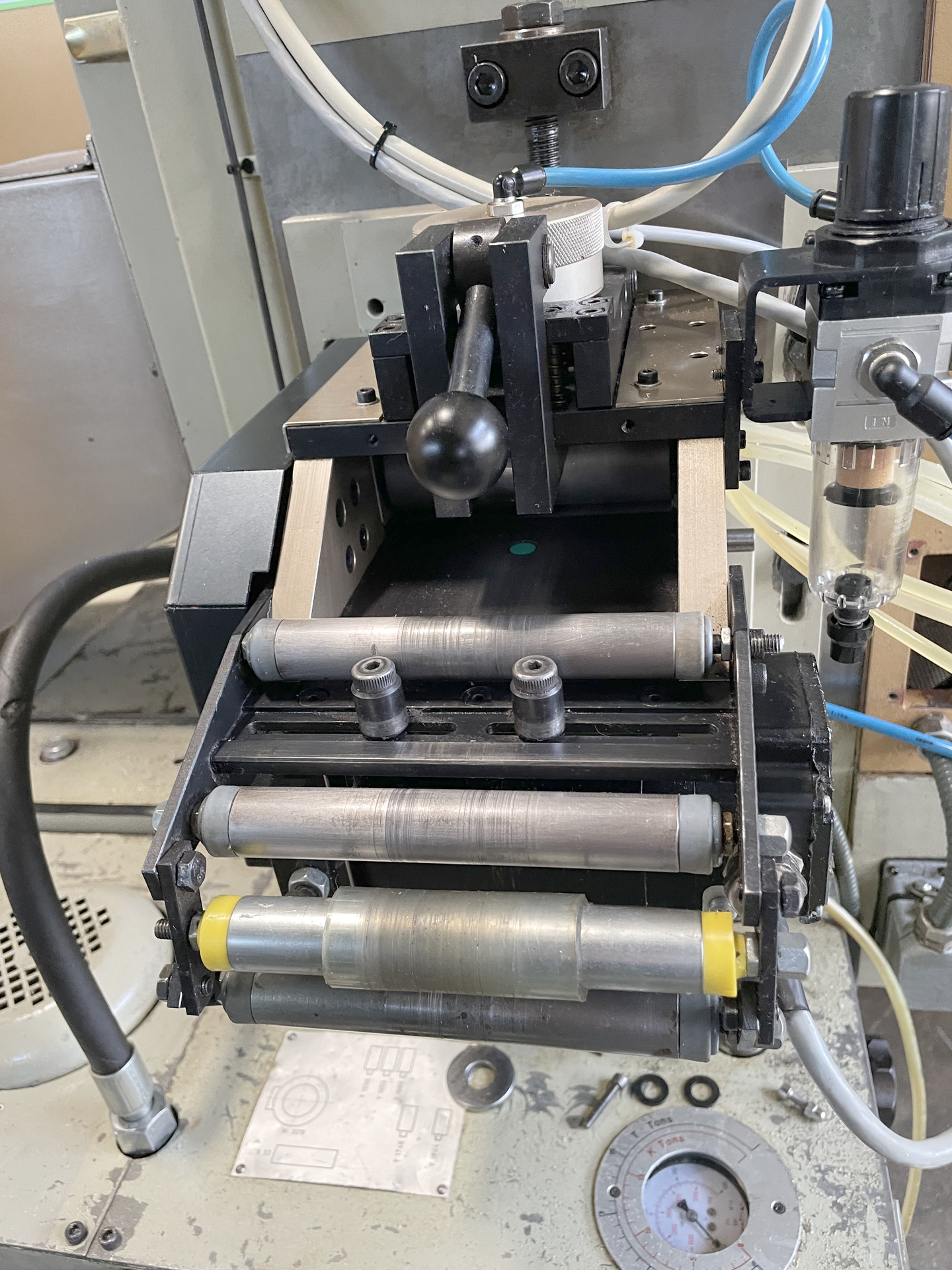

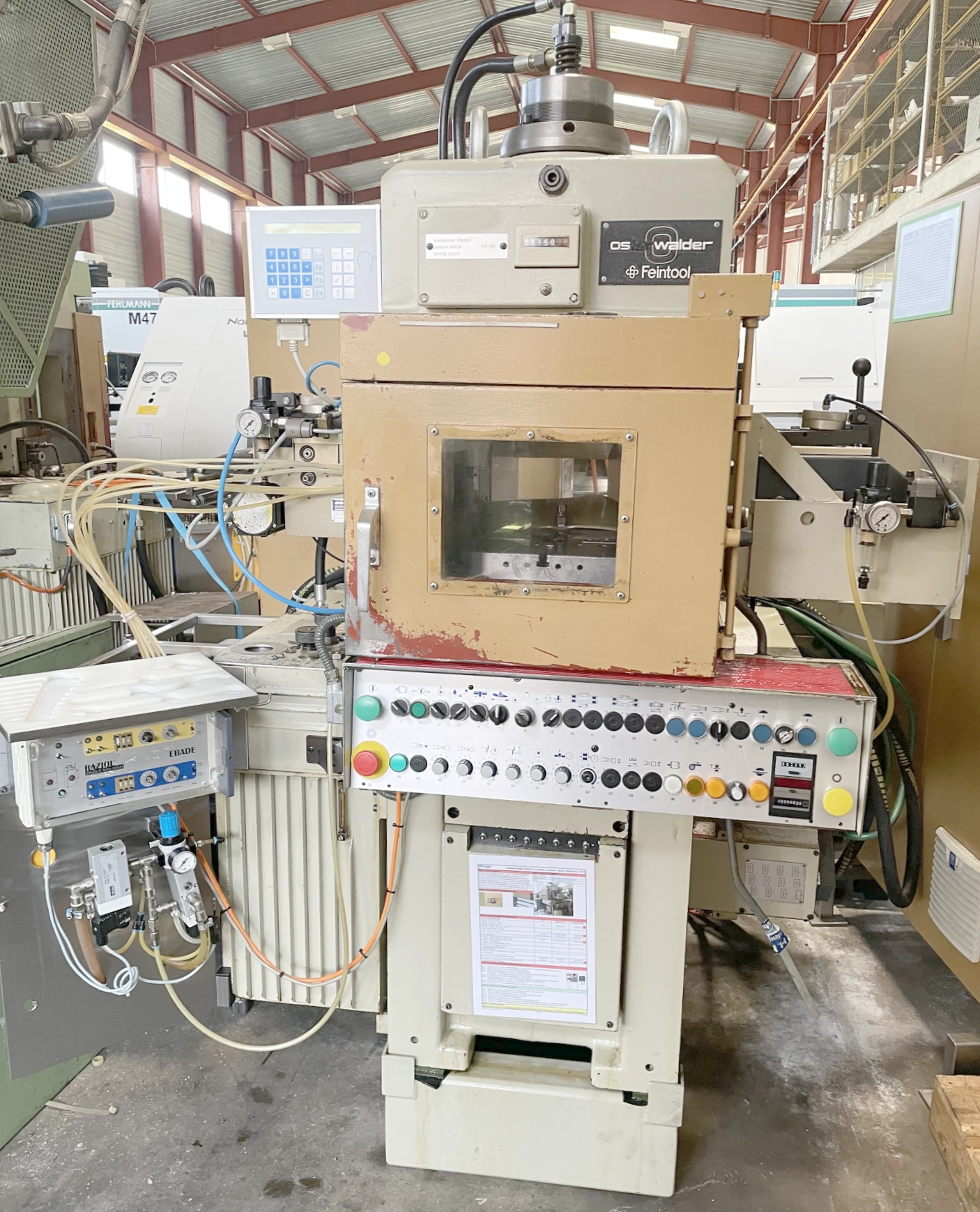

滑套 总力（名义）：40至 行程率（ 大）：110 /分钟工具尺寸 下工作台（左右）：300毫米&nb sp; 下工作台（前后）：280毫米 关闭高度 大：180毫米 尺寸 / 重量 空间需求 -左右-：1835毫米 空间需求-前后-：1500毫米&nbs p; 总高度： 1800毫米 总重量约2500公
PRESS DESIGN drive system: hydraulic SLIDE total force (nominal): 40 to stroke: 45 mm stroke rate (max.): 110 /min TOOL DIMENSIONS lower table (left-right): 300 mm lower table (front-back): 280 mm shut height max.: 90 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 1835 mm space requirements -front/back-: 1500 mm total height: 1800 mm total weight approx.: 2500 kg
PRESS DESIGN 驱动系统：液压滑套 总力（名 ）：400至滑动（HYDR.PRESS） 工作速度最大：1 20毫米/秒反数器 RAM 标称力：100 toV-环 标称力：200至200
PRESS 设计 快速模具更换系统：是的 滑动 总力（名义）：100至 行程：20 米 行程速率（最大）：80 × 工具尺寸 下表（左右）：430毫米&n bsp; 闭合高度最大：220毫米 约7900万次
CONTROLS PLC PRESS DESIGN drive system: hydraulic quick die change system: yes SLIDE total force (nominal): 450 to stroke: 230 mm SLIDE (HYDR. PRESS) working velocity min.: 5 mm/s working velocity max.: 70 mm/s return velocity max.: 200 mm/s return force: 200 to V-RING nominal force: 200 to TOOL DIMENSIONS lower table (left-right): 790 mm lower table (front-back): 760 mm OVERALL SPECIFICATIONS (COIL LINES) coil weight max.: 3 to COIL CHAIR coil weight max.: 3 to STRIP-FEEDER feeder type: roll feeder band lubrication system: yes ELECTRICAL SPECIFICATIONS total power consumption: 150 kW mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS ...
CONTROLS PC controller BECKHOFF Offer for services of complete Overhaul of a Customer-Supplied Fineblanking Press FEINTOOL GKP 160Scope of Overhaul• Complete disassembly into individual components• Inspection of all parts, including crack testing of critical components• Overhaul of the drive system, new motors• Reworking and precise alignment of all guideways• Complete overhaul of the hydraulic cylinders• Overhaul of the clamping tables• Installation of a new hydraulic unit• Renewal of the pneumatic system• Renewal of the electrical systemModernisation / Retrofit• Combined table • Servo feed systems• Central lubrication system • RAZIOL band lubrication• New brake/clutch unit• BECKHOFF PC-based control system with touch panel• PILZ safety control system• Implementation of CE ...
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: knuckle-joint SLIDE total force (nominal): 160 to stroke: 60 mm stroke rate (max.): 70 /min COUNTER RAM nominal force: 40 to stroke: 14 mm V-RING nominal force: 50 to stroke: 10 mm TOOL DIMENSIONS lower table (left-right): 480 mm lower table (front-back): 520 mm upper table (left-right): 480 mm upper table (front-back): 520 mm shut height max.: 314 mm ram adjustment: 80 mm distance between columns (H-frame): 500 mm passline opening (free passage in side columns): 220 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 210 mm sheet thickness max.: 6 mm feeding step max.: 999 ...
CONTROLS PLC SIEMENS S7 PRESS DESIGN drive system: link drive feedstock transport direction: left to right SLIDE total force (nominal): 80 to stroke: 50 mm stroke rate (max.): 80 /min COUNTER RAM nominal force: 22 to stroke: 8 mm V-RING nominal force: 25 to stroke: 15 mm TOOL DIMENSIONS lower table (left-right): 420 mm lower table (front-back): 420 mm upper table (left-right): 420 mm upper table (front-back): 420 mm shut height max.: 220 mm ram adjustment: 80 mm distance between columns (H-frame): 450 mm passline opening (free passage in side columns): 200 mm OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 180 mm sheet thickness max.: 5 mm &nbs ...
CONTROLS PC controller BECKHOFF C 6140 PRESS DESIGN drive system: hydraulic frame design: H-frame, monoblock quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 410 to stroke: 200 mm SLIDE (HYDR. PRESS) approximation velocity max.: 200 mm/s working velocity min.: 8 mm/s working velocity max.: 80 mm/s return velocity max.: 150 mm/s COUNTER RAM nominal force: 120 to stroke: 40 mm V-RING nominal force: 250 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 820 mm lower table (front-back): 1250 mm upper table (left-right): 820 mm upper table (front-back): 1250 mm shut height max.: 410 mm STRIP-FE ...
CONTROLS PLC BECKHOFF PRESS DESIGN drive system: knuckle-joint feedstock transport direction: left to right SLIDE total force (nominal): 250 to stroke: 67 mm stroke rate (max.): 80 /min COUNTER RAM nominal force: 125 to V-RING nominal force: 125 to TOOL DIMENSIONS lower table (left-right): 560 mm lower table (front-back): 600 mm upper table (left-right): 560 mm upper table (front-back): 560 mm STRIP-FEEDER feeder type: roll feeder DIMENSIONS / WEIGHTS total weight approx.: 14000 kg ATTACHMENTS -FINEBLANKING PRESS- decoiler: optional waste cutter: yes + Control system completely renewed in 2015
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: knuckle-joint SLIDE total force (nominal): 250 to stroke: 61 mm stroke rate (max.): 60 /min COUNTER RAM nominal force: 75 to stroke: 15 mm V-RING nominal force: 75 to stroke: 13 mm TOOL DIMENSIONS lower table (left-right): 540 mm lower table (front-back): 540 mm upper table (left-right): 540 mm upper table (front-back): 540 mm shut height max.: 320 mm ram adjustment: 145 mm distance between columns (H-frame): 560 mm passline opening (free passage in side columns): 270 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 250 mm sheet thickness max.: 10 mm feeding step max.: 9 ...
PRESS DESIGN drive system: knuckle-joint frame design: H-frame, monoblock SLIDE total force (nominal): 160 to stroke: 60 mm stroke rate (max.): 72 /min COUNTER RAM nominal force: 40 to stroke: 60 mm V-RING nominal force: 50 to stroke: 13 mm TOOL DIMENSIONS lower table (left-right): 470 mm lower table (front-back): 470 mm upper table (left-right): 500 mm upper table (front-back): 470 mm shut height max.: 277 mm ram adjustment: 80 mm distance between columns (H-frame): 500 mm passline opening (free passage in side columns): 220 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 210 mm sheet thickness max.: 6 mm feeding step max.: 180 ...
CONTROLS PLC SIEMENS S5 SLIDE total force (nominal): 160 to stroke: 60 mm COUNTER RAM nominal force: 80 to V-RING nominal force: 80 to TOOL DIMENSIONS lower table (left-right): 560 mm lower table (front-back): 600 mm upper table (left-right): 560 mm upper table (front-back): 600 mm shut height max.: 335 mm ram adjustment: 125 mm distance between columns (H-frame): 630 mm passline opening (free passage in side columns): 270 mm CROP SHEAR cutting force: 150 kN DIMENSIONS / WEIGHTS total weight approx.: 11000 kg ATTACHMENTS -FINEBLANKING PRESS- autom. tool clamping device: yes decoiler: optional waste cutter: yes slug separator: optional very well maintained machi ...
