Stroj je v dobrém technickém stavu， po předchozí dohodě možnost odzkoušení.

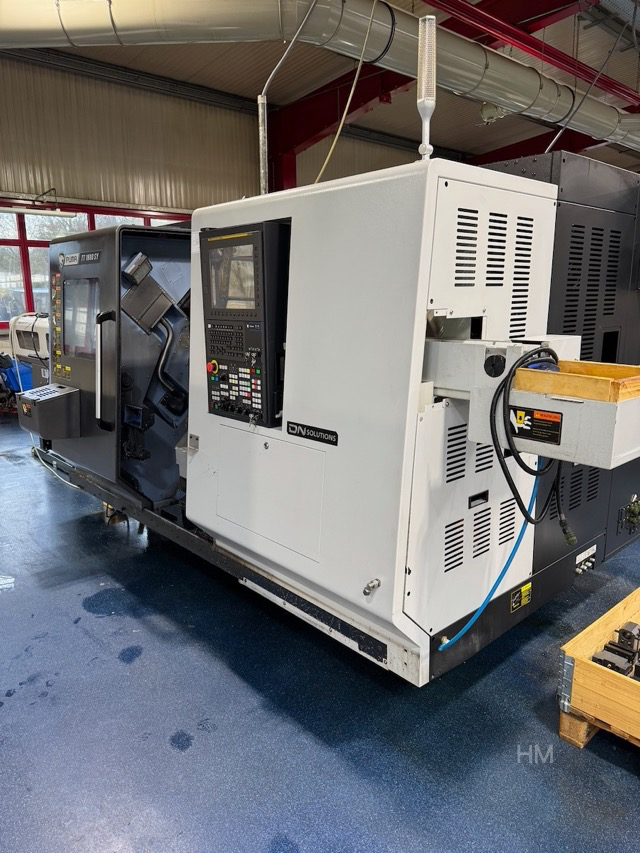

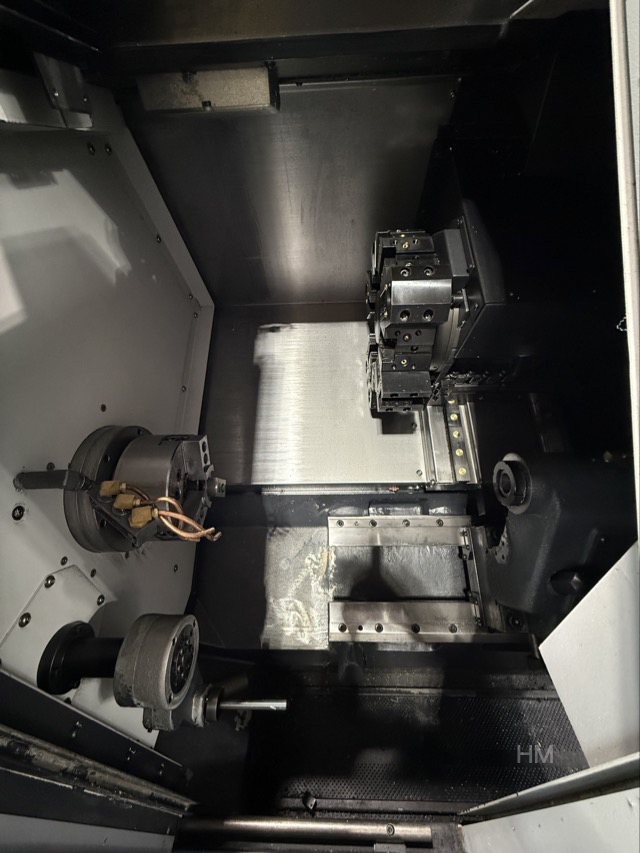

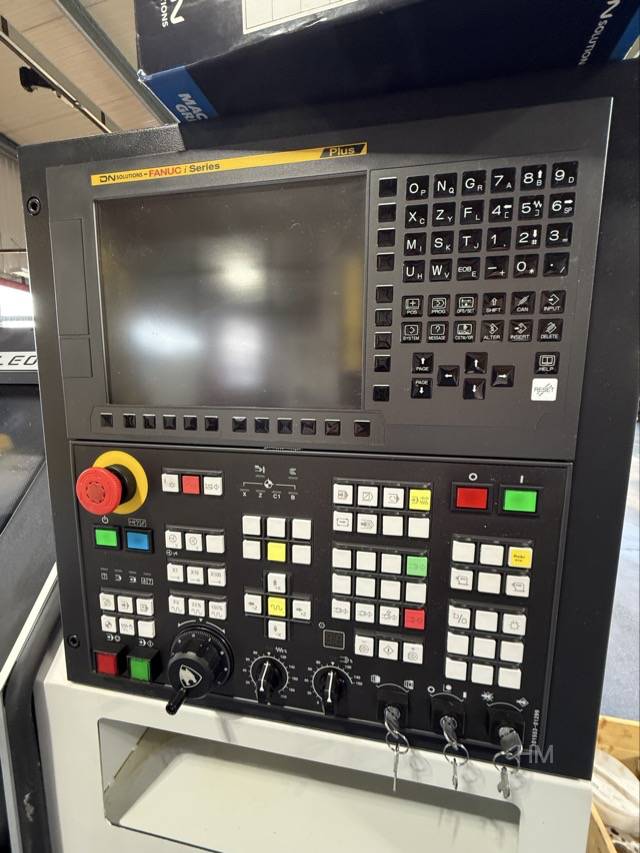

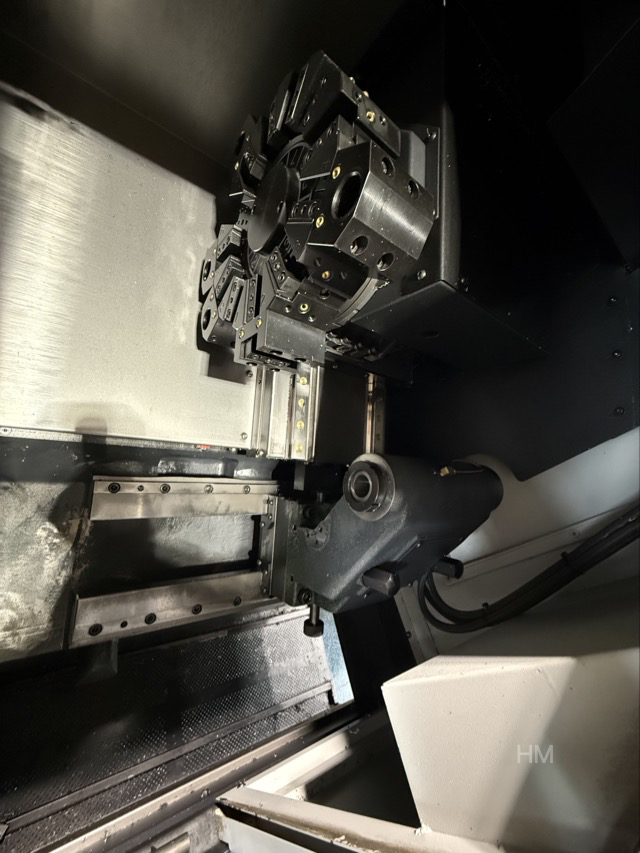

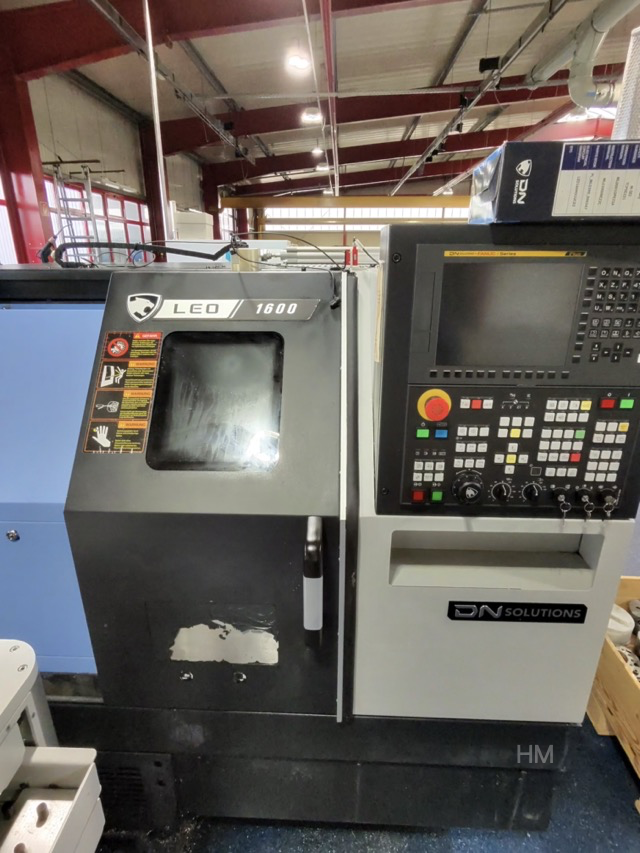

Year of manufacture: 2023 Features/highlights Horizontal CNC lathe Powerful main spindle Robust machine construction for high dimensional accuracy Tool turret with fast indexing Compact design, low space requirement User-friendly CNC control High reliability and low maintenance Technical data Max. turning diameter: approx. 300 mm Max. turning length: approx. 300 mm Spindle bore: approx. Ø 52 mm Main spindle speed: up to approx. 4,500 rpm Tool turret: 12 stations Control: FANUC CNC Machine weight: approx. 2,200 kg Machine fully functional, both electrically and mechanically Complete technical documentation available The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!
Year of manufacture: 2022 Including accessories Subject to prior sale. Errors and changes in technical data reserved.
床身车削直径：32 mm 主轴车削速度范围：8000 U/min 主轴通道：mm 车削长度：320 mm 控制：Fanuc 0i-TC 总功率要求：kW 机器重量：3.5 t 机器尺寸：2.63 x 1.3 x 1.8 m

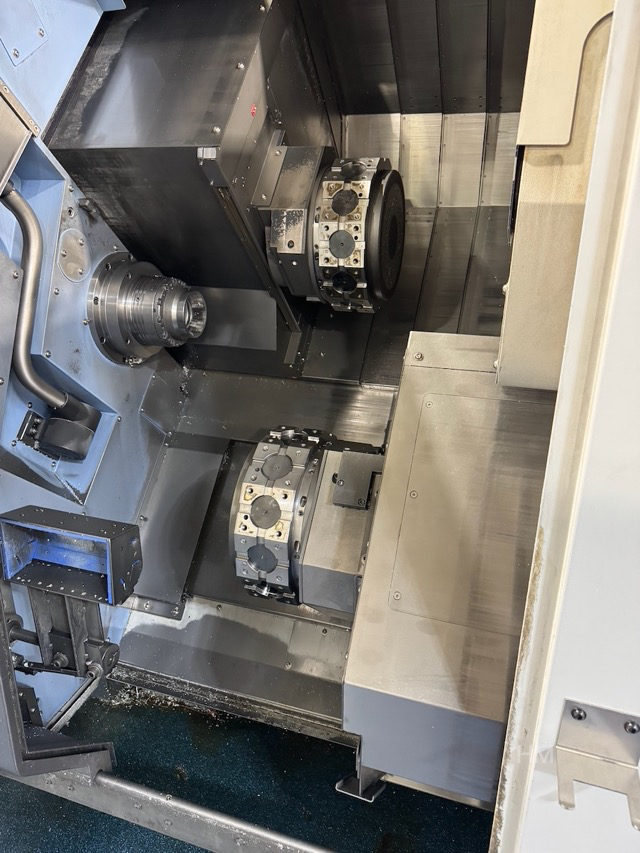

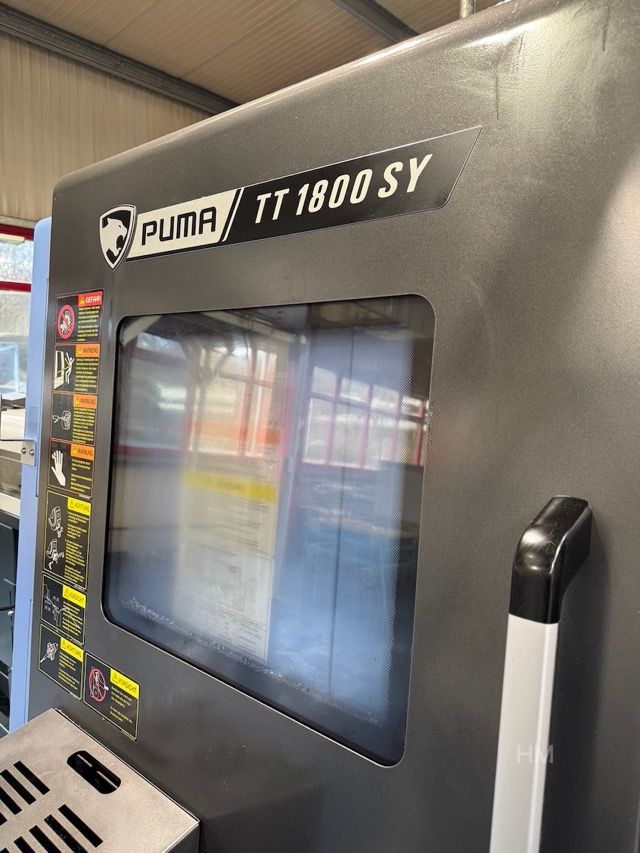

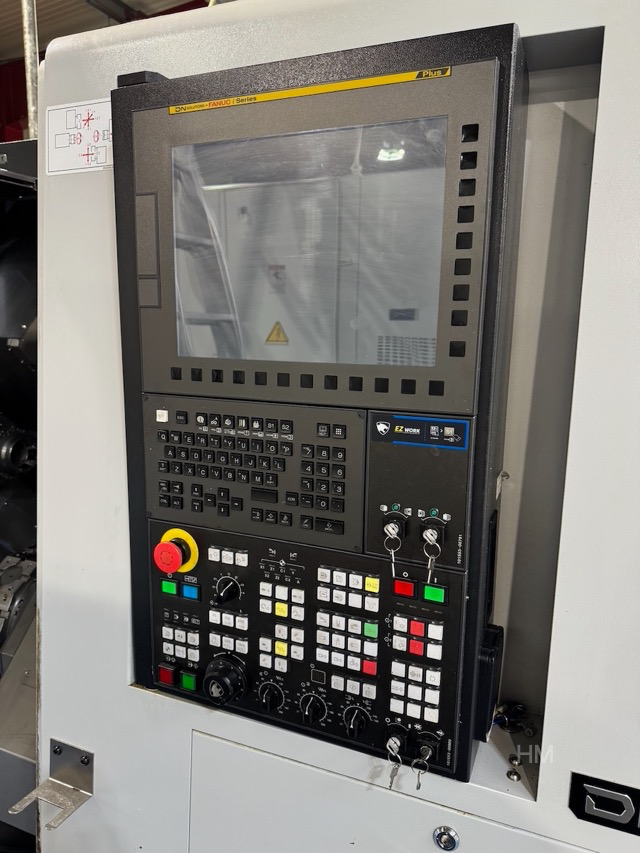

turning diameter: 330 mm turning length: 510 mm control: FANUC 18i - T turning diameter over bed: 600 mm turning diameter over slide: 550 mm x-travel: 250 mm z - travel: 580 mm y-travel: 100 (±50) mm b-axis: 0.001 mm rapid travel x/y/z: 20/7,5/24/ m/min rapid taverse: B- Achse 20 m/min c-axis: 4.500/ 6.000 ° spindle passage: 76/ 45 mm spindle nose: A2#6 spindle turning speed range: 4.500/ 6.00 U/min spindle drive: 15/ 7,5 kW Turret: 12- fach Stationen Chip coveyor: Inkl. chuck: Hauptspindel 210 mm chuck: Subspindel 160 mm total power requirement: 50,7 kVA weight of the machine ca.: 4,9 t dimensions of the machine ca.: 3.118 x 1.705 x 2.076 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
