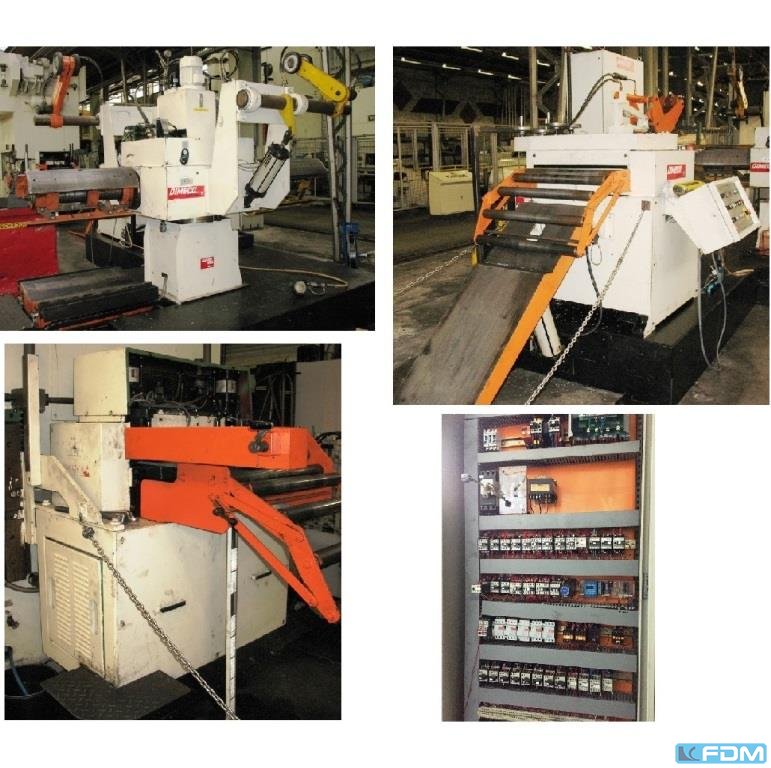

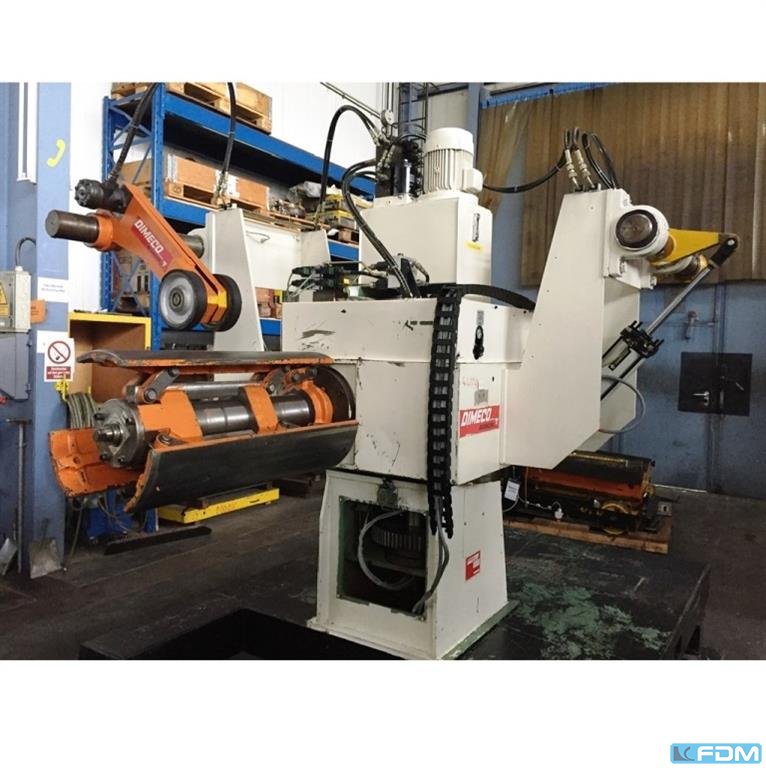

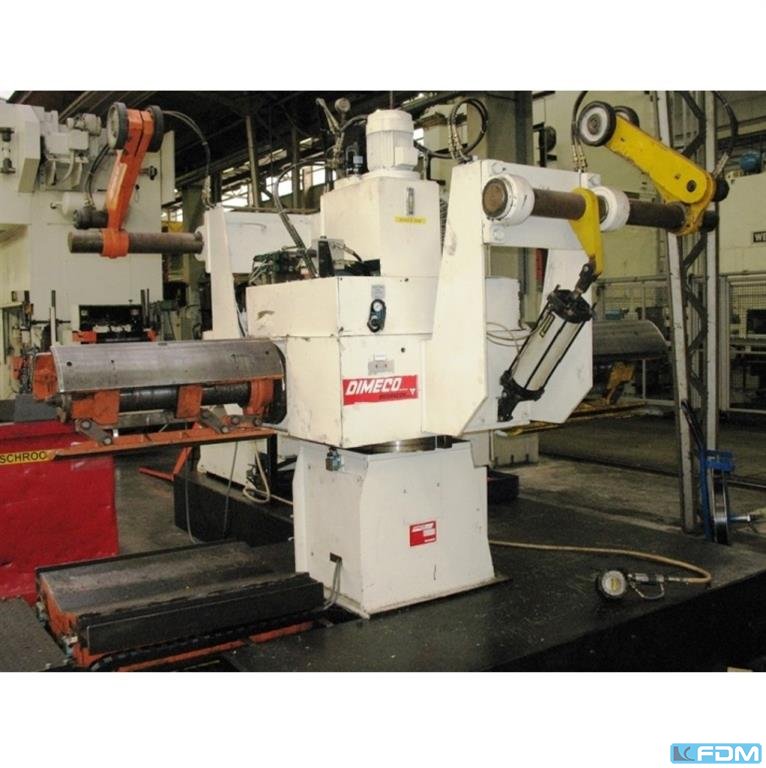

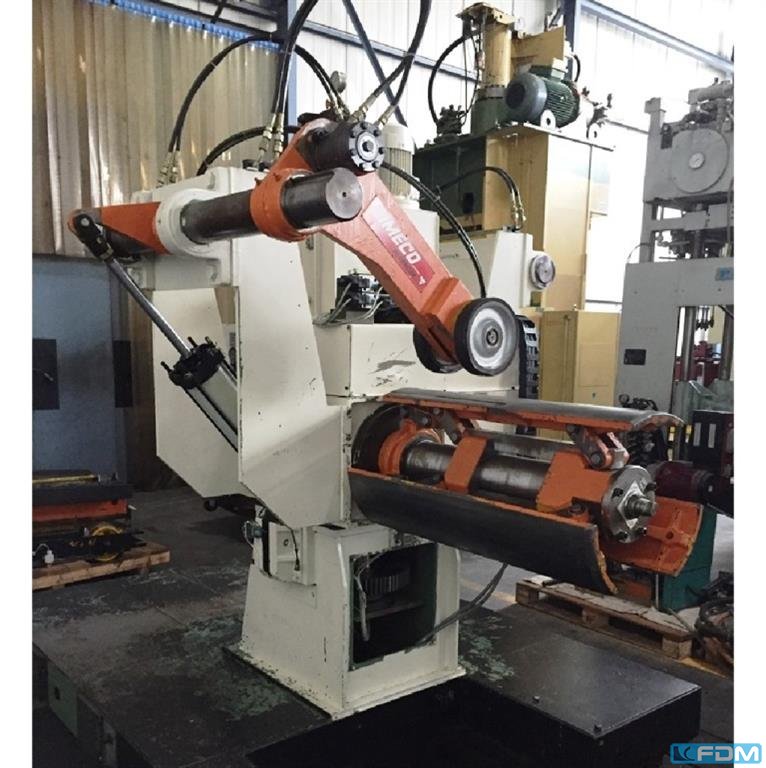

material width coil line:600 mm coil weight:2 x 3,5 t coil internal diameter:460 - 530 mm coil external diameter:1500 mm material thickness coil line:0,5 - 3,0 mm no. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mm feed length:0 - 500 mm power requirement:10,0 kW weight:10,0 t dimensions of the coil line:8,8 x 4,0 x 2,55 m straightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed
material width:500 mm material thickness:0,6 - 1,6 mm no. of straightening rolls:7 straightening roll diameter:60 mm number of draw-in rolls:2 + 2 inlet roll diameter:60 mm max. material thickness:2,0 mm material thickness at 150 mm material width:2,0 mm material thickness at 500 mm material width:1,6 mm weight:0,5 t dimensions (WxDxH):0,8 x 1,0 x 1,2 m
material width:300 mm material thickness:0,6 - 2,5 mm no. of straightening rolls:7 straightening roll diameter:60 mm number of draw-in rolls:2 + 2 diameter of draw-in rolls:60 mm max. material thickness:3,5 mm material thickness at 30 mm material width:3,0 mm material thickness with 300 mm material width:2,5 mm weight:0,3 t Dimensions (WxDxH):0,9 x 1,0 x 1,1 m
material width:550 mm material thickness:0,4 - 1,6 mm no. of straightening rolls:11 straightening roll diameter:60 mm number of draw-in rolls:4 diameter of draw-in rolls:60 mm band speed:4 - 50 m/min power capacity:3,0 kW weight:1,7 t Dimensions (WxDxH):2,5 x 2,0 x 1,7 m
material width:400 mm material thickness:0,6 - 2,8 mm no. of straightening rolls:5 straightening roll diameter:40 mm no. of pulling rolls:2 + 2 material thickness at 400 mm material width:1,8 mm material thickness at 65 mm material width:2,8 mm power capacity:3,0 kW weight:0,45 t Dimensions (WxDxH):0,8 x 1,8 x 1,35 m
Dimeco 1675/dnbsp;CNCフィードシステム付きストレートナー(サ ベレック) - 幅:500 mm - 最大厚さ:1.6 mm
Dimeco 1675/dnbsp;CNCフィードシステム付きストレートナー(サ ベレック) - 幅:500 mm - 最大厚さ:1.6 mm
Dimeco 1675/D richtmachineはCNC-aanvoersysteem(cybelec)と交差しました。- ブレッド:500 mm - マキシマレ ディクテ:1.6 mm
Dimeco afwikkel-/terugwikkelapparaat Dimeco microvoeder - maximale breedte: 815 mm - maximale dikte: 3.5 mm
スポエリン 1000 mm: 1.コイルリフト 10トン 2.アフロルマシン 10トン 3.Dimeco stijltang 4.Dimecoマイクロフィーダー5。SCMB 650 TON ハイドロポンスパー VERKOCHT (niet meer leverbaar) 6.Heilbronn-feeder, na persen 7.ロレンバネン 8.プロファイラーライン 1000 mm GEGOLFD PROFIEL NIEUW TYPE CHIEF PHENIX
タイプ:R674 / 11 / F 11 x 50 mm矯正ロール 4 80 mm供給ロール 重さ: 1200 kg
sheet width - max.: 0410 mm coil weight: 2,0 t coil internal dia.: 380 - 520 mm coil outside - diam. ca.: 1400 mm total power requirement: 2,2 + 1,1 to kW weight of the machine ca.: t dimensions of the machine ca.: m with take-off device Space requirement reel (W x D x H) 1.40 x 1.60 x 2.20 m Space requirement complete (W x D x H) 2.60 x 1.20 x 2.30 m Unwind reel 2370 DFPS without drive, with pneumatic overrun brake, hydraulic central spreader, pneumatic pressing device Take-off device / hydraulic threading aid 235 D with infinitely variable drive, belt loop control via ultrasound Material thickness up to approx. 6.0 mm Take-off roller diameter approx. 160 mm As it stands and lies, WITHOUT being put into operation, Design as described in the technical data sheet The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
デコイラー、ストレートナー、せん断を備えたDimeco Alipressコイルツーシートラインが利用可能です。シ ト幅範囲:200mm-1300mm、シート厚み範囲:1mm-7mm、断面積 範囲:1400mm²-3250mm²、最大送り速度:30m/min、最大スト ークレート:150/min、最大材料送り:1000mm/ストローク ストレートナー:Schechtl MSB100。ドキュメントが利用可能です。現地検品が可 です
sheet width: 0400 mm coil outside dia.: 1400 mm weight max. in kg: 3000 kg plate thickness: 0,80 - 4,50 mm nomb. of straightening rolls: 7 diam. of the rolls ca.: 80 mm feed rolls: 2 exit pinch rolls: 2 coil width: 600 mm range of expansion ca.: 470 - 530 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Decoiler DIMECO type 2371 E-FPS Year of construction 2006 with hydraulic spreading with pneumatic pressure roller from above with 6 pieces of band limiting arms Straightening machine DIMECO type 1676 C-VV Year of construction 2000 with frequency-controlled drive with hydraulic band insertion aid with support table, insertion tongue, Pressing arm from above with pneumatically ventilated roller with side belt guide rollers with pneumatically adjustable belt transfer table The data for this ad was created with ModulMWS - the software solution of ...
