모델
(생산자: DECKEL MAHO)
x-travel: 800 mm y-travel: 700 mm z-travel: 600 mm total power requirement: kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: 4,6 x 2,4 x 2,7 m Brand Deckel Maho Machine no F631 Type DMC 80 U hi-dyn CNC Brand Siemens CNC Type 840D Year of make 2003 Table length 800 mm Table width 630 mm Number of pallets 2 X 800 mm Y 700 mm Z 600 mm Spindle taper HSK-A 100 Tool changer 60 Maximum pallet load 800 kg Nutrition 20 - 1500 mm/min Chip transport Machine size 4.600 x 2.400 x 2.700 mm Machine weight 10.500 kg Tool magazine positions: 60 Heidenhain TS 642 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 700 mm y-travel: 800 mm z-travel: 800 mm control: Siemens 840D total power requirement: kW weight of the machine ca.: 18,5 t dimensions of the machine ca.: 5,2 x 3,8 x 3 m Brand Deckel Maho Machine no F630 Type DMC 70 H duo Block CNC Brand Siemens CNC Type Siemens 840D powerline Year of make 2006 Table length 500 mm Table width 500 mm Number of pallets 2 X 700 mm Y 800 mm Z 800 mm Spindle taper SK 40 Speed maximum 18.000 RPM Machine size 5.200 x 3.800 x 3.000 mm Machine weight 18.500 kg Tool magazine positions: 120 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
뚜껑마호 DMC-200 U세리에 1512 5축 CNC 범용 머시닝 센터, 동시 컨트롤: 하이덴하인 iTNC 530 테이블 크기: 1600x1400 mm 테이블 짐: 3500 kg 팔레트 수: 2 x 최대 공작물 직경 x 높이: 1950x1100 mm 이동 거리 X 축 : 1800mm Y 축 이동 거리 : 2000mm 이동 거리 Z축: 1100mm C 축 테이블 회전 : 360 B 축 이동 : -7 / 187 스핀들 속도: 18000 1/min 스핀들 콘: HSK-A63 스핀들 모터 : 28/19 kW 잡지 용량 : 120 필요한 설치 공간: 11200x12300mm 높이: 4375 mm 무게: 58000 kg 기계에 대한 질문과 검사 일정은 전화 또는 이메일로 문의하시기 바랍니다.
이 3축 DECKEL MAHO DMC 63V 수직 가공 센터는 1997년에 제작되었습니다. X축 이동 거리는 630mm, Y축 이동 거리는 500mm, Z축 이동거리는 500mm를 특징으로 합니다. 이 기계는 24개의 공구 매거진 용량과 최대 8000rpm의 스핀들 속도를 갖추고 있습니다. 고품질 가공 능력을 원하신다면, 저희가 판매 중인 DECKEL MAHO DMC 63V 기계를 고려해 보세요. 자세한 내용은 저희에게 문의해 주세요.
DECKEL MAHO DMC 63V CNC 수직 머시닝 센터는 2005년 독일에 건설되었습니다. 직렬 및 단위 생산에 사용되는 기계는 높은 가공 능력과 강화된 작업 테이블을 사용한 안정적인 구조가 특징이며, 이는 밀링에서 가능한 최고의 정밀도를 보장합니다. 설치된 FANUC 180i-MB CNC 컨트롤러는 기계의 문제 없는 작동과 완전한 잠재력과 기능의 사용을 추가로 보장합니다. DECKEL MAHO GILDEMEISTER CNC 머시닝 센터는 지속적으로 서비스를 받았으며 현재까지 26040시간 동안 작동했습니다. DECKEL MAHO DMC 63 V 밀링 센터의 기술 데이터 작업 테이블 크기 (L x W) : 800 x 500 mm - X/Y/Z 축의 이송 속도: 630/500/500 mm - X, Y, Z 축의 위치 정확도 : 0.010mm - 최대 스핀들 회전 속도: 10000rpm - 스핀들 테이퍼: SK 40 - 24위치 공구 매 ...
이 3축 DECKEL MAHO DC 100V는 1995년에 제조되었습니다. 이 게임은 Siemens 840D 컨트롤, 1250 x 800mm 크기의 기계 테이블, 그리고 X, Y, Z 축 방향으로 970 x 755 x 490mm 이동 범위를 특징으로 합니다. 최대 속도 18,000rpm과 24개의 공구 위치를 가진 이 수직 가공 센터는 아직도 생산 중입니다. 이 DECKEL MAHO DC 100V 수직 가공 센터를 구매할 기회를 고려해 보세요. 자세한 정보는 저희에게 문의해 주세요.
이 4축 DECKEL MAHO DMC 50 H 수평 가공 센터는 2001년에 제작되었습니다. 정밀 가공에 이상적이며, 견고한 구조와 신뢰할 수 있는 성능을 제공합니다. 이 기계에 대한 자세한 정보는 저희에게 문의해 주세요.
더블 팔레트 제어 장치: 지멘스 840D 이동 거리 :X: 560 mm Y: 510 mmZ: 560 mm B: 360° 스핀들 속도: 18,000 rpm 테이블 크기: 400 mm x 400 mm 툴 체인저: 60 포지션 칩 컨베이어, 공구 측정 장치, 고압 냉각 장치 동력 하에서 점검 가능합니다
x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

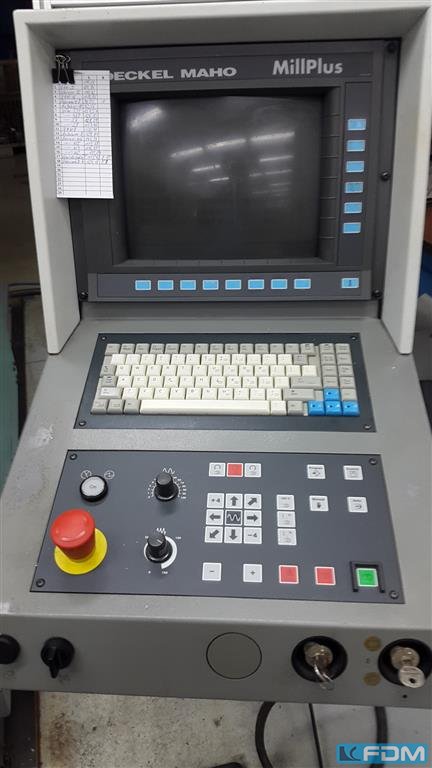

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden
x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis
x-travel:700 mm y-travel:550 mm z-travel:500 mm tool taper:SK40 spindle speed max.:12.000 U/min Tool changer:30 fach electronic handwheel chip conveyor
2005Siemens 840D Powerline ShopMillØ630 x 500 mm200 kg115° (-5°/+110°)500 mm450 mm400 mm20-10,000 rpm9 kW13 kW82 Nm0.010 mm0.01 mm24 m/min20 m/minChain magazine with double gripper, 30 positions SK40 (DIN 69871)80-130 mm (speed dependent)290 mm6 kg80 l17 kW4,860 x 4,350 x 2,424 mm2,210 x 2,120 x 2,150 mm4.05 t35,880 h9,609 h400 V / 50 HzDirect linear encoders (X/Y/Z)Heidenhain TS641 (infrared)
x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 1040 mm y-travel: 600 mm z-travel: 500 mm Control: Heidenhain iTNC 530 table surface area: 1250 x 600 mm table load: 600 kg tool taper: SK 40 spindle turning speed range: 1 - 8000 U/min max. torque on the spindle: (S1/S6) 140/200 Nm feed range: 40000 mm/min rapid power traverse in X-and Z direction: 70 m/min rapid motion - y-axis: 40 m/min spindle drive: (100/40 % ED) 13/19 kW total power requirement: 39 kVA weight of the machine ca.: 8,9 t dimensions of the machine ca.: m Operating hours 70294 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR ...
x-travel: 730 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 10 / 15 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 swivellable: NC: +30 / -120 ° work table:: table surface area: 1.000 x 600 mm T-slots: 9x 14 x 63 mm NC-Rotary table:: table diameter: 600 mm rotatable: C: 360 ° max. table load: 500 kg tool magazin:: number of toolpositions: 60 pos. tool taper: HSK-A63 total power requirement: 40 kVA weight of the machine ca.: ca. 11,0 t dimensions of the machine ca.: 4,5 x 4,5 x 3,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 20 bar Coolant through spindle: AD turning milling head: NC NC-rotary table: elektr. hand wheel: test probe: TS 640 Heidenhain elektr. hand wheel: iTWC 530 tool setting: BLUM Laser 3D quickSET: Signal lam ...
x-travel: 1.000 mm y-travel: 1.000 mm z-travel: 1.000 mm Control: 840 D Siemens Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 Nm tool taper: HSK-A63 NC-Swivle milling head:: swivellable: B: -30 / +180 ° swivle time: 1,2 s pallet changer:: numbers of pallets: 2 size of pallet: 1.000 x 800 mm max. workpiece weight: 1.500 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 180 pos. tool taper: HSK-A63 total power requirement: 78 kVA weight of the machine ca.: 27,0 t dimensions of the machine ca.: 8,0 x 7,0 x 3,4 m Documents: Chip conveyor: Coolantsystem: through spindle coolant: pallet changer: Automatic Tool Changer: full splash guard: Rotary screen: elektr. hand wheel: 5 Axis - CNC Machining Center Universal DECKEL MAHO - DMC 100 U duoBLOCK - Swivel-Milling-Head (B-Achse) - NC-Rota ...
x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW tool taper: SK 40 work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 54 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 8,0 x 5,6 x 2,8 m Chip conveyor: Coolantsystem: high pressure coolant: 40 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: interface 4. axis: indexing attachment: Hofmann - RWNC-220L tool setti ...
x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 125 Nm tool taper: MAS BT 40 swivellable: B: 103 ° feed:: feed speeds: 20 - 10.000 mm/min rapid traverse X-axis: 26 m/min rapid traverse Y-axis: 26 m/min rapid traverse Z-axis: 20 m/min Resolution: 0,001 mm input unit: 0,001 mm work table:: surface area: 1.000 x 600 mm rotary table dia.: 600 mm number of T-slots: 8 / 1 T-slot - width: 14 H12 / 14 H7 T-slot - distance: 63 mm max. table loading capacity: 350 kg rotatable: C: 360 ° Tool-Presetter:: number of toolpositions: 24 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 315 mm max. tool weight: 8 kg total wight: max. 100 kg total power requirement: 26 kVA weight of the machine ca.: 6,7 t di ...
x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 10 / 15 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 swivellable: NC: +30 / -120 ° work table:: table surface area: 1.000 x 600 mm T-slots: 9x 14 x H7 max. table load: 700 kg tool magazin:: number of toolpositions: 60 pos. tool taper: HSK-A63 total power requirement: 49,7 kVA weight of the machine ca.: ca. 11,0 t dimensions of the machine ca.: 4,5 x 4,5 x 3,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: turning milling head: elektr. hand wheel: Rotary screen: paper band filter: Spray gun: exhaust fan: indexing attachment: EA-733.20 Tailstock: CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 4 axes (+ NC dividing head) - Swivel-Millinghead - Spind ...
x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm Control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK-A63 swivellable: B: 0 - 190 ° swivle time: 1,2 s NC-Rotary table:: table diameter: 900 x 700 mm max. table load: 1.400 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 40 pos. tool taper: HSK-A63 change-time chip to chip: ca. 5,0 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min rapid traverse: B: 30 m/min rapid traverse: C: 30 m/min feed speeds: max. 60.000 mm/min total power requirement: 64 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,5 x 6,5 x 3,5 m Documents: Coolantsystem: high pressure coolant: through spindle coolant: 40 bar turning milling head: NC-rotary table: Tool Magazine: Chip conveyor: tool monitoring: BLUM Laser elektr. h ...
x-travel: 750 mm y-travel: 600 mm z-travel: 520 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 NC-Tilting round table:: table surface area: 700 x 500 mm Swivel range B-Axis: 0 - 180 ° Swivel range C-Axis: 0,001 ° max. table load: 350 kg center hole: 30 H6 mm T-slots: 7x 14H7 x 63 mm table turning speeds: 21,5 rpm tool magazin:: number of toolpositions: 32 pos. max. tool length: 315 mm max. tool diameter: 105 mm max. tool-dia with free toolbox: 130 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 50 / 50 / 50 m/min feed speeds: 20.000 mm/min Feed force: X / Y / Z: 8 / 8 / 7 kN total power requirement: 50 kVA weight of the machine ca.: 8,5 t dimensions of the machine ca.: 6,5 x 3,5 x 3,5 m Documents: Chip-Tray: Coolantsystem: ...
x-travel: 885 mm y-travel: 600 mm z-travel: 600 mm control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 1 - 28.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 119 / 85 Nm tool taper: HSK A63 Swivel range milling spindle: B: -10° / +110° ° spindle bearing diameter: 80 mm rotary table:: table diameter: 750 mm rotation range: C: 360 ° rotary speed: max. 100 min/-1 max. table load: 600 kg feeds:: feed speeds: 1 - 90.000 mm/min rapid traverse: 90 m/min Feed force: X/Y: 13,8 kN Feed force: Z: 10,35 kN tool magazin:: number of toolpositions: 30 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 140 mm max. tool length: 300 mm max. tool weight: 10 kg Workpiece dimension: max. workpiece height: 460 mm Max. Workpiece Area: ca. 750 x 600 mm passage: max. 600 mm total power requirement: 60 kVA weight of the machine ca.: 12 t dimensions of the machine ca.: 4,5 ...
x-travel: 2.200 mm y-travel: 560 mm z-travel: 720 mm control: iTNC 530 Heidenhain turning speed range - milling: 20 ~ 12.000 U/min power capacity - milling spindle: 35 / 25 kW tool taper: SK 40 tool piece magazine with: 100 pos. table surface area: 2.600 x 600 mm rapid traverse X-axis: 100 m/min rapid traverse Y-axis: 50 m/min rapid traverse Z-axis: 50 m/min max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6 kg max. table load: 2.200 kg total power requirement: kW weight of the machine ca.: 12 t dimensions of the machine ca.: 7,0 x 4,2 x 2,7 m Chip conveyor: Coolantsystem: interface 4. axis: 4. axis: 560 mm Seperating wall: oil mist extraction: Tailstock: 350 mm / MK 5 elektr. hand wheel: through spindle coolant: 40 bar Travelling column milling machine DECKEL MAHO - DMF 220 Linear - new spindle installed (April 2024) - in ...
x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm Control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK A63 swivellable: B: 0 - 190 ° swivle time: 1,2 s NC-Rotary table:: table diameter: 900 x 700 mm max. table load: 1.400 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 60 pos. tool taper: HSK A63 change-time chip to chip: ca. 5,0 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min rapid traverse: B: 30 m/min rapid traverse: C: 30 m/min feed speeds: max. 60.000 mm/min total power requirement: 64 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,0 x 6,5 x 3,2 m Documents: Coolantsystem: high pressure coolant: through spindle coolant: 40 bar turning milling head: NC-rotary table: Tool Magazine: Chip conveyor: test probe: Heidenhain TS 640 tool mo ...
x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK-A 63 swivellable: B: +30° / -120 ° NC-Rotary table:: table surface area: Ø 700 / 1.250 x 700 mm max. table load: 650 kg rotatable: C: 360 ° max. workpiecediameter: 850 mm max. workpiece height: 550 mm tool magazin:: number of toolpositions: 32 pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool weight: 8,0 kg change-time chip to chip: 10 sec feeds:: feed speeds: max. 30.000 mm/min rapid traverse: 30 m/min Accelaration: 5 m/s² total power requirement: 48 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,5 x 5,0 x 2,9 m Documents: Chip conveyor: Coolantsystem: test probe: Heidenh ...
x-travel: 2.200 mm y-travel: 560 mm z-travel: 720 mm control: 840 D Powerline ShopMill Siemens Main spindle:: turning speed range - main spindle: 20 - 12.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 130 / 87 Nm tool taper: SK 40 internal coolant system feed: 40 bar work table:: table surface area: 2.600 x 600 mm max. table load: 2.200 kg number of T-slots: 6 T-slot - width: 18 H7 mm T-slot - distance: 100 mm Tool-Presetter:: number of toolpositions: 30 pos. max. tool length: 300 mm max. tool weight: 6 kg max. tool diameter: 80 / 125 mm feeds:: feed speeds: 20.000 mm/min input unit: 0,01 mm rapid traverse ( X / Y / Z ): 100 / 50 / 50 m/min measuring system: Resolution: 0,001 mm total power requirement: 60 kVA weight of the machine ca.: 12,5 t dimensions of the machine ca.: 6,0 x 3,7 x 2,9 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: throu ...
x-travel: 760 mm y-travel: 460 mm z-travel: 560 mm control: Sinumerik 840 D PL - Shop total power requirement: 19/28 kW weight of the machine ca.: 13 t dimensions of the machine ca.: 12 Lademeter m Movie: https://www.youtube.com/watch?v=W7csFFlodrQ No. 4100 Bar machining center 5 axes DECKEL MAHO DMC 60 S Working area: 760 x 460 x 560 Drive: 19/28 kW Control: Sinumerik 840 D - Powerline Shopmill NC swivel milling head (B-axis) -120/+30° 60-fold tool magazine with taper cleaning NC rotary axis (A-axis) with collet chuck Spanntop 65, Tailstock, hydraulically lowerable, NC bar loader 1100 mm Workpiece pick-up device with discharge belt Production package with coolant tank 600 l, INTERLIT SKA 200-760 - IKZ 40 bar through spindle center Chip conveyor, Rotating inspection window BLUM tool measuring system Oil mist extraction Operating mode 4 HSK-A 63 spindle Speed range up to 18,000 min-1 Fe ...
x-travel: 640 mm y-travel: 600 mm z-travel: 500 mm Control: SIEMENS 810D powerline table dimensions: 850 x 630 mm table load capacity: 600 KG tool magacine with: 30 Plätzen spindle turning speed range: 12.000 U/min total power requirement: 42 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,50 x 3,30 x 3,60 m Tool breakage / measurement BLUM Electronic handwheel 3 leveling elements chip conveyor coolant / belt filter system Interlit SPB 3/600 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 640 mm y-travel: 600 mm z-travel: 500 mm control: Siemens 840 D total power requirement: 19 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 5 x 4 x 3 m No. 5312: Vertical machining center DECKEL MAHO type DMC 64 V linear year of construction 2007 Working area: 640 x 600 x 500 mm Drive power: 13/19 kW Equipment: Table 850 x 600 mm ( WITHOUT the clamping devices shown ) Preparation 4th axis Production package / IKZ 40 bar: BFA 600 cooling lubricant cleaning system Integrated spiral chip conveyor Separate scraper belt chip conveyor documentation Miscellaneous: Spindle ISO 40 Speed range 1-12,000 min-1 Space requirement see sketch Transport dimensions approx. 6.5 loading meters Weight approx. 8.8 tons The machine is ready for operation with wear and tear due to age and use. Short video: https://www.youtube.com/watch?v=sDkgx4BYXeY Special price ex works EXW - free l ...
