モデル
(生産者： DECKEL MAHO)
x-travel: 800 mm y-travel: 700 mm z-travel: 600 mm total power requirement: kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: 4,6 x 2,4 x 2,7 m Brand Deckel Maho Machine no F631 Type DMC 80 U hi-dyn CNC Brand Siemens CNC Type 840D Year of make 2003 Table length 800 mm Table width 630 mm Number of pallets 2 X 800 mm Y 700 mm Z 600 mm Spindle taper HSK-A 100 Tool changer 60 Maximum pallet load 800 kg Nutrition 20 - 1500 mm/min Chip transport Machine size 4.600 x 2.400 x 2.700 mm Machine weight 10.500 kg Tool magazine positions: 60 Heidenhain TS 642 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 700 mm y-travel: 800 mm z-travel: 800 mm control: Siemens 840D total power requirement: kW weight of the machine ca.: 18,5 t dimensions of the machine ca.: 5,2 x 3,8 x 3 m Brand Deckel Maho Machine no F630 Type DMC 70 H duo Block CNC Brand Siemens CNC Type Siemens 840D powerline Year of make 2006 Table length 500 mm Table width 500 mm Number of pallets 2 X 700 mm Y 800 mm Z 800 mm Spindle taper SK 40 Speed maximum 18.000 RPM Machine size 5.200 x 3.800 x 3.000 mm Machine weight 18.500 kg Tool magazine positions: 120 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
蓋マホDMC-200Uシリーズ1512 5軸CNC万能マシニングセンタ(同時) コントロール:ハイデンハインiTNC 530 テーブルサイズ: 1600x1400 mm テーブル荷重:3500 kg パレット数:2 x ワークの最大直径 x 高さ: 1950x1100 mm 移動距離 X 軸: 1800 mm 最大移動距離 Y 軸: 2000 mm 最大移動距離 Z 軸: 1100 mm C軸テーブル回転:360 B軸トラベル:-7 / 187 スピンドル速度:18000 1 /分 スピンドルコーン: HSK-A63 スピンドルモーター:28/19 kW マガジン容量:120 必要なフットプリント:11200x12300 mm 高さ:4375ミリメートル 重量:58000キロ 機械に関するご質問や検査のスケジュールについて 、お電話またはメールにてお問い合わせください
この3軸のDECKEL MAHO DMC 63V垂直加工センターは1997年に製造されました。X軸 移動距離は630mm、Y軸の移動は500mm、Z軸の移動は500mm す。この機械は24工具の工具マガジン容量と最大回 転数8000rpmを備えています。高品質な加工能力をお求 めの場合は、当社で販売中のDECKEL MAHO DMC 63Vマシンを検討してください。詳細についてはお問 合わせください
DECKEL MAHO DMC 63 V CNC立形マシニングセンターは、2005年にドイツで建設 されました。連続生産およびユニット生産で使用さ る機械は、その高い加工能力と、フライス加工に いて可能な限り最高の精度を保証する強化されたワ ークテーブルを備えた安定した構造を特徴としてい す。設置されたFANUC 180i-MB CNCコントローラは、機械のトラブルのない操作と、 の潜在能力と能力を最大限に活用することを保証 ます。DECKEL MAHO GILDEMEISTER CNCマシニングセンターは継続的に整備されており、 在までに26040時間稼働しています。 DECKEL MAHO DMC 63 Vフライス盤の技術データ - 作業台の寸法(L x W):800 x 500 mm - X/Y/Z軸の送り速度:630/500/500 mm - X,Y,Z軸の位置決め精度:0.010mm - 最 ...
この3軸のデッケルMAHO DC 100Vは1995年に製造されました。シーメンス840Dコント ール、1250×800mmのマシンテーブル、X軸、Y軸、Z軸の 970×755×490mmのトラベルを特徴としています。最高回 数18,000rpm、24の工具位置を持つこの垂直加工センタ ーは現在も生産中です。このDECKEL MAHO DC 100V垂直機械加工センターを購入するチャンスをぜひ ご検討ください。詳細についてはお問い合わせくだ い
この4軸のDECKEL MAHO DMC 50 H水平機械加工センターは2001年に製造されました。 密加工に最適で、堅牢な構造と信頼性の高い性能を 提供します。この機械についての詳細はお問い合わ ください
ダブルパレット 制御装置:シーメンス840D 移動距離 :X: 560 mm Y: 510 mmZ: 560 mm B:360° スピンドル回転数:18,000 rpm テーブルサイズ:400 mm x 400 mm 工具チェンジャー:60ポジション チップコンベヤー、ツール計測装置、高圧冷却装置 動力下で検査可能で
x-travel:700 mm y-travel:550 mm z-travel:500 mm tool taper:SK40 spindle speed max.:12.000 U/min Tool changer:30 fach electronic handwheel chip conveyor

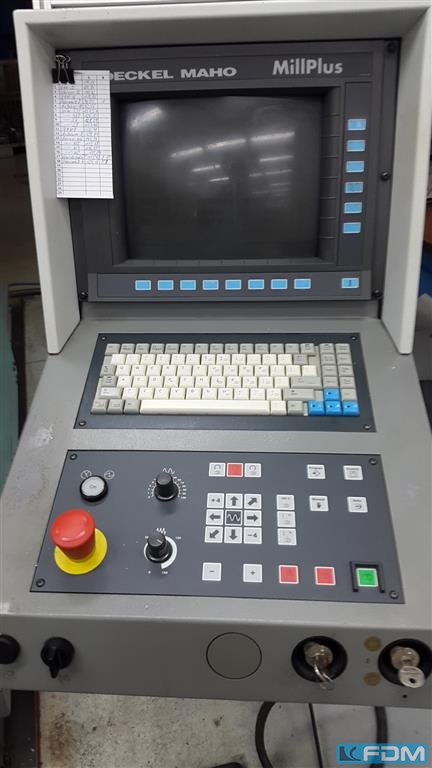

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden
x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis
2005Siemens 840D Powerline ShopMillØ630 x 500 mm200 kg115° (-5°/+110°)500 mm450 mm400 mm20-10,000 rpm9 kW13 kW82 Nm0.010 mm0.01 mm24 m/min20 m/minChain magazine with double gripper, 30 positions SK40 (DIN 69871)80-130 mm (speed dependent)290 mm6 kg80 l17 kW4,860 x 4,350 x 2,424 mm2,210 x 2,120 x 2,150 mm4.05 t35,880 h9,609 h400 V / 50 HzDirect linear encoders (X/Y/Z)Heidenhain TS641 (infrared)
x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 1040 mm y-travel: 600 mm z-travel: 500 mm Control: Heidenhain iTNC 530 table surface area: 1250 x 600 mm table load: 600 kg tool taper: SK 40 spindle turning speed range: 1 - 8000 U/min max. torque on the spindle: (S1/S6) 140/200 Nm feed range: 40000 mm/min rapid power traverse in X-and Z direction: 70 m/min rapid motion - y-axis: 40 m/min spindle drive: (100/40 % ED) 13/19 kW total power requirement: 39 kVA weight of the machine ca.: 8,9 t dimensions of the machine ca.: m Operating hours 70294 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR ...
x-travel: 730 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 10 / 15 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 swivellable: NC: +30 / -120 ° work table:: table surface area: 1.000 x 600 mm T-slots: 9x 14 x 63 mm NC-Rotary table:: table diameter: 600 mm rotatable: C: 360 ° max. table load: 500 kg tool magazin:: number of toolpositions: 60 pos. tool taper: HSK-A63 total power requirement: 40 kVA weight of the machine ca.: ca. 11,0 t dimensions of the machine ca.: 4,5 x 4,5 x 3,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: 20 bar Coolant through spindle: AD turning milling head: NC NC-rotary table: elektr. hand wheel: test probe: TS 640 Heidenhain elektr. hand wheel: iTWC 530 tool setting: BLUM Laser 3D quickSET: Signal lam ...
x-travel: 1.000 mm y-travel: 1.000 mm z-travel: 1.000 mm Control: 840 D Siemens Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 Nm tool taper: HSK-A63 NC-Swivle milling head:: swivellable: B: -30 / +180 ° swivle time: 1,2 s pallet changer:: numbers of pallets: 2 size of pallet: 1.000 x 800 mm max. workpiece weight: 1.500 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 180 pos. tool taper: HSK-A63 total power requirement: 78 kVA weight of the machine ca.: 27,0 t dimensions of the machine ca.: 8,0 x 7,0 x 3,4 m Documents: Chip conveyor: Coolantsystem: through spindle coolant: pallet changer: Automatic Tool Changer: full splash guard: Rotary screen: elektr. hand wheel: 5 Axis - CNC Machining Center Universal DECKEL MAHO - DMC 100 U duoBLOCK - Swivel-Milling-Head (B-Achse) - NC-Rota ...
x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW tool taper: SK 40 work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 54 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 8,0 x 5,6 x 2,8 m Chip conveyor: Coolantsystem: high pressure coolant: 40 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: interface 4. axis: indexing attachment: Hofmann - RWNC-220L tool setti ...
x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 12.000 min/-1 power capacity - main spindel: 15 / 10 kW max. Torque: 125 Nm tool taper: MAS BT 40 swivellable: B: 103 ° feed:: feed speeds: 20 - 10.000 mm/min rapid traverse X-axis: 26 m/min rapid traverse Y-axis: 26 m/min rapid traverse Z-axis: 20 m/min Resolution: 0,001 mm input unit: 0,001 mm work table:: surface area: 1.000 x 600 mm rotary table dia.: 600 mm number of T-slots: 8 / 1 T-slot - width: 14 H12 / 14 H7 T-slot - distance: 63 mm max. table loading capacity: 350 kg rotatable: C: 360 ° Tool-Presetter:: number of toolpositions: 24 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 315 mm max. tool weight: 8 kg total wight: max. 100 kg total power requirement: 26 kVA weight of the machine ca.: 6,7 t di ...
x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 10 / 15 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 swivellable: NC: +30 / -120 ° work table:: table surface area: 1.000 x 600 mm T-slots: 9x 14 x H7 max. table load: 700 kg tool magazin:: number of toolpositions: 60 pos. tool taper: HSK-A63 total power requirement: 49,7 kVA weight of the machine ca.: ca. 11,0 t dimensions of the machine ca.: 4,5 x 4,5 x 3,5 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: turning milling head: elektr. hand wheel: Rotary screen: paper band filter: Spray gun: exhaust fan: indexing attachment: EA-733.20 Tailstock: CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 4 axes (+ NC dividing head) - Swivel-Millinghead - Spind ...
x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm Control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK-A63 swivellable: B: 0 - 190 ° swivle time: 1,2 s NC-Rotary table:: table diameter: 900 x 700 mm max. table load: 1.400 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 40 pos. tool taper: HSK-A63 change-time chip to chip: ca. 5,0 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min rapid traverse: B: 30 m/min rapid traverse: C: 30 m/min feed speeds: max. 60.000 mm/min total power requirement: 64 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,5 x 6,5 x 3,5 m Documents: Coolantsystem: high pressure coolant: through spindle coolant: 40 bar turning milling head: NC-rotary table: Tool Magazine: Chip conveyor: tool monitoring: BLUM Laser elektr. h ...
x-travel: 750 mm y-travel: 600 mm z-travel: 520 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: 20 - 18.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 130 / 87 Nm tool taper: HSK-A63 NC-Tilting round table:: table surface area: 700 x 500 mm Swivel range B-Axis: 0 - 180 ° Swivel range C-Axis: 0,001 ° max. table load: 350 kg center hole: 30 H6 mm T-slots: 7x 14H7 x 63 mm table turning speeds: 21,5 rpm tool magazin:: number of toolpositions: 32 pos. max. tool length: 315 mm max. tool diameter: 105 mm max. tool-dia with free toolbox: 130 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 50 / 50 / 50 m/min feed speeds: 20.000 mm/min Feed force: X / Y / Z: 8 / 8 / 7 kN total power requirement: 50 kVA weight of the machine ca.: 8,5 t dimensions of the machine ca.: 6,5 x 3,5 x 3,5 m Documents: Chip-Tray: Coolantsystem: ...
x-travel: 885 mm y-travel: 600 mm z-travel: 600 mm control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 1 - 28.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 119 / 85 Nm tool taper: HSK A63 Swivel range milling spindle: B: -10° / +110° ° spindle bearing diameter: 80 mm rotary table:: table diameter: 750 mm rotation range: C: 360 ° rotary speed: max. 100 min/-1 max. table load: 600 kg feeds:: feed speeds: 1 - 90.000 mm/min rapid traverse: 90 m/min Feed force: X/Y: 13,8 kN Feed force: Z: 10,35 kN tool magazin:: number of toolpositions: 30 pos. max. tool diameter: 80 mm max. tool-dia with free toolbox: 140 mm max. tool length: 300 mm max. tool weight: 10 kg Workpiece dimension: max. workpiece height: 460 mm Max. Workpiece Area: ca. 750 x 600 mm passage: max. 600 mm total power requirement: 60 kVA weight of the machine ca.: 12 t dimensions of the machine ca.: 4,5 ...
x-travel: 2.200 mm y-travel: 560 mm z-travel: 720 mm control: iTNC 530 Heidenhain turning speed range - milling: 20 ~ 12.000 U/min power capacity - milling spindle: 35 / 25 kW tool taper: SK 40 tool piece magazine with: 100 pos. table surface area: 2.600 x 600 mm rapid traverse X-axis: 100 m/min rapid traverse Y-axis: 50 m/min rapid traverse Z-axis: 50 m/min max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6 kg max. table load: 2.200 kg total power requirement: kW weight of the machine ca.: 12 t dimensions of the machine ca.: 7,0 x 4,2 x 2,7 m Chip conveyor: Coolantsystem: interface 4. axis: 4. axis: 560 mm Seperating wall: oil mist extraction: Tailstock: 350 mm / MK 5 elektr. hand wheel: through spindle coolant: 40 bar Travelling column milling machine DECKEL MAHO - DMF 220 Linear - new spindle installed (April 2024) - in ...
x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm Control: iTNC 530 Heidenhain Main spindle:: Max. rpm: 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK A63 swivellable: B: 0 - 190 ° swivle time: 1,2 s NC-Rotary table:: table diameter: 900 x 700 mm max. table load: 1.400 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 60 pos. tool taper: HSK A63 change-time chip to chip: ca. 5,0 sec feeds:: rapid traverse ( X / Y / Z ): 60 m/min rapid traverse: B: 30 m/min rapid traverse: C: 30 m/min feed speeds: max. 60.000 mm/min total power requirement: 64 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,0 x 6,5 x 3,2 m Documents: Coolantsystem: high pressure coolant: through spindle coolant: 40 bar turning milling head: NC-rotary table: Tool Magazine: Chip conveyor: test probe: Heidenhain TS 640 tool mo ...
x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 28 / 19 kW max. Torque: 121 / 82 Nm tool taper: HSK-A 63 swivellable: B: +30° / -120 ° NC-Rotary table:: table surface area: Ø 700 / 1.250 x 700 mm max. table load: 650 kg rotatable: C: 360 ° max. workpiecediameter: 850 mm max. workpiece height: 550 mm tool magazin:: number of toolpositions: 32 pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool weight: 8,0 kg change-time chip to chip: 10 sec feeds:: feed speeds: max. 30.000 mm/min rapid traverse: 30 m/min Accelaration: 5 m/s² total power requirement: 48 kVA weight of the machine ca.: 14,0 t dimensions of the machine ca.: 6,5 x 5,0 x 2,9 m Documents: Chip conveyor: Coolantsystem: test probe: Heidenh ...
x-travel: 2.200 mm y-travel: 560 mm z-travel: 720 mm control: 840 D Powerline ShopMill Siemens Main spindle:: turning speed range - main spindle: 20 - 12.000 min/-1 power capacity - main spindel: 35 / 25 kW max. Torque: 130 / 87 Nm tool taper: SK 40 internal coolant system feed: 40 bar work table:: table surface area: 2.600 x 600 mm max. table load: 2.200 kg number of T-slots: 6 T-slot - width: 18 H7 mm T-slot - distance: 100 mm Tool-Presetter:: number of toolpositions: 30 pos. max. tool length: 300 mm max. tool weight: 6 kg max. tool diameter: 80 / 125 mm feeds:: feed speeds: 20.000 mm/min input unit: 0,01 mm rapid traverse ( X / Y / Z ): 100 / 50 / 50 m/min measuring system: Resolution: 0,001 mm total power requirement: 60 kVA weight of the machine ca.: 12,5 t dimensions of the machine ca.: 6,0 x 3,7 x 2,9 m Documents: Chip conveyor: Coolantsystem: high pressure coolant: throu ...
x-travel: 760 mm y-travel: 460 mm z-travel: 560 mm control: Sinumerik 840 D PL - Shop total power requirement: 19/28 kW weight of the machine ca.: 13 t dimensions of the machine ca.: 12 Lademeter m Movie: https://www.youtube.com/watch?v=W7csFFlodrQ No. 4100 Bar machining center 5 axes DECKEL MAHO DMC 60 S Working area: 760 x 460 x 560 Drive: 19/28 kW Control: Sinumerik 840 D - Powerline Shopmill NC swivel milling head (B-axis) -120/+30° 60-fold tool magazine with taper cleaning NC rotary axis (A-axis) with collet chuck Spanntop 65, Tailstock, hydraulically lowerable, NC bar loader 1100 mm Workpiece pick-up device with discharge belt Production package with coolant tank 600 l, INTERLIT SKA 200-760 - IKZ 40 bar through spindle center Chip conveyor, Rotating inspection window BLUM tool measuring system Oil mist extraction Operating mode 4 HSK-A 63 spindle Speed range up to 18,000 min-1 Fe ...
x-travel: 640 mm y-travel: 600 mm z-travel: 500 mm Control: SIEMENS 810D powerline table dimensions: 850 x 630 mm table load capacity: 600 KG tool magacine with: 30 Plätzen spindle turning speed range: 12.000 U/min total power requirement: 42 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,50 x 3,30 x 3,60 m Tool breakage / measurement BLUM Electronic handwheel 3 leveling elements chip conveyor coolant / belt filter system Interlit SPB 3/600 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 640 mm y-travel: 600 mm z-travel: 500 mm control: Siemens 840 D total power requirement: 19 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 5 x 4 x 3 m No. 5312: Vertical machining center DECKEL MAHO type DMC 64 V linear year of construction 2007 Working area: 640 x 600 x 500 mm Drive power: 13/19 kW Equipment: Table 850 x 600 mm ( WITHOUT the clamping devices shown ) Preparation 4th axis Production package / IKZ 40 bar: BFA 600 cooling lubricant cleaning system Integrated spiral chip conveyor Separate scraper belt chip conveyor documentation Miscellaneous: Spindle ISO 40 Speed range 1-12,000 min-1 Space requirement see sketch Transport dimensions approx. 6.5 loading meters Weight approx. 8.8 tons The machine is ready for operation with wear and tear due to age and use. Short video: https://www.youtube.com/watch?v=sDkgx4BYXeY Special price ex works EXW - free l ...
DMF260/11 → Year of manufacture: 2011 Heidenhain TNC 530 Spindle SK 40 – 18,000 rpm Machine hours: 54,877 Spindle hours: 21,845 Condition: second-hand However, it is currently still in use and will be available in 2027 Find more here - .ucymachines/ Contact us at - sales@ucymachines
