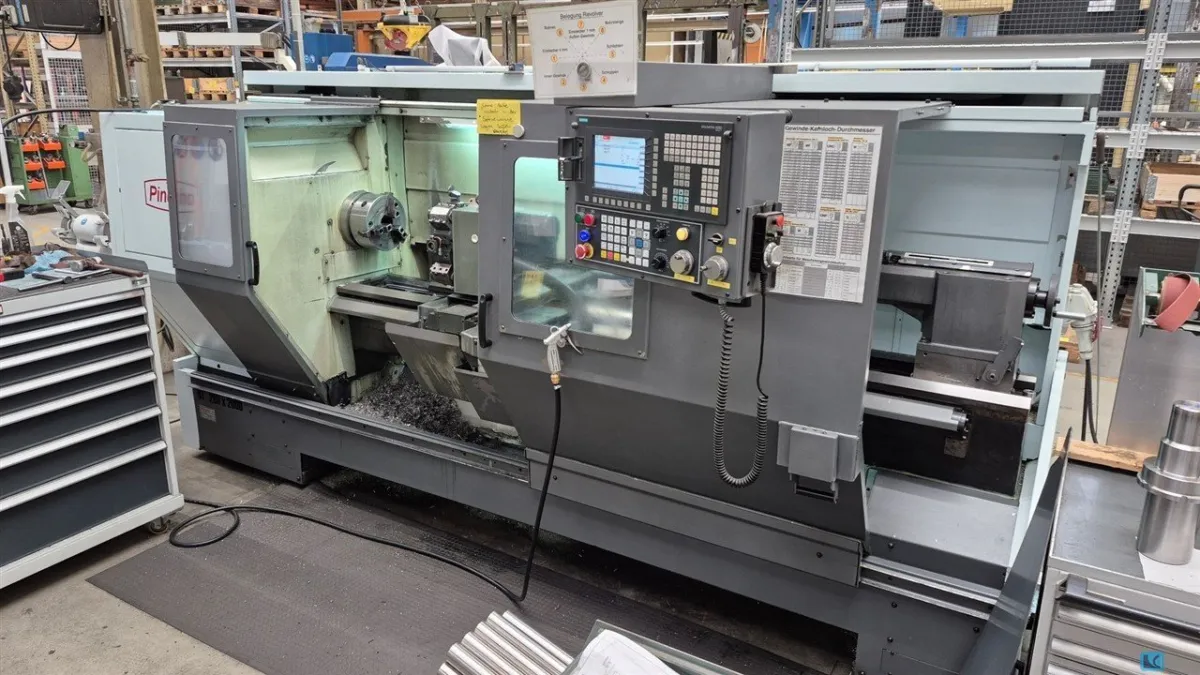

PINACHO SmartTurn-285 Lathe - cycle controled

turning diameter:570 mm
turning length:- mm
control:-
Diameter of rotation above the bed slide:360 mm
Maximum width:2.000 mm
revolutions per minute:max. 2500 U/min
:11 kW
max. longitudinal feed:7,5 m/min
max. transverse feed:7,5 m/min
rapid traverse longitudinal:12 m/min
rapid traverse cross:15 m/min
Pinole diameter:95 mm
Pinolenhub:220 mm
Pinolen intake: MK 5
weight of the machine ca.:2,97 t
dimensions of the machine ca.:3,8m x 1,3m x 2m m
Technical description:
- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc
- Machine bed - made of perlite casting GG-26
- high stiffness due to strong ribbing
- Bed slides - guideways hardened and ground
- automatic lubrication of the bed rail
- Reitstock - manual
- Quick clamp
- Operator station - two movable handwheels on the operator panel
- a movable handwheel
- Control - "Siemens 828 D" CNC control
- Siemens "Comfort" (including Shopturn and residual material detection)
- Accuracy - according to DIN 8605
- Electrical equipment - electrical handwheels (X and Z axes)
- Low-voltage lighting
- Machine enclosure - Full enclosure
- Painting - RAL 7035 (Light Gray) / RAL 9023 (Dark Pearl Gray)
2) Add-ons/Options
- Accessories - Coolant system
- Spänewanne
- Chip conveyor
- Operating instructions
- 3-Backen-Keilstangenfutter, Ø 250 mm
- Options - Removable tool turret (can be exchanged with Multifix)
