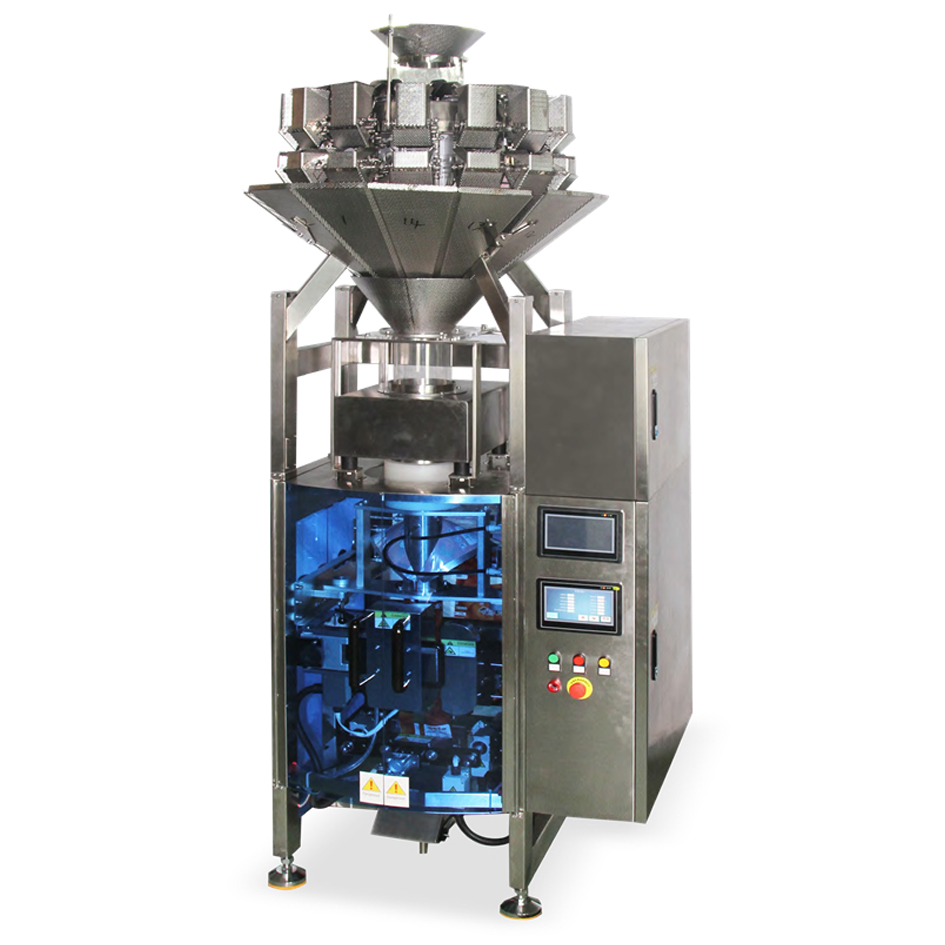

AMTEC VFFS-MWM H10-P65L 完整系统

VFFS machine with integrated free-fall metal detector for checking vertically falling products and with 10-head multihead weigher for bulk materials and granulates. Compact design without platform stand. Suitable for form, fill and seal of pillow bags and gusseted stand-up pouches (gusset tool needed) OR for pyramid shaped bags (special sealing unit is than mounted just for it). The packaging machine is equipped with: touch screen operating interface | plc | eye mark sensor for seal/cutting position | pneumatic sealing unit for end sealing | servo motor for film pulling | ribbon printer for batch number, date, BBD. - Specifications multihead weigher: number of weighing heads: 10 heads | weighing range (single dump): 10-1500g | volume per weighing head: 1.6L | weighing accuracy: X(0.5) | discharge flap: single flap | surface finshing: plain surface (optional for surcharge dimpled surface) | product contact parts from: AISI 304 (optional for surcharge AISI 316). - Specifications free-fall metal detector: sensitivity: FE from ? 1.2mm, AISI from ? 2.5mm | tube diameter: according to the forming collar. - Specifications VFFS machine: max. speed of the machine in neutral: 65 cycles/min | bag sizes: L(40-350)xW(70-270)mm, (double film pulling possible for longer bags) | suitable film width: 160-560mm | product contact parts from: AISI 304 (optional for surcharge AISI 316) | power supply: 220V, 50/60Hz | air pressure: 0.4-0.8MPa.
Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
