钻床，镗床 二手 出售 (3,205)

Key data: 130 mm, 4000 mm, 2500 mm

东芝BP-130R22 2007年 主轴直径 5.12 （130mm） 主轴中的锥度 #50 垂直行程，Y 轴 100 （2500mm） 横向行程，X 轴 160 （4000mm） 主轴行程，Z 轴 28” 立柱行程，W 轴 60” 工作台尺寸（内置 B 轴）86.6 X 70.8” 工作台负载能力 44，000 磅 工作台分度 B 轴 0.001 度 主轴转速（3 个范围）5-2500 RPM 配备： 托斯努克 888 数控 60工位自动换刀装置 主轴内冷 芯片和防溅外壳 排屑机 40/30 HP 主轴电机 笔记： 在带电的工厂中检�

双柱加工中心 东芝MPC-3180B 工作台 mm.8000 x 2700 柱间距 mm.3100 X 毫米9000 Y 毫米.3900 Z 顶点滑枕行程 mm.900 W 垂直横梁行程 mm.1600 每5度5面头自动分度 工作台到主轴鼻端的距离 mm.2440 工作台负载 Kg. 20.000 主轴转速 5-3000 rpm 2 个范围 主轴锥度 BT 50 内存截面 380 x 380 机器尺寸 mm.29110 x 9900 x 7260 机器重量 Kg. 151.000 2007年 标准选项 ： 5面刀盘 自动附件（5面刀头或其他附件）索引（AAI） （4 位索引 90。 立式主轴和卧式主轴自动上下刀装置） CNC控制器，包括标准和包装规格 带电动自由臂的吊坠式操作箱 液压单元 油冷装置 （AKZ 908） 液压横梁伺服平衡系统（与主轴头位置成比例） 液压油缸平衡缸 齿轮油雾润滑装置 轴承油雾润滑单元 伸缩床钢盖 伸缩柱钢盖 伸� ...

TKV-860-HT数控双主轴立式车削中心 2015年 . 一般规格 最大切割直径：800至1000mm 最大回转直径：1000mm 最大切割长度：860mm 主轴电机（发那科 aP40）： （2） 50 马力阿尔法 P40 2 速齿轮箱电机 主轴转速范围：10-1500 RPM 主轴鼻子： A2-11 纺锤： 主轴电机（FANUC aP40）：（2）50hp Alpha P40 2速齿轮箱电机主轴转速范围：10 - 1，500rpm 最大卡盘直径：安装31.5英寸3爪液压卡盘 主轴鼻子： A2-11 前轴承直径：7.87英寸 主轴轴承：双列圆柱形和角接触式 主轴转速选择：直接 RPM 编程 主轴转速超控： 50% ~ 200% 速度范围移位：2速变速箱可编程高低范围 安讯士驱动器： X轴行程（FANUC A22 / 3000i AC 4.0 HP）：18.31英寸 Z轴行程（FANUC A22/ 3000iB AC 5.0 HP）：33.07英寸 X轴推力：2，950磅 Z轴推力：3，1 ...

克拉马托尔斯克型号KJ1910 序列号 1913 床的摆动：1600mm 最大工件长度：6300mm 最大钻直径：991mm 主轴功率：125.00kW 主轴转速： 1 - 320 RPM 无级可调 电源 现有 附加 卡盘工件夹持范围：直径200 - 1250mm，使用两个开辊支架的工件重量能力：60，000kg， 闭式靠背尺寸范围：200 - 800mm，开式靠背尺寸范围：630 - 1380mm，压力头速度范围：.125 - 500无级可变，压力头主轴孔径：182 mm，压力头电机功率：75kW DC，主轴箱速度范围：3，压头速度范围： 2 机器长度：22950mm 机器宽度：4375mm 机器高度：2670mm 重量： 101091kg 条件良�

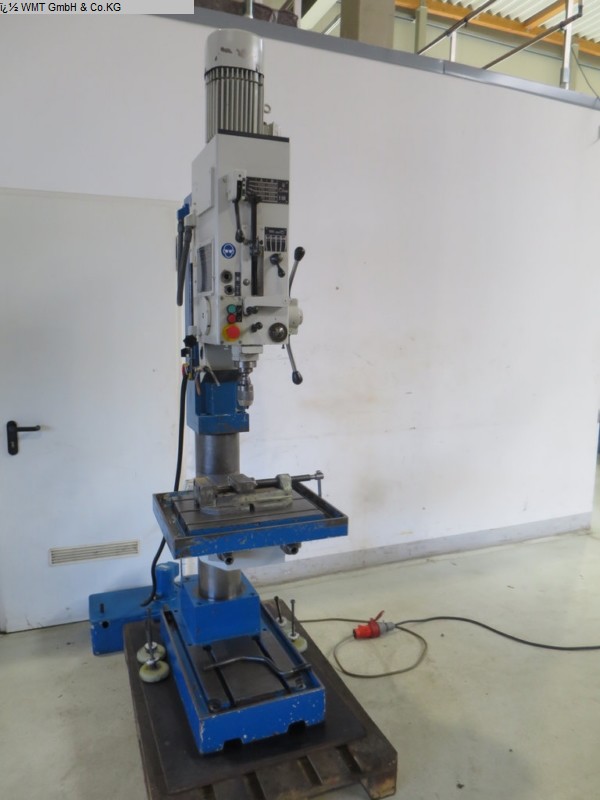

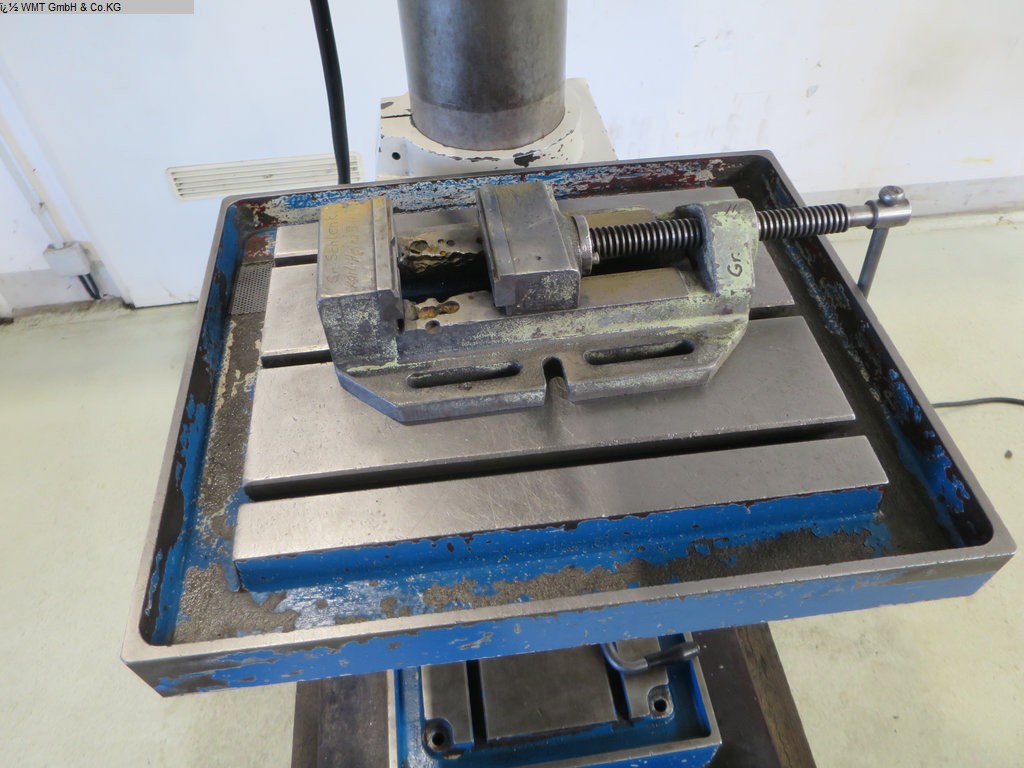

bore capacity in steel (diameter): 32 mmthroat: 280 mmbore stroke: 145 mmtaper MK: 3 MKtable-size: 540 x 480 mmfeeds: 0,08 bis 0,32 mm/Uturning speeds: 180 - 2000 U/mintotal power requirement: 3,0 KWweight of the machine ca.: 0,9 tdimensions: 1,2 x 0,8 x 2,4 mColumn drilling machine with:- Power feed- Thread-cutting attachment- Coolant pump- Machine light- Incl. machine vice- Emergency stop deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Auction-ID: A1-49758-9

60 tool positions, tool clamping force 25 kN, control voltage 24 V, main fuse 160 A, connected load 60 KVA, rapid traverse/feed X/Y/Z axis each 20000 mm/min with 15000 N Auction-ID: A1-50260-7

x-travel:1300 mmy-travel:1100 mmz-travel:1000 mmspindle turning speed range:10 - 10000 U/minnumbers of positions in the tool changer:80 spindle taper::MAS BT 50 size of pallet:800 x 800 mmnumber of pallets:2 total power requirement:65 kVAweight of the machine ca.:24 tThe MAZAK FH8800 is a robust horizontal CNC machining centre designed for the precise and productive machining of large workpieces. The machine features travel ranges of 1,300 × 1,100 × 1,000 mm, two 800 × 800 mm pallets and a high-performance spindle running at 10,000 rpm. Technical specifications·Travel ranges (X/Y/Z): 1,300 / 1,100 / 1,000 mm ·Pallet size: 800 × 800 mm ·Number of pallets: 2 ·Spindle speed: 10,000 rpm ·Control system: Mazatrol 640 M CNC ·Tool holder: BT50 ·Tool magazine: Chain magazine ·High-pressure pump for cooling lubricant (centralised supply at the production site, Figure 13)·Machine weig ...

2-fold pallet changer, 40 tool positions on chain magazine, max. tool weight 25 kg, nominal current 79 A, incl. 1x KNOLL 270 K-1 chip conveyor and 1x KNOLL PF70 belt filter, without clamping towers Auction-ID: A1-50260-2

50/60Hz; core drill dia 35mm; twist drill dia 13mm; stroke 210mm; cable length 2.5M; 7750 Auction-ID: A1-50092-305

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

equipped with automatic cooling system; unused; in suitcase; 5637 Auction-ID: A1-50092-308

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):45 mmWORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mmWORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mmELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 HzDIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total we ...

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

2-fold pallet changer, 40 tool positions on chain magazine, max. tool weight 25 kg, nominal current 79 A, incl. 1x KNOLL 270K-1 chip conveyor and 1x KNOLL PF70 belt filter Auction-ID: A1-50260-1

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

x-travel:1000 mmy-travel:800 mmz-travel:800 mmweight of the machine ca.:24000 tdimensions of the machine ca.:ca. 7,8 x 6,1 x 3,4 m m

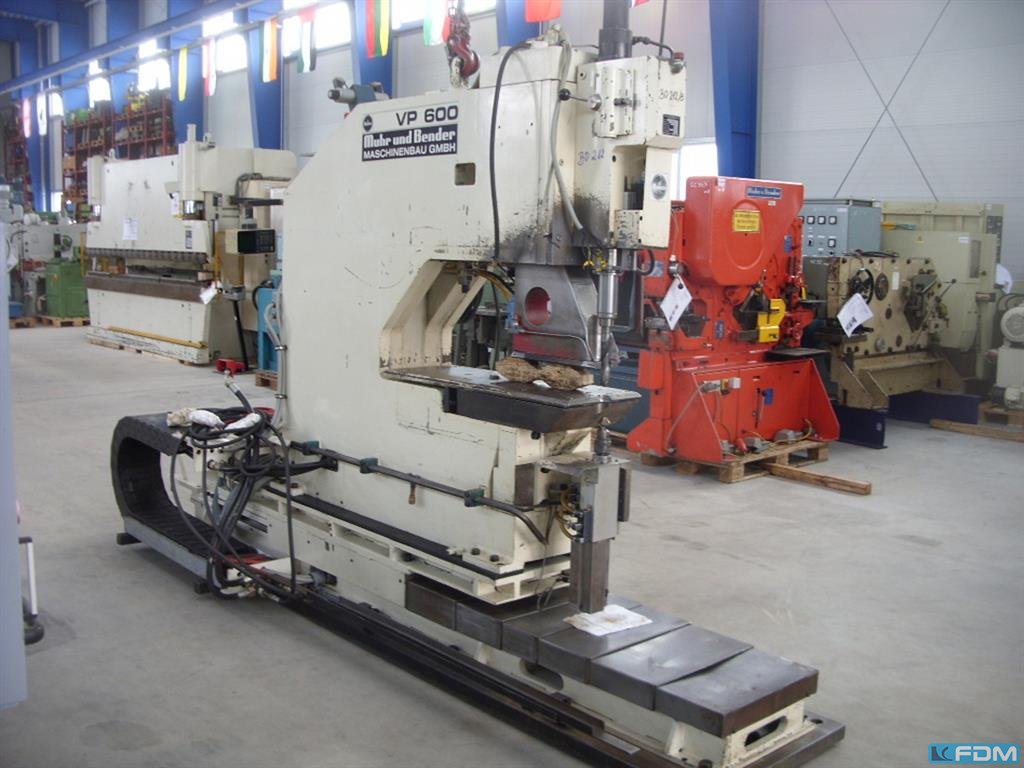

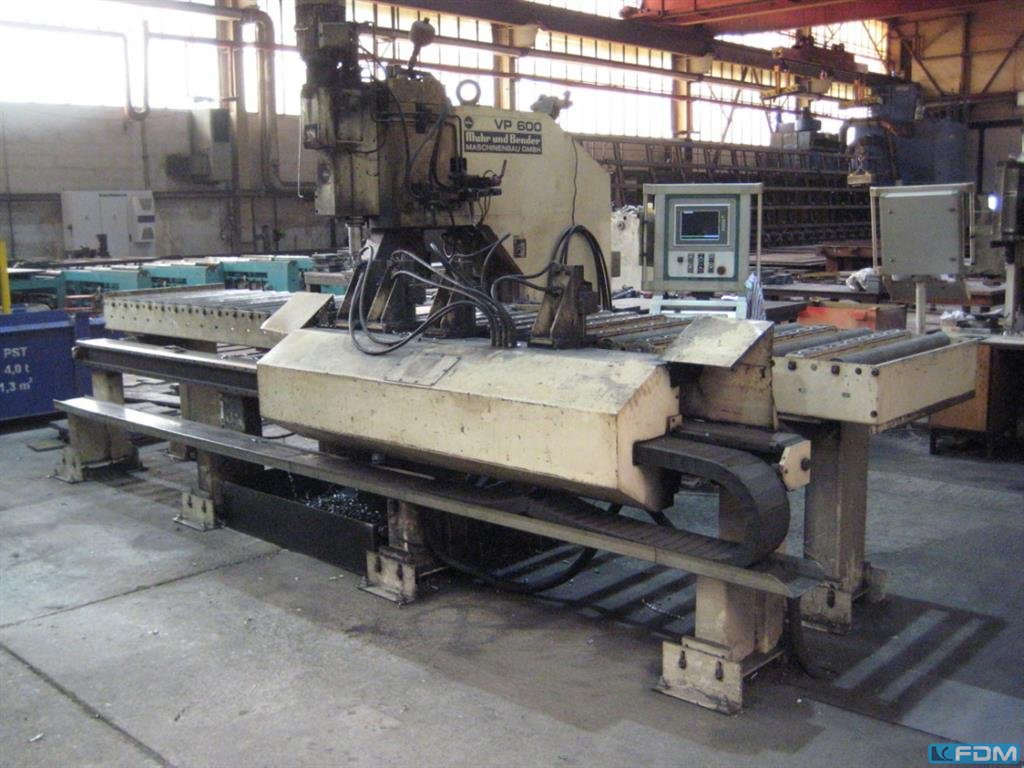

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...

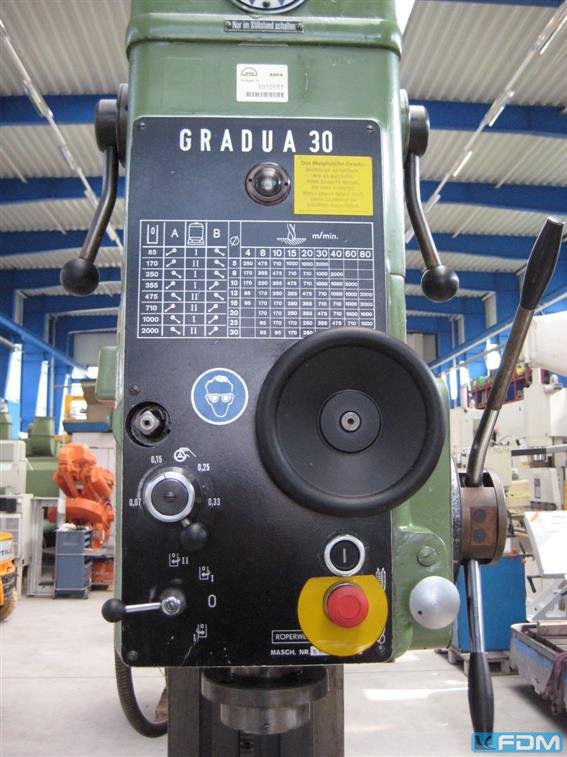

bore capacity in steel (diameter):5 - 30 mmx-travel:450 mmy-travel:380 mmtotal power requirement:1,4 / 2,2 kWweight of the machine ca.:1.100 kgdimensions of the machine ca.:1.000 x 1.400 x 2.900 mmgear box:85 - 2.000 U/minspindle diameter:72 mmbore depth:700 mmthroat:300 mmspindle taper MT:3 T-slots:3 x 16/25 mmtable-size:700 x 300 mmspindle turning speed range:85/170/250/355/475/710/1000/2000 U/minmotor speeds::705/1425 Year:ca. 1975

Auction-ID: A1-50225-153

bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm

drill diameter:5,,,,40 mmdrilling length:600 mmlip angle:90-150 °total power requirement:4,5 kWweight of the machine ca.:0,8 tdimensions of the machine ca.:2-2-2 mCNC programmable according to ISOPoint angle 90-140 degrees, disc stroke x 80mm y 80mmgrinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpmGrinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1Avyac grind / 4 faces gr. Cross for deep drill

bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm

Boring power:10 mmweight:590 kgconnected load:2 kWdimensions::1500 x 1300 x 2300 mm

bore capacity in steel (diameter):10 mmthroat:210 mmbore stroke:100 mmtotal power requirement:0,7 kWweight of the machine ca.:302 kgdimensions of the machine ca.: 620 x 800 x 1950 mmTable dimensions:350 x 250 mmspindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):10 mmthroat:210 mmbore stroke:80 mmtotal power requirement:1,1 kWweight of the machine ca.:195 kgdimensions of the machine ca.:530 x 650 x 1850 mmspindle speeds::355, 710, 1400, 2800 U/minTable dimensions:340 x 280 mm
