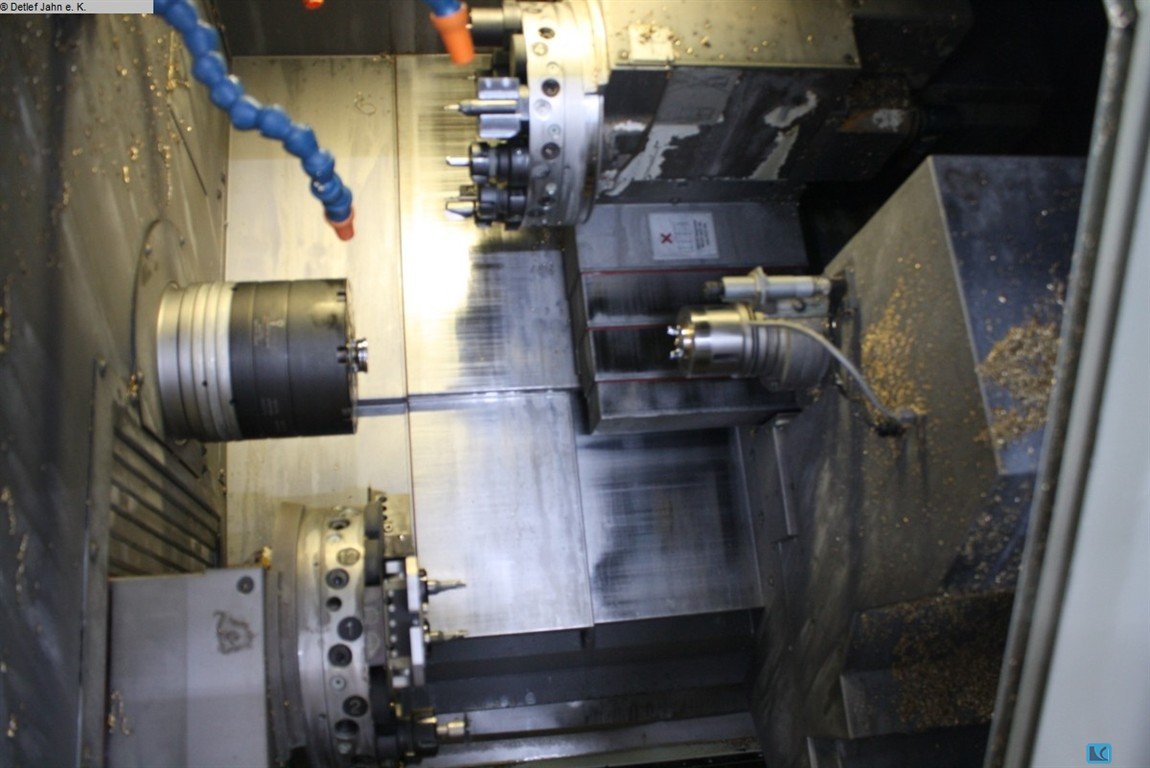

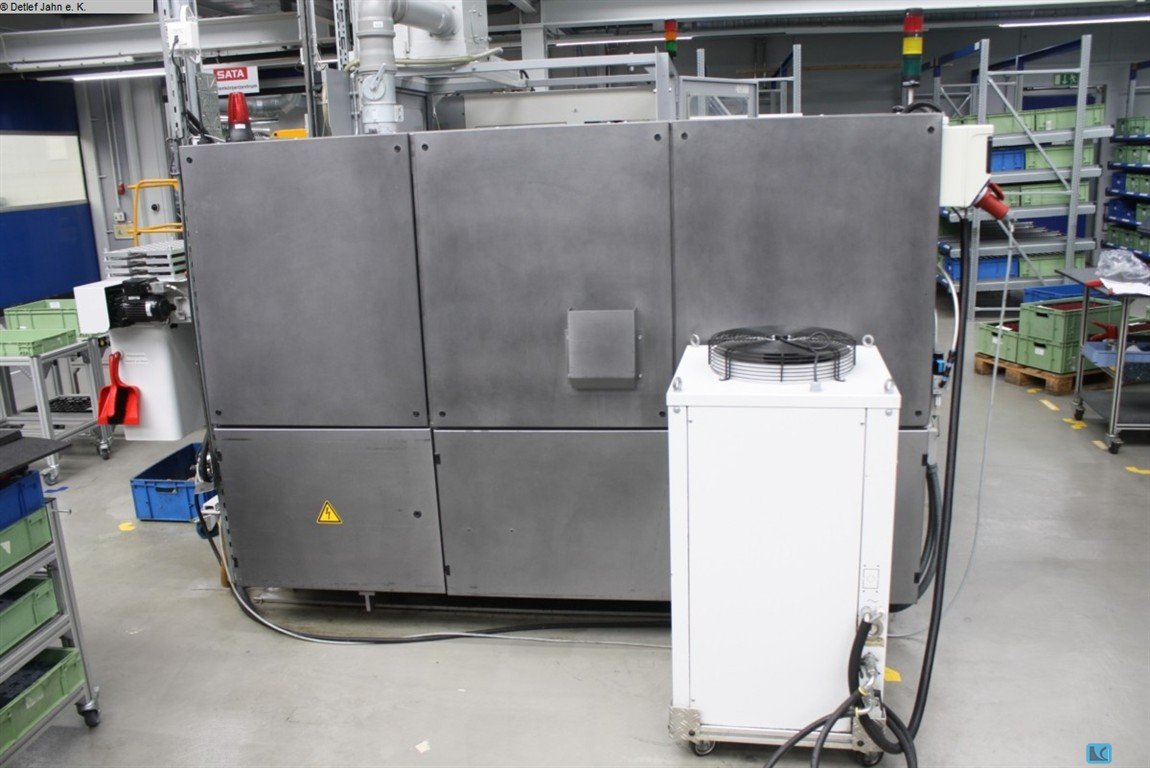

standard turning dia.:42 / 140 turning length:170 mm control:Mitsubishi max. turning diameter:140 mm bar material dia.:42 mm turning speed range - spindle:80-8000 1/min spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:60-6000 1/min spindle nose:JIS A2-6 bar material dia. max:42 mm collet chuck:173E C-Axis:0,001 ° Number of Turrets:2 . Number of tool stations:12 x 2=24 pos power capacity - driven tools:7,5 / 5,5 kW total power requirement:92,7 kVA weight of the machine ca.:3,3 t dimensions of the machine ca.:2,4 x 1,6 x 2,2 m The Boley BE 42 2 has 2 spindles und 2 turrets with 12 toolstations VDI 20 each. It can work simultaneus with 7 Achsen. The machine has ca. 22.000 run hrs. The coolant system has a cooling unit 15 collets 173E come with the machine. A bar feeder interface is installed.

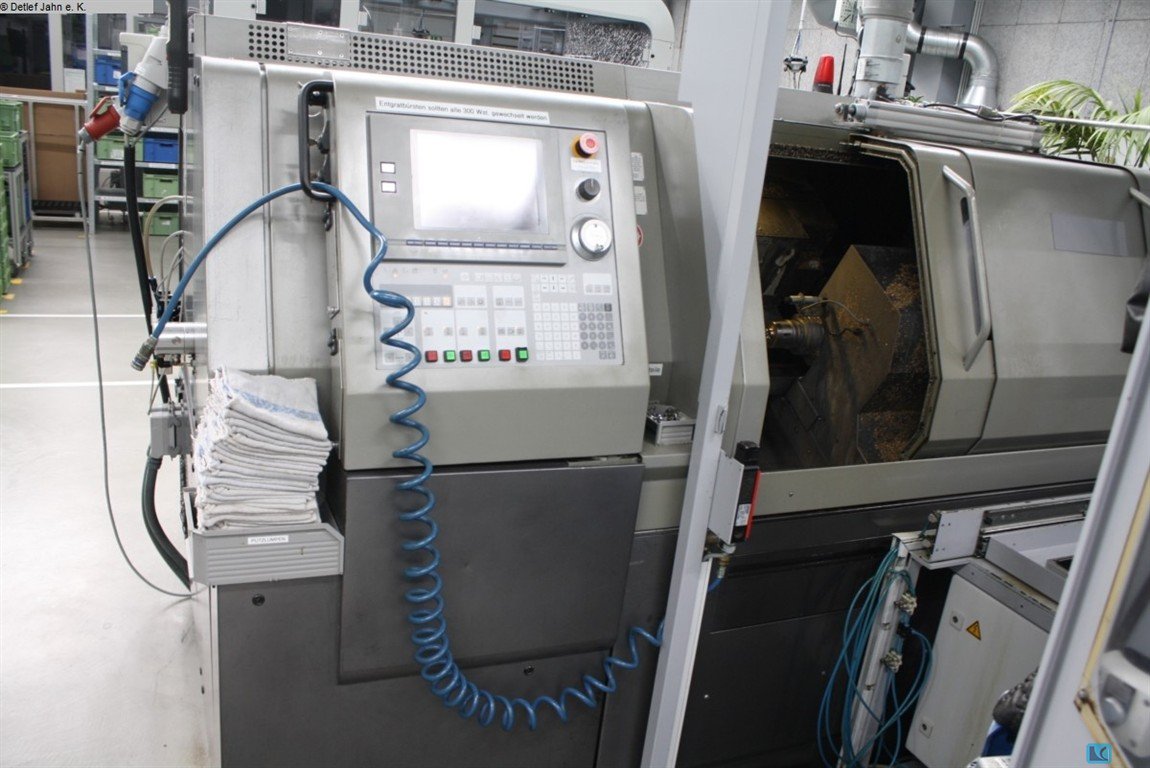

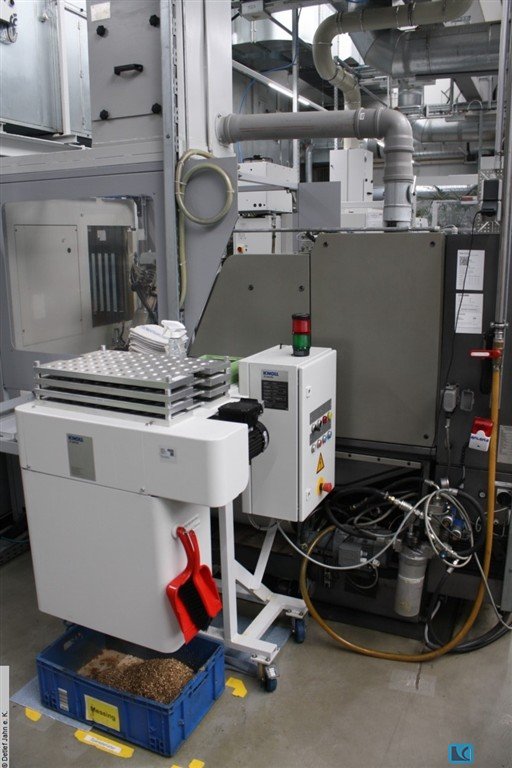

turning diameter: 42 / 140 mm turning length: 170 mm control: Mitsubishi Meldas turning speeds: 80-8.000 U/min c-axis: 0,001° turret (x-stations): 2x 12 (VDI 20) angetrieben turning speeds: 45-4.500 U/min gripping station: 42 mm spindle: 1 kW turning speeds: 60-6.000 U/min c-axis: 0,001° number of controlled axis: 8 collet unit: 48 DIN 6343 . Number of working hours: 10769 h chip conveyor: ja/yes Bj. 2018 total power requirement: 7,5 / 11 kW weight of the machine ca.: 3,3 t dimensions of the machine ca.: 2,4 x 1,6 x 2,2 m CNC turning and milling machine CITIZEN BOLEY BE 42, year 2007 Simultaneous working with 7 axes on main and pick-up spindle very good condition, operating hours 21.999h (September 2024) Accessories: # Various tool holders (see picture) 5x axiale driven tool holder # collet chuck for collets type 173E # additional coolant cooler # Knoll chip conveyor, year of construct ...
중심 높이: 120mm 중심 폭: 450mm 스핀들 통로/보어: 23 mm 보드 폭: 100mm 속도: (12) 180 - 2240 min-1 이동 상 캐리지: 140mm 심압대 마운트: MK 2 퀼 스트로크: 80mm 모터 힘: 2.5 kW 연결: 400 V 크기 약: 1300 x 880 x 1250 mm 무게 약: 600kg 설비: 피어싱 장치 퀵 릴리스 홀더 시스템 멀티픽스, 크기 Aa 기계 조명 냉각수 장치
