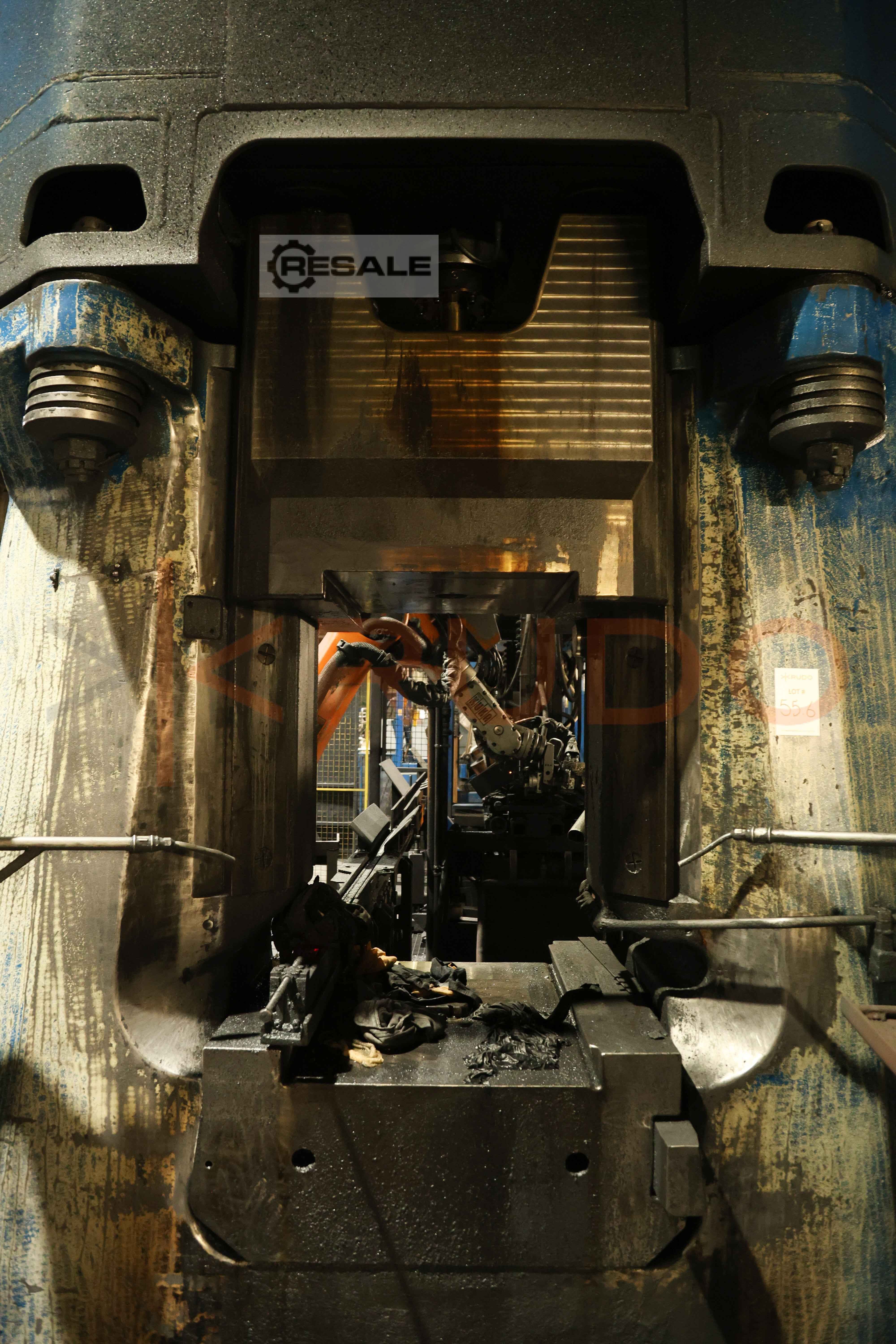

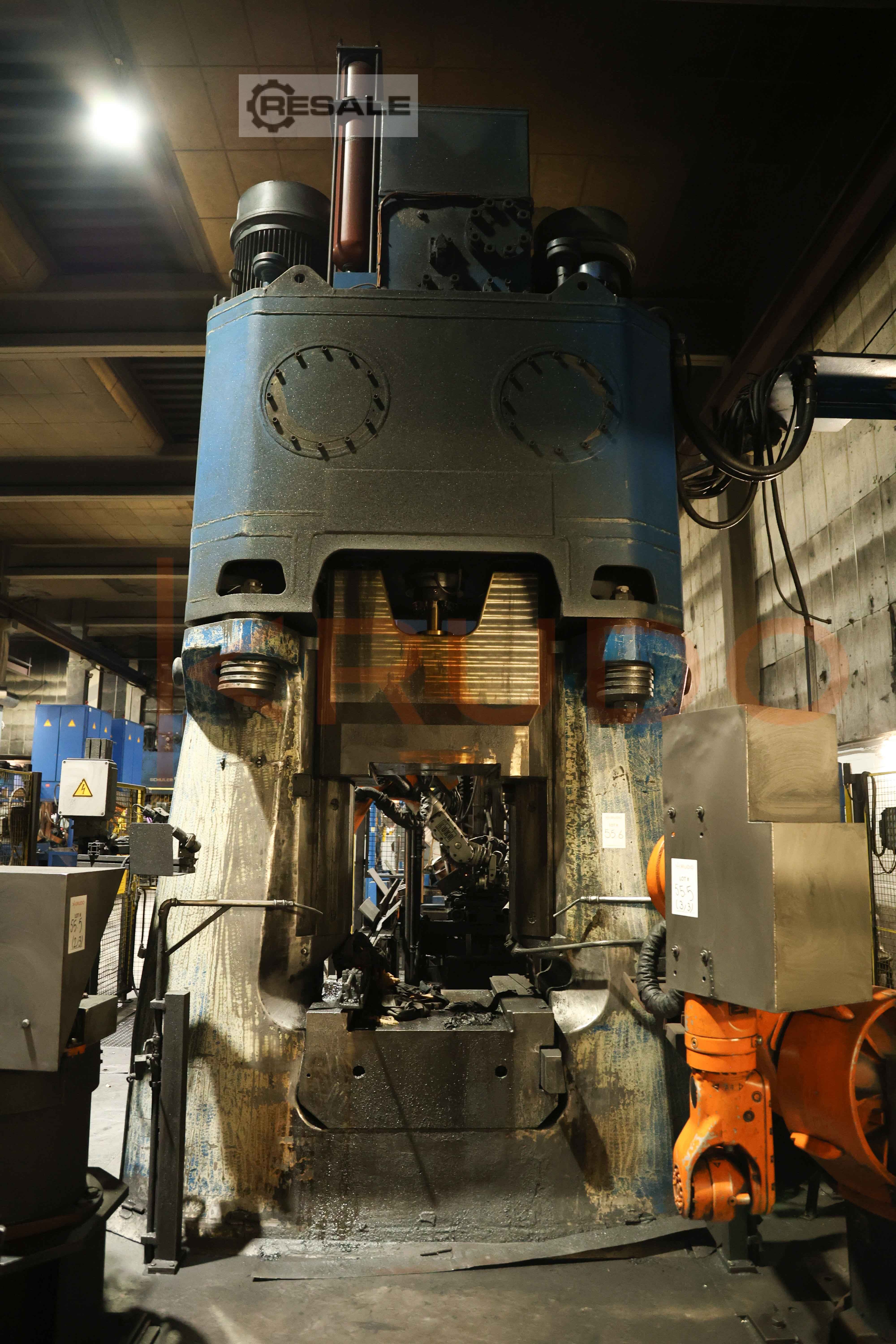

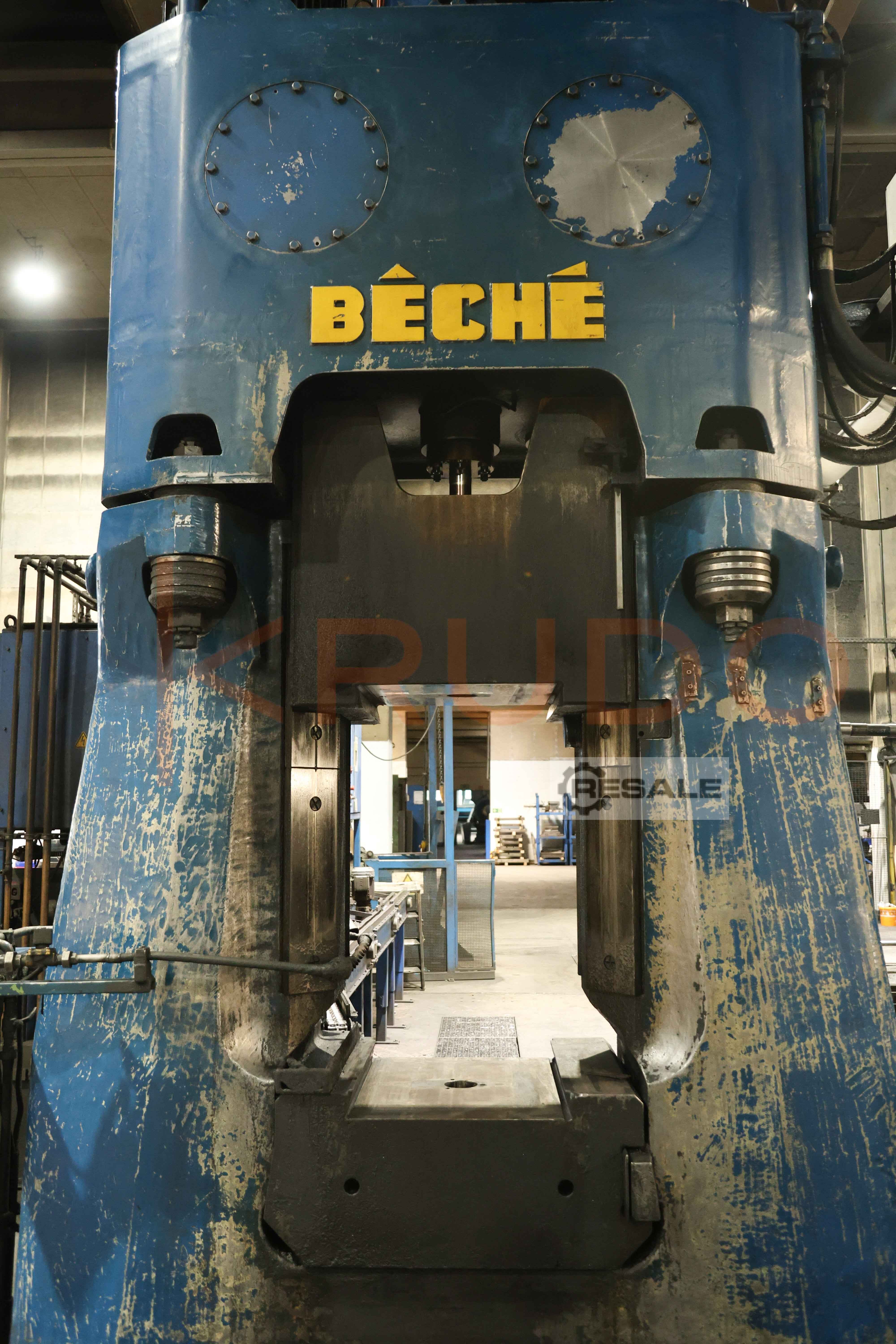

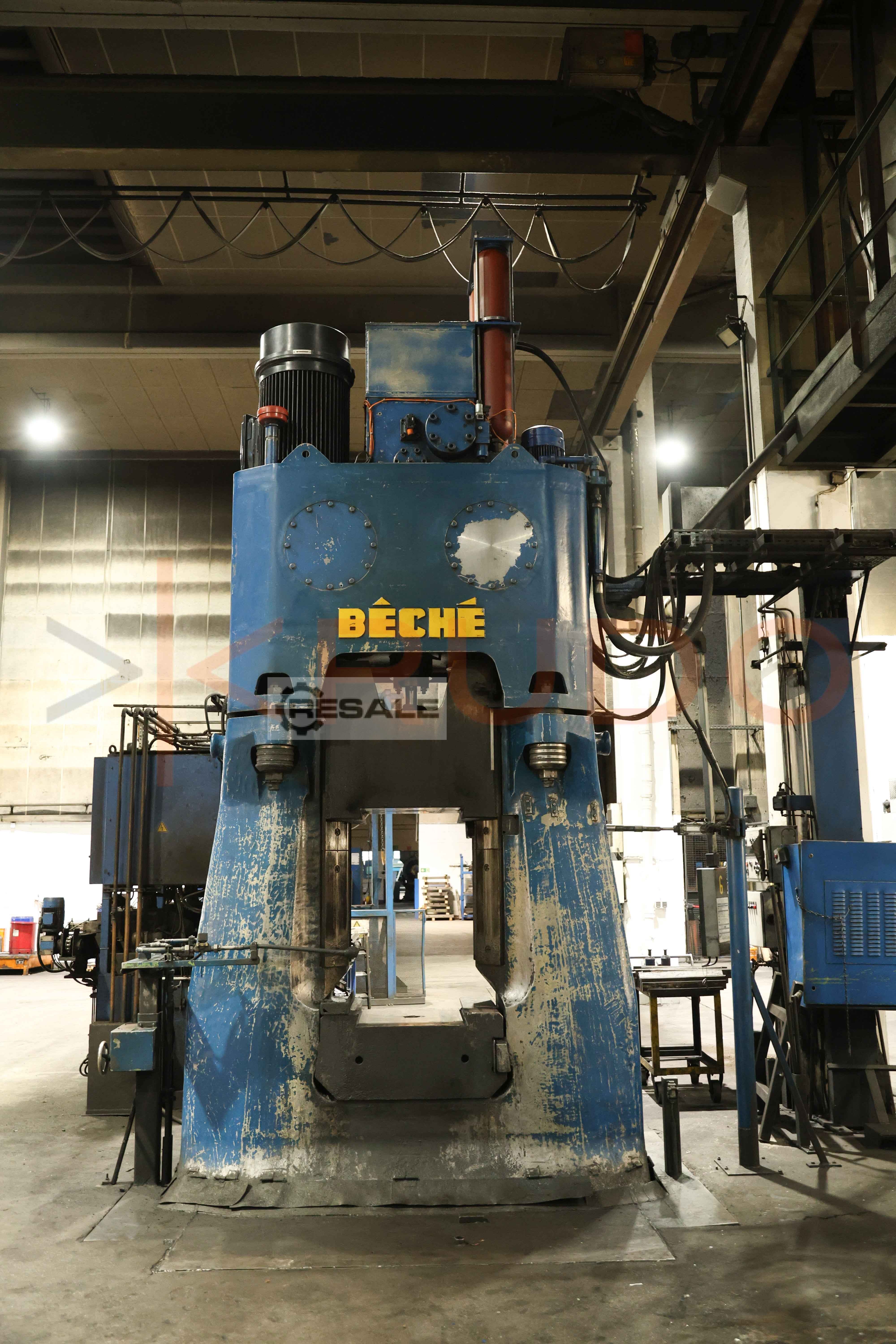

A BÊCHÉ hydraulic short-stroke die forging hammer is offered for hot forming and die forging of workpieces. Working capacity: 16kJ, continuous blow frequency at full load: approx. 32/min-38/min, max. blow frequency: 122/min, final ram velocity: 5.1m/s, main drive pump flow rate: 187.5l/min, circulation pump flow rate: 120l/min, oil capacity in the drive head: 550l, clear width between the guides: 520mm, working height to upper edge of insert: 750mm, ram depth: 470mm, insertion depth: 550mm, die height min./max.: 120mm/320mm. Total weight: approx. 23.2t, anvil bed, overall dimensions X/Y/Z: approx. 1485mm/825mm/4552mm, max. space requirement/foundation dimensions X/Y: approx. 3350mm/3300mm. An on-site inspection is possible.

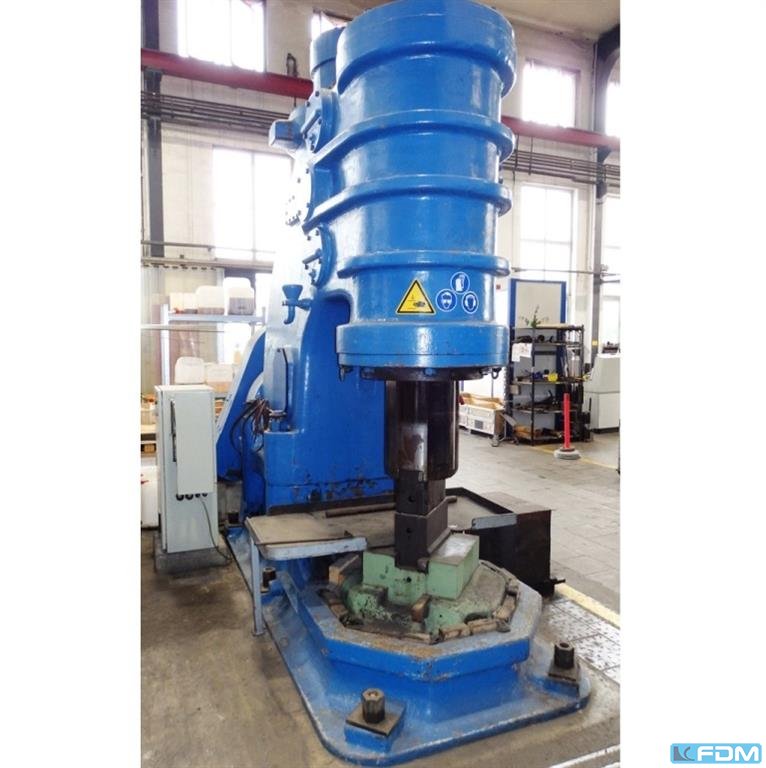

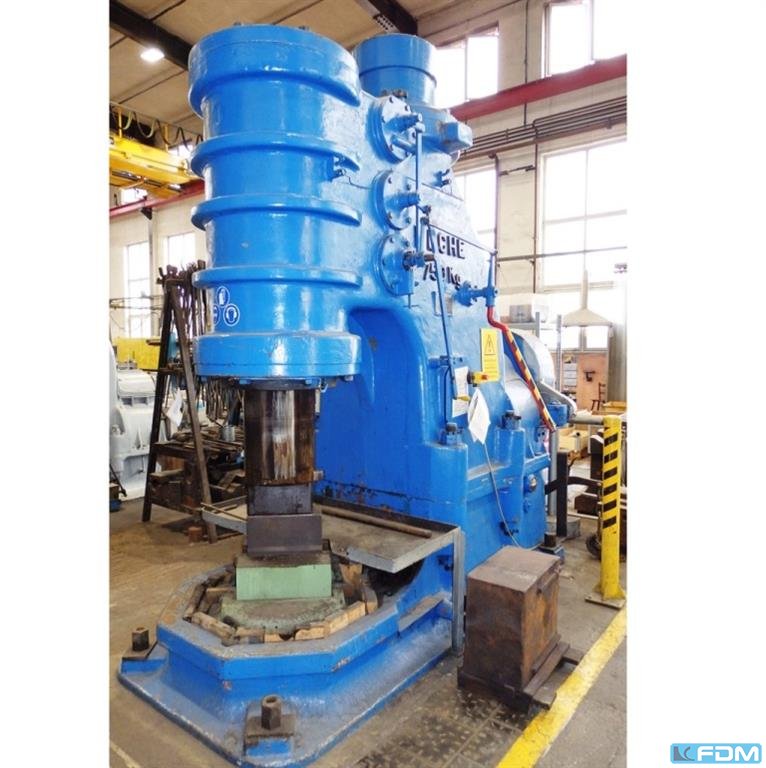

impact energy:207951 mkg ram hammer stroke:660 mm no. of strokes:100 /min impact energy:2040 kJ distance lower die block / ram gudeway:660 mm Throat:750 mm steel forging - rectangular up to:240 mm steel forging - diameter up to:270 mm power requirement:75,0 kW weight of hammer:16,5 t weight of anvil:15,5 t ram hammer weight:750 kg weight:32,0 t dimensions (WxDxH):3,2 x 1,45 x 3,45 m Mode of operation:pneumatisch

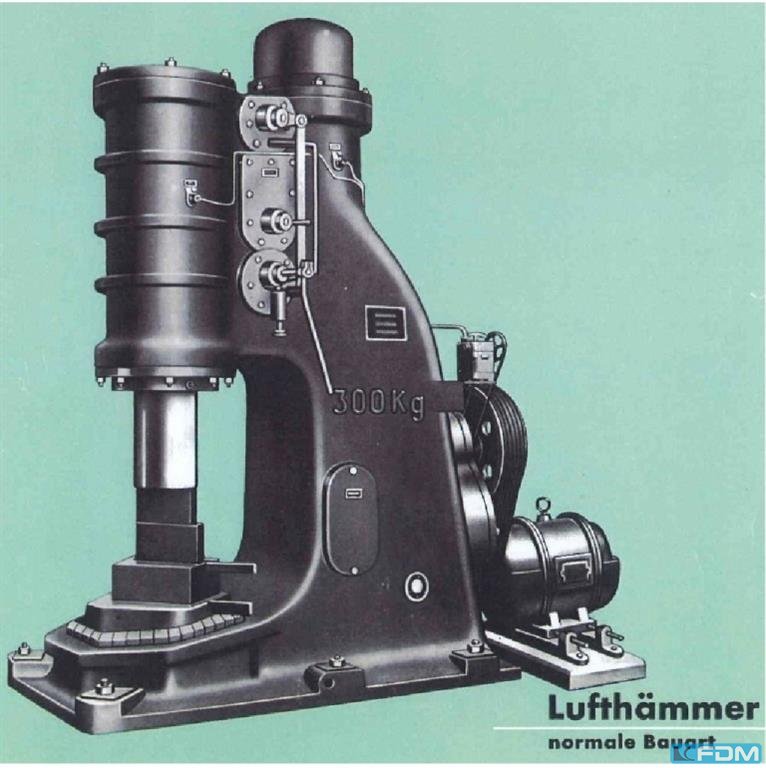

no. of strokes:150 /min impact energy:420 kJ distance lower die block / ram gudeway:435 mm Throat:425 mm steel forging - rectangular up to:110 mm steel forging - diameter up to:125 mm power requirement:22,0 kW weight of hammer:3,9 t weight of anvil:3,0 t ram hammer weight:200 kg weight:6,9 t dimensions (WxDxH):1,1 x 2,3 x 2,4 m
