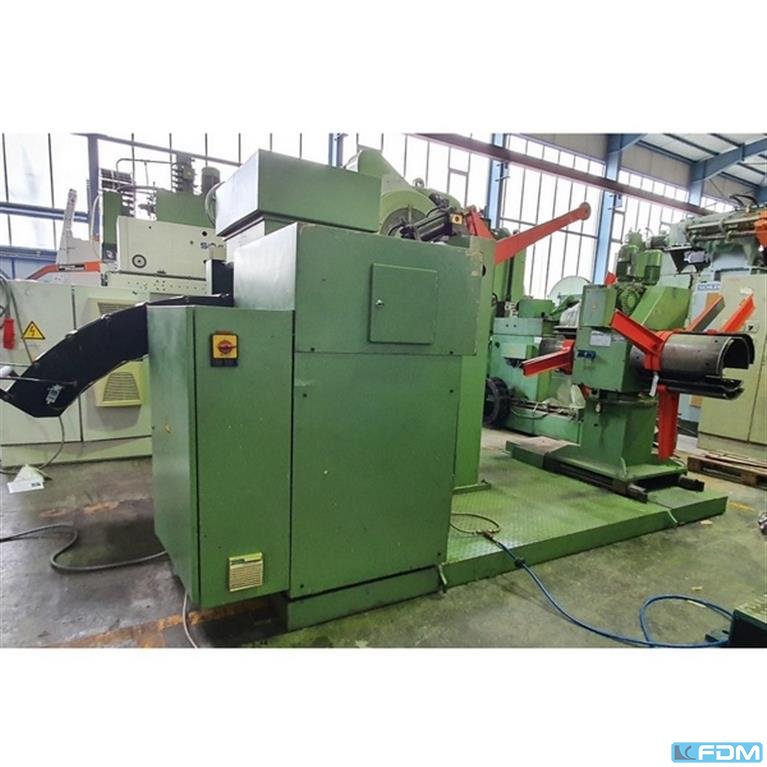

- 디코일러 - 최대 폭 350 mm- 클램핑 영역 코일 내부 470 - 530 mm- 코일 직경 1500 mm- 작업 하중 2000 Kg - 스트레이그너- 폭 350 mm- 롤 직경 30 mm- 오프 롤 수 9 단위- 피드 롤 2개 단위- 피드 롤 직경 90 mm- 작동 속도 40 M/Min - 최대 두께 6 mm(240 N/mm2) - 최대 두께 5 mm(400 N/mm2 )
- 디코일러 - 최대 폭 350 mm- 클램핑 영역 코일 내부 mm - 코일 직경 1500 mm - 작업 하중 1000 Kg - 스트레이그너 - 폭 250 mm - 롤 직경 30 mm - 오프 롤 수 21 단위 - 작업 속도 40 M/Min - 최대 두께 6 mm at 240 N/mm2- 최대 두께 5 mm at 400 N/mm2

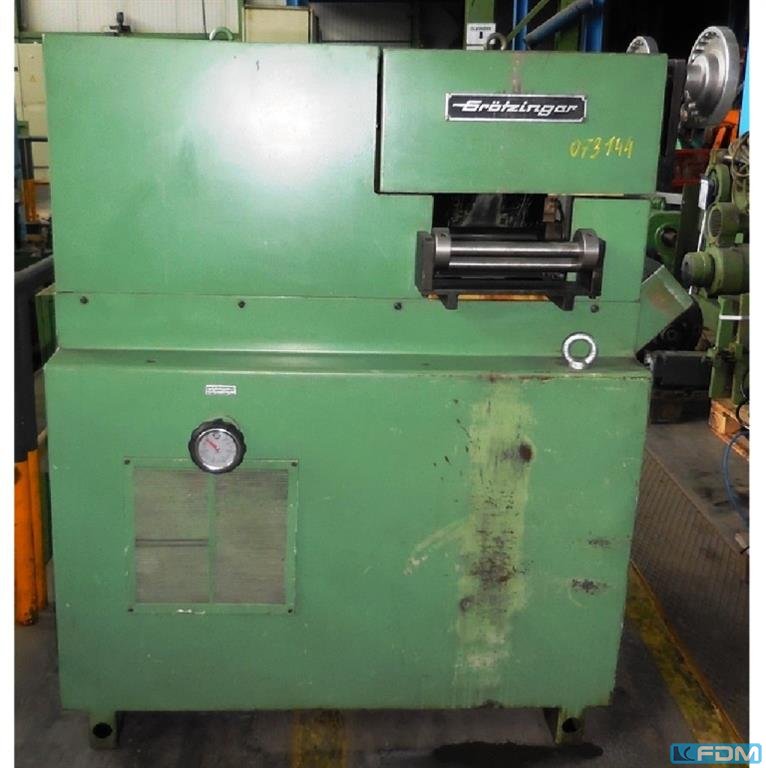

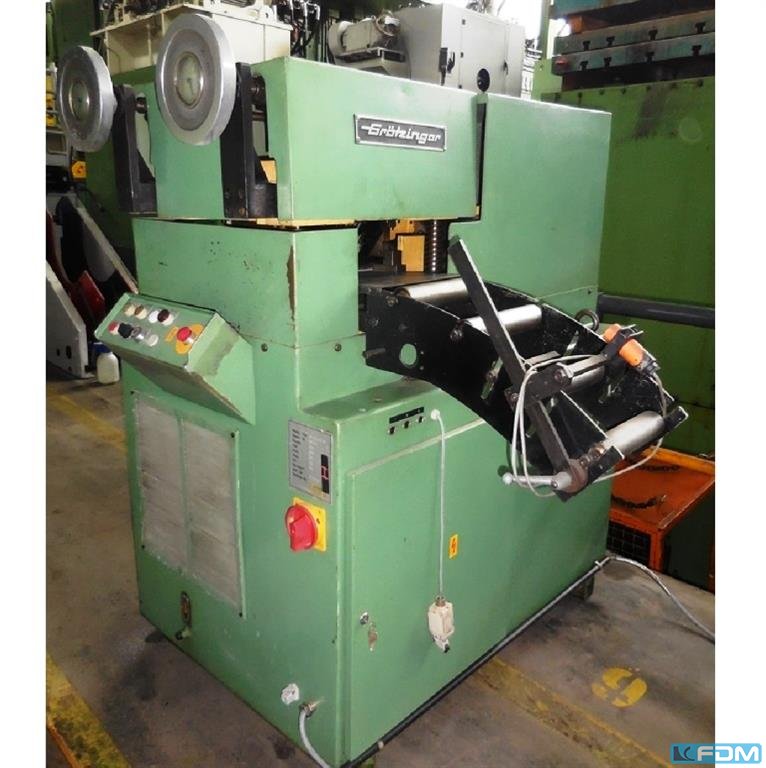

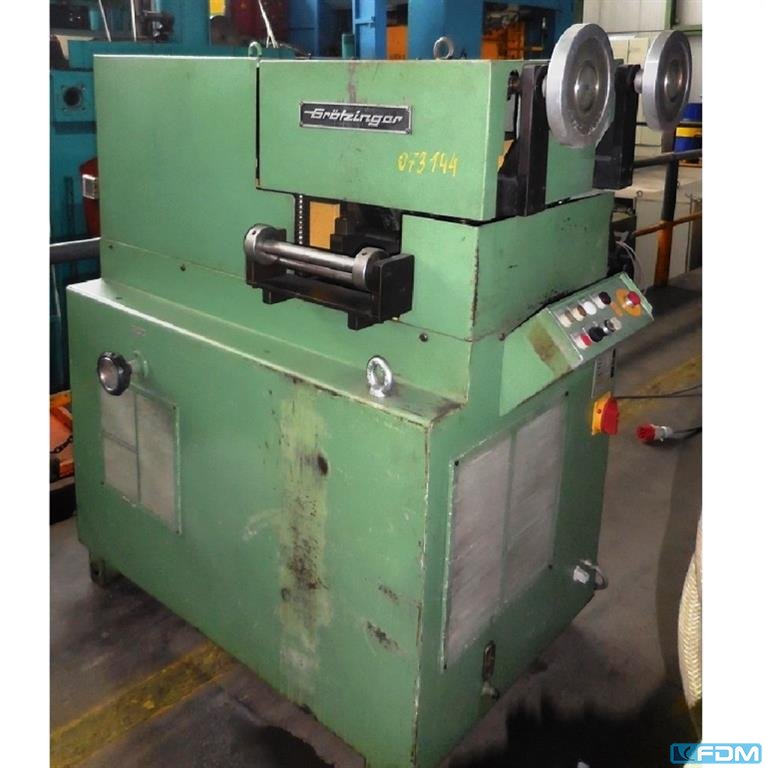

material width:250 mm material thickness:0,4 - 3,5 mm no. of straightening rolls:9 straightening roll diameter:30 mm speed:3 - 15 m/min material thickness at 250 mm material width:3,0 mm material thickness at 200 mm material width:3,5 mm power capacity:1,8 kW weight:0,9 t Dimensions (WxDxH):1,45 x 1,4 x 1,55 m

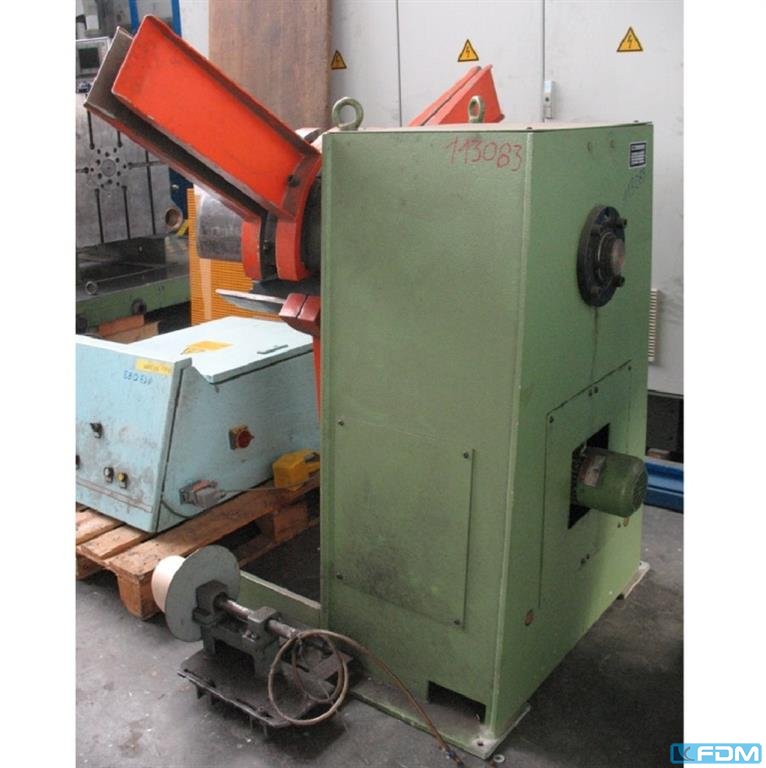

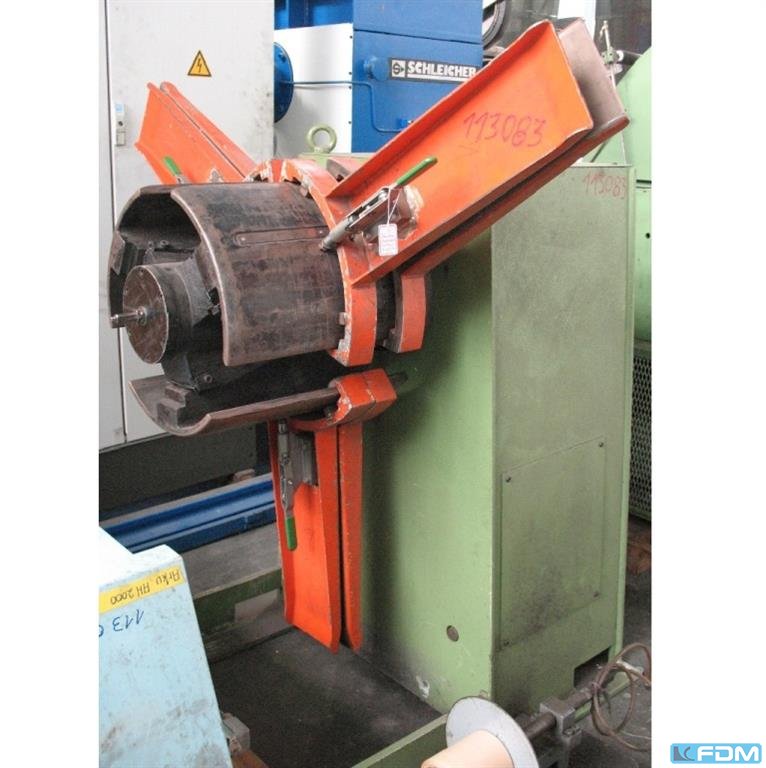

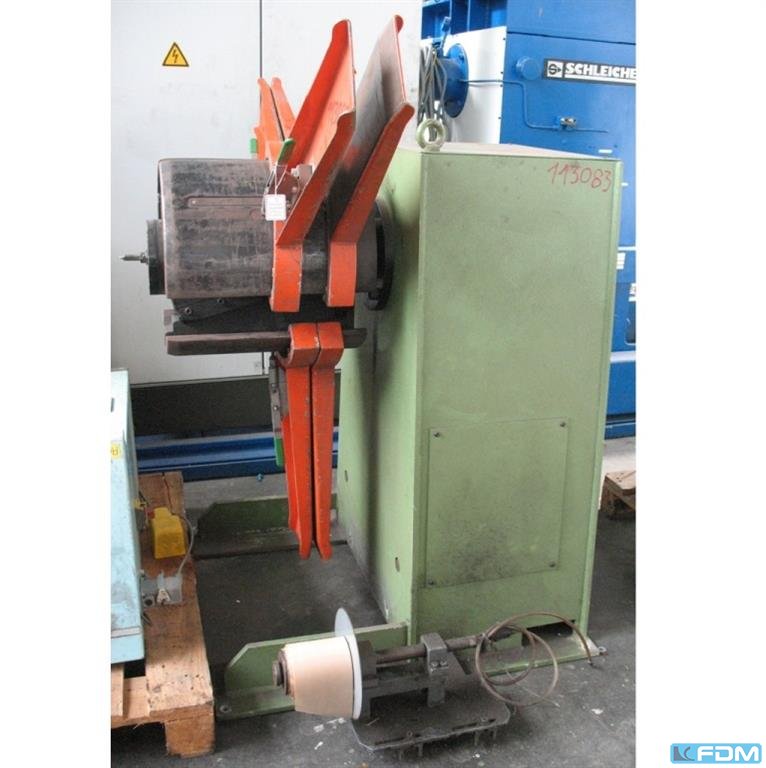

material width:350 mm coil weight:2,0 t coil internal diameter:470 - 530 mm coil external diameter:1500 mm power requirement:1,0 kW weight:1,5 t dimensions (WxDxH):1,3 x 1,6 x 1,9 m

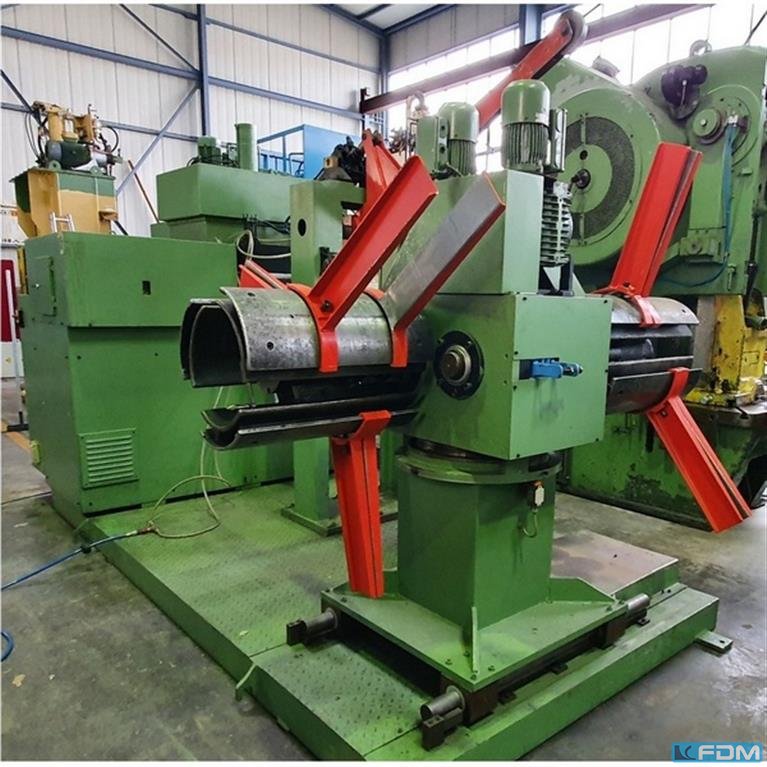

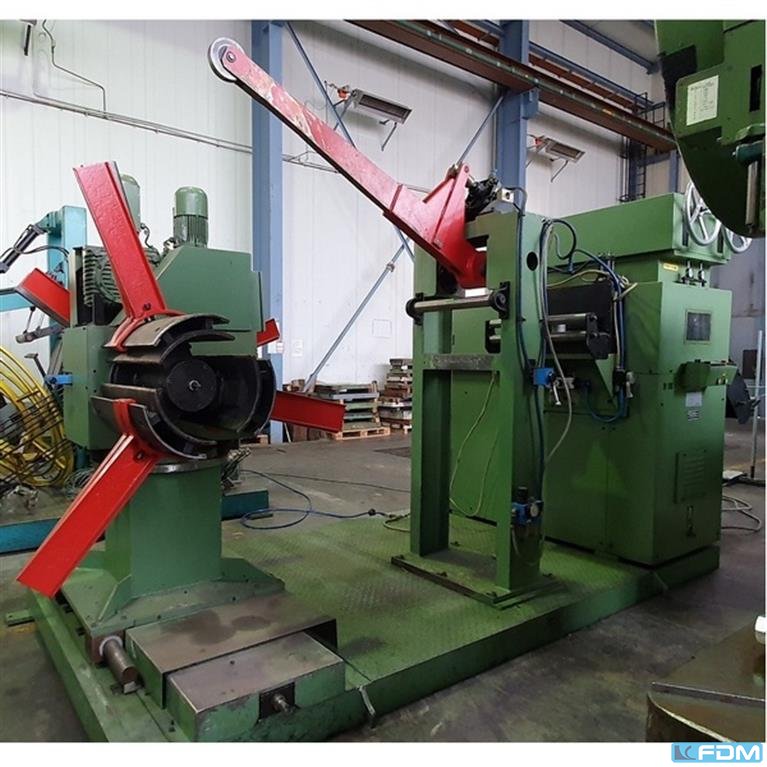

material width:500 mm coil weight:2 x 2,0 t material thickness:1,0 - 6,0 mm coil internal diameter:350 - 420 mm coil external diameter:1600 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 speed:0 - 40 m/min material thickness at 500 mm material width:3,5 mm power requirement:17,5 kW Dimensions (WxDxH):2,3 x 4,2 x 2,4 m straightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter

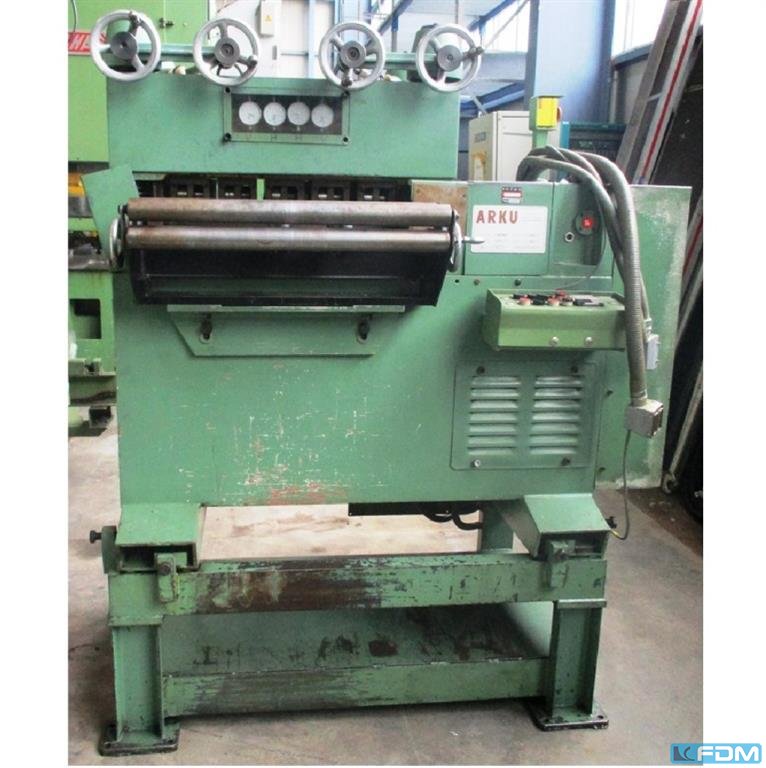

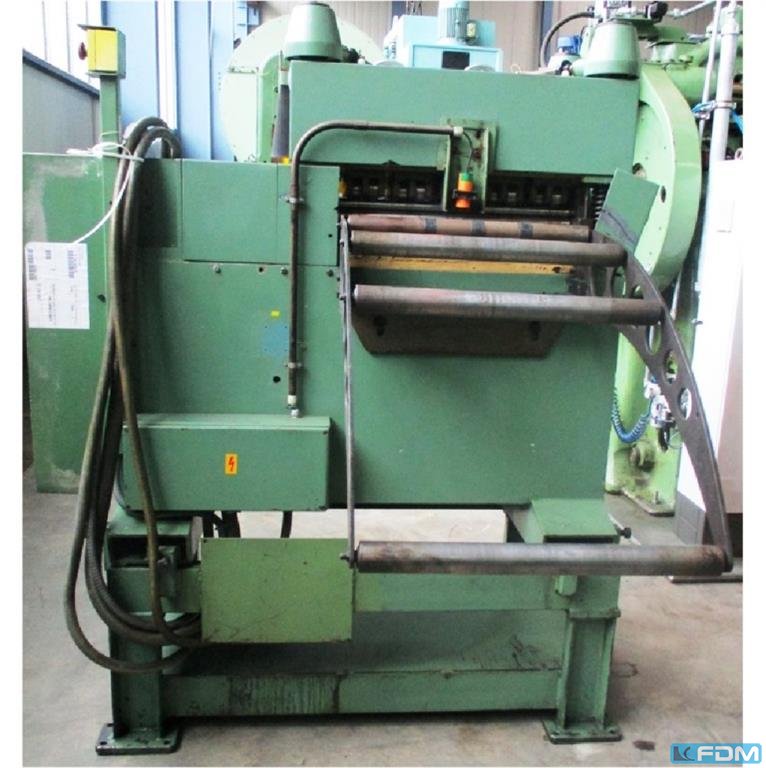

material width:600 mm material thickness: - 4,0 mm no. of straightening rolls:21 straightening roll diameter:30 mm material cross-cut:1800 mm² speed:6 - 36 m/min Power capacity:4,5 kW Weight:2,0 t Dimensions (WxDxH):1,5 x 2,0 x 1,9 m
사용
제조사: ARKU 모델: EdgeBreaker 4000 Plus 제조 연도: 2018 기계의 유형 : 디버링 기계 더 찾기 바로가기 - / 다음 주소로 문의하십시오.
OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 16 mm coil weight max.: 8 to feedstock transport direction: left to right COIL CHAIR coil weight max.: 8 to DECOILER max. diameter of coil: 1800 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm CROP SHEAR cutting force: 800 kN LEVELLER UNIT sheet width max.: 800 mm sheet width (min): 80 mm sheet thickness max.: 16 mm sheet thickness min.: 1.5 mm material cross section max. (450 N/mm2): 3510 mm² number of leveller rolls: 17
CONTROLS PLC OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 4 mm coil weight max.: 10.5 to feedstock transport direction: right to left COIL CHAIR coil weight max.: 10.5 to stroke: 750 mm DECOILER design: single reel sheet width max.: 500 mm sheet width (min): 150 mm coil weight max.: 10.5 to max. diameter of coil: 2020 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm feed velocity max.: 20 m/min CROP SHEAR sheet thickness max.: 4 mm working width max.: 530 mm stroke rate (max.): 20 /min LEVELLER UNIT sheet width max.: 500 mm sheet width (min): 150 mm sheet thickness max.: 4 ...
CONTROLS PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 4 mm coil weight max.: 10.5 to feedstock transport direction: right to left COIL CHAIR coil weight max.: 10.5 to stroke: 750 mm DECOILER design: single reel sheet width max.: 500 mm sheet width (min): 150 mm coil weight max.: 10.5 to max. diameter of coil: 2020 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm feed velocity max.: 20 m/min LEVELLER UNIT sheet width max.: 500 mm sheet width (min): 150 mm sheet thickness max.: 4 mm sheet thickness min.: 2 mm number of leveller rolls: 9 diameter of levell ...
참조번호: 850162 제품 번호 : 40219 F. 번호 : 193 연결: 380V/50Hz
암이 있는 Decoiler Decoiler : 1,5 톤 재료 폭 : 350 mm 코일 외경 : 1.200 mm 확장 범위 : 370 - 430 mm 속도 : 0 - 20 m / min 레벨러 / 스트레이트너 재료 폭 : 250 mm 레벨링 롤 수 : 9 개 레벨링 롤의 직경 : 30 mm 재료 두께 : 0,5 - 6 mm 단면적 : 1.200 mm 공급 속도 : 20 m / min 필요한 전력 : 18 kW
material width: 0250 mm material thickness: 2,00/5,00 mm no. of straightening rolls: 19 sheet thickness - min.: 0,20 mm diam. of the rolls ca.: 18 mm speed: 5-12 m/min back-up rolls-needle bearings: ja / yes bronze sliding bearing: ja / yes total power requirement: 1,70 kW weight of the machine ca.: 0,600 t dimensions of the machine ca.: 1,00 x 0,90 x 1,30 m Part leveler and strip leveler - Maximum vertical roller spacing: 8 mm - Circulating oil lubrication of the drive shafts and leveling roller bearings - Infeed/outfeed table - Speed control via handwheel - Strip loop control via proximity switch start/stop The leveler is powered. Leveling tests with material are possible at any time. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
CONTROLS PLC SIEMENS S5 115 U OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 350 mm sheet thickness max.: 8 mm coil weight max.: 4 to feed velocity max.: 10 m/min feedstock transport direction: left to right DECOILER design: single reel sheet width max.: 350 mm coil weight max.: 4 to max. diameter of coil: 1500 mm mandrel expansion range from: 370 mm mandrel expansion range up to: 530 mm feed velocity max.: 10 m/min LEVELLER UNIT sheet width max.: 350 mm sheet thickness max.: 8 mm number of leveller rolls: 21 diameter of leveller rolls: 50 mm number of infeed-/outfeed rolls: 2 diameter of feed rolls: 120 mm feed velocity max.: 10 m/min ELECT ...
Decoiler 코일 무게 : 5 톤 재료 폭 : 80 - 500 mm 코일 외경 : 1800 mm 확장 범위 : 508 mm 속도 : 50 m / min 레벨러 / 교정기 재료 폭 : 50 - 500 mm 레벨링 롤 수 : 9 개. 레벨링 롤의 직경: 65mm 풀아웃 롤 수: 2개 풀아웃 롤의 직경 : 150 mm 재료 두께 : 1 - 8 mm 이송 속도 : 50 m / min 이송 길이 : 0,1 - 9999,9 mm
시트 너비 - 최대: 0350 mm 코일 무게: 2,00 t 코일 내부 직경: 470 - 530 mm 코일 외부 직경 ca.: 1500 mm 총 전력 요구 사항: 1,0 kW 기계 무게 ca.: 1,50 t 기계 치수: 1,30 x 1,6 x 1,90 m 모터 구동, 수동 중앙 확산
sheet width: 0250 mm coil outside dia.: 1800 mm weight max. in kg: 2 x 3000 kg : 3,80 mm : 470 - 530 mm : 21 : 30 mm : 4 : 18,0 kW speed: 20 m/min power capacity: 18 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Decoiler AH 3000/2/250/ST with continuously variable drive, hydraulic central spread, Automatic post-spreading system, hydraulic pressure device, hydraulic swivel, Straightening machine RM 3025.4/21 with continuously variable drive, driven straightening rollers, manual Roller mill adjustment, quick-change device for the straightening rollers Belt loop control via ultrasound Material thickness / with material width 3.80 / 250 mm Material thickness / with material width 6.00 / 100 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
