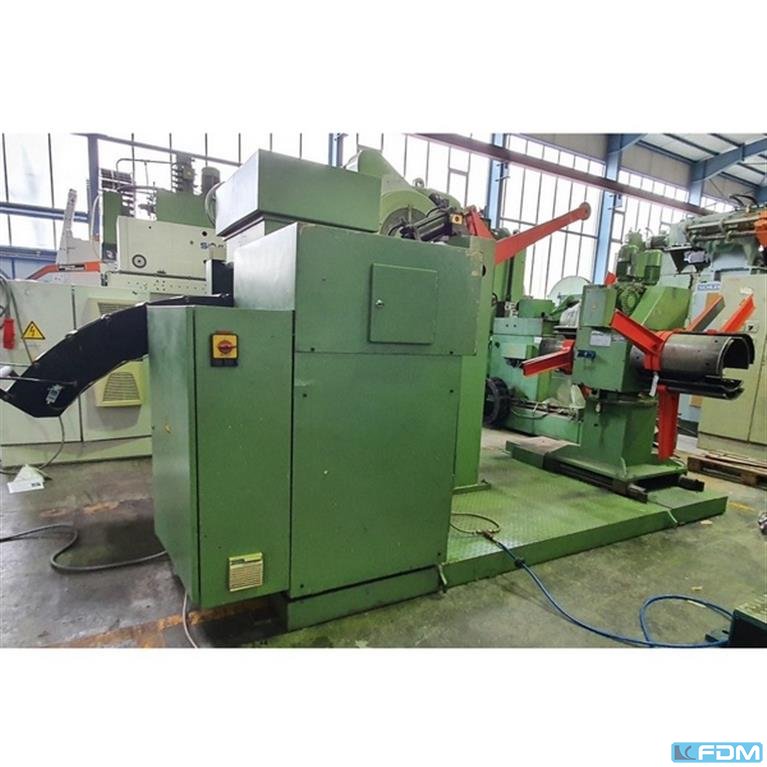

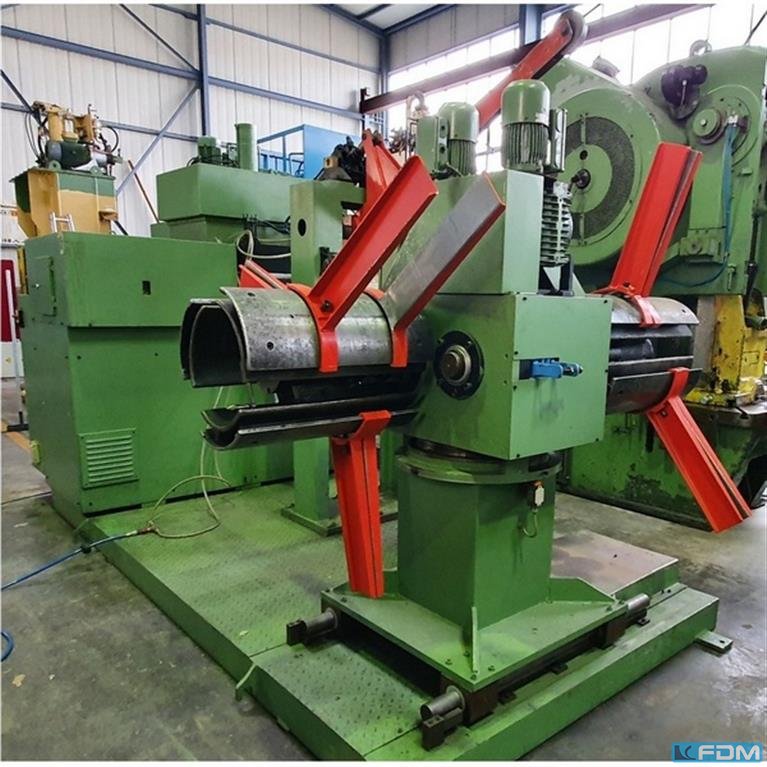

- デコイラー - 最大幅 350 mm - クランプエリア コイル 内部 mm - コイル径 1500 mm - 作業荷重 1000 Kg - ストレートナー - 幅 250 mm - ロール径 30 mm - オフロール数 21 ユニット - 作業速度 40 M/Min - 最大厚さ 6 mm at 240 N/mm2 - 最大厚さ 5 mm at 400 N/mm2
material width:600 mm material thickness: - 4,0 mm no. of straightening rolls:21 straightening roll diameter:30 mm material cross-cut:1800 mm² speed:6 - 36 m/min Power capacity:4,5 kW Weight:2,0 t Dimensions (WxDxH):1,5 x 2,0 x 1,9 m

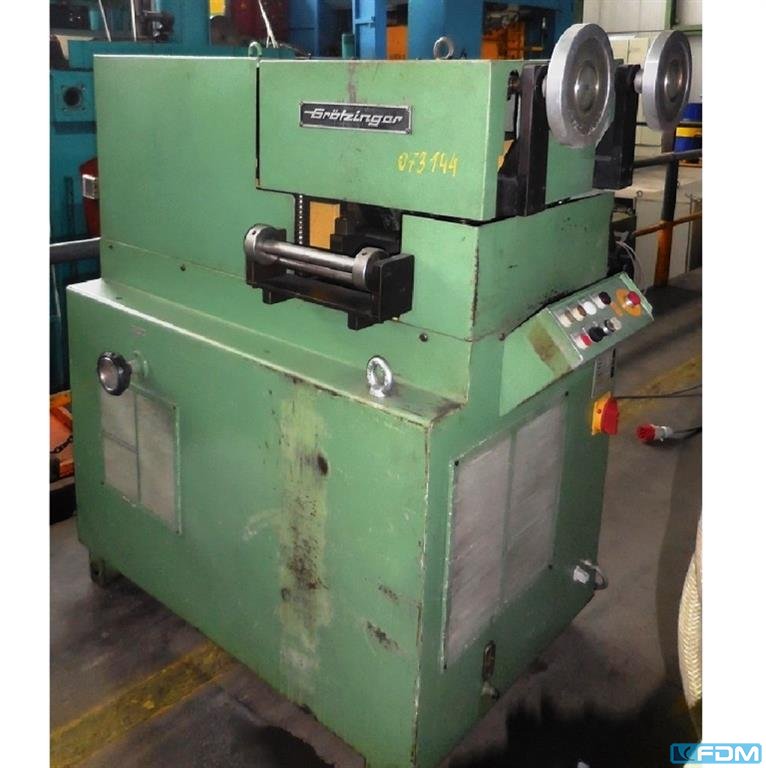

material width:250 mm material thickness:0,4 - 3,5 mm no. of straightening rolls:9 straightening roll diameter:30 mm speed:3 - 15 m/min material thickness at 250 mm material width:3,0 mm material thickness at 200 mm material width:3,5 mm power capacity:1,8 kW weight:0,9 t Dimensions (WxDxH):1,45 x 1,4 x 1,55 m

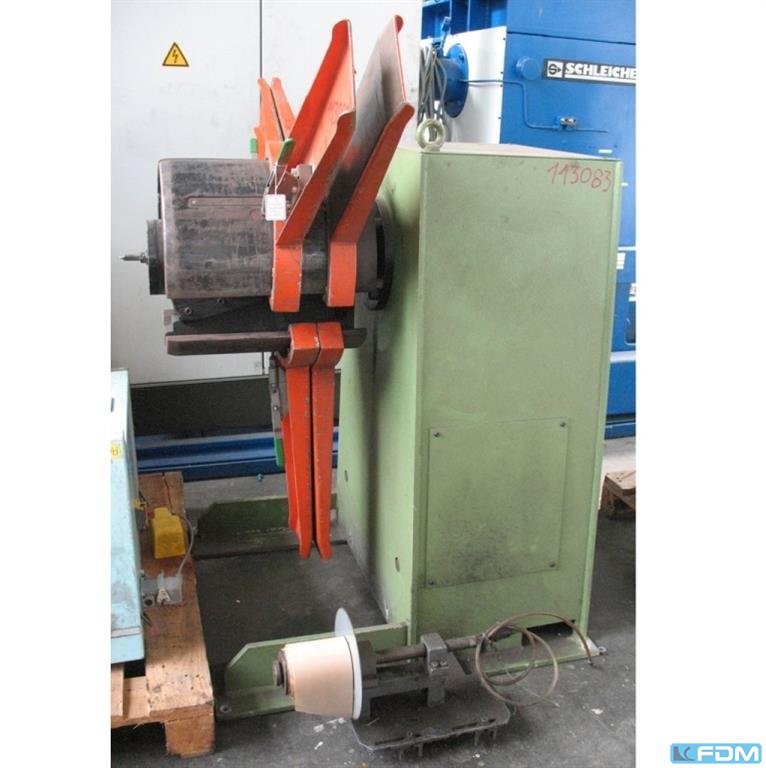

material width:350 mm coil weight:2,0 t coil internal diameter:470 - 530 mm coil external diameter:1500 mm power requirement:1,0 kW weight:1,5 t dimensions (WxDxH):1,3 x 1,6 x 1,9 m
material width:500 mm coil weight:2 x 2,0 t material thickness:1,0 - 6,0 mm coil internal diameter:350 - 420 mm coil external diameter:1600 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 speed:0 - 40 m/min material thickness at 500 mm material width:3,5 mm power requirement:17,5 kW Dimensions (WxDxH):2,3 x 4,2 x 2,4 m straightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter
Manufacturer: ARKU Machine type: EdgeBreaker 4000 Year of Manufacture: 2017 Type: Industrial sheet metal deburring and edge rounding machine Maximum passage width: 1,300 mm Find more here - / Contact us at -
デコイラー アーム付きデコイラー:1.5トン 素材幅:350 mm コイル外径:1.200 mm 膨張範囲:370 - 430 mm 速度:0 - 20 m / 分 レベラー/ストレートナー 素材幅:250 mm レベリングロールの数:9個。レベリングロールの直 :30 mm 材料厚:0.5 - 6 mm 断面積:1.200 mm 送り速度:20 m / min 必要出力:18 kW
デコイラー コイル重量:5トン 材料幅:80 - 500 mm コイル外径:1800 mm 拡張範囲:508 mm 速度:50 m /分 レベラー/ストレートナー 材料幅:50 - 500 mm レベリングロールの数:9個。レベリングロールの直 :65 mm 引き出しロールの数:2個。引き抜きロールの直径:150 mm 材料の厚さ:1 - 8 mm 供給速度:50 m /分 供給長さ:0,1 - 9999,9 mm
CONTROLS PLC SPECIFICATIONS THROUGH FEED GRINDING MACHINE Working width: 1500 mm TRANSPORTATION BELT speed min.: 0.3 m/min speed max.: 5 m/min ELECTRICAL SPECIFICATIONS mains power supply: 28 kVA mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS total weight approx.: 4000 kg
供給粉砕機による制御 PLC仕様 作業幅:1300 mm 電気仕様 電源電圧:400 V 電源周波数:50 Hz 寸法/重量 スペース要件 -左右-:3100 mm スペース要件 -前後:1500 mm 全高:2200 mm 総重量:約3000 kg
OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 16 mm coil weight max.: 8 to feedstock transport direction: left to right COIL CHAIR coil weight max.: 8 to DECOILER max. diameter of coil: 1800 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm CROP SHEAR cutting force: 800 kN LEVELLER UNIT sheet width max.: 800 mm sheet width (min): 80 mm sheet thickness max.: 16 mm sheet thickness min.: 1.5 mm material cross section max. (450 N/mm2): 3510 mm² number of leveller rolls: 17 Price of new equipment 1.46 Mio EUR
CONTROLS PLC OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 4 mm coil weight max.: 10.5 to feedstock transport direction: right to left COIL CHAIR coil weight max.: 10.5 to stroke: 750 mm DECOILER design: single reel sheet width max.: 500 mm sheet width (min): 150 mm coil weight max.: 10.5 to max. diameter of coil: 2020 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm feed velocity max.: 20 m/min CROP SHEAR sheet thickness max.: 4 mm working width max.: 530 mm stroke rate (max.): 20 /min LEVELLER UNIT sheet width max.: 500 mm sheet width (min): 150 mm sheet thickness max.: 4 mm sheet thickness min.: 2 mm number of leveller rolls: 9 diameter of leveller rolls: 56 mm diameter of feed rolls: 150 mm feed velocity max.: 20 ...
CONTROLS PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 4 mm coil weight max.: 10.5 to feedstock transport direction: right to left COIL CHAIR coil weight max.: 10.5 to stroke: 750 mm DECOILER design: single reel sheet width max.: 500 mm sheet width (min): 150 mm coil weight max.: 10.5 to max. diameter of coil: 2020 mm mandrel expansion range from: 470 mm mandrel expansion range up to: 530 mm feed velocity max.: 20 m/min LEVELLER UNIT sheet width max.: 500 mm sheet width (min): 150 mm sheet thickness max.: 4 mm sheet thickness min.: 2 mm number of leveller rolls: 9 diameter of leveller rolls: 56 mm diameter of feed rolls: 150 mm feed velocity min.: 1 m/min feed velocity max.: 20 m/min CUT-TO LENGTH SHEAR sheet width max.: 530 mm ...
A roller straightening machine is offered. Working width: approx. 100-120mm, max. material thickness: approx. 0.1-1.0mm, multi-roll system, 4 integrated ARKU precision dial gauges, inspection is possible by arrangement.
材料幅:0200 mm材料厚:3,000 mm。直線加工ロール数:21枚のシート厚 - 最小:直径0.50 mm。ロール数 約30 mm速度:56 m/最小総動力要求:kW 機械の重量 約:機械の寸法 約:油圧駆動 すべてのローラー駆動 サイドベルトガイド ハンドホイール付きPSS300制御 本広告のデータはLogoTech oHGのソフトウェアソリューションModulMWSで作成され した
CONTROLS PLC SIEMENS S5 115 U OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 350 mm sheet thickness max.: 8 mm coil weight max.: 4 to feed velocity max.: 10 m/min feedstock transport direction: left to right DECOILER design: single reel sheet width max.: 350 mm coil weight max.: 4 to max. diameter of coil: 1500 mm mandrel expansion range from: 370 mm mandrel expansion range up to: 530 mm feed velocity max.: 10 m/min LEVELLER UNIT sheet width max.: 350 mm sheet thickness max.: 8 mm number of leveller rolls: 21 diameter of leveller rolls: 50 mm number of infeed-/outfeed rolls: 2 diameter of feed rolls: 120 mm feed velocity max.: 10 m/min ELECTRICAL SPECIFICATIONS total power consumption: 38 kW mains voltage: 380 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS total weight approx.: 13000 ...
シート幅-最大:0350 mm コイル重量:2,00 t コイル内径:470-530 mm コイル外径:約1500 mm 総電力:1.0 kW 機械の重量:1.50 t 機械の寸法:約:1,30 x 1,6 x 1,90 m モーター駆動、手動中央拡散
