モデル
(生産者： ALZMETALL)

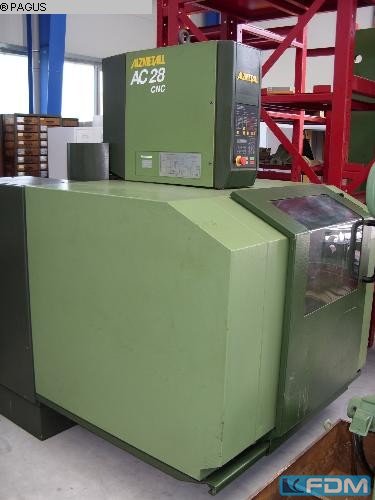

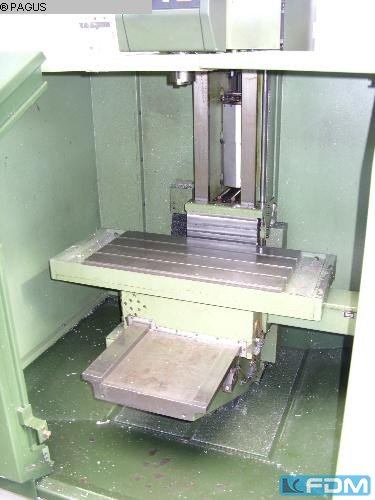

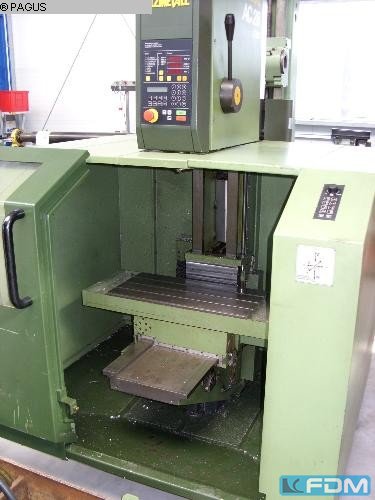

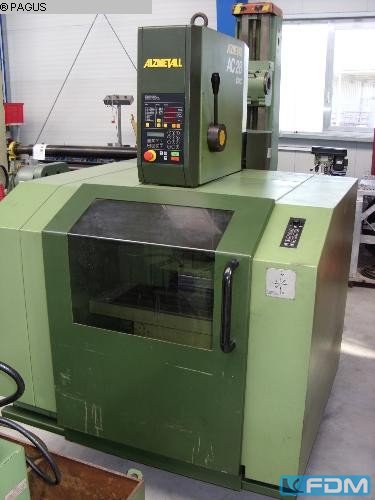

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg
bore capacity in steel (diameter): 32 mm throat: 285 mm bore stroke: 160 mm turning speeds: 55 - 1450 U/min taper MK: 3 table-size: 500 x 370 mm feed: 0,1-0,2-0,3 m/min total power requirement: 1,6 kW weight: 400 kg dimensions: 1000 x 700 x 1850 mm Features: - Automatic feed - Coolant system - Continuously variable speed control - Adjustable depth stop - Drill chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
製造元:アルツメタル モデル:AB 4/HST 製造年:2001年 電圧:400 V 速度範囲:60 - 1,530 rpm モーター出力:2.6 / 3.1 kW(3.5 / 4.2 hp) ツールホルダー:MT 4 喉深さ:330 mm スピンドルストローク:200 mm 高さ:2,135 mm 重量:850 kg 詳細はこちらをご覧ください - / お問い合わせはこちらまで -
x-travel: 1200 mm y-travel: 600 mm z-travel: 800 mm Control: Heidenhain type: TNC 426 table surface area: 1250x630 mm workpiece weight: 1000 kg Tool changer: 24 spindle taper ISO: 40 turning speeds: 30-8000 U/min total power requirement: kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 4,2x3,3x3,15 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data ...
bore capacity in steel St 60: 30 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 225 - 4300 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): 36.0 mm bore capacity in cast iron: 45.0 mm throat: 300 mm bore stroke: 160 mm : 4 speeds: 120-900 / 240 - 1780 U/min column diameter: 145 mm table-size: 615 x 460 mm feed: 0.1 / 0.2 / 0.3 / 0.4 mm/U total power requirement: 1.75 / 2.5 kW weight: 440 kg dimensions: 1200 x 800 x 2300 mm well-maintained condition () current new price approx. 18.000 Euro special price on request Equipment: - robust pillar drill (V-belt) - electromagnetic feed clutch = spindle feed with overload protection and electrical handle cross circuit - mushroom pushbutton (latching) for EMERGENCY STOP, in the front panel - electric stepless speed adjustment - Digital speed display - clockwise rotation of the drill spindle - pole-changing drive motor - Infinitely adjustable drilling depth stop - Work table with 2x T-slots - height-adjustable - Operating instructions in German T ...
bore capacity in steel St 60: 30 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 100 - 1.800 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): 40 mm threading: bis M 30 throat: 330 mm bore stroke: 180 mm : 4 speeds: 60 - 765 U/min table-size: 720 x 360 mm total power requirement: 2,6 / 3,2 kW weight: 350 kg dimensions: 720 x 1100 x 2050 mm Equipment: - automatic feed - infinitely variable speed - thread cutting device - adjustable drilling depth stop - coolant device - spindle protection - drill chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 200 mm table surface area: 720 x 560 mm 0: 60 - 765 U/min feed: 0,15 - 0,2 - 0,3 - 0,36 mm/U tool taper: MK 4 total power requirement: 3,0 kW weight of the machine ca.: 0,4 t Drill with: Feed 2 gears Left/right rotation Foot switch Coolant pump Machine light new quick-release chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bore capacity in steel St 60: 25 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 : M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514x360 mm T-Slots Amount - Width - Distance: 2x14x224 mm distance spindle - column min./max.: 132/724 mm feed: von Hand 0: stufenlos Spindle Speed: 225-4300 U/min. engine: 1,0/1,6 kW voltage: 400 V Standard equipment: - 7 TFT LCD display with touch function: Manual input of spindle speed set value Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status indicators and warnings on the display Service information Selectable operating language: DE/EN/FR/ES/IT/NL/RU - Thread cutting device, for thread cutting with stop, max. 6 threads/min (thread cutting capacity depending on spi ...
鋼材のボア容量(直径):40 / 23 mm、最大径:320 mm、ストローク:180 mm、4速:30 - 765 U/最小サイズ:720 x 550 mm 重量:480 kg 寸法:750 x 900 x 1900 mm 装備:- マルチスピンドルヘッド、ドリル23 mm- 自動送料冷却装置 - 無限可変速度 - 可変掘削深度停止 本広告のデータはLogoTech oHGのソフトウェアソリューションModulMWSで作成され した
テーパーMK:4、シリアル番号:520、機械重量約440kgこの 広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
スピンドル数:3 鋼材(直径)でボア容量40mm、ストローク180mm、機械重 約2.3トン 本広告のデータはLogoTech oHGのソフトウェアソリューションであるModulMWSで作 されました
bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 180 mm spindle turning speed range: 25-640 U/min column diameter: 180 mm table-size: Ø ca. 560 mm surface area: Ø 445 mm feeds: 0,1, 0,2, 0,3 mm/U spindle taper MT: 4 weight of the machine ca.: 1 t dimensions: ca. 650 x 1000 x 2100 mm with thread cutting device foot switch With coolant device in the base steplessly variable speeds, 2 gear stages, and 2 motor speeds The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 40 mm : M 24 : M 30 spindle turning speed - stepless: 160-2250 U/min : MK 3 spindle stroke: 120 mm throat: 293 mm column diameter: 115 mm : 515x360 mm distance spindle /table: min./max. 117/701 mm : 2 x 14 x 224 mm feed: 0,1 + 0,2 mm/U Machine height: 1840 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 34 mm : 40 mm : 40 mm : MK 4 : 100-1.800 U/min. throat: 300 mm : 615x430 mm : 2 x 14 x 224 mm : 138/688 mm column diameter: 145 mm spindle stroke: 160 mm feeds: 0,1-0,2-0,3-0,4 mm/U Machine height: 1865 mm total power requirement: 1,4/2,2 kW Standard equipment: - Electromagnetic feed clutch with overload protection and electrical Cross Handle Switches - Main switch lockable - Motor protection switch - Mushroom pushbutton (latching) for EMERGENCY STOP in the front panel - Speed adjustment stepless - Speed display digital - Protection class IP 54 - Motor insulation class F - Spindle protection with electrical protection Pos. 20.1 Tapping device with foot switch, for thread cutting with Stop, max. 6 threads/min., (Tapping power dependent on spindle speed) Pos. 25. Coolant device B, consisting of: separate container (33 l), pump with Motor protection switch, complete fitting The data for ...
シリアル番号: 1296 : JA チェンジャー: JA FACHドキュメント: JA 制御: ハイデンハイン 426 機械の重量 ca.: 6 tこの広告のデータは、LogoTech oHG のソフトウェア ソリューションである ModulMWS で作成されました
コラムドリル ALZMETALL Type AB 4 SVMasch.No. 14805 建設年 約1980年穴あけ能力 40 mmスピンドルホルダー MK 4 - ショートクイルスロート突起 340 mmクイルストローク 180 mmテーブルサイズ 710 x 560 mmコラム径 160 mmスピンドル速度 30 - 765 rpm。無段階可変モーター出力 2.3 kW および 3.4 kW 極切り替え可能主電源接続 380 ボルト、50 Hz - 2 つのモーター速度と無段階可変ギアでスピンドル速 - 低速で高トルクを実現する 2 つのギアステージを備えたギア - スピンドルのオン/オフ 経
下記の補足資料、2スピン ドルドリルヘッドフランツX.リンドナーSBS-2/2、スピ ドル間隔300mm (翻訳1:1)を参照してください
鋼鉄(直径)の軸穴容量:65 mm スロート:390 mm ボアストローク:250 mm スピンドルテーパーMT:5 テーブルサイズ:880x670 mm スピンドル回転速度-無段階:40-800 U/min 機械の重量 約:1.2トン
