型号
(生产厂家: ALFA LAVAL)
阿尔法拉瓦尔M/TL系列板式热交换器 状态：未使用。 制造商：阿尔法·拉瓦尔·伦德AB（瑞典） 类型：M/TL系列垫片式热交换器 这种类型的换热器通常用于： - 食品和饮料行业（牛奶、啤酒、果汁等） - 化工和制药行业 - 暖通空调系统（区域供热/制冷） - 用于热回收和能源优化的工业工艺工

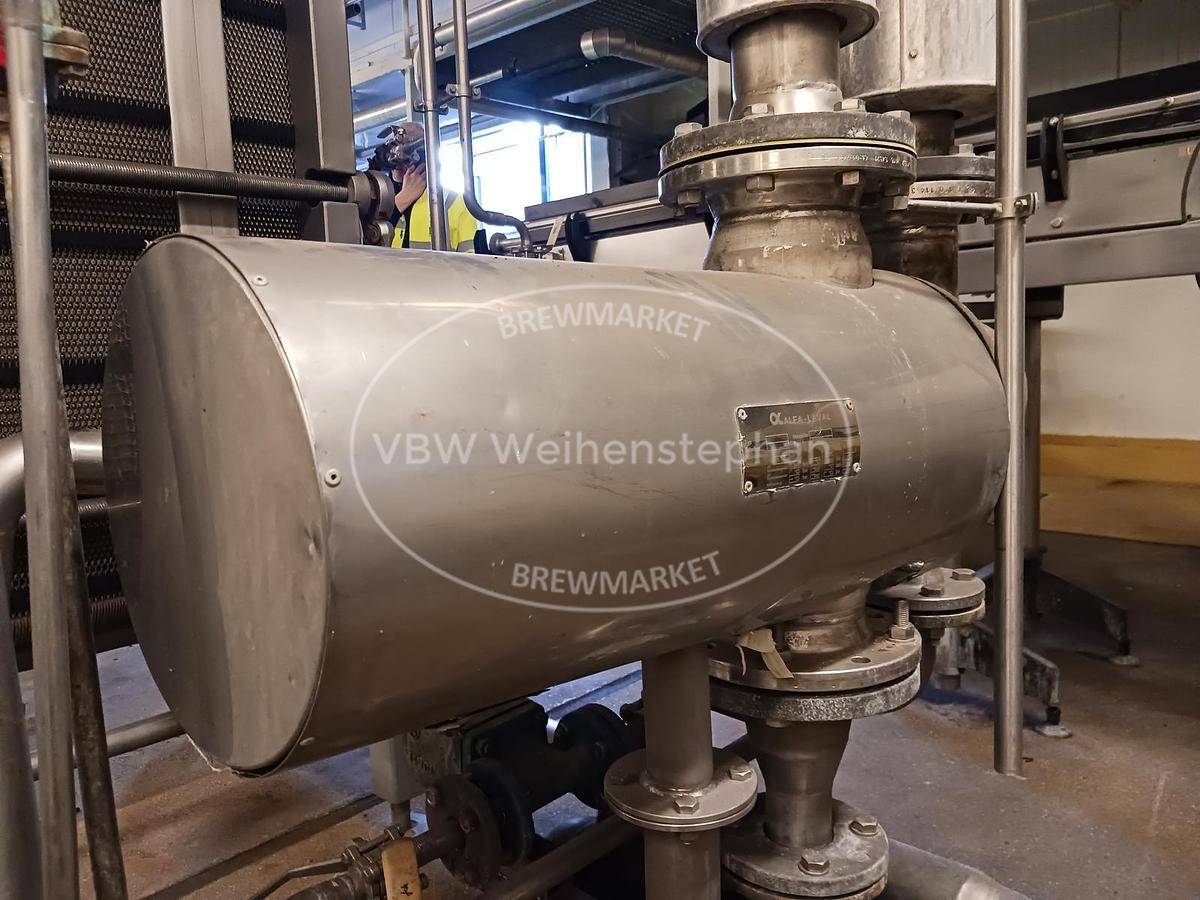

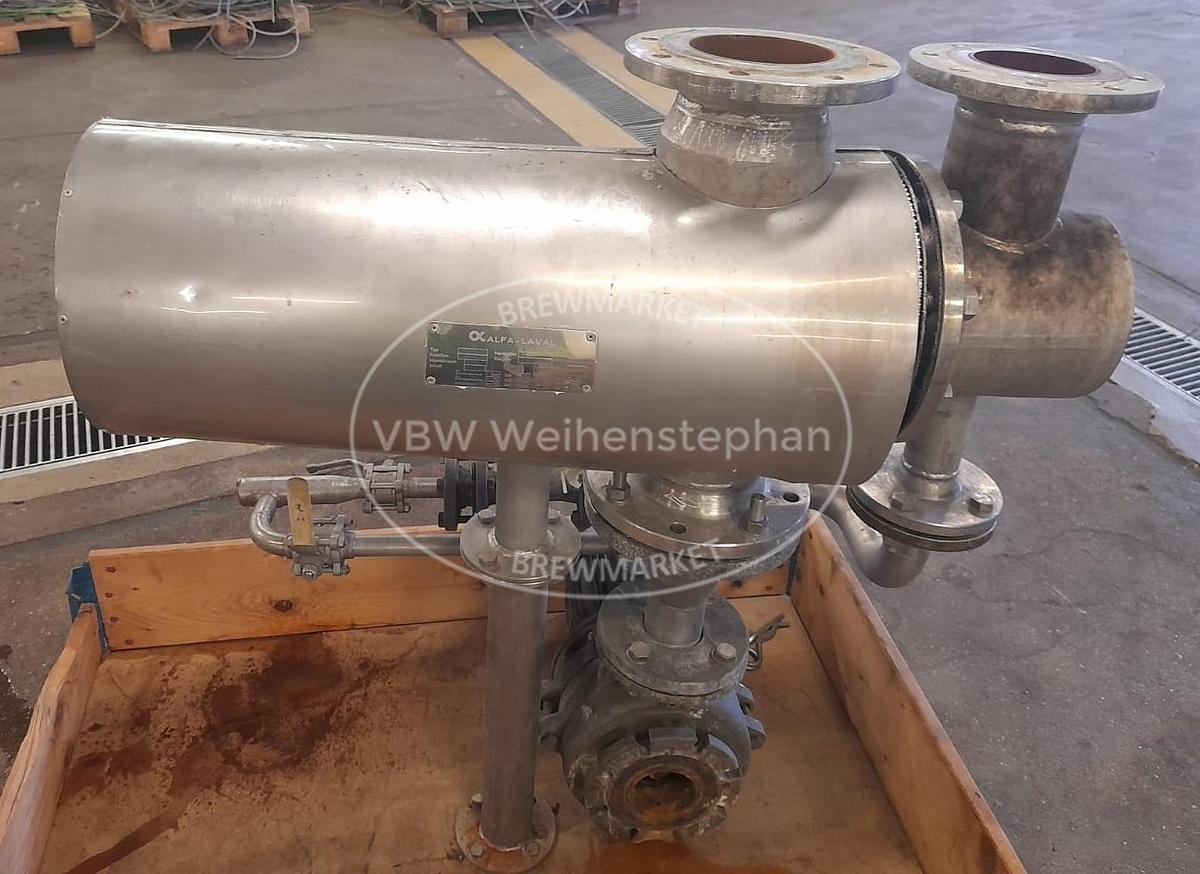

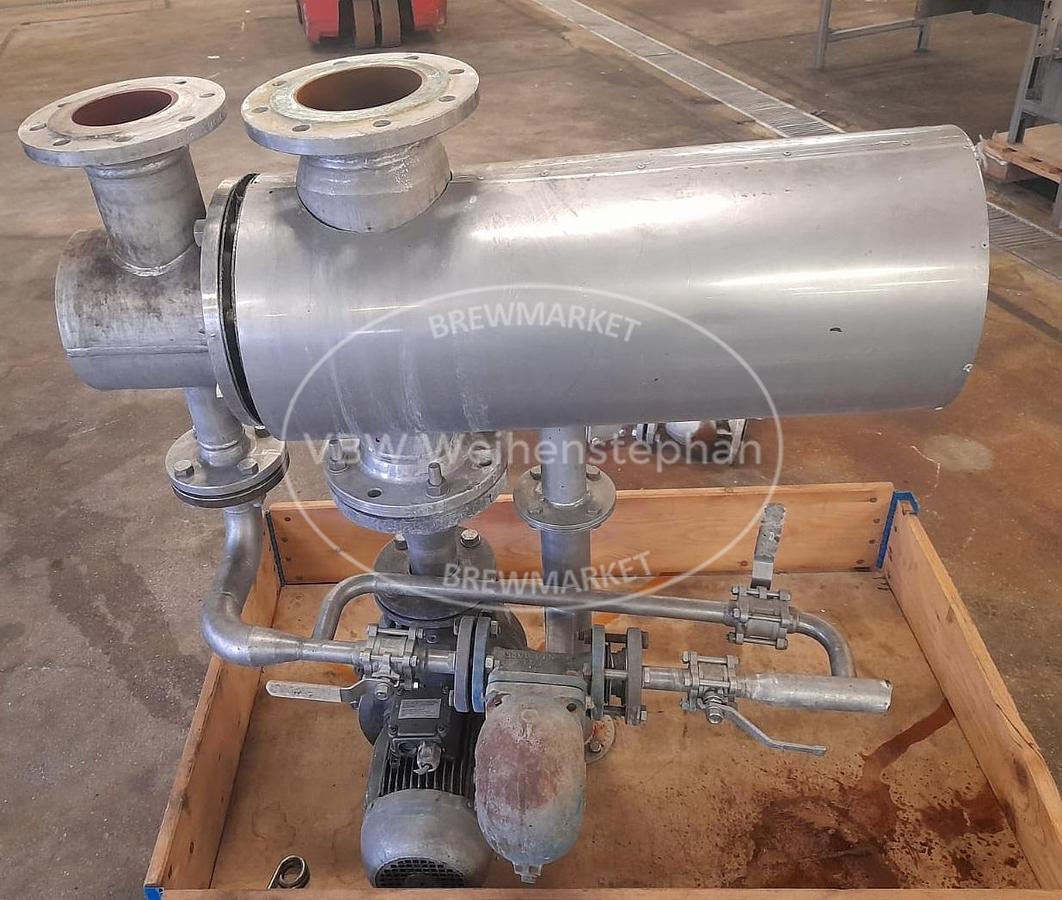

水平管状换热器，附加标题：用于CIP或热水，介质流 ：500 hl/h，工作压力孔挡板：10 bar，工作压力管道：8 bar，工作温度管道：200 C，长度：1.05 米，宽度：0.6 米，高度：1.1 米，重量：300 kg
Cream separator (Skimmer). Self cleaning. Machine comes with the bowl, motor (15 kW), motor cover, base plate with feet, cyclone and all inlet / outlet pipes., Additional features:, Excluding:, - Waterbox with water valves., - Control panel., - Service tools for maintenance., Type of Machine: Cream Separator / Skimmer, Capacity: 15.000 liter per hour, Bowl speed: 5.000 rpm, Motor: 22 kW - 380 V - 42 A - 1.450 rpm - 50 Hz - 3 Ph, Weight: ± 1.650 kg, Dimensions: 145 x 110 x 175 cm
Diaphragm pump, compressed air diaphragm pump, chemical pump, compressed air-operated double diaphragm pump -Manufacturer: Alfa Laval, air-operated double diaphragm pump -Type: DL25-AA-EET-Q -Flow rate: l/min -Discharge pressure: bar -Total dimensions: 240/230/H300 mm -Weight: 8.7 kg
Balancing valve, shut-off valve, ball valve, ball tap, pressure relief valve, control valve, flow switch, balancing valve -Manufacturer: Alfa Laval, control valve flow switch, unused -Type: RV4 Art.no.: 1762570-80 -Size: DN25 -Number: 2x valve available -Price: per piece -Dimensions: 125/104/H195 mm -Weight: 3.6 kg/piece
出售的是阿尔法拉瓦尔制造商提供的高品质旋转叶轮 。 - 技术数据： •类型：SRU571687HS • 类型：旋转叶轮泵（容积泵） • 制造商：阿尔法拉瓦尔有限公司，伊斯特本（英国） • 建设年份：2005年 • 材料：不锈钢（卫生设计） • 应用：食品、药品、化学、粘性介质 - 特色： • 温和输送（适合敏感介质） • CIP/可清洗 • 稳健的工业设计 • 适用于高粘度产品 - 应用领域： • 乳品店 • 饮料行业 • 化妆品/制药 • 化学工艺 如果您有任何问题，欢迎随时联系我
五月起发售 机器名称：用于集装箱移动污泥脱水系统 制造商：阿尔法·拉瓦尔 类型：AVNX 919 制造年份：1994年 最大鼓速：3,250 rpm 材料：不锈钢 鼓内径：353 / 202 毫米 允许。沉积物密度：1.2 kg/dm3 尺寸：长7,500 x 宽2,450 x 高 2,550毫米 整备质量：约6-7吨 技术文档：是的 Nkjwoyxl R Es Rxtpqsw 注：五月起可下载 附件：容器、聚合物工厂、给料泵、控制柜、粉碎机 排放输送机 状态：使用过 价格：应要
奶油分离器（撇渣器）。手动清洁。机器配备碗、电 （11千瓦）、电机盖、脚、带流量指示器的进出口管 、维护工具及一些备件。附加功能：不包括：， - 底板， - 控制面板。机器类型：奶油分离器/集渣器，容量：10, 000升/小时，碗转速：4,500转/分钟，电机：11千瓦 - 380伏 - 50赫兹 - 1.460转/分钟 - 22.5安培 - 3 pH， 重量：1.060公斤，尺寸：155 x 80 x 110 厘
A complete plate heat exchanger pasteurization system Alfa Laval, consisting of four sections, is available. Product: 13% whole milk, throughput capacity: 25000kg/h, total capacity: approx. 2000kW, volume: 588l, max. pressure: 10bar, max. temperature: 120°C, test pressure: 14.3bar, number of plates: 338, expansion option: 82 plates, heat transfer area: 210m², plate thickness: 0.6mm, gasket system: Clip-On, gasket material: NBRFF, total pressure loss on the product side: 422kPa, heat exchange stages: regeneration/heating/intermediate stage/cooling, plate pack length: 1856mm, carrying bar length: 3600mm, tightening bolt length: 3560mm. Overall system dimensions X/Y/Z: approx. 3850mm/850mm/2200mm, weight: approx. 2850kg. Documentation available. An on-site inspection is possible.
机器名称：酒瓶离心机 制造商：阿尔法拉瓦尔NX 4045 型号：919B-31G 制造年份：1993年 最大鼓速：3250 1/转/分钟 材料：不锈钢 驱动电机：18.5 / 21 kW 鼓内径：353 / 198 内鼓长：1200毫米 允许。沉积物密度：1.2 kg/dm3 尺寸：长度 3000 x 宽度 1000 x 高 1150 毫米 整备质量：2500公斤 技术文档：是的 备注：涡流制动器 配件：控制柜 状态：使用过 价格：应要
设备：保温，制造商：阿尔法拉瓦尔，状况：二手， 积：50,000，下底：锥形底部，设计：立式，立形： 调节英尺高度，英尺数：6英尺，保温材料：可用， 缘套：密封焊接，绝缘套材：不锈钢，内部直径：3,3 50，圆柱形高度：5,500，总高度：7,700，人孔/圆顶：圆 筒内，类型板：无，设备：通风/通风，起重机孔眼， 出口：在，最后使用：食品，与产品接触的材料：V2A 1.4301（AISI304），底部轴承：否，电流干扰器：否，底 轴承：否，电流干扰器：
设备：绝缘材料，搅拌器，制造商：阿尔法·拉瓦尔 状况：二手，体积：40,000，设计：直立式，立式结构 ：立式框架，绝缘材料：密封焊接，绝缘材料：软木 绝缘材料：不锈钢，外部直径：3,050，圆柱高度：6,0 00，总高度：8,300，底部壁厚：3，圆柱体厚度：2.5， 层墙厚：4.5，井盖/圆顶：圆筒内，类型板：是的， 备：通风/通风，起重机孔眼，喷嘴：可用，喷嘴：10 0，备注：立架框架用混凝土加固（见照片），最后使 用时间
Unused Protein Application Separator. Year: 2023. Self cleaning. The Alfa Laval HBPX range is used to separate animal whole blood into two fractions; red cells haemoglobin and plasma, with the target to recover blood plasma in the best possible quality at maximized yield. Typical separation applications are fish and seafood processing, meat and poultry processing and pet food processing. Machine comes with the bowl, motor (37 kW), motor cover, baseplate / foundation plate with feet, OWMC water valve (Operating Water Module Compact), cyclone, all inlet / outlet pipes with pumps, service tools with pressing tool for maintenance, control panel with Siemens Simatic S7-1500 PLC + Touch Screen user-friendly HMI to monitor and control the separation process parameters, big set of commissioning spares with 4x extra discs and all manuals. Including process & service liquid unit, mounted on a sepa ...
Cream separator (Skimmer). Self cleaning. Machine comes with the bowl, motor (15 kW), motor cover, cyclone, all inlet / outlet pipes, flow indicator and counter pressure valve., Additional features:, Excluding:, - Base plate and feet., - Waterbox with water valves., - Control panel., - Service tools for maintenance., Type of Machine: Cream Separator / Skimmer, Capacity: 12.000 liter per hour, Bowl speed: 4.450 rpm, Motor: 15 kW - 380 V - 50 Hz - 1.460 rpm - 30 A, Weight: 1.420 kg, Dimensions: 145 x 110 x 175 cm
The Alfa Laval MR-200 Sanitary Self Priming Liquid-ring Pump is a pump specially designed for food, chemical, pharmaceutical and other industries where acid-resistant steel is resistant to the products to be pumped. All products wetted parts, i.e. pump casing, casing cover and impeller are made of acid-resistant steel AlSl 316. Clamp screws and legs are made of stainless steel AlSl 304. lntermediate part is in cast iron which is zinc coated and laquered making it highly corrosion resistant. Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A. Impeller diameter: 199 mm. Connections on the inlet / outlet: SMS 76 mm (3). Current maximum capacity (based on the available Alfa Laval performance curves and the current motor): 48.000 ltr/h @ 0 Bar., Type of Machine: Sanitary Self Priming Liquid-ring Pump, Stock Number: 1511, Diameter of the impellor: 199 mm, Motor: 7,5 kW - 380/420 V - 50 Hz ...
Unused Alfa Laval ThinkTop V50 is a valve-top control unit that provides surveillance and control of valves during the fluid handling process. The control unit has been developed with user friendliness and robustness in mind. The V50 series is the compact option with a feature set tailored to valves that require only one solenoid valve such as butterfly and single seat valves. Solenoid valves 1 x 3/2. Digital 24 VDC. Article number: 9615400403., Type of Machine: Valve-top control unit, Art. no.: 9615400403
Unused Alfa Laval LKB Butterfly Valve which is a reliable, hygienic in-line valve for routing low and medium-viscosity liquids in stainless steel pipe systems due to its substantial opening area and low flow resistance. This hygienic valve is designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the dairy, food, beverage, brewery and many other industries. Article number: 9612628569. EPDM 316L KIT ACT LKLA-T Ø85 NC 6 MM. This LKB valve is with a pneumatic actuator for pneumatic operation (item code: 9612194003, AIR-ACTUATOR LKLA-T-85 NC 76,1 MM/DN 65-80)., Type of Machine: Butterfly Valve, Art. no.: 9612628569, Pneumatic Actuator: Yes
Unused Alfa Laval LKB Butterfly Valve which is a reliable, hygienic in-line valve for routing low and medium-viscosity liquids in stainless steel pipe systems due to its substantial opening area and low flow resistance. This hygienic valve is designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the dairy, food, beverage, brewery and many other industries. Article number: 9612628569. EPDM 316L KIT ACT LKLA-T Ø85 NC 6 MM. This LKB valve is with a pneumatic actuator for pneumatic operation (item code: 9612194003, AIR-ACTUATOR LKLA-T-85 NC 76,1 MM/DN 65-80)., Type of Machine: Butterfly Valve, Art. no.: 9612628569, Pneumatic Actuator: Yes
Unused Alfa Laval ThinkTop V70 is a valve-top control unit that provides surveillance and control of valves during the fluid handling process. The control unit has been developed with user friendliness and robustness in mind. The V70 series is the more flexible option compare to the V50, that can be configured to meet the needs of the most demanding valve applications such as Mixproof valves. Solenoid valves 3 x 3/2. Digital 24 VDC. Article number: 9615400012., Type of Machine: Valve-top control unit, Art. no.: 9615400012
阿尔法·拉瓦尔MRPX 214 TGV或MRPX 413 SGV分离器主轴，机器类型：主轴，传动轴：50 Hz
Bacterial removing separator (Bactofuge). Self cleaning. Machine comes with the bowl, motor (22 kW), motor cover, base plate, feet, desludge cyclone, control panel (original Alfa Laval), OWM valve with waterbox (original Alfa Laval), all inlet/outlet pipes, service tools for maintenance including pressing tool. Instruction manual available., Type of Machine: Bactofuge (Bacterial-Removing Centrifuge), Capacity: 15.000 liter per hour, Bowl speed: 4.950 rpm, Motor: 22 kW - 380 V - 60 Hz - 1.750 rpm - 40 A, Dimensions: 180 x 130 x 175 cm, Weight: 2.130 kg
阿尔法拉瓦尔CPM恒压调节阀（CPMI-2）气动调节阀的未 用翻新套件。正品零件服务套件 CPMI - 2/XPMO - 2 上层 NBR，下部 EPDM/PTFE，零件号 9611920218.，机器类型：恒压调节阀，艺术品。编号：96 11920218
Unused Alfa Laval ThinkTop V50 is a valve-top control unit that provides surveillance and control of valves during the fluid handling process. The control unit has been developed with user friendliness and robustness in mind. The V50 series is the compact option with a feature set tailored to valves that require only one solenoid valve such as butterfly and single seat valves. Solenoid valves 1 x 3/2. Digital 24 VDC. Article number: 9615400403., Type of Machine: Valve-top control unit, Art. no.: 9615400403
The Alfa Laval SRU6/260/LS is a robust positive displacement lobe pump designed for the gentle and efficient handling of sensitive process fluids. Engineered in accordance with the most stringent hygienic design standards, the pump features fully validated and effective Cleaning-in-Place (CIP) capability. The SRU pump range is suitable for applications across the dairy, food, beverage, brewing, chemical, pharmaceutical, and home and personal care industries. Its smooth, low-shear pumping principle allows for the handling of products with a wide range of viscosities—from low to very high—including creams, gels, emulsions, aerated mixtures, and media containing delicate cells or organic solids in suspension. Products containing fragile solids, such as curd, can be transferred without damage due to the specially designed tri-lobe stainless steel rotors. The pump has a nominal displaceme ...
奶油分离器（撇渣器）。自清洁。机器配备碗、电机 15千瓦）、电机盖、旋风分离器、底板、脚、带水阀 的水箱、带压力计和维护工具的进出口管。附加功能 不包括：， - 控制面板。机器类型：奶油分离器/撇渣机，容量：12, 000升/小时，碗转速：4.450转/分钟，电机：15千瓦 - 380伏 - 50赫兹 - 1.450转/分钟 - 30安培 - 3 pH， 重量：1.550公斤，尺寸：145 x 110 x 175 厘
Bacterial removing separator (Bactofuge) with nozzles. Self cleaning. Machine comes with the bowl, motor (45 kW), motor cover, new base plate, feet, desludge cyclone, OWM watervalve and service tools for maintenance including pressing tool. , This Bactofuge is already convertered to a rubber damped silent gear drive!, Additional features:, Excluding:, - Control panel., Type of Machine: Bactofuge (Bacterial-Removing Centrifuge), Capacity: 13.000 liter per hour, Bowl speed: 4.150 rpm, Motor: 45 kW - 1.465 rpm - 400 V - 50 Hz - 84,5 A, Weight: 2.700 kg, Dimensions: 165 x 135 x 190 cm
细菌清除分离器（细菌分离器）。自清洁。机器配备 、电机（22千瓦）、排水旋风分离器、底板、脚部、 压力调节用的CPM阀、控制面板（原阿尔法拉瓦尔）和 箱（原装阿尔法拉瓦尔）。附加功能：不包括：- 维护用服务工具，容量10,000 - 15,000升/小时，机器类型：细菌清除离心机（Bactofuge） ，容量：15,000升/小时，碗转速：5.069转/分钟， 电机：22千
