utilisé
GÉNÉRALITÉS N° de projet : 905623 Quantité : 1 pc. Fabricant : EMAG Modèle : VL 3 Contrôle : Siemens 840 D solutionline Année de construction : 2018 Condition : Machine d’occasion Durée du programme environ (heures) : 28 500 DESCRIPTION TOURNER Diamètre de braquage max. 210 mm Longueur de tournage max. 100 mm Diamètre de circulation max. au-dessus du couvre-lit 210 mm Vitesse max. de la broche principale 7500 1/min Puissance max. broche principale à ED 10-40/100% 25/16 kW Couple max. broche principale à ED 10-40/100% 200 Nm Diamètre de la broche dans la broche principale du palier avant 80 mm Taille de la bride de la broche broche principale taille 5 (DIN 55026) Axes sur l’unité de broche principale X/Z Course en X/Y/Z Broche principale 400/-/200 mm Vitesse de déplacement rapide max. en X/Y/Z Unité de broche principale 60/-/30 m/min ...
utilisé
N° Inv. : 5794 Modèle : VSC 250 DS Producteur : Emag Création : 2007 Paramètres: Système de contrôle : Siemens Diamètre de tournage maximum : 250 mm Longueur maximale de tournage : 100 mm Axe X : 680 mm Axe Z : 200 mm Courant nominal : 35 kW Poids : 7500 kg
utilisé
N° Inv. : 4723 Modèle : VL 5S Producteur : Emag Création : 2007 Paramètres: Système de contrôle : Siemens 840 SL Diamètre de tournage maximum : 260 mm Porte-outil : 12 pièces Longueur du tour : 3800 mm Largeur du tour : 2100 mm Hauteur du tour : 2400 mm Poids du tour : 7000 kg
utilisé
Année de construction: 2011 Contrôle Siemens 840 Dsl Diam de rotation. [mm] 250 Fuseau: Technologie de broche de moteur Vitesse 6 000 tr/min Puissance (max.) 39 kW Couple (max.) 460 Nm Cylindres de serrage Cylindres de serrage complets Mandrin à 3 mâchoires à serrage de pièce, autoblock SMW, KNCS-NB-260-72 Porte-outils I: Tourelle technologique avec 12 stations Porte-outil VDI 40 Entraînement d’outils 6 000 tr/min, 7,5 kW, 24 Nm Porte-outils II: Technologie:Station de forage avec alimentation IK Porte-outil Capto C8 Généralités: Course en X/Z 1 180/525 mm Traversée rapide en X/Z 60/30 m/min Équipement/accessoires : Système de mesure de déplacement directement en X/Z (échelle de verre) Convoyeur de copeaux de gestion de copeaux Système IKZ de gestion du liquide de refroidissement avec filtre à bande de papier et haute pression Surveilla ...
utilisé
Centre tournant USC 11, Emag – utilisé - : Prix à partir de l’emplacement: 29.500.-€ (net), plus démontage, etc.! Désignation du système centre de tournage USC 11 Fabricant: EMAG Année de construction: 2006 Disponible : maintenant Condition: bon - très bon Lieu: Région de Hambourg Données techniques de la machine: Courant Passage de mandrin max 160 mm Course X 300 mm Course en Z 300 mm Alésage de la broche principale 180 mm Vitesse maximale 2000 tr/min Moteur principal 80KW pleine puissance à partir de la vitesse de broche 500 tr / min Vitesse de rotation rapide. en X 35 m/min Vitesse de rotation rapide. en Z 35 m/min Puissance maximale pour X et Z 4,1 KW Couple maximal pour X et Z 13 KW Tension de fonctionnement 400 V Tension de commande - DC 24 V 230 V CA Fréquence 50 Hz Charge connectée 130 KW Fusible d’alimentation 250 A Poids env. ...
utilisé
Tour CNC vertical Fabricant EMAG Type VL2 Y Année de construction 2016 Contrôler Fanuc Diamètre de tournage max 100mm Hauteur de tournage 150mm Diamètre du mandrin 160mm 12 x BMT 55Unité porte-outils pour outils entraînés Bande transporteuse circonférentielle 27 pcs Alimentation en liquide de refroidissement 15bar Convoyeur Mesure de la pièce La machine est connectée à un autre Emag VL2 La machine est en parfait état
utilisé
Tour CNC vertical Fabricant EMAG Type VL2 Y Année de construction 2015 Contrôler Fanuc Diamètre de tournage max 100mm Hauteur de tournage 150mm Diamètre du mandrin 160mm Axe des ordonnées 12 x BMT 55Unité porte-outils pour outils entraînés Bande transporteuse circonférentielle 27 pcs Alimentation en liquide de refroidissement 15bar Convoyeur Mesure de la pièce La machine est connectée à un autre Emag VL2 La machine est en parfait état
utilisé
GÉNÉRALITÉS N° de projet : 905398 Quantité: 1 pcs. Fabricant: EMAG Type: VL 3 Contrôle: Fanuc 18i TB Année de construction : 2001/2022 État d’avancement: Machine remise à neuf Couches env.: 2-3 couches DESCRIPTION : __________ TOURNER diamètre de circulation sur le couvre-lit 210 mm diamètre du mandrin 170 mm vitesse broche principale 7500 1/min broche principale de puissance à ED 10-40/100% 25/16 kW couple broche principale à ED 10-40/100% 134/85 Nm Diamètre de la broche dans le roulement avant Broche principale 80 mm Taille de la bride de la broche principale taille de la broche 5 (DIN 55026) Axes sur l’unité de broche principale X/Z Déplacement en unité de broche principale X/Y/Z 400/-/200 mm vitesse de traversée rapide dans l’unité de broche principale X/Y/Z 60/-/30 m/min Force d’alimentation dans l’unité de broche principal ...
utilisé
:::SPÉCIFICATIONS TECHNIQUES::: Modèle CNC: Siemens Version CNC: 840D Nez de broche principal: ASA 8 Tour inversé: oui Course de broche de l’axe X: 850mm Course de broche de l’axe Z: 250mm Stoker ou entrepôt de pièces de rechange: oui Puissance de la broche principale: 43Kw Diamètre autocentrant de la broche principale: 315mm Diamètre de tournage: 250mm Longueur de tournage: 125mm Nombre de tours de broche principale: 4300 Nombre de tours d’outils : 1 Nombre de places d’outils première tourelle: 12 Nombre de première tourelle motorisée : 12 Premier type de fixation d’outil de tourelle: VDI 50 Alimentations linéaires rapides X Y Z: 45m / min Évacuateur de copeaux: tapis Nombre de porte-outils motorisés fournis : 1 Nombre de porte-outils fixes fournis : 10 :::D IMENSIONS ET POIDS::: Longueur: 3380mm ...
utilisé
Vertical CNC lathe, utilisé / révisé Type de machine: Emag VSC 200 Contrôle: Siemens 840 C Construit: 1995 / 2007 remanié DONNÉES TECHNIQUES: Vitesse/vitesses: [1/min.] : 6 000 Couple:/ couple [Nm]: 480 Max tournant sur le lit / swing diam.: 290 mm Puissance /puissance de conduite : [kW] 34 Doublure / chuck diam. 200 mm Revolver / tourelle: 12 vitesses, VDI 40, Sauter outils entraînés/ outils pilotés 7,8 KW, Voyage: X-axe / x -voyage: 550 mm Z-axe/ z- Voyage: 200 mm Réponse rapide/ voyage rapide : (X/Z) [m/min] 30 / 20 Flux: (X/Z) [m/min.] 11 KN Valeur de connexion: [KW] 36 kW Poids de la machine : [kg] 6 500 fonctionnalités: Convoyeur de puce / convoyeur de puce, convoyeur de charnière/ pick up convoyeur gauche ; 300mm de large/ large; Hauteur d’éjection 800mm Sonde ; Mesurer ...
utilisé
There are three identical machines available, x-travel: 850mm, z-travel: 160mm, max. workpiece length/ diameter: 80/ 130mm, max. chuck diameter: 160mm, connected load: 48kW, controls: SIEMENS 840D, weight: 9.6t, including one headstock, one of the machines is missing the control cabinet.
utilisé
There are three EMAG VCS 200 available, connected load: 36kW, without tools, with documentation, were maintained regularly.
utilisé
X-travel: 400mm, z-travel: 200mm, swing: 210mm, max. rotational speed: 5000/min, controls: FANUC, with handling, machine needs overhauling.
utilisé
There are two identical Emag VSC 200 available, x-travel: 685mm, z-travel: 160mm, chuck diameter: 200mm, circumferential diameter: 290mm, connected load: 29kW, controls: SIEMENS SINUMERIK, length: 2700mm, width: 1150mm, height: 2800mm, weight: 6.5t, with documentation.
utilisé
turning diameter:260 mm turning length:200 mm control:SIEMENS 840 C WORKING RANGE TURNING:. - turning diameter (max):260 mm - workpiece length (max):200 mm - workpiece weight max.:50 kg MAIN SPINDLE:. - spindle bore diameter:50 mm - spindle revolutions (min):10 /min - spindle revolutions (max):6000 /min - torque (max.):460 Nm - spindle diameter:100 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:30 kW - mains power supply:40 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3160 mm - space requirements width:1200 mm - total height:2650 mm - total weight approx.:6500 kg
utilisé
Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
utilisé
Description: serial number: M200.24423 control: SIEMENS Sinumerik 840D working hours: approx. 78048 hrs.  , travels: X-axis: 685 mm Z-axis: 160 mm turning diameter: 290 mm turning length: 200 mm rapid traverse: X-axis: 45 m/min. Z-axis: 30 m/min. max. spindle speed: 6500 rpm spindle bore: 50 mm toolchanger positions: 12 shank diameter: 40 mm power main motor: ,16 kW  , inlcuding: DGS MBF 450 Chip Conveyor, YOM 1998 IFS IFE 2000 Suction Filter, YOM: 1999, power: 0.75 kW conveyor/transportation system  , please also have a look at the PDF documents of this machine turning diameter: 290 mm, Drehlänge: 200 mm, serial number: M200.24423, x-motion: 685 mm, z-motion: 160 mm, Read off operating hours: 78,048 h, Accessories included: Yes, control: SIEMENS Sinumerik 840D, toolchanger positions: 12, spindle bore: 50 mm, turning speed range: ...
utilisé
swing diameter:200 mm weight of the machine ca.:15 t Distance between tips:832,5 mm turning length:380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers
utilisé
turning diameter:200 mm swing diameter:260 mm turning height:60 mm
utilisé
turning diameter:175 mm turning height:70 mm chucking diameter:175 mm
utilisé
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
utilisé

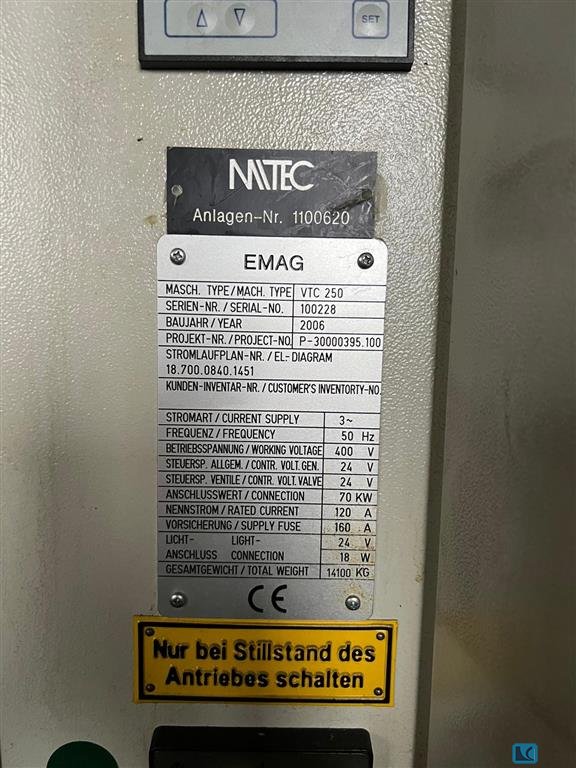

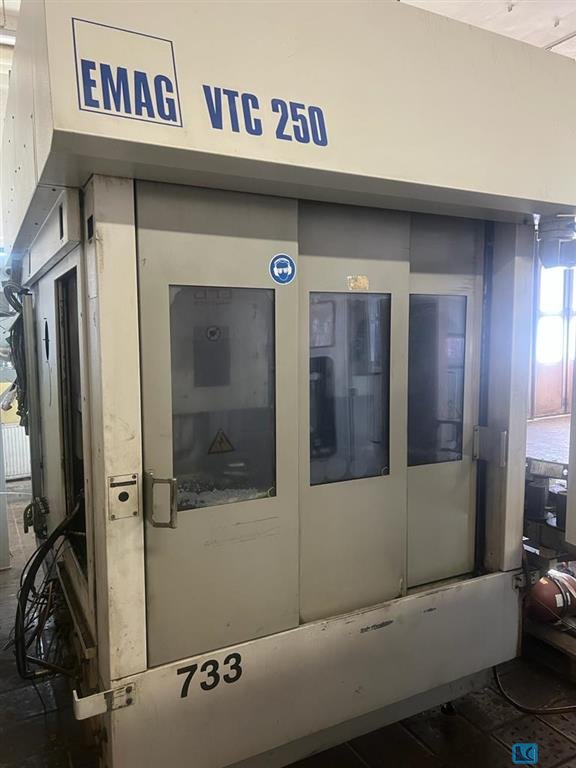

Description: EMAG VTC 250 with automation C-axis, driven tools with automation (tool assemblies) 250mm machining weight approx.: 15,000 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,600 x 3,200 mm
utilisé
Description: no documentation available turning diameter: 260 mm, Drehlänge: 200 mm, control: Siemens 840 C, spindle bore: 50 mm, weight approx.: 6,000 kg, Approx. Onsite Dimension. (l x w x h): 3,160 x 1,200 x 2,650 mm
utilisé
This EMAG VL3 Vertical Lathe was manufactured in the year 2001. It is equipped with a Fanuc Series 18i-T control unit. The machine was refurbished completely in 2022 to have equivalent condition as new machine. See all details of overhaul in attached PDF.
utilisé
This EMAG VL 3 Lathe was manufactured in the year 2002 in Germany. It is equipped with a Fanuc Series 18i-T control unit. The machine has a spindle speed of 7500 rpm.
utilisé
This EMAG VL 3 Lathe was manufactured in the year 2006. It is equipped with a SIEMENS SINUMERIK control unit. The machine has a spindle speed of 7500 rpm.
utilisé
This EMAG VL2 Lathe was manufactured in the year 2016 in Germany and has 70761 production hours. It is equipped with an EMAG control unit. The machine disposes of 3 axis.
utilisé
This EMAG VSC 250 Duo Lathe was manufactured in the year 2002. It is equipped with a SIEMENS control unit. The machine has a spindle speed of 6000 rpm.
utilisé
Three axes + revolver turret with twelve driven tools + automation. Turning diameter: 160 mm Turning height: 150 mm Table/pallet diameter: 100 mm Turning power: 19.5 kW Z axis carriage travel: 375 mm Number of tools: 12 Pallets: Yes Length: 7000 mm Width: 3500 mm Height: 3100 mm Weight: 5500 kg
utilisé
