Centros de processamento

: 2500 mm: 1400 mm: 1400 mm: 1600x1400 mm: SK 50 : 4.000 U/minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

KIRA (Japão) KN 30 VS Centro de processamento de paletes 2 vezes / vertical -Ano de construção 1992 (máquina da primeira propriedade, muito bem conservada) -Mudança de palete de 2 compartimentos / mudança de palete redonda -Fanuc OM - Mate - Tamanho da palete: 300x300mm Bojvthe00tv -Viagens X400, Y300, Z280mm -Mudança de ferramenta 12 vezes - Velocidades do eixo 200 - 4500rpm - Potência de acionamento 7.5 KW -Transportador de cavacos / dispositivo de descarga / iluminação da área de trabalho Dimensões: CxLxA 2.4x1.7x2.3 metros / Peso 3500Kg

x-travel: 460 mmy-travel: 265 mmz-travel: 305 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Fanuc 18i TBpallet changing devicewith 4th axis Nikken CNC 100 YA16-fold automatic tool changerchip conveyorcoolant deviceTechnische Daten / technical details:Verfahrweg X / X-Travel 460 mmVerfahrweg Y / Y-Travel 265 mmVerfahrweg Z / Z-Travel 305 mmPalettengröße / pallet size 470x310 mmWerkzeugschaft / spindle taper BT30 Drehzahl / spindle speed 0-15000 UpM /rpmAnzahl der Werkzeugplätze / tool places in ATC 16 fach / foldGewicht der Maschine ca. / weight 4000 KgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -Technical data, accessories and description of the machine are not binding.The data for this ad was created with ModulMWS - the software solution of LogoTe ...

x-travel: 1000 mmy-travel: 600 mmz-travel: 500 mmcontrol: Heidenhain 426milling-head swivable +/-: NC round table: NC Tool changer: : spindle taper ISO: 40 Tool changer: 40 table diameter: 900 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1000 mm, 600 mm, 700 mm

N.º : 7254 Tipo: MCV 1000 Produtor: Kovosvit Criado: 2002 Parâmetros: Sistema de controle: Heidenhain 426 Ciclo de trabalho: 85206 h Horário: 82523 h Comprimento da mesa de trabalho: 1300 mm Largura da mesa de trabalho: 600 mm Velocidade máxima do eixo: 10000 1/min Número de eixos: 3 Curso do eixo X: 1000 mm Curso do eixo Y: 600 mm Curso do eixo Z: 700 mm Número de posições de empilhamento: 20 peças Peso da máquina: 5500 kg Revisão de eixo e motor em 8/2023

x-travel: 800 mmy-travel: 630 mmz-travel: 710 mmControl: Siemens type: 840Dsl Number of spindles: 2 St.turning speeds: 30-12000 U/mintool taper: HSK 63 Tool changer: 80 Pos.Feed: 1-40.000 mm/mintotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mDoppelwendespannerMaschinennummer 0552.80.00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 700 mmy-travel: 700 mmz-travel: 700 mmControl: Siemens type: 840Dsl Number of spindles: 2 St.total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mDoppelwendespannerMaschinennummer 0552.80.00The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1500 mmy-travel: 1500 mmz-travel: 800 mmspindle taper ISO: HSK 63A spindle turning speed range: 18000 U/minspindle motor: 23 kWb-axis: +/- 110 °c-axis: +/- 220 °control: Heidenhain iTNC 530 workpiece weight: 5000 kgno. of tools in the magazine: 40 StückTable dimensions: 1480 x 1440 mmtotal power requirement: 78 kVAweight of the machine ca.: 15 tdimensions of the machine ca.: 5 x 3,5 x 4,1 m5-axis machining centerequipped with:- CNC control Heidenhain iTNC 530 with HR 420- movable table- Blum laser tool measurement- chip conveyor- tool changer 40-fold (HSK 63A)- IKZ 40bar- filter system55000h Machine On, 20760h Program-Run, 23900h SpindleThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 630 , 630 , 710

- X: 630 mm - Y: 630 mm - Z: 710 mm - Gama de velocidade: 12.000 rpm - velocidades de alimentação X/Y/Z: 60 m/min., W: 60 1/min, - máx. forças (X/Y/Z): 17,5 / 20 / 17,5 kN - Dispositivo de refrigeração - Transportador de chips - Suporte de ferramentas: HSK 63 - Controlo: MTX (Bosch Rexroth) O Masch. Peso: 11000 kg - Dimensões (W x D x H): 7,0 x 2,0 x 3,2 m - Condição: muito bom detalhes Centro de maquinação de alta velocidade com eixo principal horizontal, sistemas de medição direta em todos os eixos, eixo principal (Weiss GmbH), quase nenhuma hora de funcionamento, foi utilizado apenas para fins de investigação numa universidade técnica

curso x: --- mm y-curso: --- mm z-curso: --- mmControlo: --- Potência total necessária: --- kWpeso da máquina ca.: --- tdimensões da máquina ca.: --- m

Curso X: 730 mm Curso Y: 730 mm Curso Z: 800 mmControlo: Profissional 6: 60 St.total requisito de potência: - kWpeso da máquina ca.: - tdimensões da máquina ca.: - m

Curso X: 730 mm Curso Y: 730 mm Curso Z: 800 mmControlo: Profissional 6: 60 St.total requisito de potência: - kWpeso da máquina ca.: - tdimensões da máquina ca.: - m

x-travel: 800 mmy-travel: 750 mmz-travel: 770 mmControl: Fanuc type: PRO-3 tool taper: HSK 100power capacity: 30 kWturning speeds: 10000 U/minrapid traverse: 35 m/minTool changer: 90 Pos.Cooling through the spindle: 70 barsize of pallet: 630x630 mmTable load: 1200 kgrotary table tiltable: 1 Gradtype of pallet-changer: 2 total power requirement: kWweight of the machine ca.: 15 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 750 mmz-travel: 770 mmControl: Fanuc type: PRO-3 tool taper: HSK 100power capacity: 30 kWturning speeds: 10000 U/minrapid traverse: 35 m/minTool changer: 90 Pos.Cooling through the spindle: 70 barsize of pallet: 630x630 mmTable load: 1200 kgrotary table tiltable: 1 Gradtype of pallet-changer: 2 total power requirement: kWweight of the machine ca.: 15 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 900 mmy-travel: 800 mmz-travel: 970 mmControl: Fanuc type: PRO-3 tool taper: HSK 100power capacity: 30 kWturning speeds: 12000 U/minrapid traverse: 50 m/minTool changer: 90 Pos.Cooling through the spindle: 70 barsize of pallet: 630x630 mmTable load: 1200 kgrotary table tiltable: 1 Gradtype of pallet-changer: 2 total power requirement: kWweight of the machine ca.: 20 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

curso x: 1000 mm curso y: 1000 mm curso z: 950 mmControlo: FANUC Necessidade de potência total: - - - kW peso da máquina ca.: - - - tdimensões da máquina ca.: - - - m

x-travel: 1300 mmy-travel: 600 mmz-travel: 800 mmcontrol: Heidenhain TNC 530 table dimensions: 1030 x 630 mmturning speed range: 10000 U/minpower capacity at 60% / 100 % load: 30 / 17 KWmax. torque at 40% / 100% load: 190 / 120 Nmfeeds x/y/z: 30 m/mintool taper: HSK A63 tool magacine with: 80 Plätzenrotary table diameter: 630 mm: 40 barslewability of milling head: +/- 105 °table load: 2,50 ttotal power requirement: - kWweight of the machine ca.: 9,5 tdimensions of the machine ca.: - m2022 Spindle overhaul5-axis BAZ With:- HEIDENHAIN iTNC530 control- swivel head +/- 105- electronic handwheel,- NC rotary table integrated (dia. 630mm)- Coolant system, coolant through the spindle 40bar- paper belt filter- tool changer 80-fold (HSK A63)- direct measuring system in x,y,z- Tool breakage control & length measurement- Machine on: 000h Spindle run: 0hThe data for this ad was created with Mod ...

Key data: 1300 mm, 600 mm, 700 mm

Matec 30 L, Ano de construção 2010, Controle Heidenhain iTNC 530, curso X/Y/Z1300/600/700 mm, velocidade do eixo até 12.000 rpm, Gravação HSK 63 - A, Elketr. Volante IKZ 20 bar, filtros de fita de papel, Ww 80 vezes, Câmara de trabalho de revestimento completo, você. Sistemas de medição, Transportador foles com ripas de aço, Sondas 3D, Dispositivo de medição a laser,

x-travel: 2000 mmy-travel: 600 mmz-travel: 700 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Sinumerik 840D80-fold automatic tool changerchip conveyorTechnische Daten / technical details:X-Weg / X-travel 2000 mmY-Weg / Y-travel 600 mmZ-Weg / Z-travel 700 mmSpindelaufnahme / spindle taper HSK 63A Drehzahlbereich / spindle speed 20-9000 UpM /rpmTischaufspannfläche / table clamping area 3000x420 mmWerkzeugwechselmagazinplätze / number of tool places in changer 80 Antriebsleistung Spindel 40%ED / drive capacity spindle 40%ED 15 kWGewicht ca. / weight 15000 kgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.The data for this ad was created with ModulMWS - the software solution o ...

x-travel: 600 mmy-travel: 410 mmz-travel: 470 mmwork height max.: 620 mmtable surface area: 600x380 mmnumbers of pallets: 2 turning speeds: 30-7000 U/minspindle diameter: 75 mmTool changer: 30 Control: Matsuura type: MX 3 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

travel -x axis: 800 mmtravel -y axis: 1.010 mmtravel -z axis: 650 mmcontrol: HEIDENHAIN TNC 420 max. Spindle speed: 20.000 U/min.numbers of positions in the tool changer: 96 tool taper: HSK 63 Power: 40 kWweight of the machine: 18.600 kg5-axis simultaneous machining center | MAXIMART - Mtcut UDS 80 H-5Aequipped with rotary and swivel rotary tableThe machine has only 7.000 H spindle hours.The machine is in a well-maintained condition.Please note that the technical detailswere added from comparable machines.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: UDS80 | UDS-80 | UDS 80 H5A | UDS80HThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1500 mmy-travel: 650 mmz-travel: 650 mmsize of pallet: 1740 x 650 mmspindle taper: SK 50 spindle turning speed range: 25 - 6000 U/minfeeds longditudinal/cross/vertical: max. 8 mm/minrapid traverse longitudinal and cross: 26 m/minrapid traverse vertical: 20 m/minspindle throat: 665 mmdistance spindle nose and table: 200 / 850 mmdrilling in full material: 50 mmøthreading: M 45 ATC: 60 Postool diameter: 125 mmwotkpiece diameter with 2 vacant positions: 260 mmworkpiece length: 400 mmweight of tools max.: 20 kgspindle drive: 18,5 kWmax. torque on the spindle: max. 758 NmAccessories: chip conveyor, coolantThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 560 mm, 630 mm, 600 mm

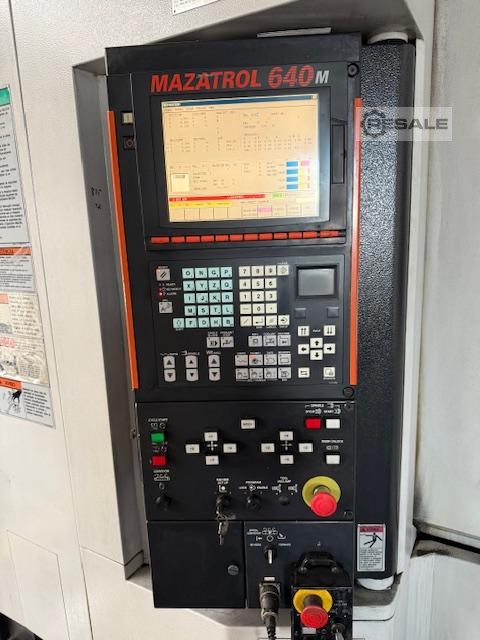

Centro de Maquinação CNC Horizontal MAZAK PFH-4800 + 6APC Mazatrol PC FUSION 640 M Controlador Ano de fabrico 2004 Trocador de paletes 6 vezes Tamanho da palete: 400 mm x 400 mm Viagens: X: 560 mm Y: 630 mm Z: 600 mm Mesa rotativa NC, 4º eixo / 0,001 Distância da superfície da palete ao centro do eixo 80 mm – 710 mm Distância do centro da palete ao nariz do eixo 70 mm – 670 mm Motor de eixo AC 30/22 kW Velocidade máxima do eixo 15.000 rpm SK-40, DIN69781 Trocador de ferramentas com 240 posições de ferramentas, Colmeia de ferramentas Multi Tool Loading 8 Ferramentas Arrefecimento pelo fuso, 70 bar Sistema de refrigeração separado com filtro e bomba de alta pressão Transportador de cavacos, ejeção para a parte traseira Marcação CE

Key data: 560 mm, 410 mm, 480 mm

MAZAK MTV 414/22B bom estado, Controlo: MAZATROL M-PLUS Especificações: Tamanho da tabela: 900x410mm Carga da mesa: 500 kg. Velocidade de travessia rápida: Eixo X: 26 m/min. Eixo Y: 26 m/min. Eixo Z: 20 m/min. Eixo: DIN 69871 Suporte para ferramentas: SK40 Velocidade: 50 - 7.000 1/min. Ferramentas: 22 Documentação disponível.

x-travel: 510 mmy-travel: 510 mmz-travel: 460 mmcontrol: Mazatrol Fusion 640M Main spindle:: Max. rpm: 12.000 min/-1power capacity - main spindel: 22 / 15 kWtool taper: ISO 40 Spindle diameter: 80 mmAccelaration: 0 - 12.000 min/-1 : 1,7 sectable surface area: 500 x 400 mmT-slots: 5 x 18 mmT-slot - distance: 80 mmdistance spindle /table: 190 - 650 mmmax. workpiece height: 500 x 500 x 405 mmmax. table load: 300 kgSwivel range A-Axis: +30 / -120 °rotation range c-axis: +/- 360 °Tool-Presetter:: number of toolpositions: 40 pos.max. tool diameter: 80 mmmax. tool-dia with free toolbox: 125 mmmax. tool length: 300 mmmax. tool weight: 8 kgchange-time chip to chip: 4,5 secfeeds:: feed speeds: X/Y/Z: 1 - 50.000 mm/minrapid traverse: X/Y/Z: 50 m/minIndexing: A + C: 0,001 °switching time: 90°: A/C: 1,9 / 1,5 sectotal power requirement: 51 kVAweight of the machine ca.: 7,5 tdimensions of t ...

x-travel: 630 mmy-travel: 765 mmz-travel: 510 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Mazatrol Matrix2-fold pallet changing deviceNC-swivel rotary table80-fold tool changerhigh pressure coolant through the spindle 20barchip conveyorTechnische Daten / technical details:Verfahrweg X / X-Travel 630 mmVerfahrweg Y / Y-Travel 765 mmVerfahrweg Z / Z-Travel 510 mmSchwenkbereich A-Achse / swivel range A-axis -120 - +30 °Drehbereich C-Achse / rotary range C-axis 360 °Tischgröße / table size 500x500 mmWerkzeugschaft / spindle taper SK40 Drehzahl / spindle speed 35-12000 UpM /rpmEilgang / rapid feed 50 m/minAnzahl der Werkzeugplätze / tool places in ATC 80 fach / foldAntriebsleistung Hauptantrieb / drive capacity main drive 26 kWGewicht der Maschine ca. / weight  ...

x-travel: 700 mmy-travel: 715 mmz-travel: 850 mmControl: FANUC 16i-MB table-size: 500 x 500 mmtable weight: 500 Kga-axis: +45 / -135 °c-axis: 360 °distance table / middle of spindle: - mmnumber of spindle speeds: 10000 U/min/rpmtool taper: ISO 40 spindle drive: 18,5 / 22 kWrapid travel x/y/z: 70 m/minTools changer: - pos.dimension of workpiece: dia 725 mmtotal power requirement: - kVAweight of the machine ca.: 21 tdimensions of the machine ca.: mThe machines of the Clock series can also be used as 5-axis multitasking machines.The Clock series is characterized by high speed and precision.paired with a very stable machine concept. Thanks to the fasttool change and pallet exchange, the machines achieve a very highproductivity. As 5-axis version the Clock 700 is equipped with a very stableSwivel table equipped. The swivel table is double on the axesand thus guarantees the optimal absorpti ...

: 1050 mm: 600 mm: 600 mm: 1200x600 mm: ISO 40 : 12.000 U/minMotor Capacity: 7,0/10,5 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0760 mm: 440 mm: 460 mm: 900x410 mm: ISO 40 : 12.000 U/minMotor Capacity: 7,0/10,5 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0760 mm: 440 mm: 460 mm: 900x410 mm: ISO 40 : 12.000 U/minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1000 mm, 600 mm, 600 mm

BAZ Mikron Tipo: VC1000 Construído em 1995 Controle Heidenhain TNC 426 X-1000mm. Y-600mm. Z-600mm. Suporte para ferramentas ISO 40 /DIN 69871 Velocidades: 60 - 8000 rpm. Alimentações / travessia rápida 0 - 25m/min. Mesa de trabalho 1080 x 580mm - carga max.550kg. Potência de acionamento 22,5 kW a 44% ED. Trocador de ferramentas com 36 vagas. Dispositivo de refrigeração IKZ com filtro de correia. Transportador. Documentação. Necessidade de potência total: 400 V - 50 Hz - 37 kW. Requisitos de espaço: Máquina aprox. L 350cm, W 240cm, H 265cm. Peso total 6500kg. A máquina está imediatamente pronta para uso, o eixo faz barulho e deve ser armazenado.

Key data: 1015 mm, 508 mm, 675 mm

Fabricante: MIKRON Tipo VCE 1000 Pro Ano de construção 2002 Controle Heidenhain TNC 426 Peso da máquina aprox. 5 t. Porta-ferramentas SK 40 Velocidades do eixo 14.000 rpm X-Curso 1015 mm Curso Y 508 mm Curso Z 675 mm Carga máxima da mesa 1000 kg Necessidade de espaço aprox. 2,86 x 2,60 x 2,70 m Número de ferramentas na revista 24 Pos.

Key data: 600 mm, 450 mm, 450 mm

Mikron VCP 600 | Heidenhain TNC 426 Velocidade até 12.000 rpm Trocador de ferramentas de 30 velocidades SK40 IKZ com sistema de filtro de correia Transportador A máquina pode ser vista e demonstrada nas nossas instalações.

x-travel: 650 mmy-travel: 560 mmz-travel: 650 mmtable surface area: 400 x 400 mmcontrol: Fanuc 18i-M spindle turning speed range: 120-12000 U/min: ja/yes hand wheeltype of pallet-changer: 2 Cooling through the spindle: 10 barchip conveyor: ja/yes feed: 670 mm/mindistance work spindle /surface of the table: 800 mmtable load: 400 kgtoolpiece magazine: chain magazine: 60 BT 40b-axis: 360 1°rapid traverse:: 40 m/minfeed: 1-40.000 mm/mintool changing time: 1,3 sec tool/tooltool changing time: 3,8 sec chip/chiptotal power requirement: 22,4 kWweight of the machine ca.: 10,5 tdimensions of the machine ca.: 5 x 3,3 x 3 m (LBH)Machining centre - Horizontal Mitsubishi M-H4B, year of construction 1998,good ondition, regularly maintained.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mmy-travel: 530 mmz-travel: 510 mmControl: MSX-504 III Main spindle:: turning speeds: max. 10.000 min/-1power capacity - main spindel: 15 / 11 kWtool taper: BT 40 spindle bearing diameter: 70 mmdistance spindle /table: 150 - 660 mmwork table:: table surface area: 900 x 600 mmmax. table load: 500 kgT-slots: 6x 18 mmturret:: number of toolpositions: 30 pos.tool taper: BT 40 max. tool diameter: 80 mmmax. tool-dia with free toolbox: 125 mmmax. tool length: 300 mmmax. tool weight: 8,0 kgfeeds:: rapid traverse ( X / Y / Z ): 36 / 36 / 20 m/minfeed speeds: max. 6.000 mm/minTipp feed: 0 - 5.000 mm/mintotal power requirement: 27 kVAweight of the machine ca.: 5,8 tdimensions of the machine ca.: 3,5 x 3,0 x 2,8 mChip conveyor: Coolantsystem: high pressure coolant: hydraulic system: CNC - Machiningcenter VerticalMORI SEIKI - DuraVertical 5060The data for this ad was created wit ...

x-travel: 600 mmy-travel: 400 mmz-travel: 500 mmControl: total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Mitsubishi M70pallet changing device4. axis (dividing head)24-fold automatic tool changercoolant through spindle devicechip conveyorTechnische Daten / technical details:X-Weg / X-travel 600 mmY-Weg / Y-travel 400 mmZ-Weg / Z-travel 500 mmSpindelaufnahme / spindle taper SK40 Drehzahl / spindle speed 12000 UpM /rpmTischaufspannfläche / table clamping area 2x 700x400 mmWerkzeugwechselmagazinplätze / number of tool places in changer 24 Antriebsleistung Spindel / drive capacity spindle 7,5 kWGewicht ca. / weight 6600 kgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.The data  ...

x-travel: 2120 mmy-travel: 1000 mmz-travel: 850 mmControl: Fanuc table surface area: 3600x1300 mmdividing head: CNC Tool changer: 60 Postotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ertikal centro de maquinação, usado, a partir do local centro de maquinação vertical, usado, Modelo/ modelo: VS 500 SPEED Fabr./ fazer: NORTE Ano de construção/ano: 1999 Controlo/controlo: SIEMENS 840D x-Way /x-travel 2000 mm y-way / y-travel 500 mm z-way / z-travel 500 mm Alimentação: 1 - 8000 mm/min Tamanho da mesa / tamanho da mesa 2120 x 550 mm Carga de mesa / carga de mesa 2000 kp Engrenagem rápida X eixo / rápida travessia x eixo 40 m/min Engrenagem rápida Eixo Z/ rápida travessia Z-eixo 20 m/min Suporte de ferramenta / ferramenta taper HSK 63 A Velocidades do fuso - infinitamente variáveis/ velocidade de rotação do eixo 0 - 15000 rpm Motor de fuso/fuso de eixo 20 kW Diâmetro do rolamento do fuso / diam de rolamento de eixo. 70 mm Precisão da posição / precisão da posição: 0,020 mm Contro ...

curso x: 560 mm y-curso: 610 mm z-curso: 560 mmcontrolo: OSP requisito de potência total: kWpeso da máquina ca.: tdimensões da máquina ca.: m

x-travel: 1040 mmy-travel: 508 mmz-travel: 560 mmControl: Okuma type: OS 5020 M Table load: 1000 kgspindle taper ISO: 50 turning speeds: 5000 U/mintable surface area: 508X1300 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 650 mmy-travel: 750 mmz-travel: 500 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control Heidenhain iTNC530NC swivel and rotary table (4th and 5th axis)electronical handwheel60-fold automatic tool changercoolant through spindle device 20barchip conveyorTechnische Daten / technical details:X-Weg / X-travel 650 mmY-Weg / Y-travel 750 mmZ-Weg / Z-travel 500 mmA-Achse Schwenkbereich / A-axis swivel range +-120 °C-Achse Drehbereich / C-axis rotary range 360 °Spindelaufnahme / spindle taper HSK-A 63 Drehzahlbereich / spindle speed 18000 UpM /rpmTischdurchmesser / table diameter 500 mmWerkzeugwechselmagazinplätze / number of tool places in changer 60 Gewicht ca. / weight 13000 kgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, a ...

curso x: 710 mm y-curso: 610 mm z-curso: 610 mmcontrolo: Fanuc potência total necessária: kWpeso da máquina ca.: 11500 kgdimensões da máquina ca.: m

Controlador automático Controlado por PC Unidade principal Faixa de velocidade do eixo 18000 Este centro de usinagem universal RAPID MFC EVOLUTION II foi fabricado em 2009. Está equipado com uma unidade de controlo controlada por computador. A velocidade do eixo é de 18.000 rpm.

x-travel: 1050 mmy-travel: 560 mmz-travel: 520 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mHeidenhain iTNC530 CNC controlwith 4. Axis (NC-dividing head)electronical handwheel24-fold tool changercoolant devicechip conveyorTechnische Daten / technical details:X-Weg / X-travel 1050 mmY-Weg / Y-travel 560 mmZ-Weg / Z-travel 520 mmSpindelaufnahme / spindle taper HSK 63A Drehzahl / spindle speed 10000 UpM /rpmTischaufspannfläche / table clamping area 1250x515 mmWerkzeugwechselmagazinplätze / number of tool places in changer 24 Eilgang X,Y,Z / rapid feed X,Y,Z 30/30/20 m/minAntriebsleistung Spindel / drive capacity spindle 16 kWGewicht ca. / weight ca. 4900 kgTechnische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the  ...

curso x: 1200 mmy-curso: 600 mmz-curso: 700 mmcontrole: HEIDENHAIN TNC 426 M velocidades de giro: 20-6300 U/mincarga da mesa: 800 kg: 1200x630 mmcone da ferramenta: SK40: 4 altura da máquina: 2950 mmpeso da máquina ca.: 8800 kg

x-travel: 2.000 mmy-travel: 1.000 mmz-travel: 1.200 mmcontrol: TNC 430 HeidenhainMain spindle:: turning speed range - main spindle: 20 - 5.000 min/-1transmission ratio: 2 power capacity - main spindel: 30 (100%) / 45 (40%) kWTorque: 1.050 / 1.580 Nmtool taper: HSK 100 swivellable: B: +/- 180 °indexing: B: 0,001 °work table:: table surface area: 1.000 x 2.000 mmmax. table load: 4.000 kgflute distance: 100 mmT-slots: 18 H7 number of T-slots: 10 tool magazin:: number of toolpositions: 40 pos.tool taper: HSK 100 tool changing time: 10 secmax. tool diameter: 250 mmmax. tool length: 400 mmmax. tool weight: 20 kgfeeds:: feed speeds: X,Y,Z: 0 - 20.000 mm/minfeed speeds: B: 10 1/minoutput: X,Z: 15,7 / Y: 8,5 kWoutput: B: 2,5 kWfeed power: 22500 Ntotal power requirement: kWweight of the machine ca.: 23 tdimensions of the machine ca.: 8,0 x 8,0 x 3,3 mChip conveyor: Coolantsystem: high pre ...

x-travel: 1200 mmy-travel: 600 mmz-travel: 700 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: m- milling head/spindle retrofit in the year 2022 for 28.000 Euro- CNC control Heidenhain iTNC530- NC swivable milling head: B-axis full NC-axis A-axis horizontal/vertical- NC-rotary table (C-axis)- tool changer for 72 tools- chip conveyor- electronical hand wheel- coolant device (coolant through spindle device 20bar)Technische Daten / technical details:Verfahrweg X längs / X-Travel longitudinal 1200 mmVerfahrweg Y quer / Y-Travel cross 600 mmVerfahrweg Z vertikal / Z-Travel vertical 700 mmC-Achse Rundtisch / C-axis rotary table 360 °B-Achse / B-axis +-90 °Rundtischgröße / rotary table size 800 mmWerkzeugschaft / spindle taper SK40 Drehzahlbereich / spindle speed 0-6300 UpM /rpmAnzahl der Werkz ...

x-travel: 1200 mmy-travel: 600 mmz-travel: 700 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: m- CNC control Heidenhain TNC426- swivable milling head (horizontal / vertical)- NC-rotary table (C-axis)- tool changer for 32 tools- chip conveyor- electronical hand wheel- coolant device (coolant through spindle device 20bar)Technische Daten / technical details:Verfahrweg X längs / X-Travel longitudinal 1200 mmVerfahrweg Y quer / Y-Travel cross 600 mmVerfahrweg Z vertikal / Z-Travel vertical 700 mmC-Achse Rundtisch / C-axis rotary table 360 °Fräskopf / milling head +-90 °Rundtischgröße / rotary table size 800 mmWerkzeugschaft / spindle taper SK40 Drehzahlbereich 2-stufig / spindle speed (2-steps) 20-6300 UpM /rpmAnzahl der Werkzeugplätze / tool places in ATC 32 fachAntriebsleistung Spindel  ...

x-travel: 1.000 mmy-travel: 1.100 mmz-travel: 810 mmControl: TNC 640 HeidenhainMain spindle:: turning speed range - main spindle: 0 - 3.000 - 18.000 min/-1power capacity - main spindel: 28 / 21 kWmax. Torque: 226-290 / 63-83 Nmtool taper: HSK-A63 swivellable: stepless: -1° - 90 °NC-Rotary table:: rotary table dia.: 1.000 x 800 mmT-slots: 18H7 / 100 mmrotatable: 360 °Swivel diameter max.: 1.350 mmmax. table load: 1.600 kgtool magazin:: number of toolpositions: 185 pos.tool taper: HSK-A63 max. tool length: 400 mmmax. tool diameter: 80 / (160) mmpallet changer:: Number of pallet-stations: 2 pos.pallet diameter: 1.000 x 800 mmmax. palett load: 1.600 kgfeeds:: rapid traverse ( X / Y / Z ): 60 m/mintotal power requirement: - kWweight of the machine ca.: 23,0 tdimensions of the machine ca.: 7,5 x 5,5 x 4,0 mDocuments: Chip conveyor: Coolantsystem: high pressure coolant: 50 bar - Form ...

x-travel: 440 mmy-travel: 290 mmz-travel: 270 mmControl: Fanuc 21i-MB spindle turning speed range: 12000 U/mintool piece magazine with: 10 table-size: 500 x 320 mmdistance table - lower edge spindle: 180 - 450 mmboring range:: dia 22 -26 thread: M 14 - M 20 workpiece weight max.: 150 kgspindle drive: 5,5 / 7,5 kWtotal power requirement: 12,5 KVAweight of the machine ca.: 1,5 tdimensions of the machine ca.: 1,2 x 2,2 x 2,3 mequipped with:- CNC control FANUC 21i-MB- tool changer 10-fold (Iso 30)- Internal coolant supply- coolant tank- chip box2 machines available, 2nd machine without IKZ!- 1 Set of Tools for each machine- Working Hours: 16.000h Control OnThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
