lathes used for sale

Key data: 500 mm, 620 mm

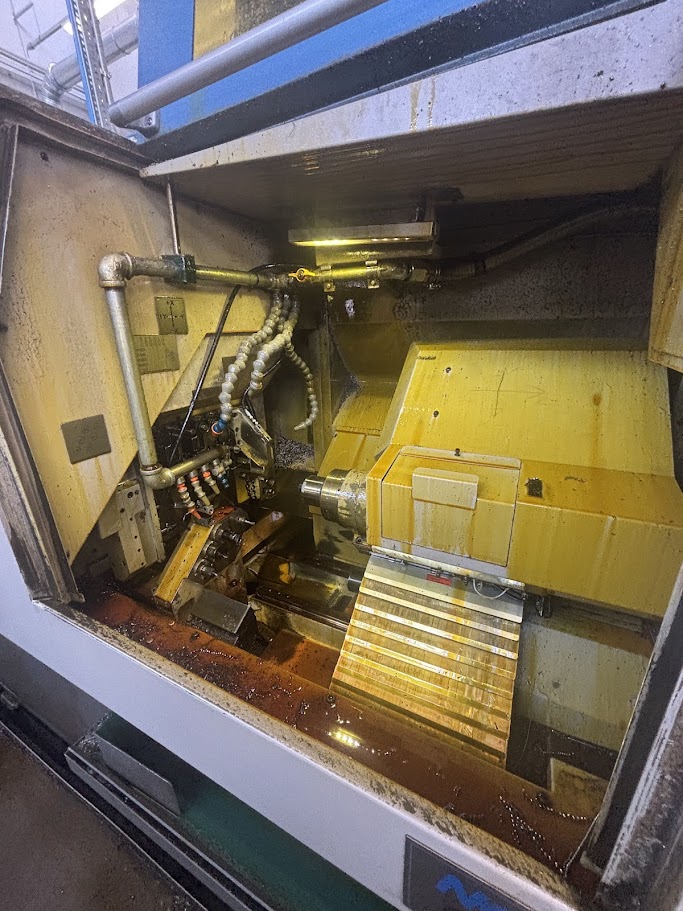

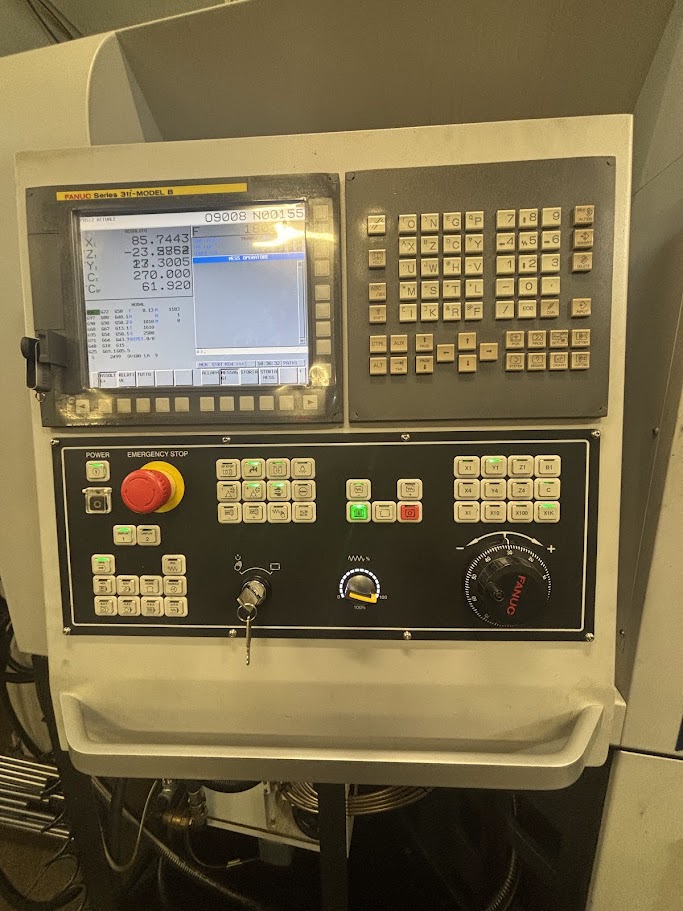

Machine Details Stock-No. 1105-04013 Type of machine CNC Lathe - Inclined Bed Type Make DOOSAN DAEWOO Type PUMA 280 Mb Year of manufacture 2008 Type of control CNC Storage location FRANCE Country of origin KOREA Delivery time on inquiry Freight basis ex work Technical details turning diameter 410 mm turning length 600 mm control FANUC O ITC Bore diameter 90 mm number of spindle speeds 45-3500 rpm Turret 12 SPEED diameter of quill 80 mm spindle head ASA - A 2 - 6 forward bearing diameter 100 mm Tailstock Quill Diameter 80 mm Center Bore MT - 5 Quill Travel 100 mm Axial Power 12 , 5 - 500 kgf Turret JAPNER x 12 Drive tool 6 Number of tools max. 12 total power requirement 36 kVA weight of the machine approx. 6.5 t Additional information FANUC serie i ot C AXIS MOWING TOOLS cip convoyer TOOLEYES VERY NICE

turning diameter over bed: 500 mmturning diameter over slide rest: 300 mmturning length: 1000 mmturning diameter in the gap: 710 mmturning speeds: 36 - 1600 U/mincentre height: 250 mmspindle bore: 103 mmtailstock quill taper MT: 5 MKtailstock travel: 150 mmtailstock quill diameter: 75 mmtotal power requirement: 7,5 kWweight of the machine ca.: 2,75 tdimensions of the machine ca.: 2,5 x 1,1 x 1,4 mCenter lathe with- 3-jaw chuck F 315- Fixed tailstock top- Multifix holder- 2-axis digital display- Fixed Lynette 180 mm- Coolant system- rapid traverseThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description Hoesch MFD CNC Heavy Duty Lathe with Siemens Control Details Face plate Ø 2,006 mm Center height 1,499 mm Reversible saddle Ø 2,235 mm Circulation diameter over bed Ø 2,997 mm Turning length 12,192 mm min/max workpiece held in chuck Ø 457 mm/1,600 mm Maximum workpiece weight 110 tons Speed range 0.5-140rpm (300hp engine) Feed range 0.0118-7.08"/rpm Permanent capacity Ø 356-902 mm Copy depth 508 mm inductive Maximum cutting force 30,000 Nm Double drum with constant capacity Ø 356-902 mm 50 Ton Capacity, Roll Type

turning diameter over bed: 360 mmturning diameter over slide rest: 220 mmturning length: 1000 mmturning diameter in the gap: 506 mmturning speeds: 45 - 1800 U/mincentre height: 180 mmspindle bore: 38 mmtailstock quill taper MT: 3 total power requirement: 2,4 kWweight of the machine ca.: 0,9 tdimensions of the machine ca.: 1,9 x 0,8 x 1,2 mCenter lathe with- 3-jaw chuck F 315- Fixed tailstock top- Multifix holder- 2-axis digital display- Fixed Lynette 180 mm- Coolant system- rapid traverseThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description Waldrich Siegen CNC lathe for heavy machining Details Conversion to CNC 2006 Center distance 22,000 mm Maximum turning length Support 1: 20,000 mm Maximum turning length Support 2: 20,500 mm Largest turning diameter over support 1,600 mm Largest turning diameter above bed 2,000 mm Workpiece weight max. 70,000 kg Face plate diameter 2,000 mm Face plate speed, infinitely variable in 4 steps 1.2 - 75 rpm. Maximum torque at speed 5.65: 170,000 Nm Main motor 110 kW Largest clamping diameter on headstock ⌀ 920 mm Mounting in roller block (passable) 2 pieces 600 - 1290 mm Mounting in bezels (passable) 100 - 775 mm Control system Siemens SINUMERIK 840D Support 1 and 2 (to headstock) Displacement of the upper support 550 mm Displacement of the slider 400 mm Quick longitudinal adjustment  ...

turning diameter over bed: 320 mmturning diameter over slide rest: 200 mmturning length: 900 mmturning diameter in the gap: mmturning speeds: 75 - 2000 U/mincentre height: 160 mmspindle bore: 50 mmtailstock quill taper MT: 3 MKconnected load frequency: 230 Vtotal power requirement: 1,5 kWweight of the machine ca.: 0,29 tdimensions of the machine ca.: 2,0 x 0,8 x 1,56 mProfessional lathe3-jaw chuck4-jaw chuckfaceplatebezel fixedrunning bezelQuick-change steel holder with 4 cassettesHalogen machine lightChip tray, chip protection wallHardened and ground bed tracksComplete coolant systemfeed protectionmachine toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine was partially overhauled. Specifications: Center height: 220 mm Center width: 600 mm Spindle bore: 50 mm Bed width: 300 mm Speeds: 31.5 - 1400 rpm Tailstock mount: MK 4 Quill stroke: 150 mm Feeds: Longitudinal slide: 0.06 - 0.8 mm/rev Axial slide: 0.044 - 0.6 mm/rev Motor power: 4 kW Weight, approx.: 1500 kg Dimensions (WxDxH), approx.: 2150 x 110 x 1750 mm Equipment: - 3-axis digital display, Heidenhain brand - 3-jaw lathe chuck, brand Forkardt 200 mm - Emergency stop push button - Quick-change holder System Multifix - Tension spindle cover - Lathe chuck protection with limit switch protection - Machine light - Coolant device The following work was carried out: - Machine partially disassembled - Damaged bearings replaced - Guides ground in X- and Z-axis - Tool holder of the tailstock quill ground - Wiper renewed - Partial handwheels rene ...

turning diameter over bed: 500 mmturning diameter over slide rest: 250 mmturning length: 1200 mmturning diameter in the gap: mmturning speeds: 7,1 - 1400 U/mincentre height: 250 mmspindle bore: 49 mmtotal power requirement: 7,5 kWweight of the machine ca.: 3,9 tdimensions of the machine ca.: 2,85 x 1,3 x 1,6 mLead and feed spindle lathe- 3-jaw chuck 260mm- 4-fold steel holder- Coolant systemThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine was partially overhauled. Specifications: Center height: 220 mm Center width: 600 mm Spindle bore: 50 mm Bed width: 300 mm Speeds: 31.5 - 1400 rpm Tailstock mount: MK 4 Quill stroke: 150 mm Feeds: Longitudinal slide: 0.06 - 0.8 mm/rev Axial slide: 0.044 - 0.6 mm/rev Motor power: 4 kW Weight, approx.: 1500 kg Dimensions (WxDxH), approx.: 2150 x 1100 x 1680 mm Equipment: - 3-axis digital display, Heidenhain brand - 3-jaw lathe chuck, brand Forkardt 200 mm - Quick-change holder System Multifix - Tension spindle cover - Lathe chuck protection with limit switch protection - Machine light - Coolant device The following work was carried out: - Machine partially disassembled - Damaged bearings replaced - Guides ground in X- and Z-axis - Tool holder of the tailstock quill ground - Wiper renewed - Partial handwheels renewed - Glass scales overhaule ...

turning diameter over bed: 250 mmturning diameter over slide rest: 130 mmturning length: 550 mmturning speeds: 50 - 2000 U/mincentre height: 125 mmspindle bore: 20 mmtailstock quill taper MT: 2 tailstock quill stroke: 60 mmmetric threading: 0,4 - 3,0 mmthread - inch: 10 - 44 TPIthread - module: 0,2 - 12,5 mmconnected load frequency: 230 Vtotal power requirement: 1,0 kWweight of the machine ca.: 0,12 tdimensions of the machine ca.: 1,09 x 0,59 x 0,45 mEquipped with- 20 mm spindle passage- adjustable guideways- Powerful 1.0 kW motor- continuously variable speedScope of delivery:- 3-jaw chuck 100 mm,- 4-jaw faceplate chuck 125mm- standing and rotating bezel- Splash guard- Feed protectionThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine was partially overhauled. Built in 1981 Specifications: Center height: 220 mm Center width: 600 mm Spindle bore: 50 mm Bed width: 300 mm Speeds: 31.5 - 1400 rpm Feeds: Longitudinal slide: 0.06 - 0.8 mm/rev Axial slide: 0.044 - 0.6 mm/rev Tailstock mount: MK 4 Gahvxg7a Quill stroke: 120 mm Motor power: 4 kW Weight, approx.: 1500 kg Dimensions (WxDxH), approx.: 2150 x 1100 x 1750 mm Equipment: - 3-axis digital display, Heidenhain brand - 3-jaw lathe chuck - Lathe chuck protection with limit switch protection - Quick-change holder System Multifix - Tension spindle cover - Emergency stop push button - Coolant device - Machine light The following work was carried out: - Machine partially disassembled - Damaged bearings replaced - Guides ground in X- and Z-axis - Tool holder of the tailstock quill ground - Wiper renewed - Partial handwheels r ...

turning diameter over bed: 470 mmturning diameter over slide rest: 300 mmturning length: 1000 mmspindle bore: 58 mmturning speeds: 20-2000 U/mintotal power requirement: 5,5 kWweight of the machine ca.: 1800 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: Center height: 230 mm Center width: 1000 mm Circulation diameter over bed: 475 mm Circulation diameter over bed slide: 320 mm Spindle bore: 50 mm Bed width: 300 mm Speeds: (18) 25 - 2240 1/min Motor power: 3.5 / 6 kW, 2-stage Tailstock mount: MK 4 Quill stroke: 120 mm Longitudinal feed: 0.06 - 0.8 m/rev Transverse feed: 0.044 - 0.6 m/rev Weight, approx.: 1800 kg Dimensions (wxDxH), approx.: 2560 x 1200 x 1710 mm Equipment: - 3-axis digital display, brand: Heidenhain - 3-jaw lathe chuck ø 315 mm with reversible jaws - Quick-change holder System Multifix - Rotating grain tip - Lathe chuck protection with limit switch protection - Emergency stop push button - Coolant device - Machine light - Chip pan

turning diameter over bed: 400 mmturning diameter over slide rest: 220 mmturning length: 1000 mmturning diameter in the gap: mmturning speeds: 31,5 - 1400 U/mincentre height: 205 mmspindle bore: 50 mmtotal power requirement: 5,0 kWweight of the machine ca.: 1,4 tdimensions of the machine ca.: 2,5 x 1,2 x 1,7 mCenter lathe- 3-jaw chuck 210mm- Multifix steel holder- Coolant pump- Chip protection wall- chip tray- Machine lightThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- 3-cheek lining - 4-cheek lining - fixed bezel - running bezel - 3-axis position display Sino SDS6-3V - Multifix Type E incl. 4 holders - Splash guard - Oil pan - Lighting system - Foot spindle brake - Coolant sealing - Steel stand with 3 drawers and cabinet door - Reduction sleeve - Spare gears Technical data: - Circulating Ø over bed: 360 mm - Circulation Ø over slide: 212 mm Ø without bridge: 490 mm - Center width: 1000 mm - Bed width: 187 mm - Spindle bore: 51 mm - Metric threads: 0.2 - 5 mm (28 steps) - Inch thread: 8 - 112 tpi (36 steps) - Module thread: 0.2 - 3 mm (22 steps) - Thread with diametrical slope: 8 - 112 dp (36 steps) - Longitudinal feed: 0.050 - 0.696 MM (36 steps) - Transverse feed: 0.013 - 0.188 mm (36 steps) - Tailstock Pinoleenaufnahme: MK3 - Tailstock Pinoleenhub: 100 mm - Motor power: 1.5 kW - Dimensions WxHxD: 1925 x 1510 x 75 ...

turning diameter over bed: 660 mmturning diameter over slide rest: 420 mmturning length: 2000 mmturning diameter in the gap: 840 mmturning speeds: 36 - 1600 U/mincentre height: 330 mmspindle bore: 103 mmtailstock quill taper MT: 5 MKtailstock travel: 150 mmtailstock quill diameter: 75 mmtotal power requirement: 11 kWweight of the machine ca.: 3,2 tdimensions of the machine ca.: 3,6 x 1,1 x 1,45 mCenter lathe with- 3-jaw chuck F 315- Fixed tailstock top- Multifix holder- 2-axis digital display- Fixed Lynette 180 mm- Coolant system- rapid traverseThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Heid 270-57-1500 - Universal lathe - Distance between centers: 1500 mm - Swing Ø: 540 mm - Spindle bore: 57 mm - Dimensions WxHxD: 3420 x 1400 x 1350 mm

turning diameter over bed: 360 mmturning diameter over slide rest: 220 mmturning length: 1000 mmturning diameter in the gap: 380 mmturning speeds: 70 - 2000 U/mincentre height: 180 mmspindle bore: 50 mmtailstock quill taper MT: 3 MKconnected load frequency: 230 Vtotal power requirement: 1,8 kWweight of the machine ca.: 0.65 tdimensions of the machine ca.: 2,0 x 0,8 x 1,56 m3-axis digital display3-jaw chuck 200 mm.4-jaw chuck 200 mm.Faceplate 320mmbezel fixedrunning bezel4-fold steel holder.Halogen machine lightmachine lightfoot brakeremovable chip tray, chip protection wallHardened and ground bed tracksComplete coolant systemlining protectionmachine toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Voest DA210 - 210/48/1500 universal lathe Centre distance: 1500 mm Tip height: 210 mm Turning diameter over bed: 430 mm Swing over carriage: 280 mm Quill recording: MK4 Spindle bore: 48 mm Bed width: 330 mm Speeds: 12 Speed range: 21-1500 rpm Feed speed: 0,072-4.04 mm Metric threads: 0.5-28 mm Inch thread: 1-56 tpi Motor power: 3 kW Voltage: 400V Dimensions WxHxD: approx. 2700 x 1400 x 800 mm Weight: 1500 kg Facilities: 4 - jaw Chuck, tracking grains u.m..

turning diameter over bed: 560 mmturning diameter over slide rest: 355 mmturning length: 2000 mmturning diameter in the gap: 790 mmturning speeds: 20 - 1800 U/mincentre height: 380 mmspindle bore: 80 mmtailstock quill taper MT: 2,8 MKtailstock travel: 150 mmtailstock quill diameter: 75 mmtotal power requirement: 5,5 kWweight of the machine ca.: 3,4 tdimensions of the machine ca.: 3,5 x 1,15 x 1,3 m• 80 mm spindle passage• Gears hardened and ground• manual central lubrication• adjustable main spindle bearings• Overload clutch in the lock case• bed bridge• incl. 3 - axis digital displayThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 500 mm, 240 mm, 1500 mm

ZMM CU 502 - Universal lathe - Center height: 250mm - Distance between centers: 1500 mm - Swivel Ø above the bed: 500 mm - Swivel Ø above the carriage: 240 mm - Spindle bore: 72 mm - Spindle speed: 16 - 2000 rpm (18 steps) - Engine power: 10 kW - Operating voltage: 400 V / 15 - 25 A - Dimensions WxHxD: 3100 x 1400x x 1250 mm - Weight: approx. 3120 kg

turning diameter over bed: 400 mmturning diameter over slide rest: 264 mmturning length: 1000 mmturning diameter in the gap: 550 mmturning speeds: 44 - 2000 U/mincentre height: 200 mmspindle bore: 52 mmtailstock quill taper MT: 4 MKconnected load frequency: 400 Vtotal power requirement: 1,5 / 2,4 kWweight of the machine ca.: 0,9 tdimensions of the machine ca.: 1,9 x 0,8 x 1,56 m3-axis digital display3-jaw chuck 200 mm.4-jaw chuck 200 mm.Faceplate 320mmbezel fixedrunning bezel4-fold steel holder.Halogen machine lightmachine lightfoot brakeremovable chip tray, chip protection wallHardened and ground bed tracksComplete coolant systemlining protectionmachine toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Siemens Sinumerik control - Chip conveyors - Coolant system - Built in 2002 Technical data - Circulation diameter: 235 mm Sledge path: - Z-axis (vertical): 250 mm - X-axis (horizontal): 450 mm + 370 mm - Workpiece height: 100 mm - • in the front bearing: 90 mm - Spindle head with short cone DIN 55026: A5 - Hollow shaft motor with oil circulation cooling: integrated into the spindle box - Rated power 100% ED: 29.3 kW - Nominal torque 100% ED: 200 Nm - Rated speed: 1400 rpm - Maximum speed: 6500 rpm - Travel speed Z-axis: max. 30 m/min - Travel speed X-axis: max. 60 m/min

turning diameter over bed: 320 mmturning diameter over slide rest: 200 mmturning length: 900 mmturning diameter in the gap: mmturning speeds: 75 - 2000 U/mincentre height: 160 mmspindle bore: 50 mmtailstock quill taper MT: 3 MKconnected load frequency: 230 Vtotal power requirement: 1,5 kWweight of the machine ca.: 0,29 tdimensions of the machine ca.: 2,0 x 0,8 x 1,56 mProfessional lathe3-jaw chuck4-jaw chuckfaceplatebezel fixedrunning bezelQuick-change steel holder with 4 cassettesHalogen machine lightChip tray, chip protection wallHardened and ground bed tracksComplete coolant systemfeed protectionmachine toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Sino SDS6-3V 3-axis position display - magnetic and manual spindle brake - 3 jaw chucks ø 250 mm - 4 jaw linings ø 320 mm - Stop Z-axis - fixed & running bezels - Multifix Type C incl. 4 holders - Face disc - Lighting system - Coolant sealing Specification - Center width: 1000 mm - Circulating Ø over bed: 500 mm - Circulation Ø over slide: 325 mm - Orbital Ø in eruption: 630 mm - Bed width: 330 mm - Spindle bore Ø: 80 mm - Spindle cone: Metric 80 C8 / D1 - D8 - Speed range: 24 - 1600 rpm - Speed levels: 15 - Metric threads: 0.5 - 28 mm (66 steps) - Inch thread: 1 - 56 tpi (66 steps) - Module thread: 0.5 - 3.5 mm (33 steps) - Thread with diametrical slope: 8 - 56 dp (33 steps) - Longitudinal feed: 0.072 - 4.038 mm/rev (66 steps) - Transverse feed: 0.036 - 2.019 mm/rev (66 steps) - Tool holder: 25 x 25 mm - Tailstock Pinole Ø: 65 mm - Tailstock pinole ...

turning diameter over bed: 280 mmturning diameter over slide rest: 158 mmturning length: 600 mmturning speeds: 45 - 2000 U/mincentre height: 140 mmspindle bore: 26 mmtailstock quill taper MT: 2 tailstock quill stroke: 60 mmmetric threading: 0,25 - 2,5 mmthread - inch: 6 - 96 TPIconnected load frequency: 230 Vtotal power requirement: 0,75 kWweight of the machine ca.: 0,16 tdimensions of the machine ca.: 1,26 x 0,58 x 0,60 mProfessional metal lathe, gearing machine- 3-jaw chuck- 4-jaw chuck- hardened bed tracks- Clamping plate- 4-way chisel holder- Feed protection- standing and rotating bezel- Splash guard- Machine lightThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 266 mm, 700 mm

- Siemens Sinumerik 802S CNC control - 3-jaw chuck with interchangeable jaws Ø 120 mm - 4-fold tool changer - Coolant device - Full enclosure - Year of construction 2013 Specification - Center width: 700 mm - Center height: 140 mm - Circumferential Ø above bed: 266 mm - Spindle bore: 26 mm - Spindle cone: MK4 - Bed width: 180 mm - Spindle speed: 30 - 4000 rpm - Speed levels: 30-300 / 140-1400 / 300-3000 / 400-4000 rpm - X-axis travel: 180 mm - Z-axis travel: 465 mm - Feed speed X-axis: 3000 mm/min - Feed speed Z-axis: 2500 mm/min - Tool slots in the tool changer: 4 - Tool changer pick-up height: max. 12 mm - Tailstock mount: MK2 - Tailstock quill stroke: 85 mm - Motor power: 1.5 kW - Coolant pump motor power: 40 W - Coolant tank capacity: 12 l - Machine dimensions WxHxD: 1685 x 1885 x 805 mm - Weight: approx. 420 kg

turning diameter over bed: 250 mmturning diameter over slide rest: 145 mmturning length: 550 mmturning speeds: 50 - 2000 U/mincentre height: 125 mmspindle bore: 26 mmtailstock quill taper MT: 2 MKconnected load frequency: 230 Vtotal power requirement: 0,75 kWweight of the machine ca.: 0,12 tdimensions of the machine ca.: 1,3 x 0,65 x 0,6 m3-axis LCD digital display systemlongitudinal feed.3-jaw chuck 125 mm.4-way steel holder.chip tray, bulkheadHardened bed tracks.Emergency stop switch.lining protectionTool box, instruction manual.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Sino SDS6-3V 3-axis position display - magnetic and manual spindle brake - 3 jaw chucks ø 250 mm - 4 jaw linings ø 320 mm - Stop Z-axis - fixed & running bezels - Multifix Type C incl. 4 holders - Flat disc ø 430 mm - Lighting system - Coolant sealing Specification - Tip width: 2000 mm - Circulating Ø over bed: 600 mm - Circulation Ø over slide: 360 mm - Circulating Ø in eruption: 730 mm - Bed width: 330 mm - Spindle bore Ø: 80 mm - Spindle cone: Metric 80 C8 / D1 - D8 - Speed range: 24 - 1600 rpm - Speed levels: 15 - Metric threads: 0.5 - 28 mm (66 steps) - Inch thread: 1 - 56 tpi (66 steps) - Module thread: 0.5 - 3.5 mm (33 steps) - Thread with diametrical slope: 8 - 56 dp (33 steps) - Longitudinal feed: 0.072 - 4.038 mm/U (66 steps) - Transverse feed: 0.036 - 2.019 mm/U (66 steps) - Tool holder: 25 x 25 mm - Tailstock Pinole Ø: 65 mm - Tailstock ...

turning diameter over bed: 380 mmturning diameter over slide rest: 200 mmturning length: 600 mmturning diameter in the gap: 380 mmturning speeds: 40 - 1800 U/mincentre height: 190 mmspindle bore: 56 mmtotal power requirement: 5,5 kWweight of the machine ca.: 1,65 tdimensions of the machine ca.: 2,55 x 1,35 x 1,5 mLead and pull spindle lathe- 3-jaw chuck 250mm- Multifix steel holder- Coolant system- Feed protection- Machine lightThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
