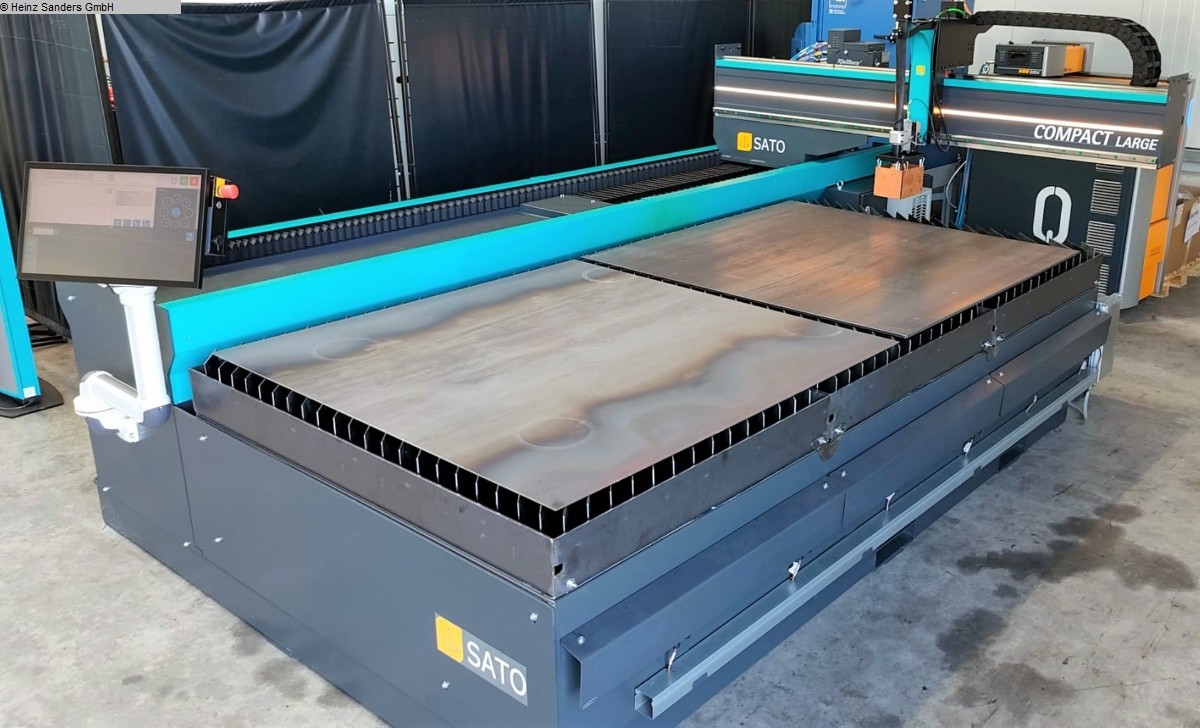

SATO Compact Large Установки для газового різання

table width: 3000 mm
table length: 1500 mm
burner heads: 1
Control: CNC
feed: 20.000 mm/min
total power requirement: 15 kVA
dimensions of the machine ca.: 4,5 x 2,5 m
* Heavy machine bed with precision guides for quiet movement
machine
* A ball bearing cross carriage for height adjustment with 400mm vertical
Hub
* Thermal separation of the drive and cutting areas ensures the highest
precision
* Automatic height finding and torch height control during cutting
* Torch holder with collision protection and automatic shutdown in the event of
a collision
* Installation or implementation of the machine using the plug & play method
with a forklift,
Ant or crane possible
* 3-sided accessibility to cutting area through boom design
SATOTEC suction table:
The SATOTEC table system is characterized by a stable table construction
max. cutting thickness of 150 mm. For cutting a workpiece thickness of 150
mm, oxyfuel cutting technology is required.
The workpiece support frame has interchangeable ones placed at a 45° angle
and 3 mm thick flat iron slats. The distance between the slats
is 50 mm.

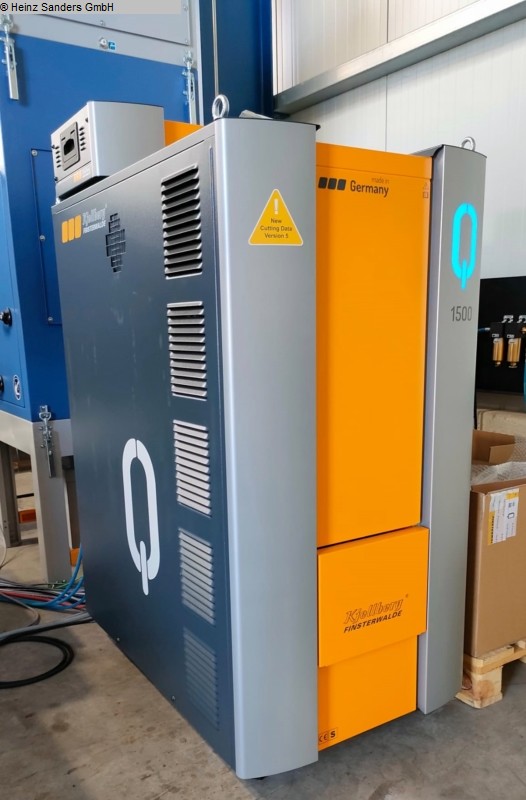

Power source Kjellberg Q1500:
* Precise plasma cutting of all electrically conductive materials from 0.5 to
60 mm both dry and under water
* Recommended cutting range from 0.5 to 40 mm
* Maximum piercing thickness 30 mm, increase possible with ProPierce Technology
* Marking, notching and punching, including coated metallic materials
* Inverter power source with digitally controlled, fully electronic process flow
* Integrated cooling with partially automated filling and emptying
Gas control:
Fully automatically controlled, processor-controlled plasma all-gas console Q-
Gas for
cutting all metals
Lantek Expert Cut Inside:
CAD/CAM module integrated in the machine control

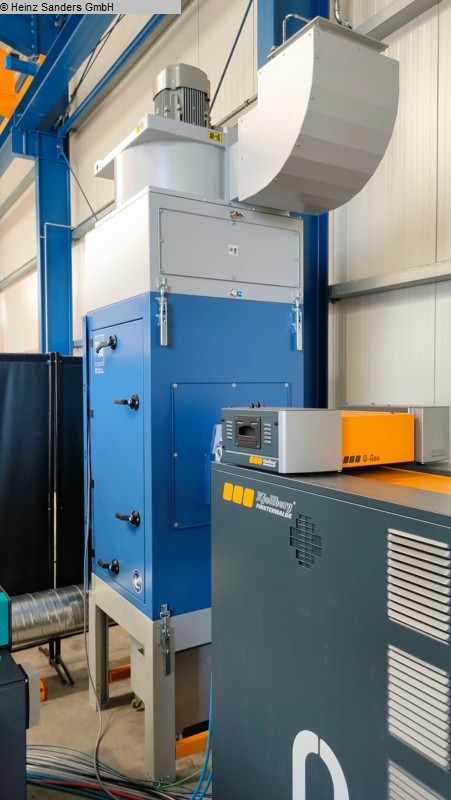

Extraction TEKA EcoCube 5.5 kW
Medium to be filtered: dry, fat-free or oil-free dust/smoke
Filter area: 100 m² (4 cartridges of 25 m²)
Filter cartridge: BIA M, Type Nano
Degree of separation: 99% (according to BGIA test certificate)
Filter control: automatic filter cleaning, PLC
Fan performance: 4500 m³/h
Motor power: 5.5 kW
Connection voltage: 400V/50 Hz or 480V 60Hz.
Current consumption: 11.5 A
Current type: 3Ph+N+PE
Fan structure: on the system, including silencer duct bend, right side
Motor control: frequency converter
Noise level: 75dB(A) + max 10 dB(A) with cleaning pulse
Intake port: NW 250 mm via intake duct, left side
Exhaust: via silencer duct bend
Dimensions (W x D): approx. 800 x 800 mm
System color: - Fan housing: Light gray
- Cartridge housing: RAL 5007 brilliant blue
Special equipment:
- Locking hooks and toggle locks
- Compressed air connection and condensate drain each mounted with one
Bulkhead fitting
- Compressed air connection with hose nozzle d=8mm
- Provide the system with grounding bolts
- Cable in UL version
- EATON frequency converter on the left in the attached control cabinet
