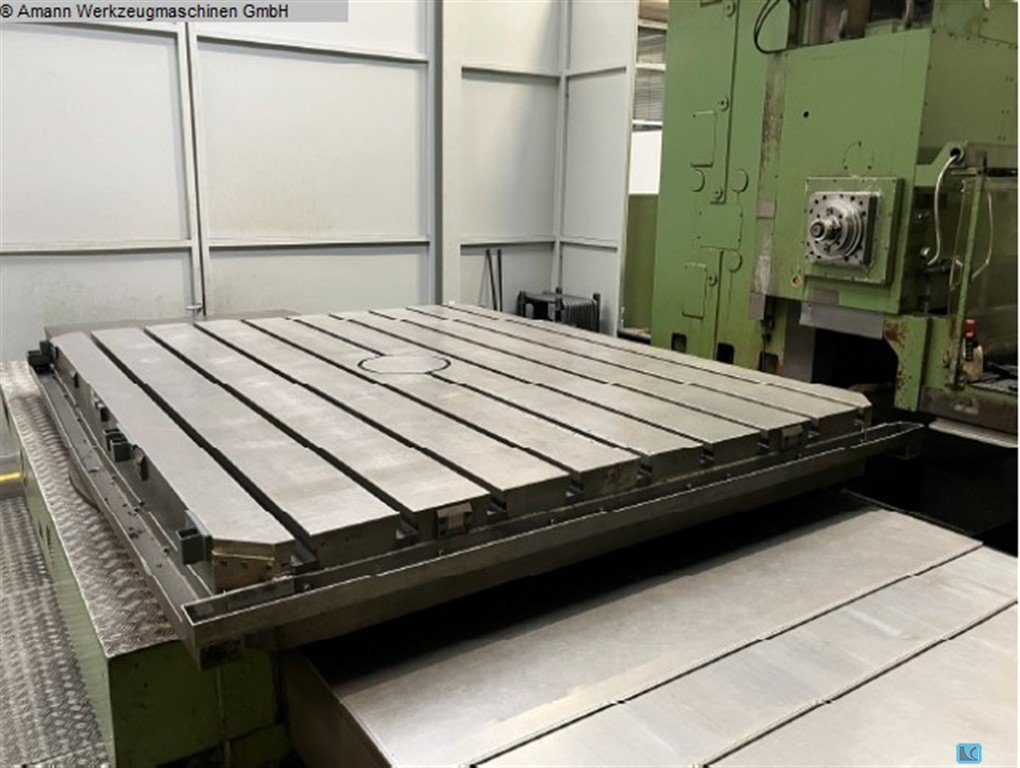

WOTAN Rapid 4A R/20 Table Type Boring and Milling Machine

spindle diameter:150 mm
x-travel:3.000 mm
y-travel:2.000 mm
spindle stroke:700 mm
dimension of the ram:340 x 340 mm
ram stroke:700 mm
column travel:1.500 mm
high speed spindle taper ISO:50
bore spindle turning speed range:3,2 - 1.600 U/min
table surface area:2.000 x 2.500 mm
max. table load:25.000 kg
rapid traverse speed:5/10 m/min
feed speeds:1 - 1.500 mm/min
faceplate speeds from - to:3,2 - 140 U/min
dimensions of the machine ca.:8,4 x 6,8 x 5,9 m
weight of the machine ca.:57 t
total power requirement:100 kW
Full B-axis
Aerostatic guides
Coolant system with IKZ
