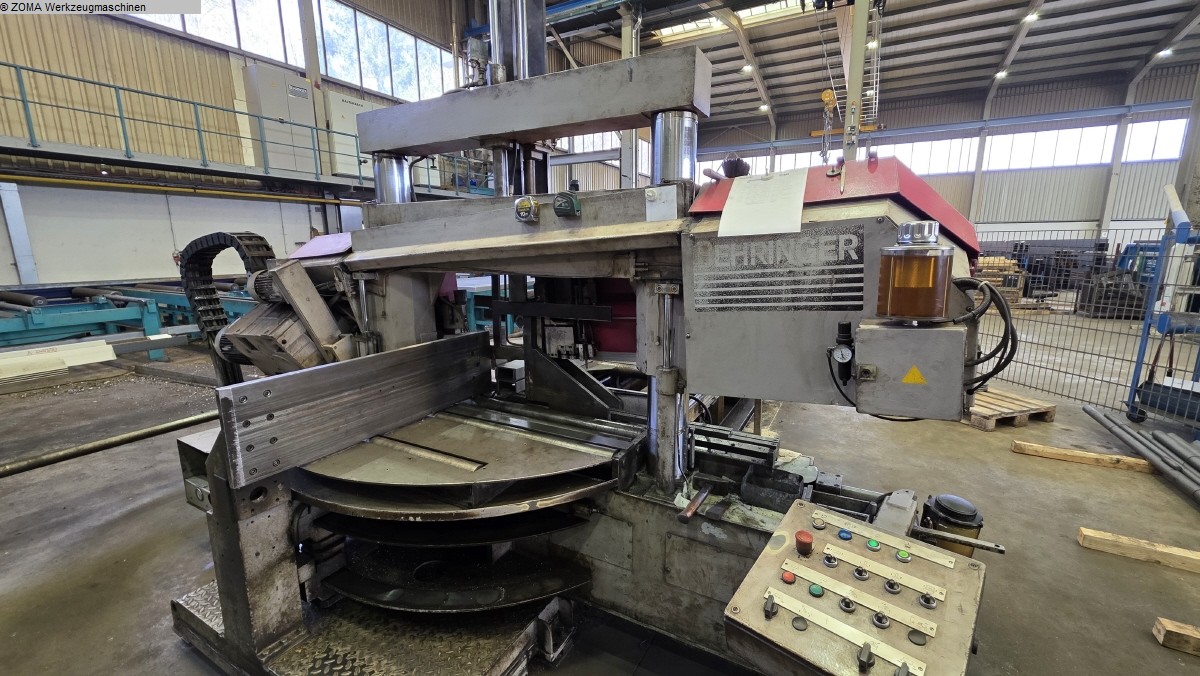

BEHRINGER HBP360-704GA Горизонтальные ленточные пилы

cutting diameter: 360 mm
saw band length: 6.300 mm
cutting width: 700 mm
table height: 800 mm
total power requirement: 14 kW
weight of the machine ca.: 5,8 t
dimensions of the machine ca.: m
Automatic Horizontal Band Saw
Cutting Capacity at 90° (Round): Ø 360 mm
Cutting Capacity at 90° (Rectangular): 700 x 340 mm
Cutting Capacity at 75° Mitre (Left & Right):
Ø 340 mm / 650 x 340 mm
Cutting Capacity at 60° Mitre (Left & Right):
Ø 340 mm / 600 x 340 mm
Cutting Capacity at 45° Mitre (Left & Right):
Ø 340 mm / 400 x 340 mm
Maximum Cutting Diameter: 360 mm
Maximum Cutting Width: 700 mm
Maximum Cutting Height: 340 mm
Minimum Cut-Off Length: 35 mm
Minimum Workpiece Size: 10 x 10 x 10 mm
Remnant Length (Manual): from 10 mm
Remnant Length (Automatic): from 160 mm
Blade Tension: 85 bar
Coolant Tank Capacity: 150 l
Blade Speed: 19 – 130 m/min
Main Drive Motor: 5.5 kW
Hydraulic Pump Motor: 5.5 kW
Coolant Pump Motor: 0.12 kW
Total Connected Load: approx. 14 kW
Current Consumption: 29 A
Power Supply: 400 V / 50 Hz
Fuse Rating: 35 A
Control Voltage: 24 V DC
Power Cable Cross Section: 4 x 6 mm²
Saw Blade Dimensions: 6300 x 41 x 1.3 mm
Saw Blade Length: 6300 mm
Saw Blade Width: 41 mm
Saw Blade Thickness: 1.3 mm
Net Weight: approx. 5,800 kg
Material Support Height (Table Height): 800 mm
